ЖК-монитор/LED-телевизор поддерживать печати под давлением и температурой MD-816SH

Share on:


Price:3 400,00 $ - 3 600,00 $
Price in USD:Details

Quantity:


Product Overview

Description



Double Monitor Single Head LCD Repair Bonding Machine


MD-816SH


 According to maintenance staff tailored high-end products , machine not only in the accuracy of the temperature and the mechanical accuracy do the precision design , the procedures also increases the glass and circuit board parameters direct selected function , working pressure automatically switch , greatly facilitate the technical staff selected the parameters , increased the tool bit preheating function , to ensure that the machine at any temperature difference can ensure heating rate and temperature accuracy , the bonding effect reached factory-class level , high bonding excellent rate, low repair rate , this machine is the maintenance and after-sales staff preferred the classic model.





MD-816SH is Mini Version bonding machine for those starting repair shop with low budget.





Features:



  • Design for 15" – 65" LCD/LED television repair.

  • Bonding ACF and FPC/COF/FOG/TAB to LCD (TFT, IPS).

  • Control by PLC, pulse heating method.

  • Touch screen operation, multiple bonding parameters can be set.

  • FPC/COF/FOG/TAB hot bar process.

  • Moveable platform.

  • CCD system helps to place work piece.





Specification:










































































































































Model



815SH/816SH



Head NO.



1



Name



Bonding machine



Application



FPC, COF, TAB and LCD Panel, PCB bonding



LCD size



15”-65”



Panel thickness



0.3mm-1.1mm(single layer glass)



IC No.



Multi/panel



Bonding direction



X or Y



Boning time



TFT, 1.8s/chip



Capacity



TAB, 380 pcs/H



Bonding accuracy



±1.5um



Positioning accuracy



±0.5um



Working environment



Clean, dust free



Air pressure



0.5-0.7Mpa



Automatic pressure



Multi pressure, max 10 segments



Input



AC220V/50Hz



Power



1200W



Pneumatic parts



Japan SMC MXS20-75/MXS20-100



Heating method



Pulse heating



PID temperature system



Omron



Hot head



Material: Japan titanium alloy


Size: 45*1.4*10


Plane precision: 0.001mm


Plane thickness: 0.5mm



Thermocouple



K type, origin USA OMEGA



Controller



Japan Panasonic PLC



Image system



Japan Panasonic image system


COF positioning: down positioning


PCB positioning: Yes


Camera quantity: 3


Microscope: 30-120 zoom


COF monitor: 19” * 2


PCB positioning monitor: Yes


Up light: Yes


Down light: Yes



COF fine adjustment



Origin: Taiwan


Guide rail type: U type


Accuracy: 0.01mm


Adjust direction: X/Y/R


R range: Rough adjustment 360°;


             Fine adjustment ±5°



COF fixture



Mechanical fixed



Camera fine adjustment



Control: X/Y/Z micrometer


Focus adjust: manual



LCD platform



Moveable, slide by hand



Alarm



Air pressure fault;


Temperature fault;


Thermocouple fault;


Operation fault



Hot head positioning



Any positon



Parameter memory



Multi parameter group storage



Size



L1800*W1200*H1520mm



Weight



200kg



816SH-800


816SH Double Monitor Single Head Mini LCD Repair Bonding Machine





816SH1


816SH Double Monitor Single Head Mini LCD Repair Bonding Machine






815SH-800

815SH Single Monitor Single Head Mini LCD Repair Bonding Machine

815SH (2)

816SH Double Monitor Single Head Mini LCD Repair Bonding Machine



Demo Video: https://youtu.be/OeMWBkEInj8




HowToRepairLCDTVPanel


LCD TV COF Replacement Procedure





BondingMachinePackagingAndShipping


Package and Shipping





Training room


Training Room

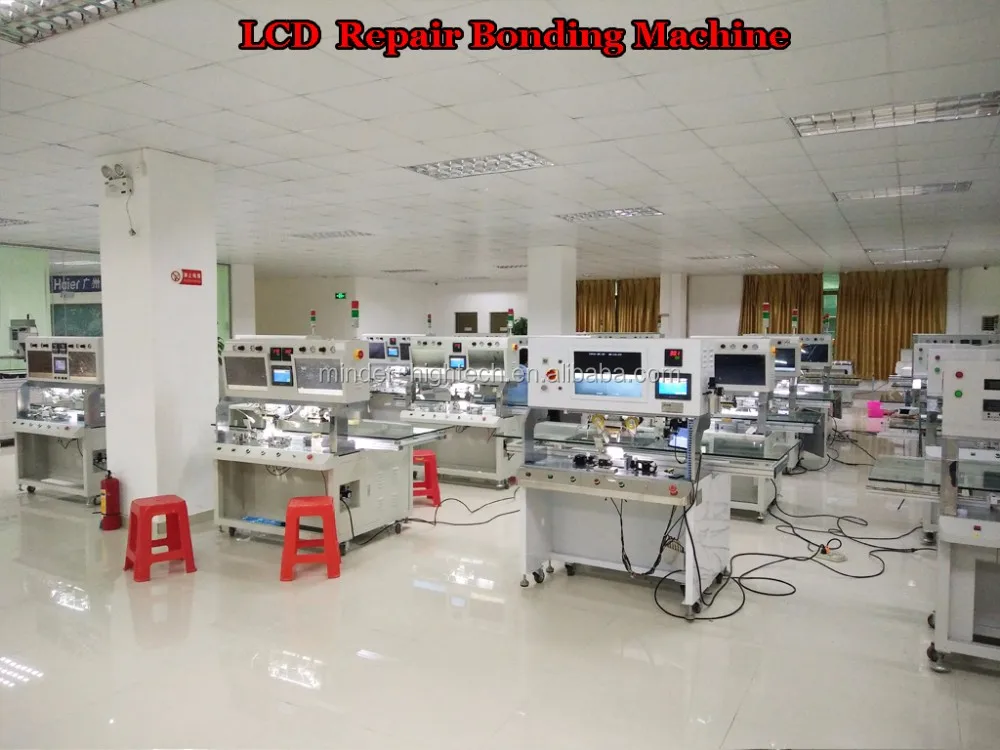

LCD Repair Bonding Machine
