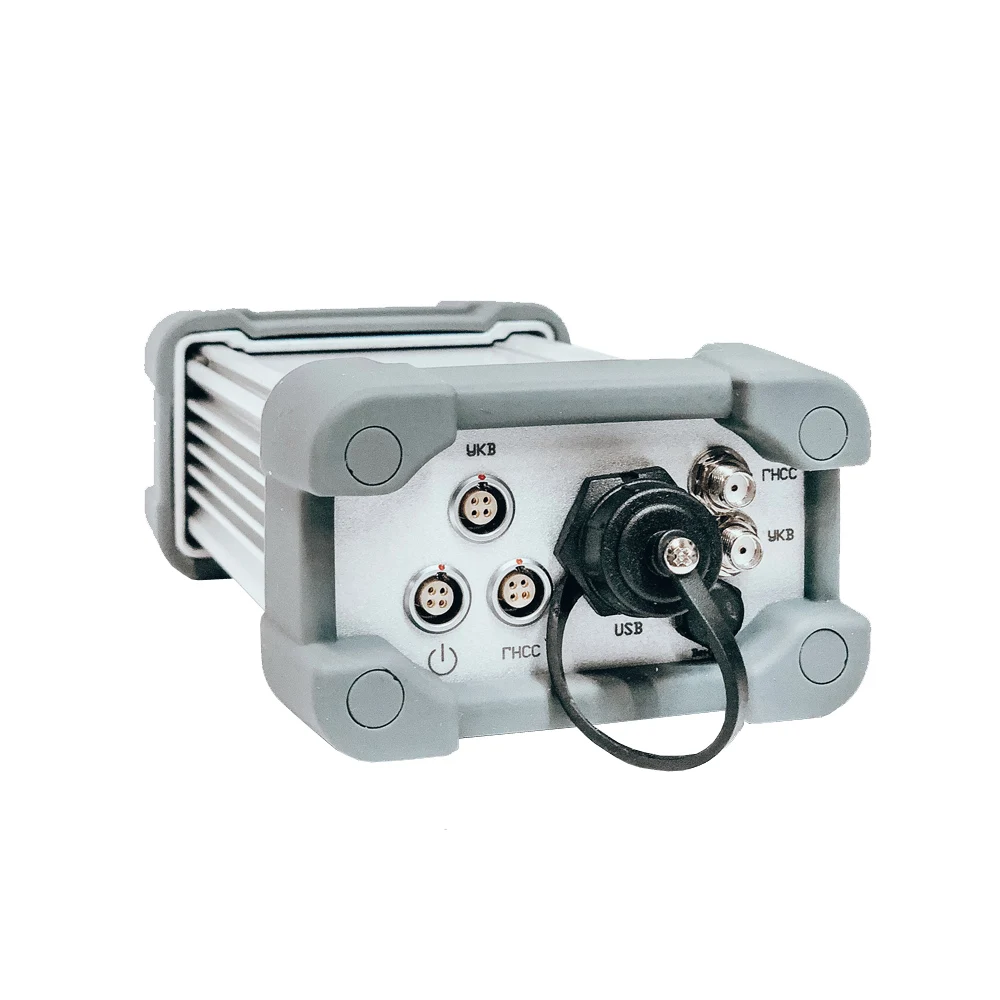

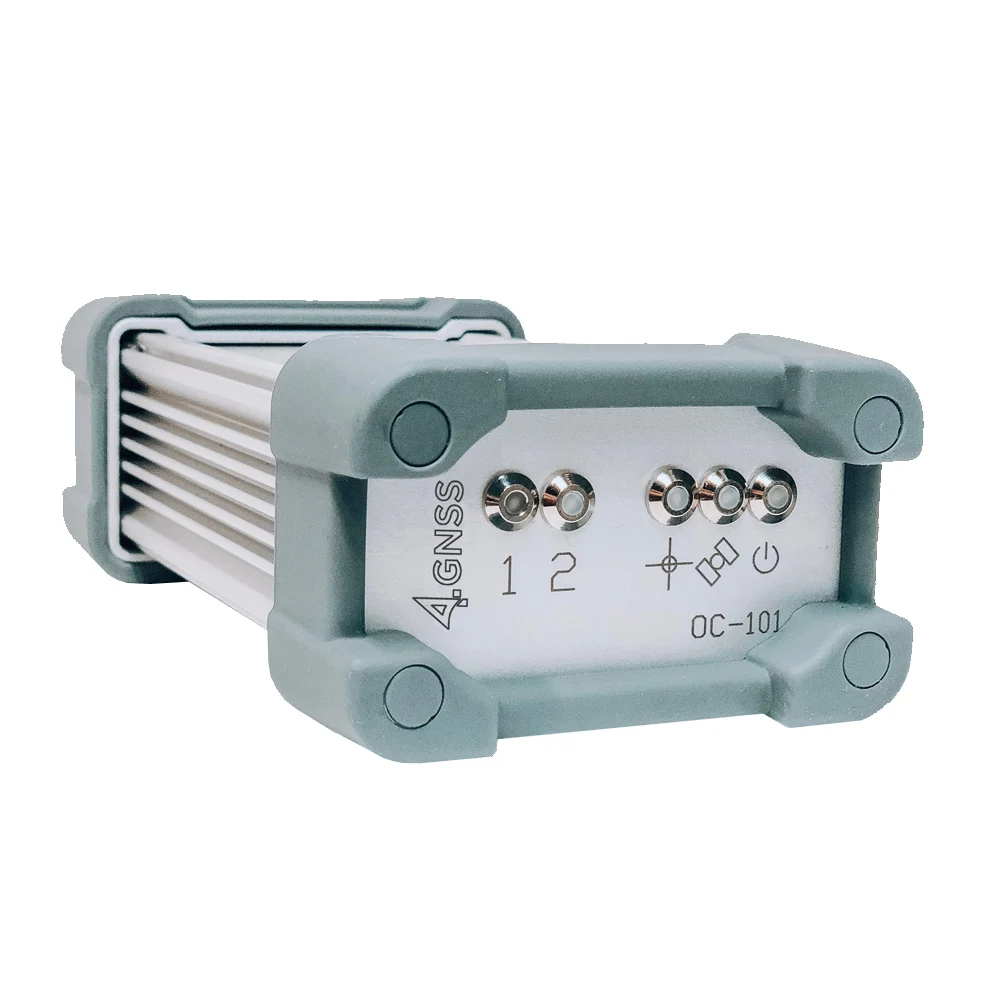

Single frequency satellite GNSS receiver for base station

Single-frequency RTK GNSS receiver for Mobile or Base station. Excellent for UAV and RTK applications. Measurements are recorded in the internal memory of 8 GB (optionally 32 GB). Supports RTCM 2.x, 3.x, CMR corrections. Raw data is easily converted to RINEX by the receiver's internal WebUI or PC free utility. WebUI to configure and control the receiver. Includes internal battery for 10h autonomous working.

Purpose: mobile or base station.
Design features: supplied with shock absorbing rubber bumpers.
Frequencies: GLONASS L1, GPS L1, BeiDou B1
Size (LxWxH), mm: 164 x 87.4 x 53.6
Weight, kg: 0.8

Country of origin
• Russia

Detailed Images
Specification
Signal Tracking
200 channels
GPS L1 C/A
BeiDou B1
GLONASS L1 C/A, L1P
SBAS: WAAS, EGNOS, MSAS, GAGAN
Performance Specifications
Cold start <50s
Warm start <45s
Signal reacquisition <2s
Velocity Accuracy 0.03m/s
Acceleration 4g
Overload 15g
Time Precision
20ns
Positioning Specifications
Post Processing Static
2.5 mm+1 ppm Horizontal
5 mm+1 ppm Vertical
Single Baseline RTK (<8km)
10 mm + 1 ppm Horizontal
20 mm + 1 ppm Vertical
DGPS
0.4 m 3D RMS
SBAS
1 m 3D RMS
Standalone
1.5m 3D RMS

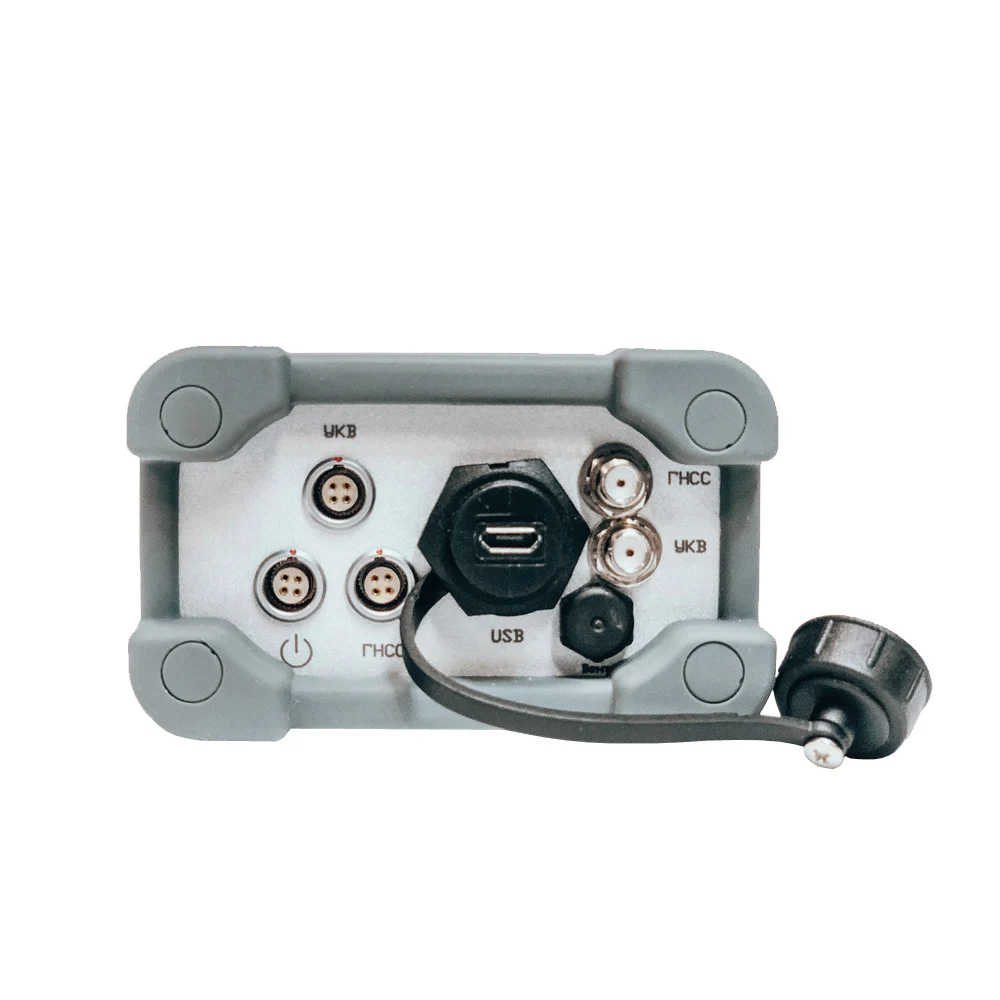

Communications
Communication port
2 Lemo0 4pin (female) RS-232 ports, baud rates up to 921600 bps
1 Lemo0 4pin power port
1 USB port
Bluetooth
optionally
6.5W UHF modem Harxon
optionally
WebUI
FTP-server and FTP-Push
Positioning data outputs
1Hz, 2Hz ,5Hz, 10Hz, 20Hz (depends on installed option)
PPS
1 Pulse Per Second Output
Event marker input
Data Format
Correction data I/O
CMR, RTCM 2.x,3.x, RTCM COMPASS
Position data output
ASCII: NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST; PTNL, PJK; PTNL, GGK; PTNL, AVR; NAVPOS
ComNav Binary data
Physical
Size(L×W×H)
164mm × 87.4mm × 53.6mm
Weight
 0.8 kg
Antenna
1 x SMA female (GNSS), 1 x SMA female (UHF)
Environmental
Working temperature
-40℃ to +85℃
Storage temperature
-40℃ to +85℃
IP protection
IP67
Electrical
 Input voltage
7-28 VDC
Power consumption
1.6W (3 constellations)
Additional functions
UHF 6.5W (OC-101UHF) without internal battery
GPS L1, BeiDou B1, GLONASS L1, SBAS
WebUI
Advanced QuantumTM Algorithm
Support short baseline RTK
Support PPS and Event Marker
Low power consumption and compact size
Packing & Delivery
Port
St. Peretburg
Processing Time
2 days
MOQ
1 piece
