Large capacity sand washing equipment for sale

Product Description

.jpg

Product Discription of our Sand Washer(sand washing machine):

 Sand Washing Machine is a kind of wheeled washing equipment, and can clean and separate the dust and powder from the sand. Its new seal-structure and reliable driving device can make sure the cleaning effect and a kind of high efficiency sand washing equipment matched with the sand making machine.

Sand Washing Machine are mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc., and with features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss of the sand.



Sand Washing Machine



Working Principle of Sand Washing Machine:

Electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder. On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used. Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.



Sand Washing Machine



Characteristics of Sand Washing Machine:
Reasonable structure, large capacity, low consumption, little loss of the sand during the washing process, low failure rate.

Main Technical parameters of sand washing machine:

ModelWheel Size (mm)Max feed size (mm)Power (KW/HP)Weight (t)Capacity (t/h)Overall dimension (mm)
XSD2610Φ2600×1000105.5/7.52.620-503255×1982×2690
XSD2816Φ2800×16001011/154.230-603540×3000×2880
XSD3016Φ3000×16001015/205.550-1003845×3000×3080
XSD3220Φ3000×20001015/208.360-1504150×3500×3300
XSD3620Φ3000×20001015/209.880-1504500×3500×3700
XL915Ø915×75851018.5(25)6.360-1008900×2861×3821
2XL915Ø915×7585102X11(15)11.2120-2008900×3765×3821
XL1115Ø1115×97851018.5(25)10.8100-17511270×3645×4340
2XL1115Ø1115×9785102X18.5(25)18200-35011270×4365×4415



Successful Case



 70-100TPH Pebble Crushers for road construction in Salvador



Equipment: PE500×750, CSB75,VSI7611,3YZS1848, XSD3016, etc.

Processed Material: pebbles

Place of use: Salvador

Maximum feeding size: 500mm

Output size: 0-5,5-20,20-40mm

Capacity: 70-100tph

Application: road construction



Sand Washing Machine

Customer Visit

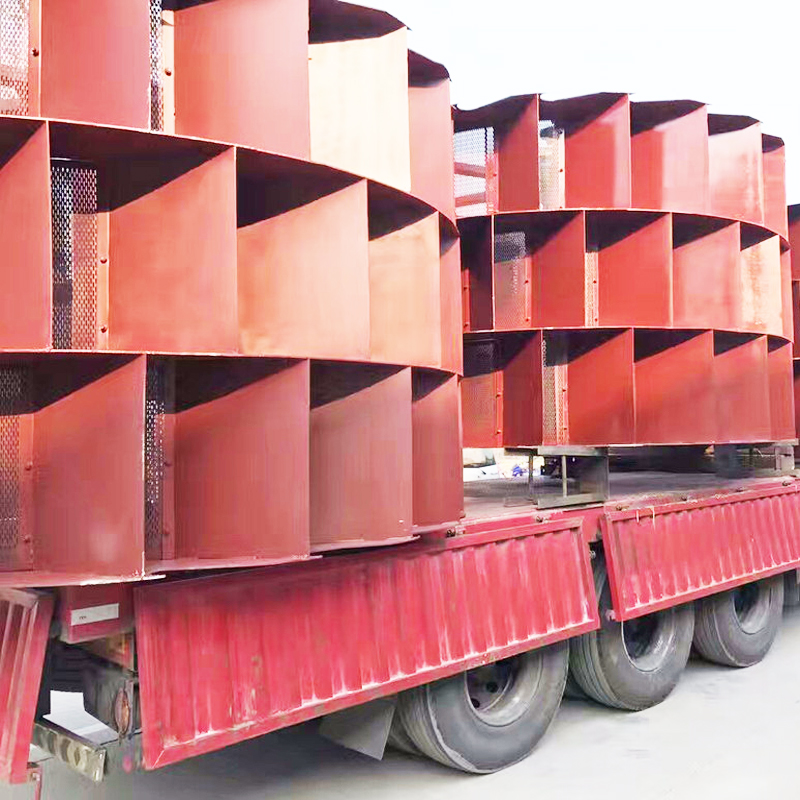

Packaging & Shipping



Large capacity sand washing equipment for sale  is exported to more than 130 countries and districts all over the world. We promise to ship about 45 working days after payment. The payment can be L/C, T/T and other negotiation.







Certifications



We have obtained Patent Certificate, ISO international quality system certification, European Union CE certification, Russian GOST certification and many other honor certificates.



Company Information



Henan Liming Heavy Industry Science and Technology Co. LTD which mainly manufacture large and medium-sized crushing and grinding equipment was founded in 1987. It is a modern joint-stock corporation with research, manufacturing and sales together.



( )2



FAQ



Q: 1. To which country your products have been exported before?
A: Our products have been sold to Ecuador, Brazil, Chile, Sudan, Zambia, Kenya,Turkey, Indonesia, Malaysia, Philipines, Australia, , India and so on.



Q: 2. How will you help the customer install the equipment?
A: Our senior engineer will guide the installation and commissioning as well as the initial production at site.



Q: 3. How about the wear parts supply?
A: We offer wear parts to our customer with our most favorable price. If there are problems you could not handle, we will send our technicians to your place. but you are responsible for all the cost involved.
