Factory supply HDMI Seamless video switcher hdmi 2.0v 4K 3D


Product Description

Intruduction:



The 3x1 HDMI Switcher allows access to multiple HDMI sources, using a
single HDMI sink. 3 HDMI inputs and one HDMI output port. In HDMI mode,
the switch supports resolutions up to 4Kx2K@60Hz. The switch also supports
EDID RAM. The Switcher allows 3 HDMI devices to be switched easily through
one HDMI compatible monitor or projector. The Switcher can also be placed
at the end of a long HDMI cable to regenerate the HDMI signal.





Feature:

Supports 3 HDMI input ports.
Supports 1 HDMI output port.
Supports HDMI 2.0 Compatible input and output ports.
Supports video solution up to 4K@60Hz.
All modes support RGB 4:4:4 / YCbCr 4:4:4 / YCbCr 4:2:2 / YCbCr 4:2:0.
Support Deep Color.
Maximum TMDS throughput up to 6Gbps per lane (Total 18Gbps).
Support HDMI input and backward compatibility allows DVI inputs.
Support dual mode of AC coupled and DC coupled inputs and automaticallyswitch either mode.
A programmable range of receiver equalization ratio: 5dB ~ 15dB @ 6Gbps for various quality and length cables.
Supports output swing adjustment and pre-emphasis enhancement.
Integrated internal terminations of 50 ohm resistance.
Support single AV source input plug & play.
Toggle between AV sources using a single button switch port rotation or
software (MCU) programming.
No loss of quality.
Installs in minutes.





SPECIFICATIONS:


 HDMI version…………………………………………...........HDMI 2.0, HDCP 2.2
HDMI resolution..24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p
Supports video color format ....……….................24bit/deep color 30bit, 36bit
Supports audio format…...........................DTS-HD/-trueHD/LPCM7.1/
DTS/-AC3/DSD HD(HBR)
Max bandwidth……………………………….......………………………….600MHz
Max baud rate…………………….…………........……..………………..18.0Gbps
1080P Input cable distance....................≤15m AWG24 HDMI standard cable
1080P Output cable distance..................≤20m AWG24 HDMI standard cable
4Kx2K Input cable distance......................≤5m AWG24 HDMI standard cable
4Kx2K Output cable distance...................≤8m AWG24 HDMI standard cable
Max working current………………………....………………………………..125mA
Power adapter format Input..…...AC100V-240V (50/60Hz) ; Output: DC 5V/1A
Operating Temperature range……..….…...………………….… (-40 to +85℃)
Operating Humidity range……………..........…5 to 90%RH (No Condensation)
Dimension ( L x W x H)……………….......…...........................110x60x20(mm)
Weight……........................................................................................105g




PRODUCT PICTURES

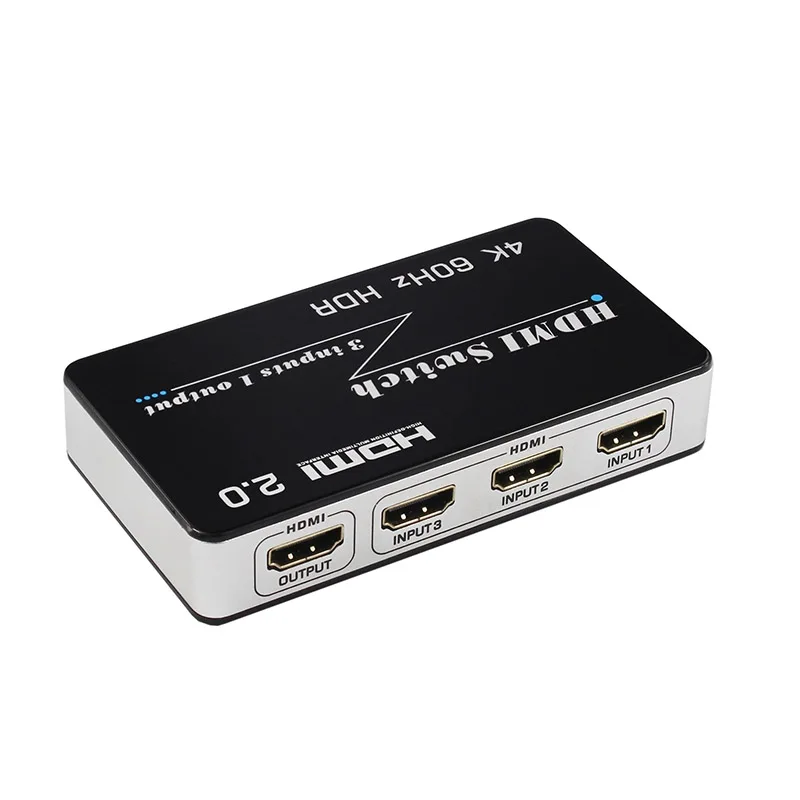

  3012ts0 (3).jpg

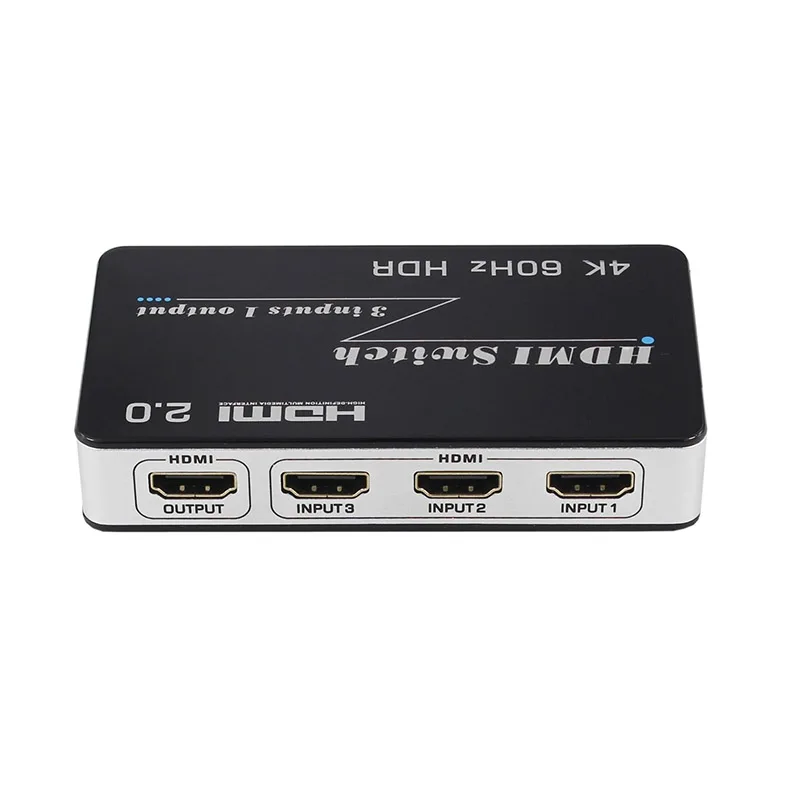

3012ts0 (2).jpg

3012ts0 (1).jpg

3012ts0 (4).jpg







All Kinds of Scenes Freely Applied

Widely used in video conferencing, conference lectures, home theater, office, teaching improve work efficiency

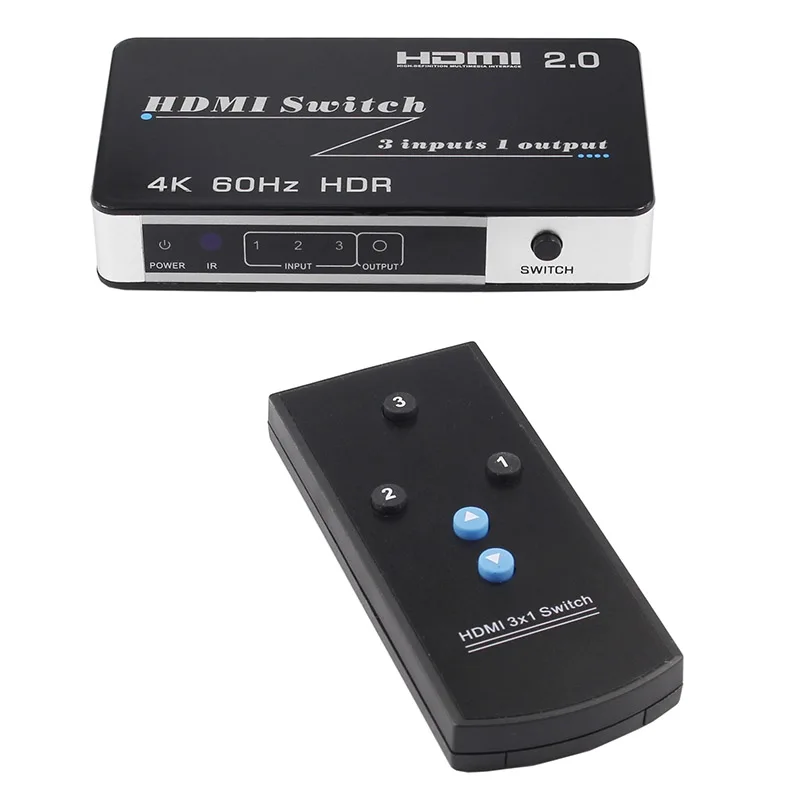

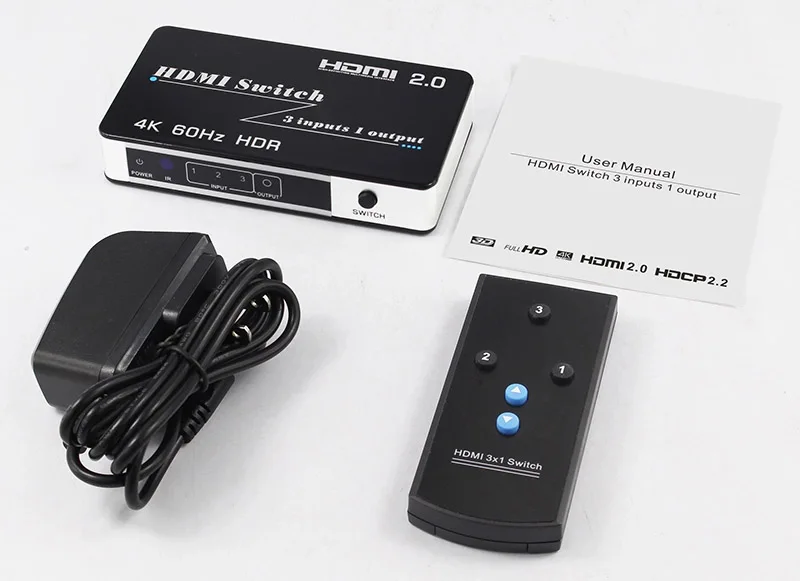

Single Product Packaging Content :

1. HDMI 3×1 Switch x 1

2. Remote controller x1

3. User Manual x 1

              DC 5V Power Adapter x1





Company Information
Company Information
01

As a professional HDMI products provider, we continue to develop innovative solutions and most important guarantee quality of products. All of our products comply with international quality standards. Most of our products have attained CE, RoHS, FCC, UL etc. certifications. Our products are not only sold in China, but also exported to the USA, Europe, Australia Southeast Asia and other countries and regions. We have won a good reputation among our customers.

paste-pic-dp_uuid_3daga



 02

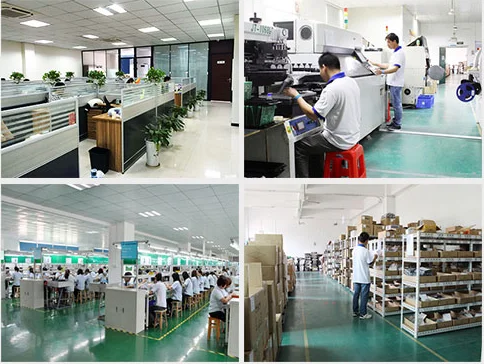

Our manufacturing plant covers an area of 2,500 square meters. We have more than 150 skilled employees, including 10 in management and 5 engineers who are dedicated to improving technique and making innovation with rich experience in A/V field. And, we are still continue strengthening our comprehensive power on design, production, marketing and strict quality control in order to meet the challenges arising from competitive market.
