Pile driver machine  TALOS 55  sidegrip excavator vibro hammer for sheet piles

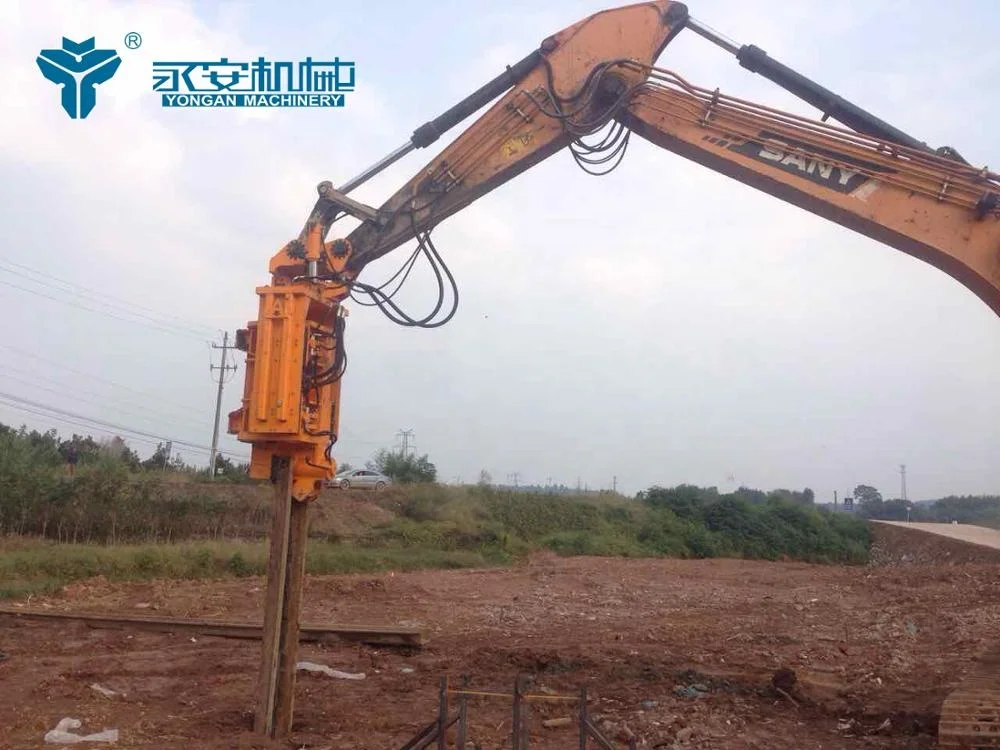

Side grip vibro hammer TALOS 55 is a quick attachment of excavator, a new kind of pile driver, newest developed by Yongan Machinery. It is suitable to drive and extract sheet piles for different geological situation except the hard rock layer. It is the optimum solution in limited space and sensitive environment. With its innovative features, this side grip vibro increase your excavator's profitability, and reduces your operation expensations. It is proved to be a useful and reliable tool in piling industry.

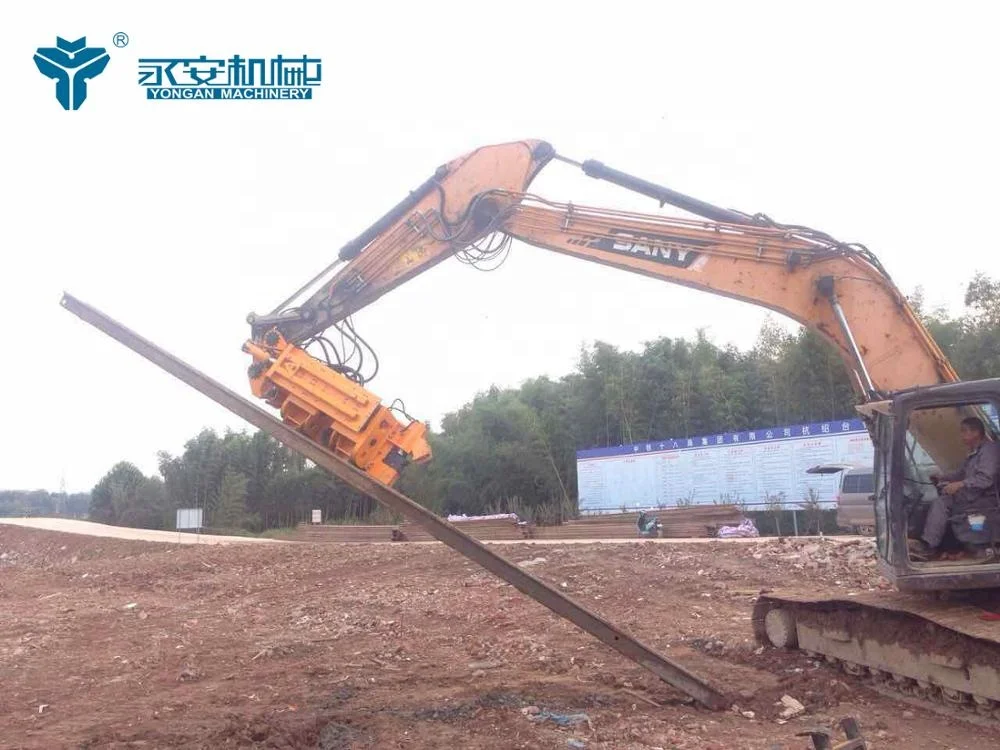

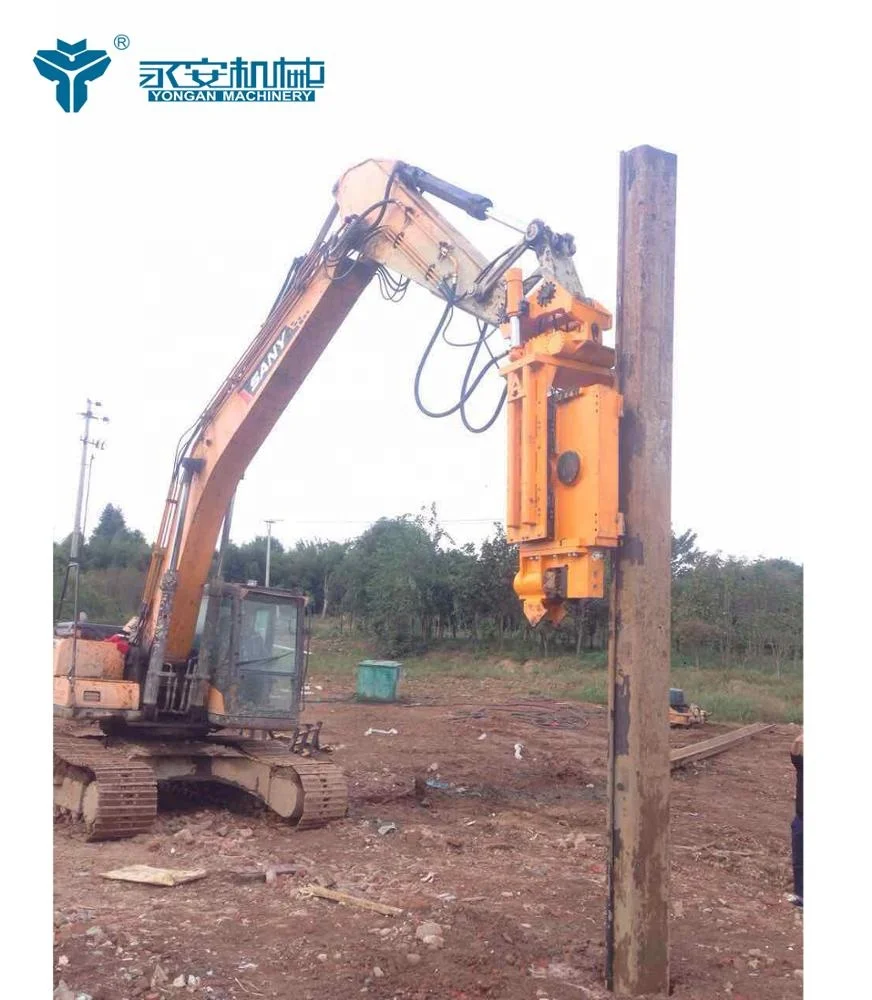

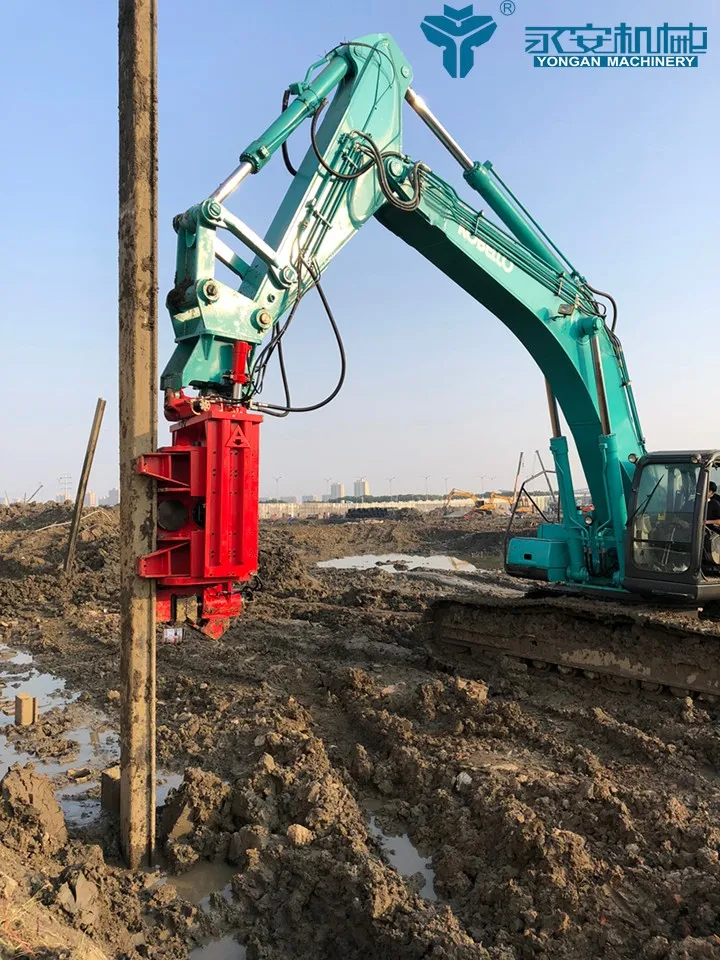

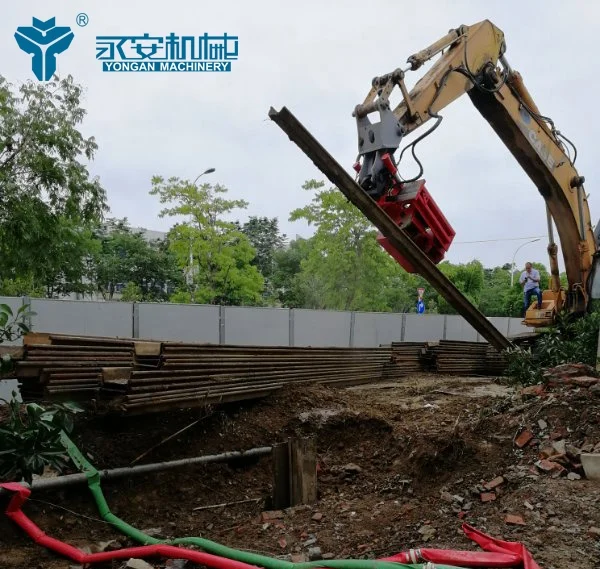

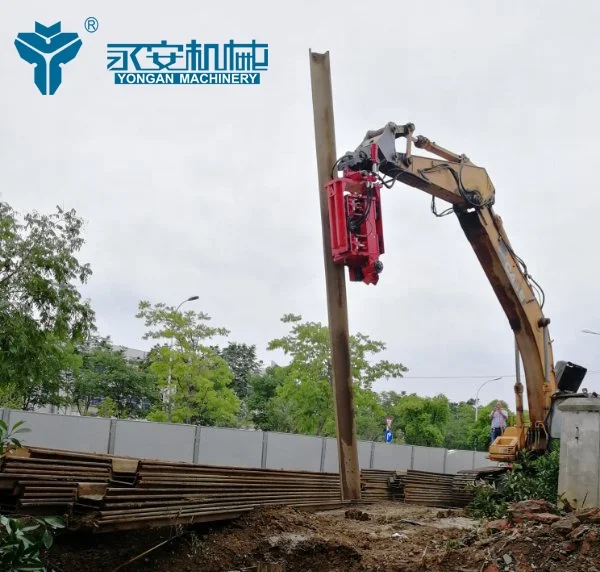

It is very easy to be installed in the excavator, just take off the bucket and install the hammer, connect the pipeline, then it can work. It can drive the sheet piles both from the side and the top, no lifting height limit of the excavator boom, no need to prolong the boom to drive long piles, thus can drive 6m piles, 12m piles, or even 18m pile. It will save you a lot in prolong boom cost and also local transportation cost.


\t
Model
\t
TALOS 55
\t
TALOS 65
\t
TALOS 75
\t
Eccentric Moment (kgm)
\t
5.5
\t
6.5
\t
7.5
\t
Centrifugal Force (KN) max
\t
545
\t
643
\t
742
\t
Frequency (rpm)
\t
2300-3000
\t
2300-3000
\t
2300-3000
\t
Bottom Clamp Force(KN)
\t
306
\t
336
\t
336
\t
Side clamp Force (KN)
\t
416
\t
456
\t
456
\t
Size (L*W*H)  (mm)
\t
1109*1124*2470
\t
1122*1129*2510
\t
1122*1129*2510
\t
Throat Width (mm)
\t
870
\t
920
\t
920
\t
Weight (KG)
\t
2555
\t
2655
\t
2755
\t
Rotate/Tilt angle  (︒)
\t
360/±40
\t
360/±40
\t
360/±40
\t
Excavator Class  (T)
\t
20-30
\t
30-40
\t
40-50
\t
Engine Power min (KW)
\t
110
\t
150
\t
180
\t
Pressure Setting (bar)
\t
320
\t
320
\t
320
\t
Return Pressure max (bar)
\t
5
\t
5
\t
5
\t
Pile Length (m)
\t
6-12
\t
6-15
\t
8-18
Our Factory


Yongan Machinery Co., Ltd is one of the most professional vibratory hammer manu facturers in China and was established in 1985. After 30 years of development, it becomes the leading company in vibratory hammers industry.

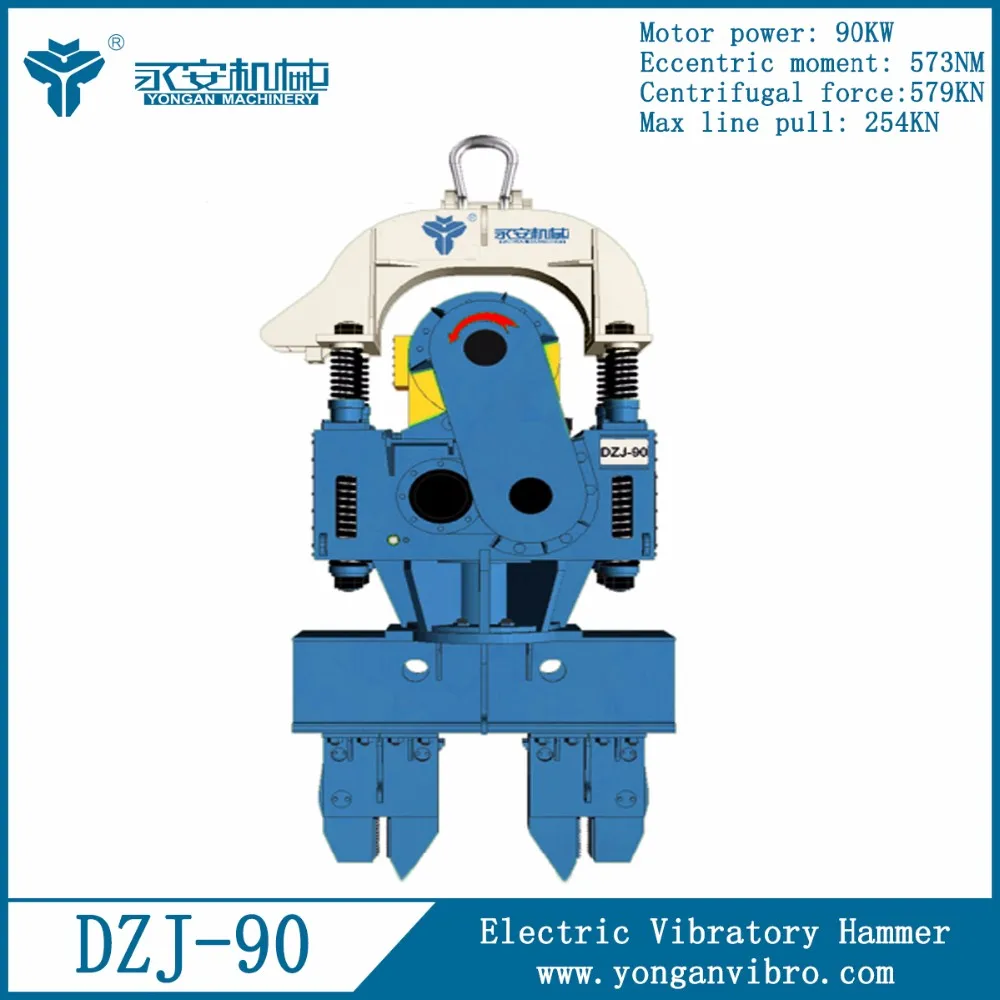

The company has been always devoted to the technological innovation and development of new products including DZJ series vibratory hammers and side grip vibro hammer for excavator. Our products had been applied in more than 300 large projects (such as Hongkong-Zhuhai-Macao Bridge, Zhoudai Oversea Bridge, Shenzhen-Zhongshan Bridge, Russia Ketch Bridge, Nigeria Dangote Oil Refinery Project, Bangladesh Payra Bridge) and won prizes and praises for good quality and excellent performance.

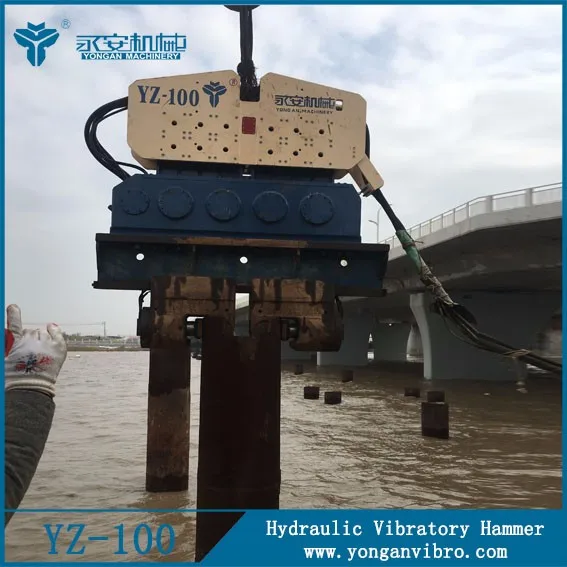

With powerful technical support, we successfully put new model DZJ-600 vibratory hammers, YC-80, YC-110 hydraulic impact hammer and Talos series side grip vibro into the market, creating a new big capacity record in China. Hydraulic vibro hammer YZ-400 is the largest hydraulic vibro hammer in China. YC-110 with impact energy 1870knm became the largest impact hammer in China. And we are also the first successful manufacturer for side grip vibro hammer. In the over 30 years, we have been devoting for providing reliable, professional and efficient piling equipment for the market.


Certifications
Exhibition show

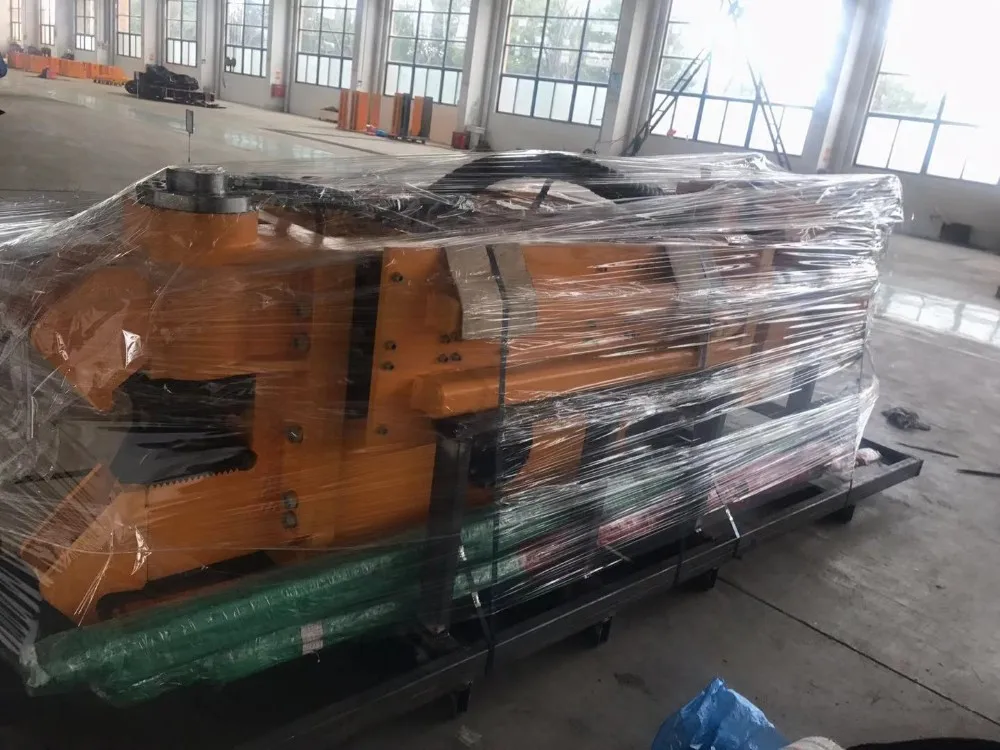

Packing & Delivery
