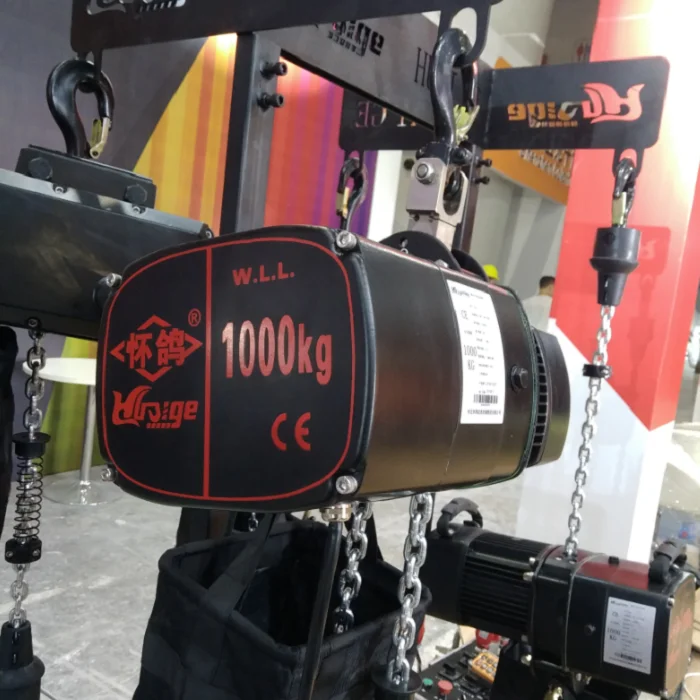

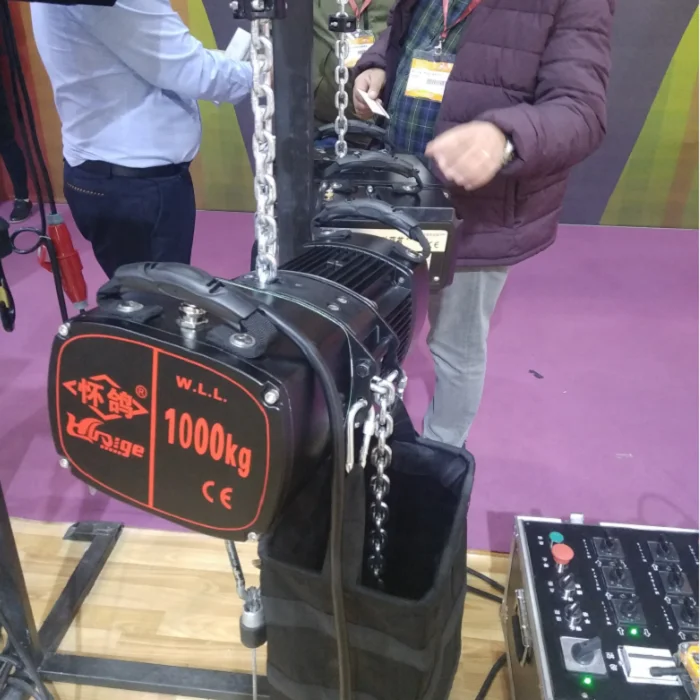

JDP 1 ton 25 meter truss motor D8 standard

Share on:


Price:$560.00
Price in USD:Details

Quantity:


Product Overview

Description
























Introductions





The body is made in cast aluminium to be as light, yet as strong as possible. The matt black finish is corrosion resistant and non reflective.


Gear Box is manufactured with a thicker aluminum wall, comparing to the rest of the body, to respond to the very stringent mechanical requirements.


The chain bag bracket allows the hoist to be used motor up or down. The design ensures the bag is positioned correctly to accept chain without the need for any adjustment, reducing the chance of chain spills.


Fluid Bath, the dynamic fluid lubricant used for the gearbox, reduces friction and surface wear. As a direct result, noise level, reliability and durability are miximized while maintenance is minimized. The special type of dynamic fluid is high pressure resistant and keep its volume and lubrication capabilities up to 180 degree temperature.


Self climbing or standard suspension without any adjustments reqired. Swivel hooks on the chain and body reduces the risk of chain twist and allows easy positioning.


External chain guide made from a special PVC is used tp minimise the chance of chain jamming should the chain become twisted. This sacrificial plate helps protect both the chain and internal chain guides.


Iron and asbestos free brake shoes and stainless steel brake discs will not rust in the presence of moisture, preventing brake assemblies from seizing.


Cluth outside the load path positioned on the motor shaft in front of the motor assembly. With this arrangement, the brakes will hold the load in the unlikely event of a clutch failure.


Double brake. Model HGA8 are supplied with double brake as standard. The brakes are supplied as complete units which allows for trouble free use and quick and ewasy inspection.


Model Su hoist are CE MARKED in acordance with the requirements of the MACHINERY DIRECTIVE 2006/42/EC.





Specifications




BGV D8 ELECTRIC CHAIN HOIST FOR TRUSS AND STAGE
































ModelHGA8
Working Load Limit500kg 1000kg  2000kg(Double chain falls)
Lifting Speed4M/min 5M/min
Operating Voltage220V 230V 380V 440V- 50hz-3phase
Type of controlLow voltage control or control panel
Noise Lever67.5db@full load




More Specifications please kindly check our website:www. jdphoist. com

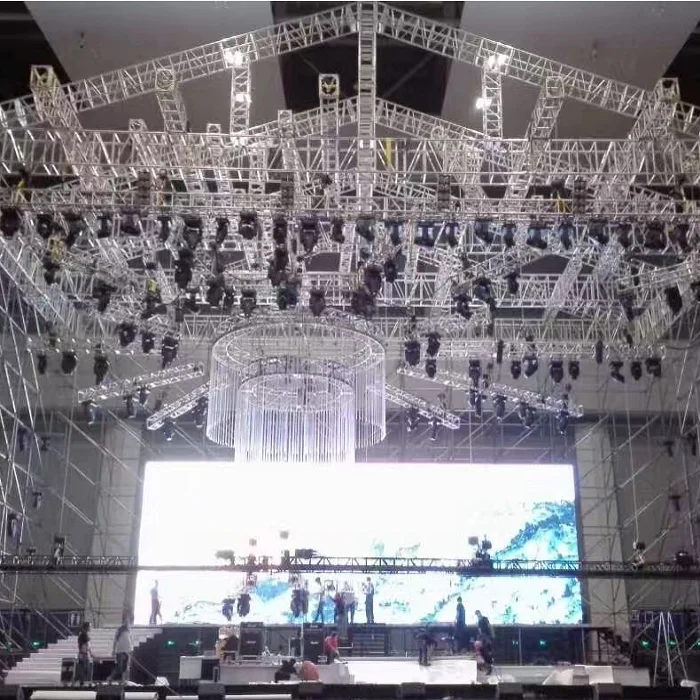

We are a professional event solution provider. We have provided hoisting services for cover shows and TV stations all over the world for a long time. JDP products can be found in many high-end events.


truss hoist (4).jpg





truss hoist (10).jpg





truss hoist (11).jpg





We are a limited number of manufacturers that have obtained CE certification through TUV. A good reputation and excellent product quality can ensure that you have no worries.




And JDP products can be found in major exhibitions all over the world. At the same time, I also look forward to your attention to the JDP booth in the stage lighting exhibition. If you have the intention to negotiate, you can contact us directly.












Please kindly note: JDP Guangzhou Technology Co.,Ltd. is the only export office of Huaige Group.


Please never believe other fake companies.


And all the email from my company should be @huaigegroup.com or @JDPhoist.com


More details about the product please kindly check with us export @huaigegroup.com     export @ JDPhoist.com


Whatsapp & Mobile phone Number: 008613930229687


Thanks for your business!
