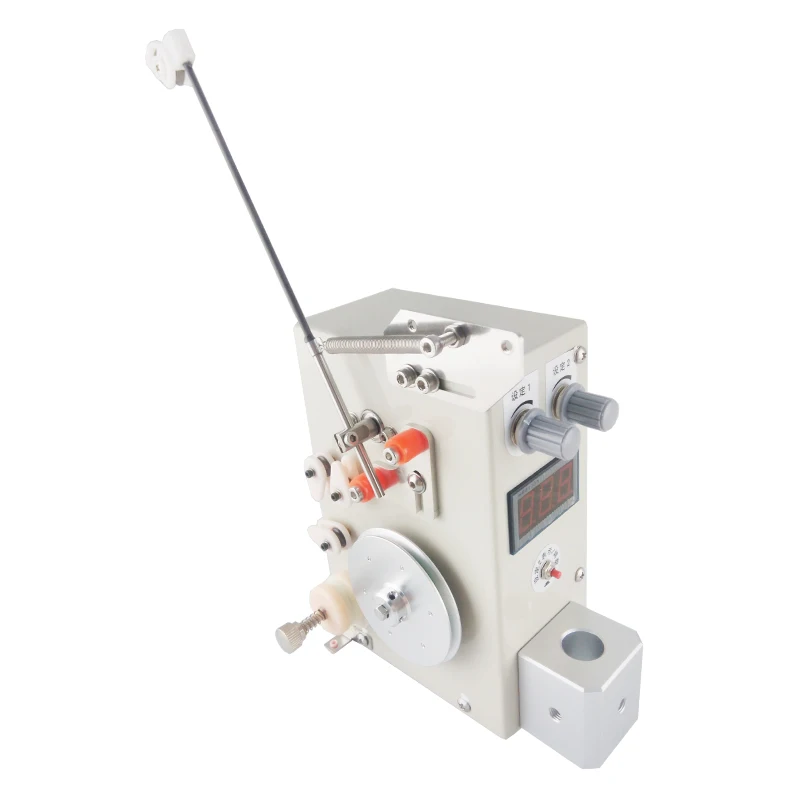

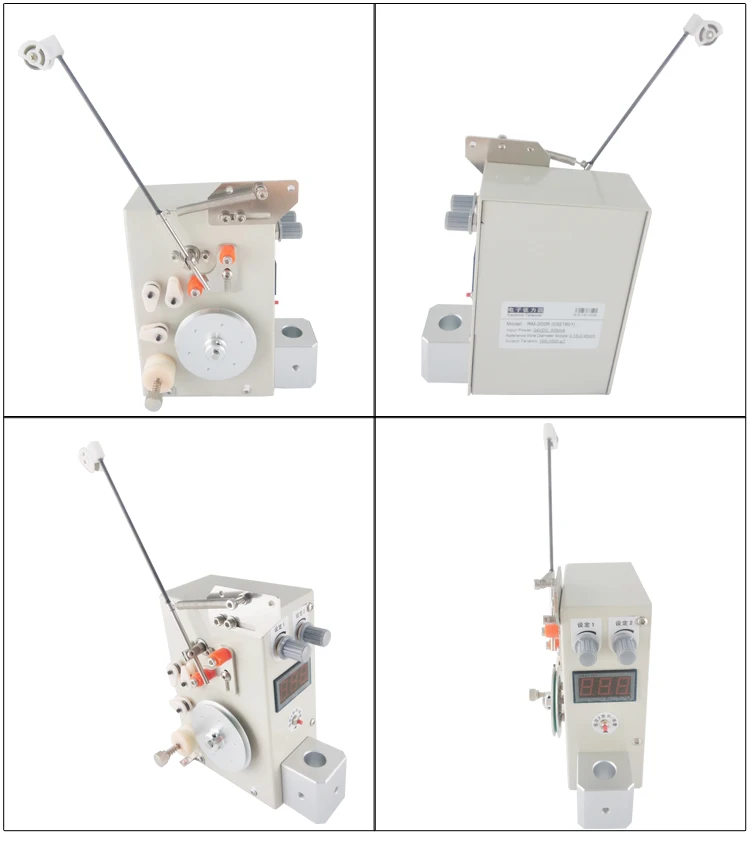

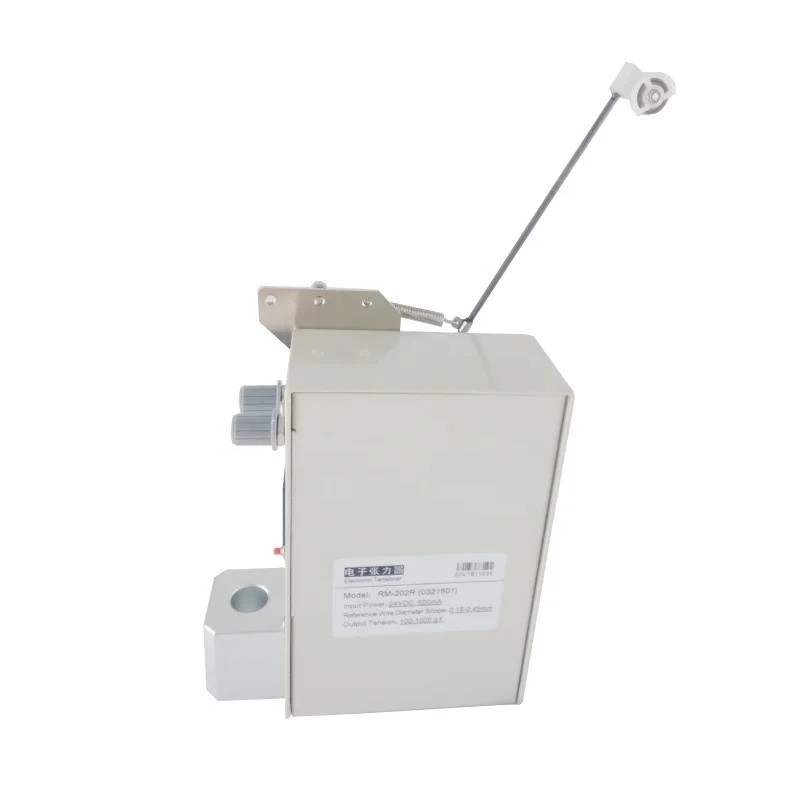

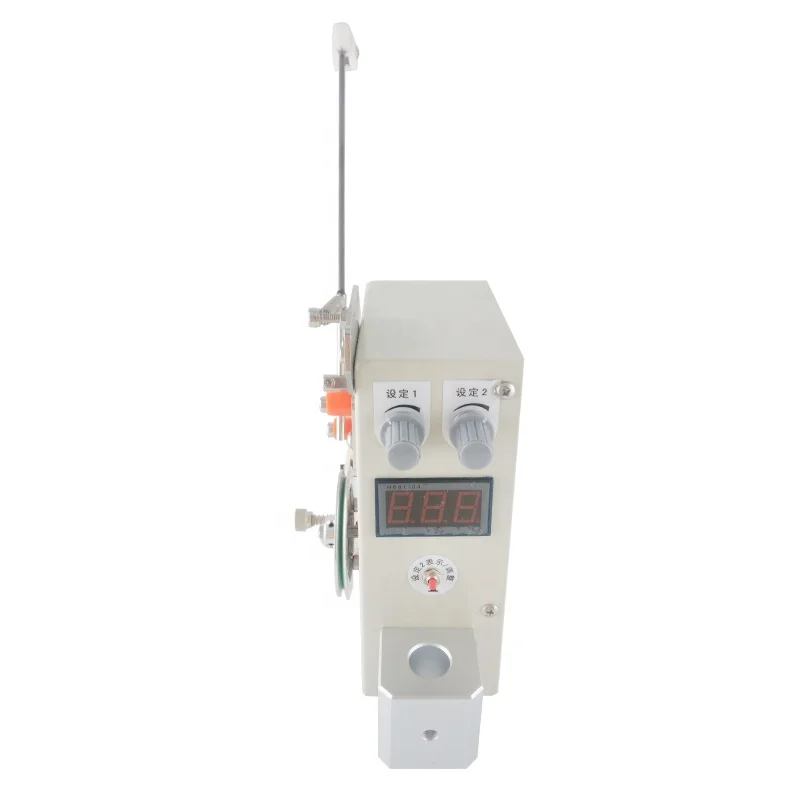

Customized Wire Tensioner For Winding Machine

Share on:


Price:$340.00 - $360.00
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

Customized Wire Tensioner For Winding Machine

Profuct nameRM Series
ModelRM-202R
Power

DC24V

Electric Current1.2A
UsageWire coil machine
Wire speeding5m/s
Tension test conditionWire speeding 5m/s refer roundness Bobbin
Delivery Time3 to 5 working days
Product Packing140mm*140mm*45mm
2.5KG
Carton With Foam



KIMCHEN RM Series Wire Winding Tensioner(coil winding machine wire tensioner)

RM-202R-55

Detailed Product Description:

RM series electronic tension device has two adjustable tension value, can be switched by the external

input signal, and can display the current value of the liquid crystal display, the adjustment is simple and

convenient. The series has two types of standard and external control, the standard type through the

machine comes with the adjustment knob to control the output tension value; external control type through

the external input 0-10V analog voltage to control the output tension value.

Two. Type selection reference table



Model

Tension Range (g)

Applied wire diamiter(mm)

RM-300

3-30

φ0.02-φ0.06

RM-201

10-200

φ0.04-φ0.12

RM-301

20-200

φ0.06-φ0.16

RM-501

30-350

φ0.10-φ0.25

RM-152

60-600

φ0.12-φ0.35

RM-202

100-1000

φ0.15-φ0.45



RM-202R-77

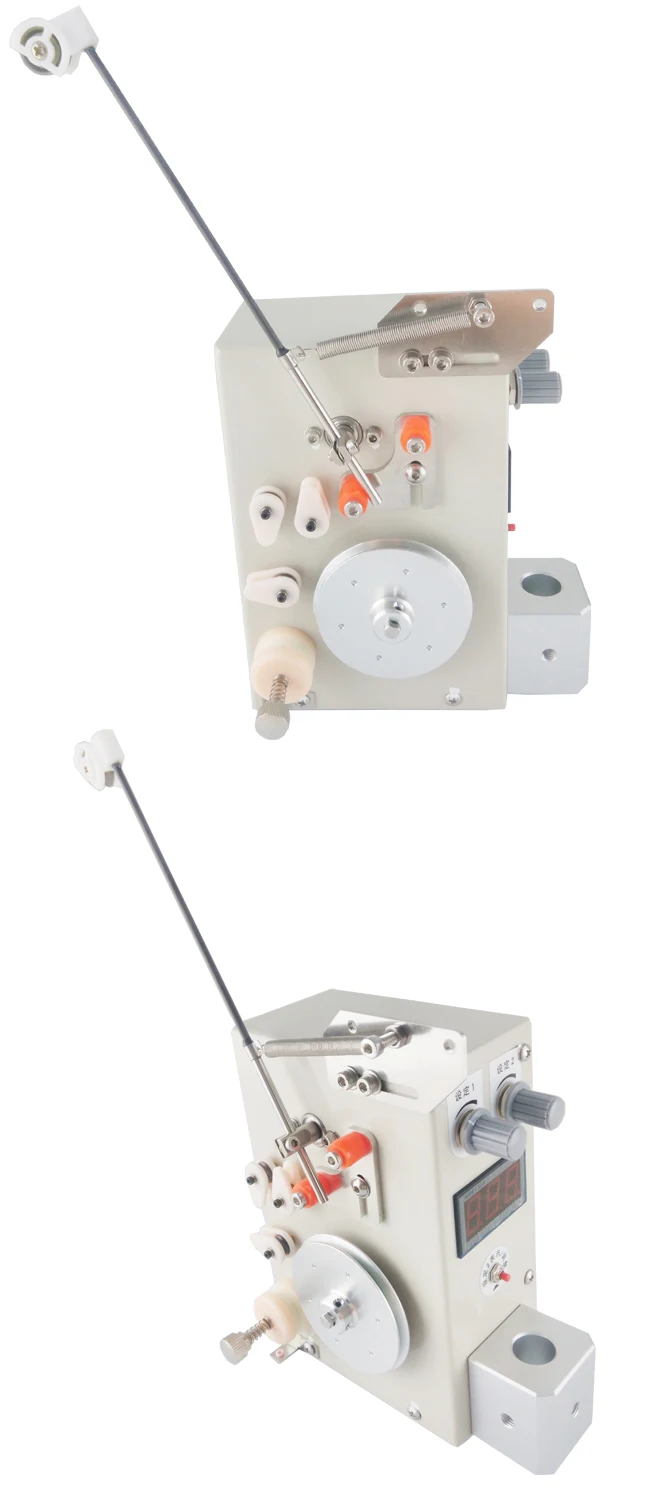

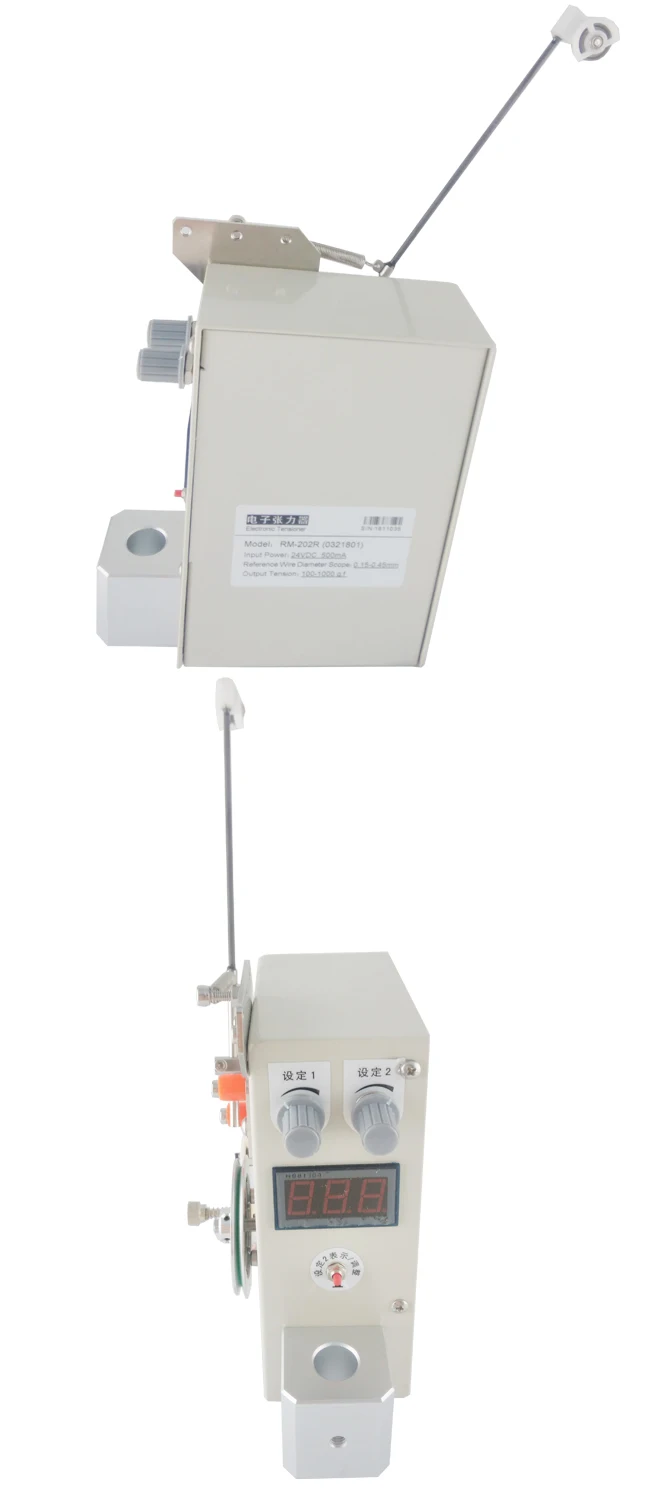

RM-202R-88RM-202R-99

(For more relative Tensioner,pls kindly send the inquiry to us to got it)

Different Tensioner for customers reference .

Pls kindly send your request to us so that we are able to recommend the suitable models to you.



1-9







Company Information



Kimchen Factory Certification.

_10

KIM CHEN INDUSTRY INTL LIMITED was founded in 2001, the factory is located in Dongguan city. Guangdong province.

We specialized in the manufacture and RD of the component which is used in coil of wire and tension systems. textile machinery and electrical industry precision ceramics. Such as: coil winding nozzle, coil winding tensioner, tension meter, ceramic eyelets, ceramic coating pulley. etc.

We produce high quality coil winding nozzle which include tungsten carbide nozzle, ruby nozzle and ceramic nozzle. We adopt the excellent raw material and technology to ensure best quality which exceed our customer's expection. Our main customer Mitsubishi, ABB, SVM, YKK. etc, We expect long term relationship with you!

1-101-11



Our Factory Advantages:

1. Competitive prices

2. Good after-sale services

3. Fast delivery

4. High quality control

5. Customized size, design


Other Products



We also provide other relative precision parts

For more product, pls see the photos as follow, if you need, pls contact us.



 1-8





FAQ



Frequently Asked Question:



Q1. How long will I get a quotation?

The quotation will send to you within the 24h when we got your inquiry.



Q2. Can I get a sample?

Samples are available upon customers request .



Q3. Can you do the design for us?

 Yes, our factory can accept the OEM orders.

According to your drawing or sample to do it.



Q4. How long can I expect to get the sample and  mass quantities?

Normally it takes 7 working days to produce the sample. Generally, 7-15 working days for mass order. If urgent ,delivery time may be pushed by negotiation.



Q5. How about the delivery method?

The goods always sent by DHL,UPS,FEDEX, EMS by airplane or sea.

We also can send the goods to your warehouse if you have warehouse in China.



Q6.What's your terms of payment?

T/T ,30%deposit, 30%balance. Other payment methods such as Paypal, West Union, L/C are negotiable.



Q7.What's your main product?

Our company main products including various nozzle,coil of wire,tensioner etc.



Q8.What's the application of your products?

Various products have been widely used in various type of electronics,machinery,textile and other equipment.

Contact Us

 name card1

For more product specification, Pls contact Amity to got it.

Welcome to send the inquiry to us to get more details information
