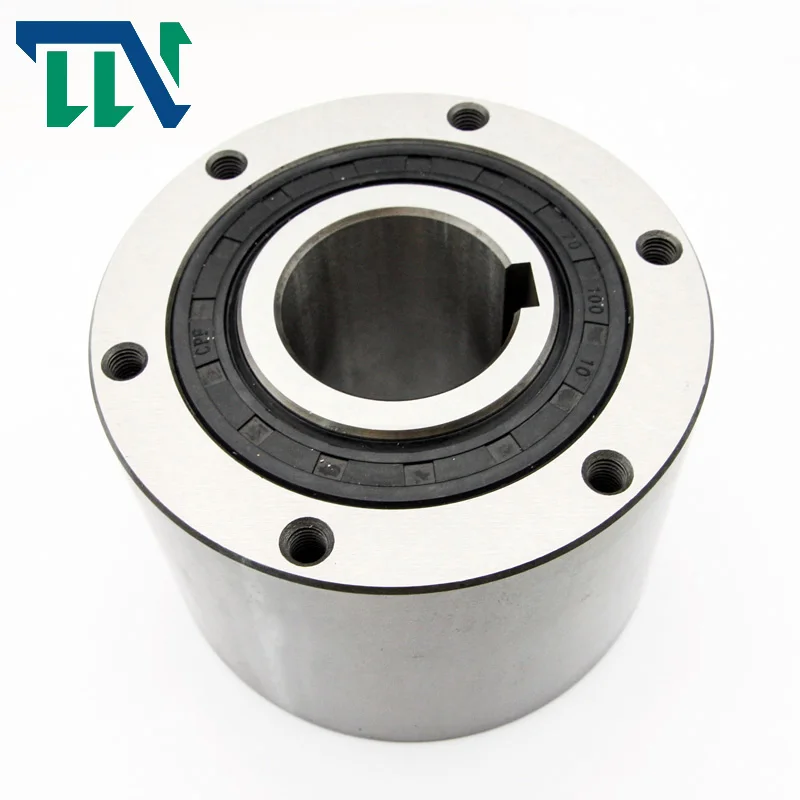

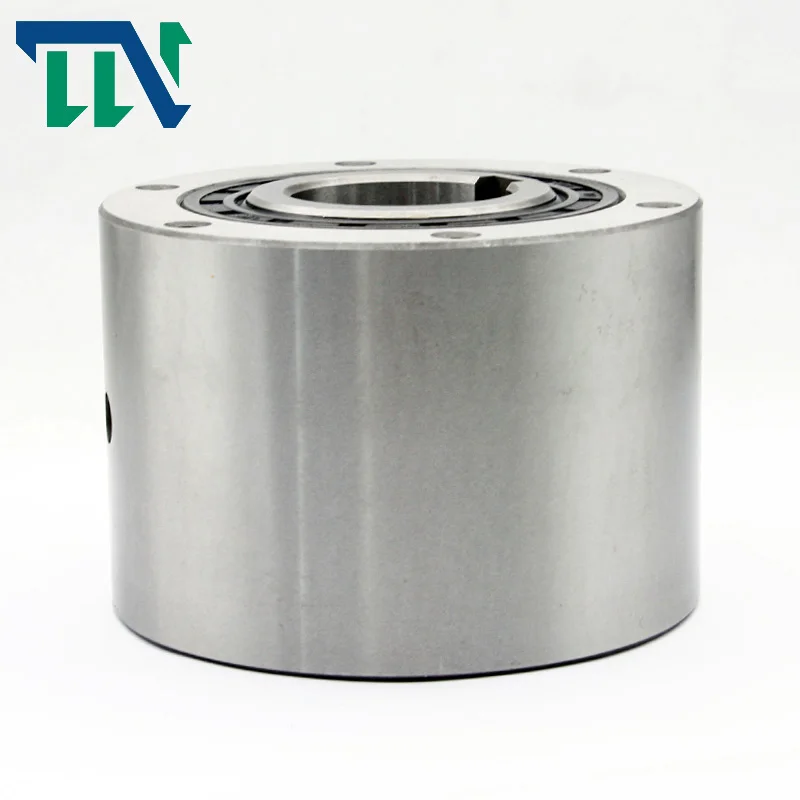

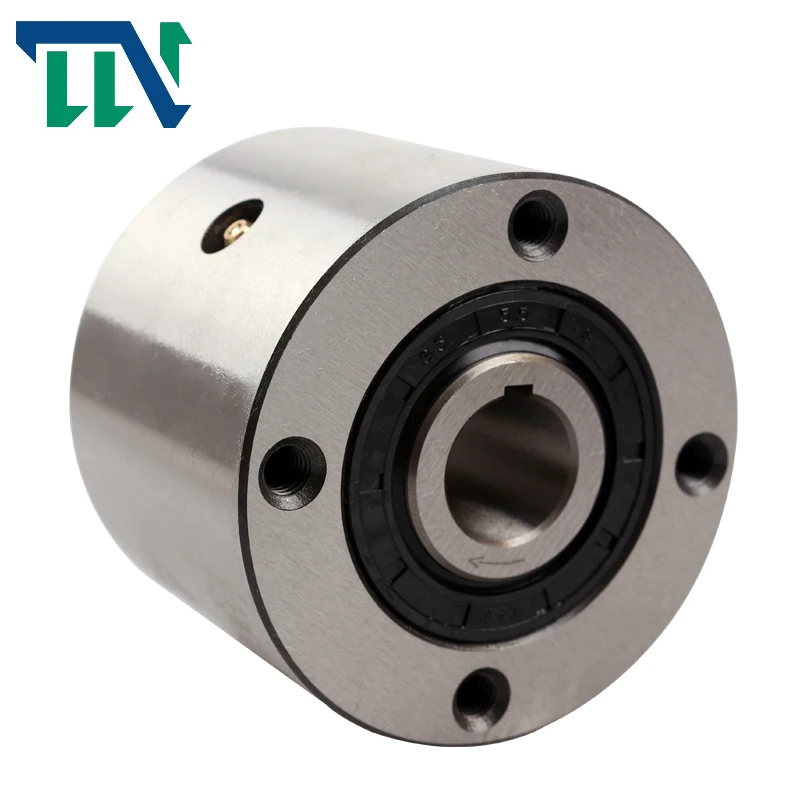

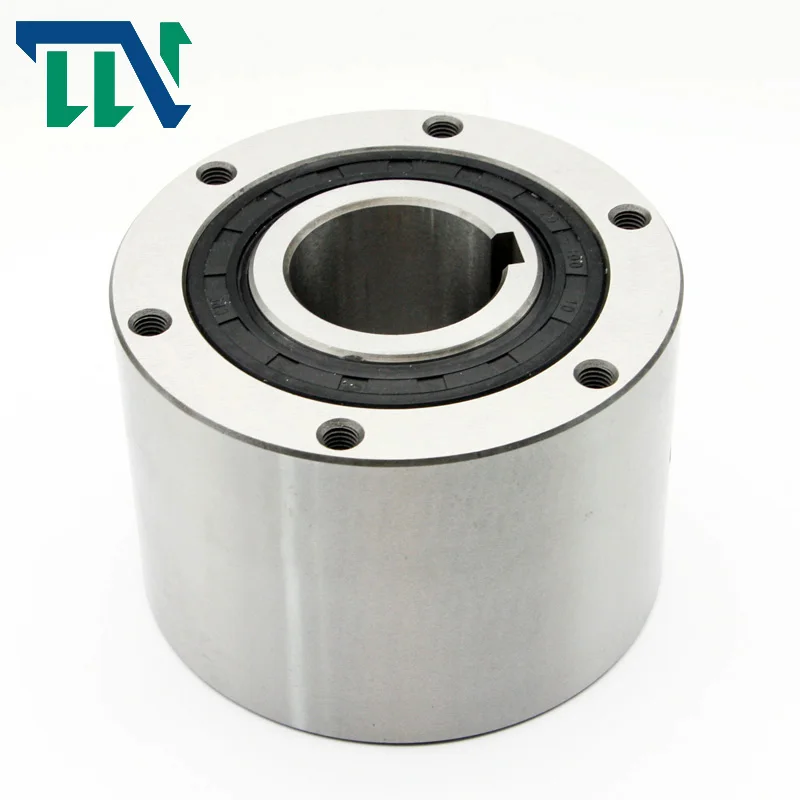

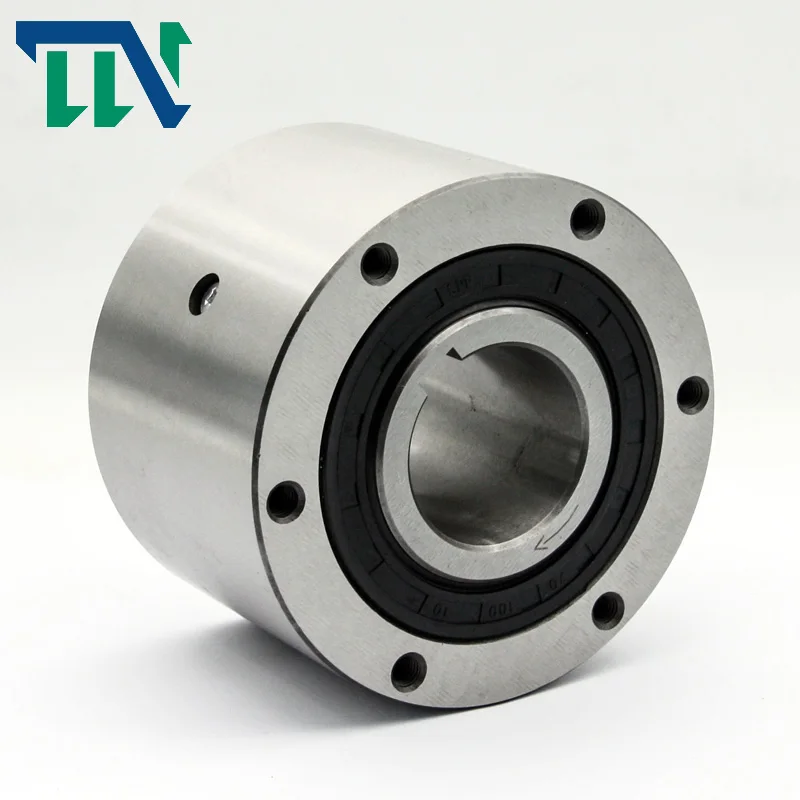

Распродажа MX50 Sprag, подшипник сцепления свободного колеса, односторонний подшипник сцепления

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


.png





    Product description





PRODUCT DESCRIPTION.jpg

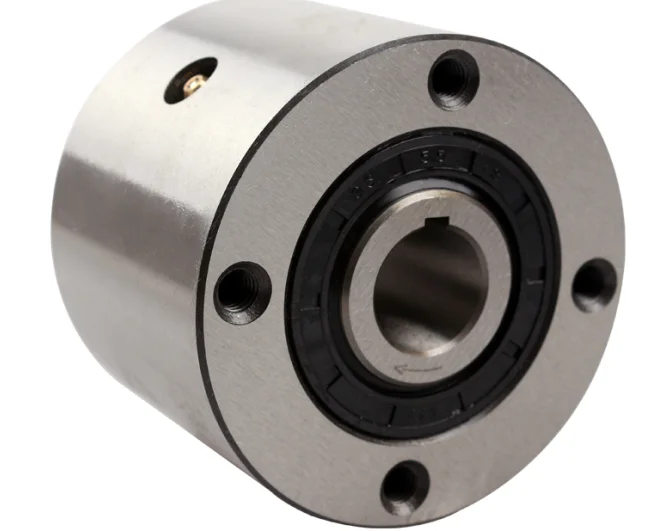

   The MX series Cam Clutches are intended for applications where reverse rotation of the slow speed conveyor head shaft is to be prevented (backstopping).The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery.









































Medel No.MX50

Outer diameter (mm)


155
Inner diameter (mm)50
Width(mm)100
Torque Capcity(N.m)441
Weight(KG)10.6
Delivery time10-15 Days
Torque Arm is also Available

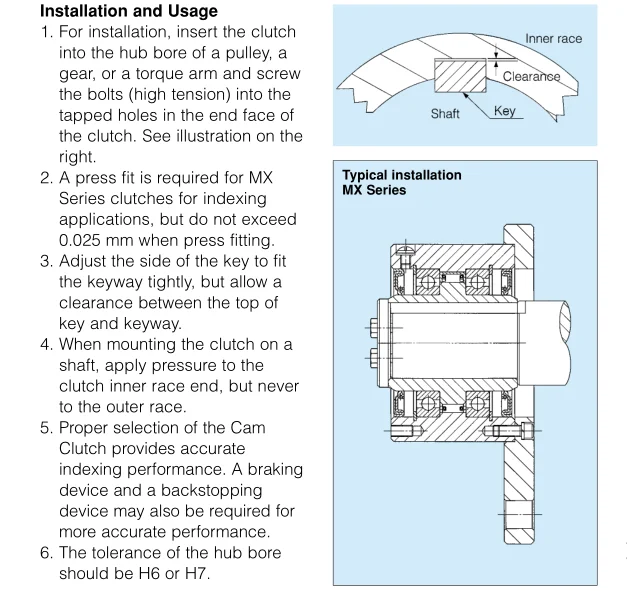

 Mounting Example































































































































Model



Torque
Capacity
(N·m)



Max.Indexing
 (cycle/min)



Bore Size



A



B
(h7)



C



PCD
D



E



F



S







Lubrication
Filler  PlugSize×Pitch



Inertia Inner Race (kg·m2)



Drag
Torque
(N·m)



Oil
(ml)



Weight
(kg)



Dia.
(H7)



Keyway



MX22



78.4



1200



22



6 × 2.8



80



95



77



80



12



35



16







M6XP1.0



0.00015



0.47



80



3.3



MX35



235



1200



35



10 ×33



90



125



87



110



12



50



16







M6XP1.0



0.000625



1.36



110



6.4



MX50



441



1200



50



14 × 3.8



100



155



97



140



14



70



16




M8XP1.25



0.00275



2.68



190



10.6



MX70



784



1200



70



20 ×4.9



127



200



124



180



15



100



20







M8XP1.25



0.0130



5.15



340



21.3

















BZ


Certificate







Company Information




Production Flow









Clients Visit


.jpg


.jpg





FAQ


FAQ


Q: Why do we choose your company?


A: Quality is the soul of an enterprise. We can provide you with good-quality one way clutches also with good price.


Q: What is the delivery time?


A: For small quality or samll size of clutches, we can deliver upon receiving advance.


     For large quantity or large size, we have to produce 10-15 working days.


Q: Can you supply with sample clutch?


     Of course! We can provide with a sample to your checking quality.


Q: What is the warranty period of the clutches?


     One-year Guarantee.
