High purity Fused silica crucible

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Fused silica crucible

Product Information

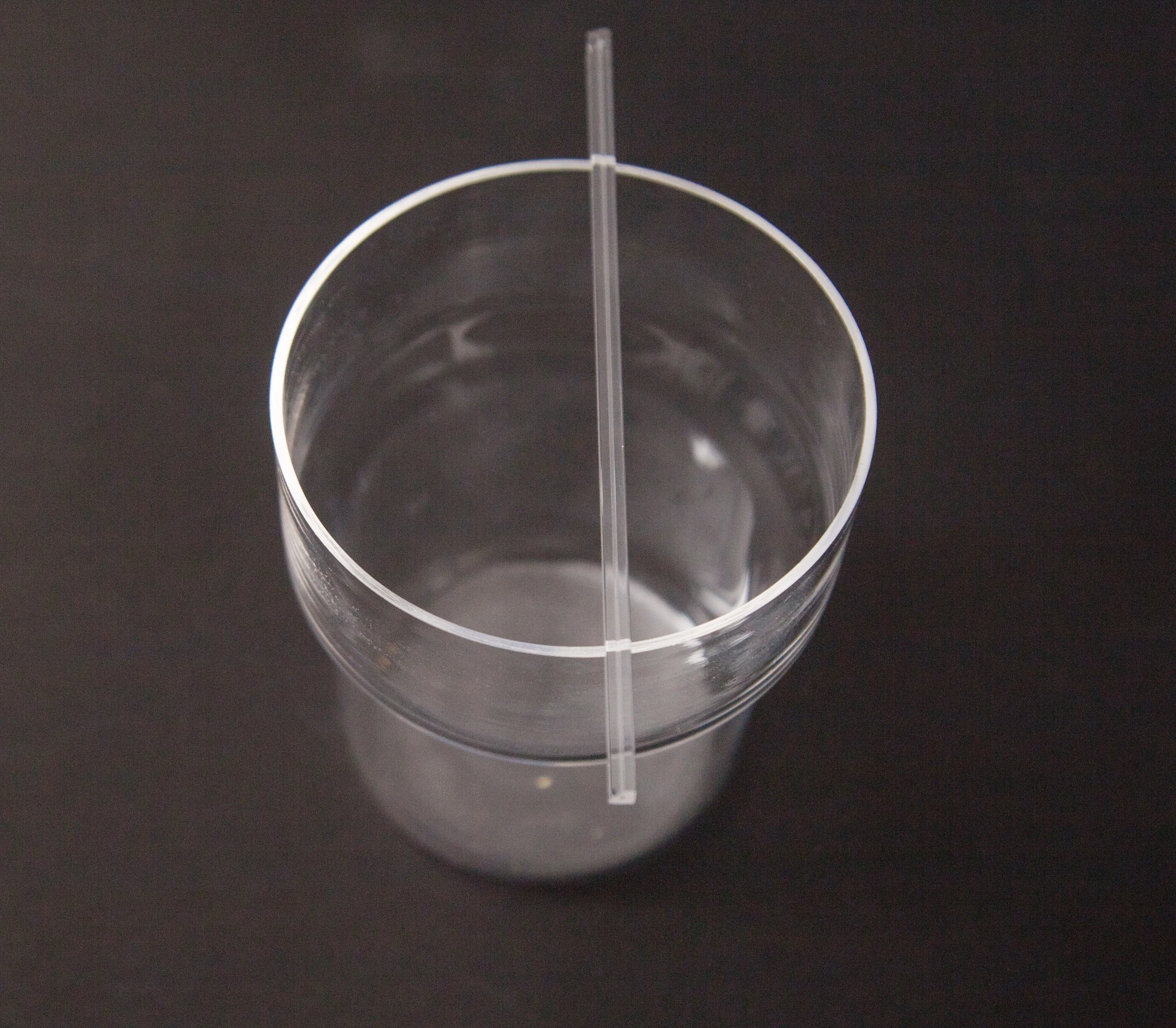

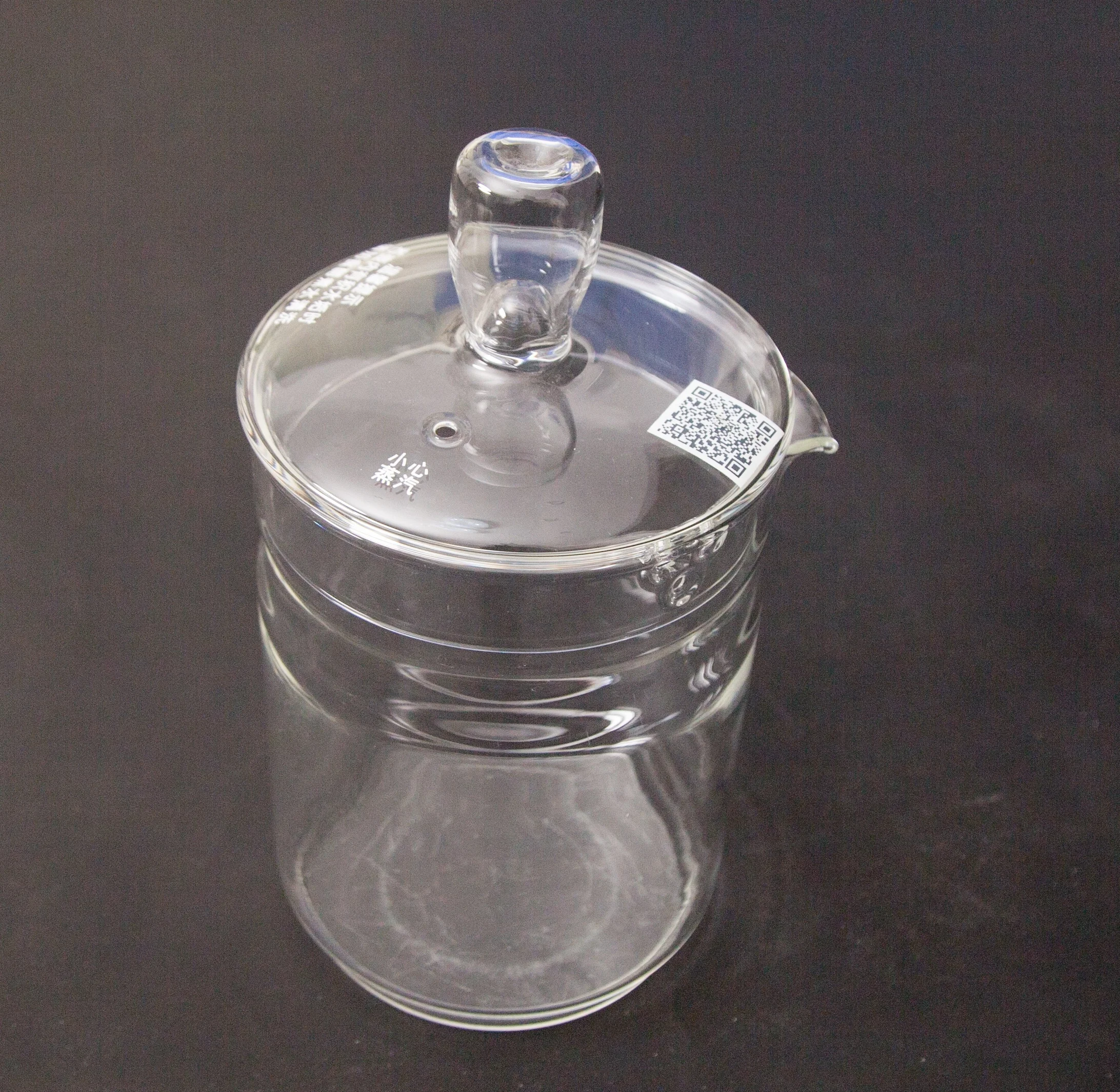

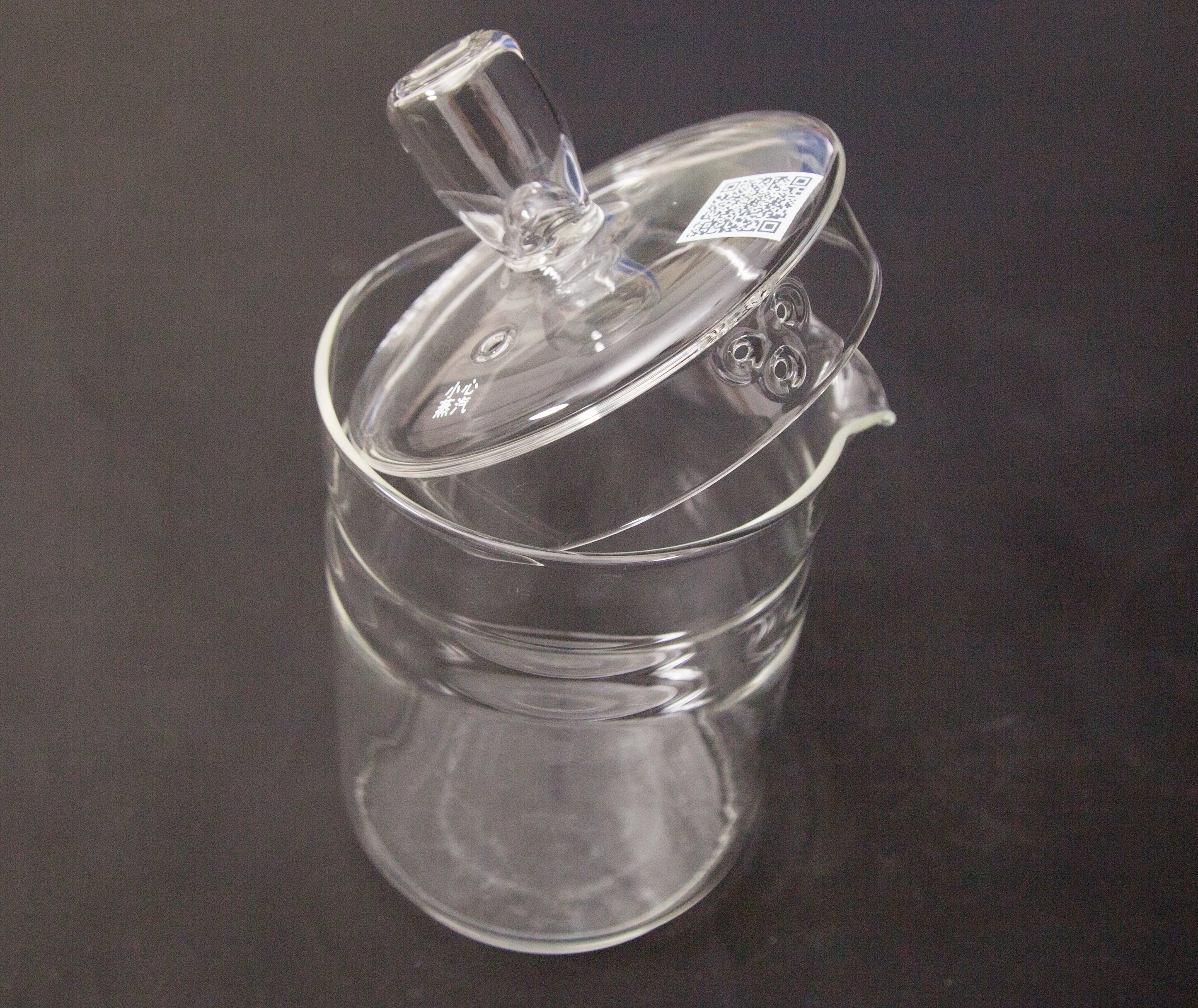

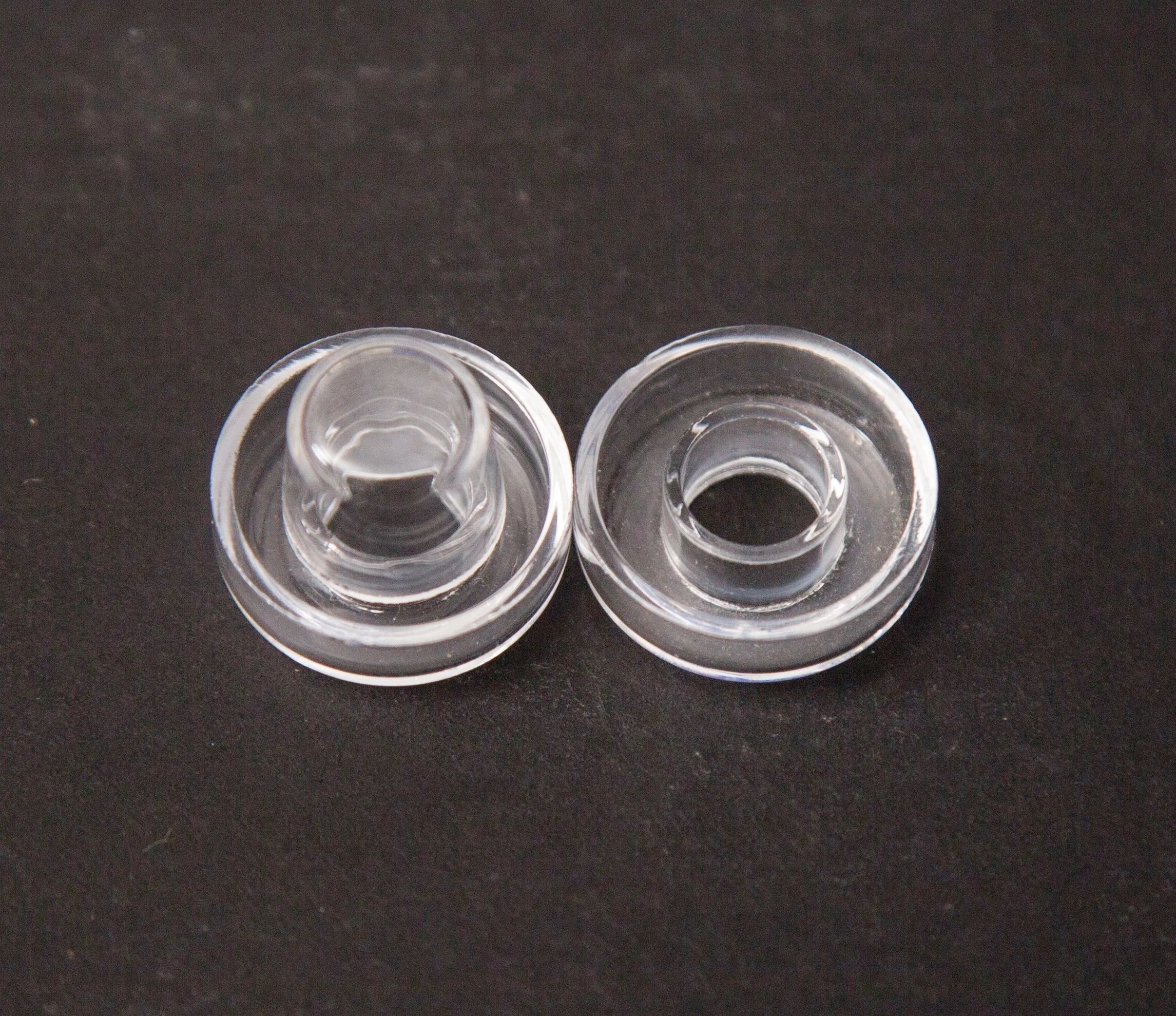

Various laboratory quartz glassware:

Quartz flask, quartz beaker, quartz test tube, quartz crucible, quartz evaporating dish, quartz vacuum pipette, quartz petri culture dish, and so on.

Material properties of transparent quartz glass:
High Durability
High heat resistance
High Corrosion Resistance
Low Thermal Expansion Coefficient



The physical properties of quartz glass

Mechanical behavior

Standard values

Density

2.2g/cm3

Compressive strength

1100Mpa

Flexural strength

67Mpa

Modulus of rigidity

31000Mpa

Mohs hardness

5.5~6.5



Mechanical behavior

Standard values

Transformation point

1280°C

Softening Point

1780°C

Annealing point

1250°C

Index of refraction

1.4585

Thermal processing temperature

1750~2050°C

Short-term use temperature

1300°C

Long-term use temperature

1100°C

Material

Silicon Dioxide (Natural Quartz )

Surface

No Air Bubble ,no process

Density

2.2 g/cm 3

Strain

1270 C Fused The Quartz Glass Brick

PPM grade

Controlled 10/20/100 PPM

Thickness

0.5 MM-40 MM
