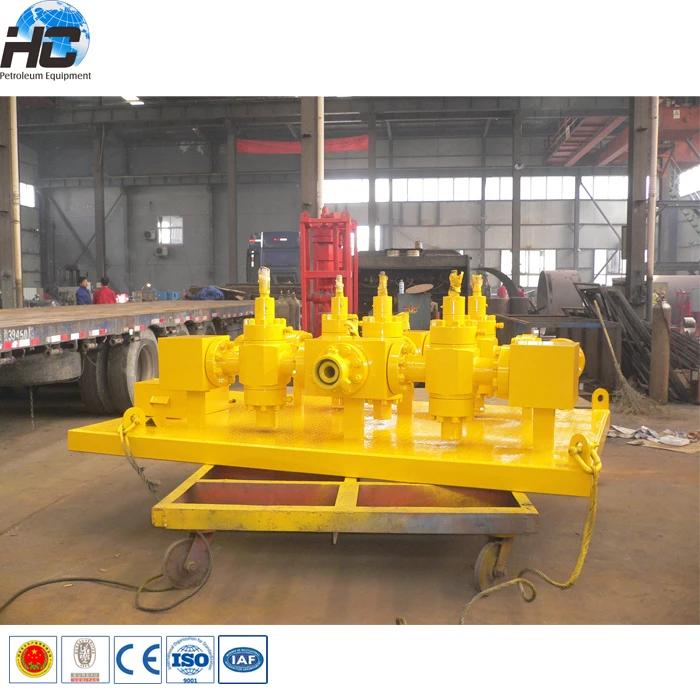

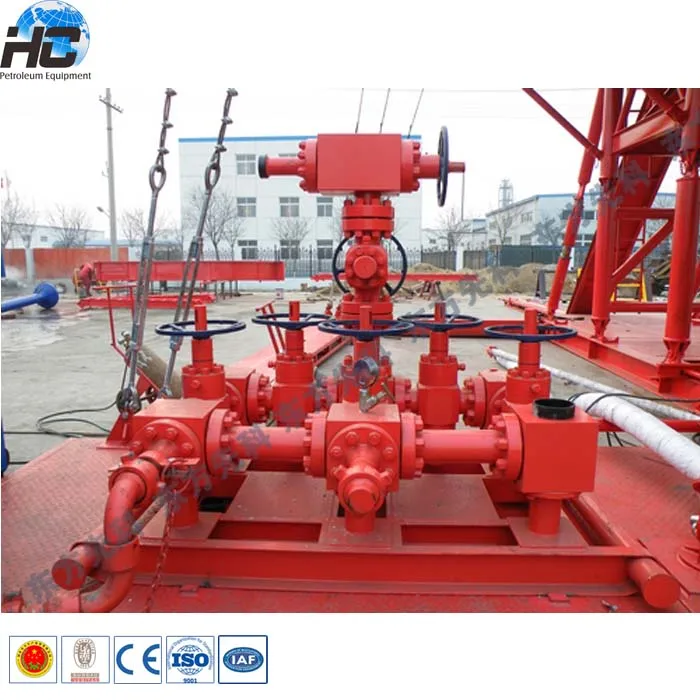

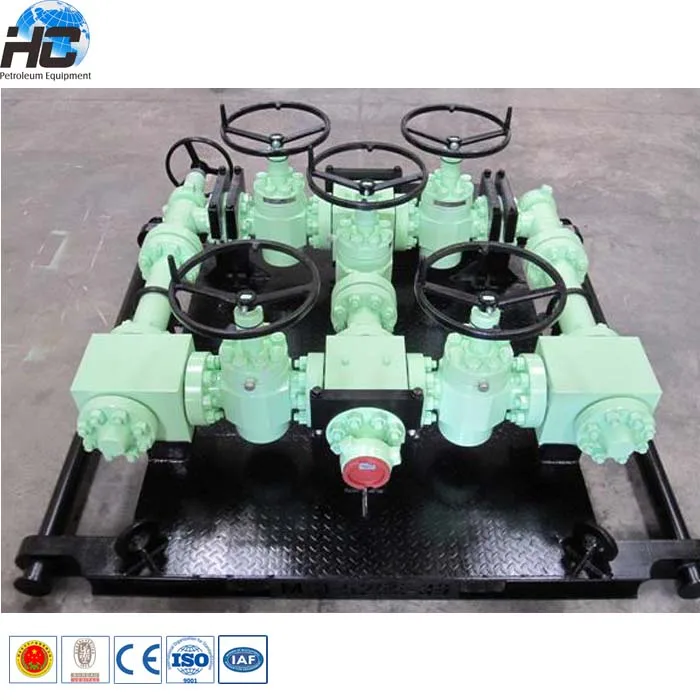

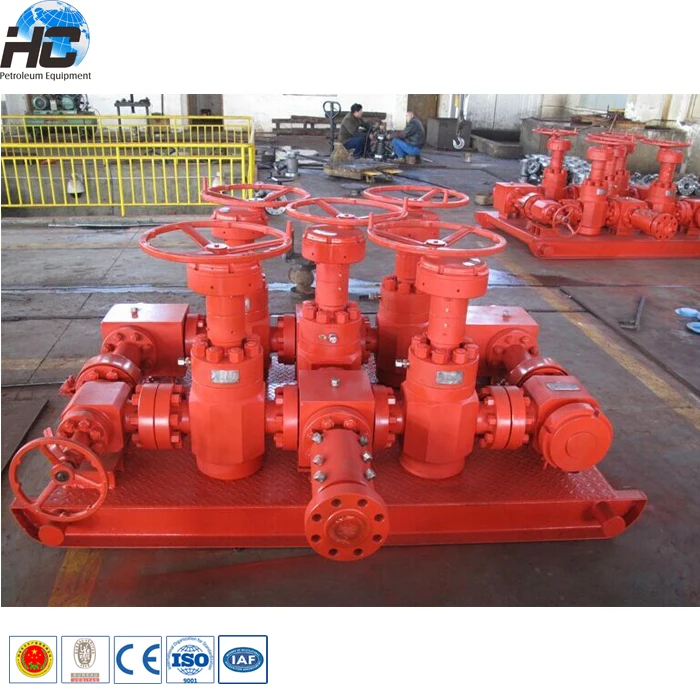

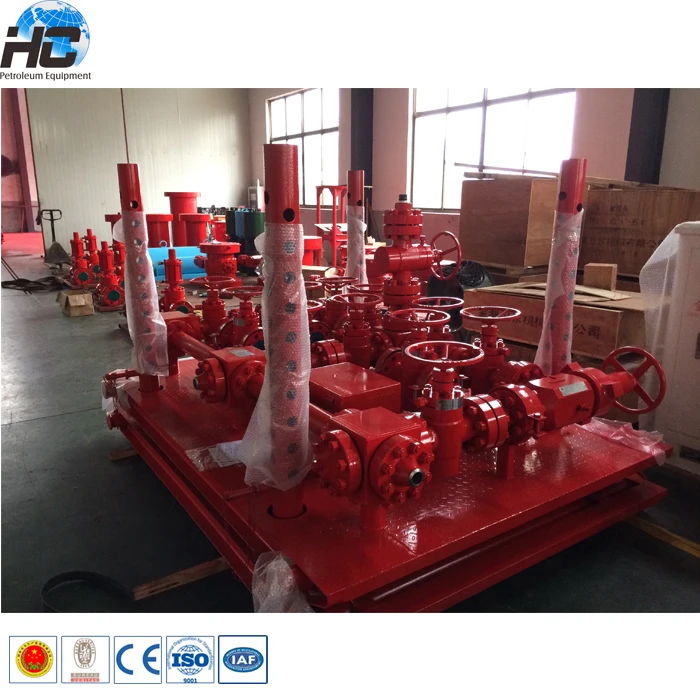

API oilfield wellhead chock manifold and kill manifold / 10000psi choke manifold

Share on:


Price:$25,000.00
Price in USD:Details

Quantity:


Product Overview

Description


API oilfield wellhead chock manifold and kill manifold / 10000psi choke manifold






Product Description


Choke manifold consists of four manual gate valves (five gate valves if a bypass valve is included). It is the necessary equipment to control the flow rate and reduces well pressure before the flow enters the processing equipment for protecting the well. It can be equipped with hydraulic control panel for remote control.












The thchnical paramerers about our API oilfield wellhead chock manifold and kill manifold / 10000psi choke manifold :




























































































Pressure35MPa(5000psi)70MPa(10000psi)105MPa(15000psi)
Color BlueYellowRed
ModelJG/S52-35JG/S78-70JG/S78-105
Design Pressure35MPa70MPa105MPa
Weight2530kg(5578lb)3580kg(7892.5lb)4630kg(10260lb)
Dimension(L×W×H)1802×1339×680mm2516×1824×799mm3270×2371×1038.7mm
Material LevelEEEEEE
Product specification levelPRL3PRL3PRL3
Working TemperaturePU(-29℃~121℃)PU(-29℃~121℃)PU(-29℃~121℃)
Product performance levelPR1PR1PR1
NozzleFixed and adjustable nozzleFixed and adjustable nozzleFixed and adjustable nozzle
CharacteristicsFive gate designFive gate designFive gate design
work mediumMud,oil and drilling fluidMud,oil and drilling fluidMud,oil and drilling fluid
Connection typeFlangeFlangeFlange




















Main features of our API oilfield wellhead chock manifold and kill manifold / 10000psi choke manifold as below:


1.Control the well fluid flow


2.Built-in Cameron style gate valves which can be redressed on pipeline


3.Standard two flow system: one through a positive choke and the other through an adjustable choke that can be converted into a positive choke


4.Provides a means for fluid sampling, real-time pressure and temperature monitoring, and chemical injection


5.Metal-to-metal, double seal to ensure reliability in harsh environments
