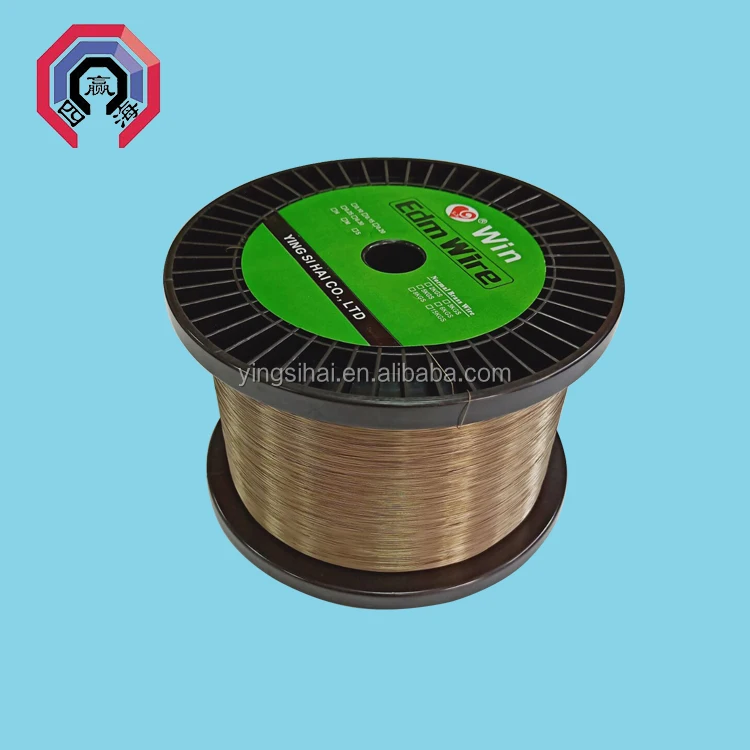

For WEDM Machine Wire Cut Edm High Speed Wire Gamma Wire 0.25mm

Share on:


Price:RUB 751.92 - RUB 1,203.07
Price in USD:Details

Quantity:

  • add to wishlist

Product Overview

Description

 For Sodick WEDM Machine  Wire Cut Edm Brass Wire 0.2mm 900N

Product Description

For Sodick WEDM Machine  Wire Cut Edm Brass Wire 0.2mm 900N

 For WEDM Machine Wire Cut Edm High Speed Wire Gamma Wire 0.25mm



1.Size: 0.25mm
2.Material:CuZn37
3.Tolerance: 0.001mm

Characteristics



TypeMaterialCoated

Tensile Strength

(n/mm)

Elongation
FTKCuZn37Zinc treated900<3%
FTSCuZn37Zinc treated500≥3%





Package



TypeDia. 0.10mmDia. 0.15mmDia. 0.20mmDia. 0.25mmDia. 0.3mmSpool/ box
K125(4kg)*****4
K160(8kg)  ***2
K200(16kg)  ***1
K250(25kg)  ***1
P5X(3kg)*****4
P5 (5kg)  ***4
P10 (10kg)  ***2
P20 (20kg)  ***1





Features and advantages :



1. Due to its special surface imitation fish scale micro-texture layer, the cutting resistance can be significantly reduced, the cooling rate is increased, and the cutting rate is increased, thereby effectively improving the performance of the edm wire.



2. The main cutting speed is increased by 20%-30% on average compared to the brass wire. After cutting three or four times, the overall speed is increased by more than 10% on average over the brass wire. Especially in the processing of thick workpieces and cemented carbide materials, the speed increase is more obvious.

3. At the same time, compared with ordinary zinc coated wire , the high-speed line is not easy to drop powder, which reduces the pollution of the processing environment and reduces the frequency of maintenance and cleaning of the machine and related components.







For Sodick WEDM Machine  Wire Cut Edm Brass Wire 0.2mm 900N 7-7.jpg8-8.jpg





Hot Sale




Our Company

For Sodick WEDM Machine  Wire Cut Edm Brass Wire 0.2mm 900N

Production Process

For Sodick WEDM Machine  Wire Cut Edm Brass Wire 0.2mm 900N

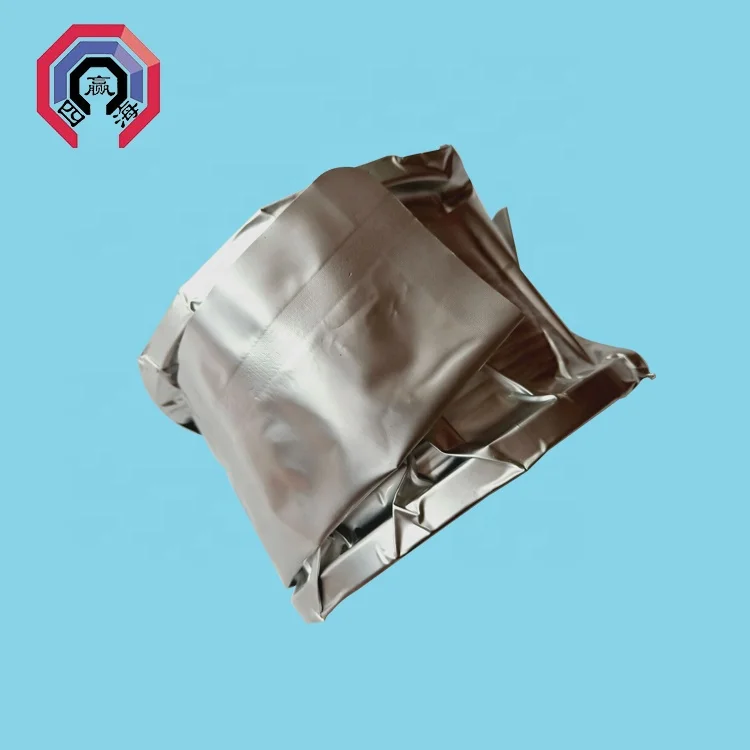

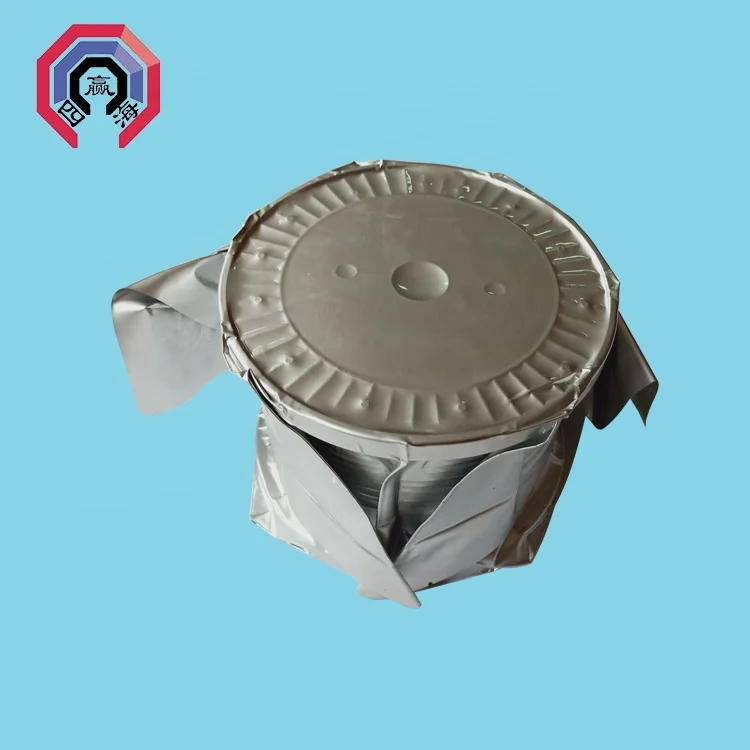

Logistics Packaging

For Sodick WEDM Machine  Wire Cut Edm Brass Wire 0.2mm 900N

Contact Information

For Sodick WEDM Machine  Wire Cut Edm Brass Wire 0.2mm 900N
