F2000 A2000 Capillary thermostat

Share on:

Price in USD:Details


Product Overview


Product Description


F2000 A2000 Capillary thermostat


Technology Data:


Temperature range-30 ...30 degree C
VoltageAC 250 V
Current16(4)  A
Switching differential2+/-1.5 mm
Capillary length2000 mm
Capillary tube materialcopper coated nickel
Packing100 pcs/ CTN
G.W.18.5 KG


Thermostat F2000 used for refrigerators, freezers, air conditioners




1. Rating voltage: 250V 50HZ/60HZ


2. available temperature:-35~35 centigrade


3. Differential:2~10 centigrade

4. Used for refrigerators, freezers, air conditioners

5.Packing: 1pcs with accossories in a small box, 50boxes/Carton, carton


Refrigerator Thermostat -35 - +35 degree Celsius


Model F2000 is a great universal Refrigerator Thermostat/Freezer Thermostat controlling temperature from-35 up to +35 degree Celsius. Supplied housed inside a plastic kit. The dimensions of the kit are approx. 58mmwide x 86mm high x 35mm deep. Rated at 16(3) amps-250 volts. Inside the kit, the Refrigerator Thermostat has three poles (SPDT) to accept contact types of connectors common/normally open/normally closed. The complete refrigerator thermostat can be wall mounted or fitted inside a control panel. It's widely suitable for domestic or commercial refrigerator or freezer.



Features of RefrigeratorThermostat

  1. Available in a wide selection of preset temperature range and differential

  2. Excellent dial adjustable design

  3. Snap-Action electric switch

  4. Little interference of radio

  5. Long life usage

  6. This Refrigerator Thermostat is ideal for refrigerators and freezers as well.

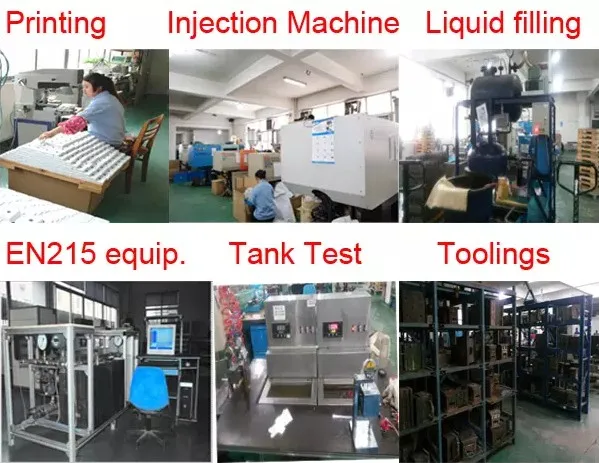

 work shop.JPG


Our Services


As a professionalfactory in China for more than 10years, most of our products are exported to refrigeration factory or distributors.

We can follow clients' drawing or samples for production . If you have yr own idea  , we also can design special for you .



Main Markets:


Main Professional Exhibition :

We attend many many professional Fairs , such as Canton Fair , CRH , ARH (USA),CHILLVENTA(GREMANY) , MCE(ITALY) , FEBRAVA(BRAZIL).....
