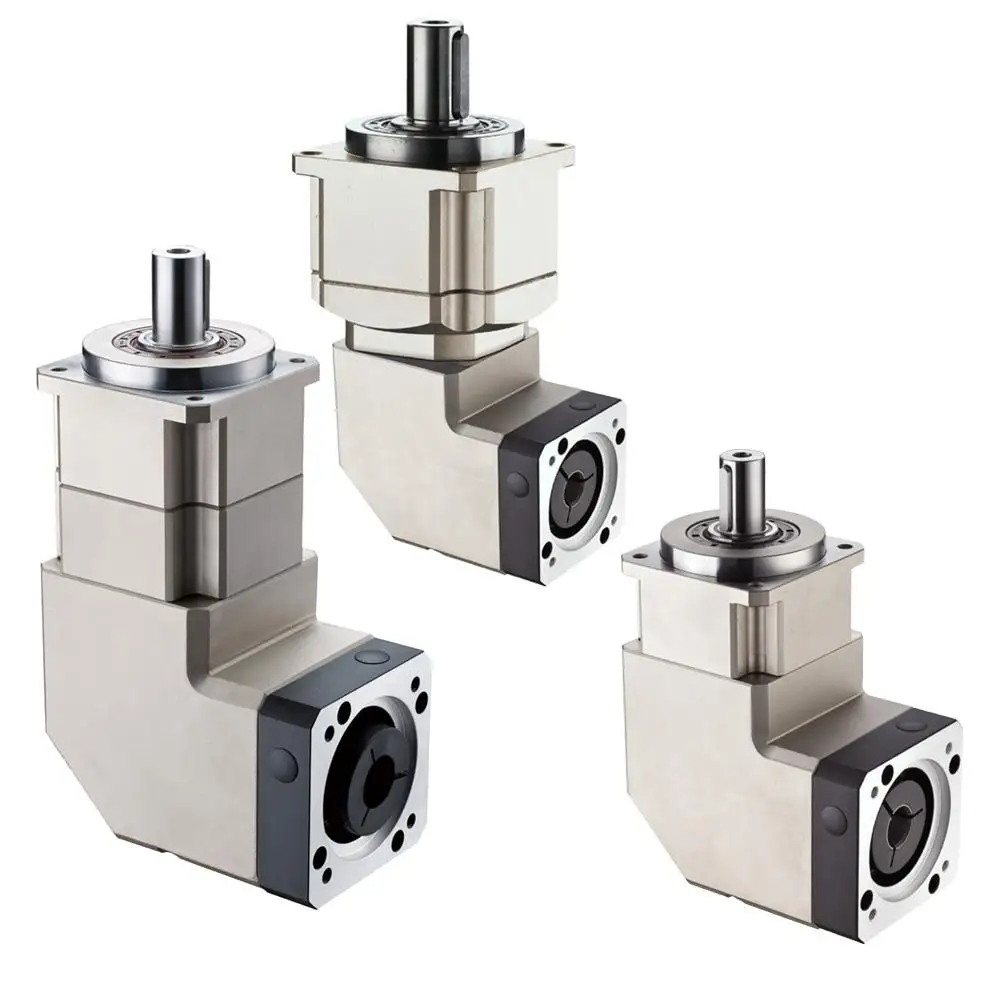

Right-angled planetary gearbox,PHZ60 series bevel gear box, high precision reducer

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

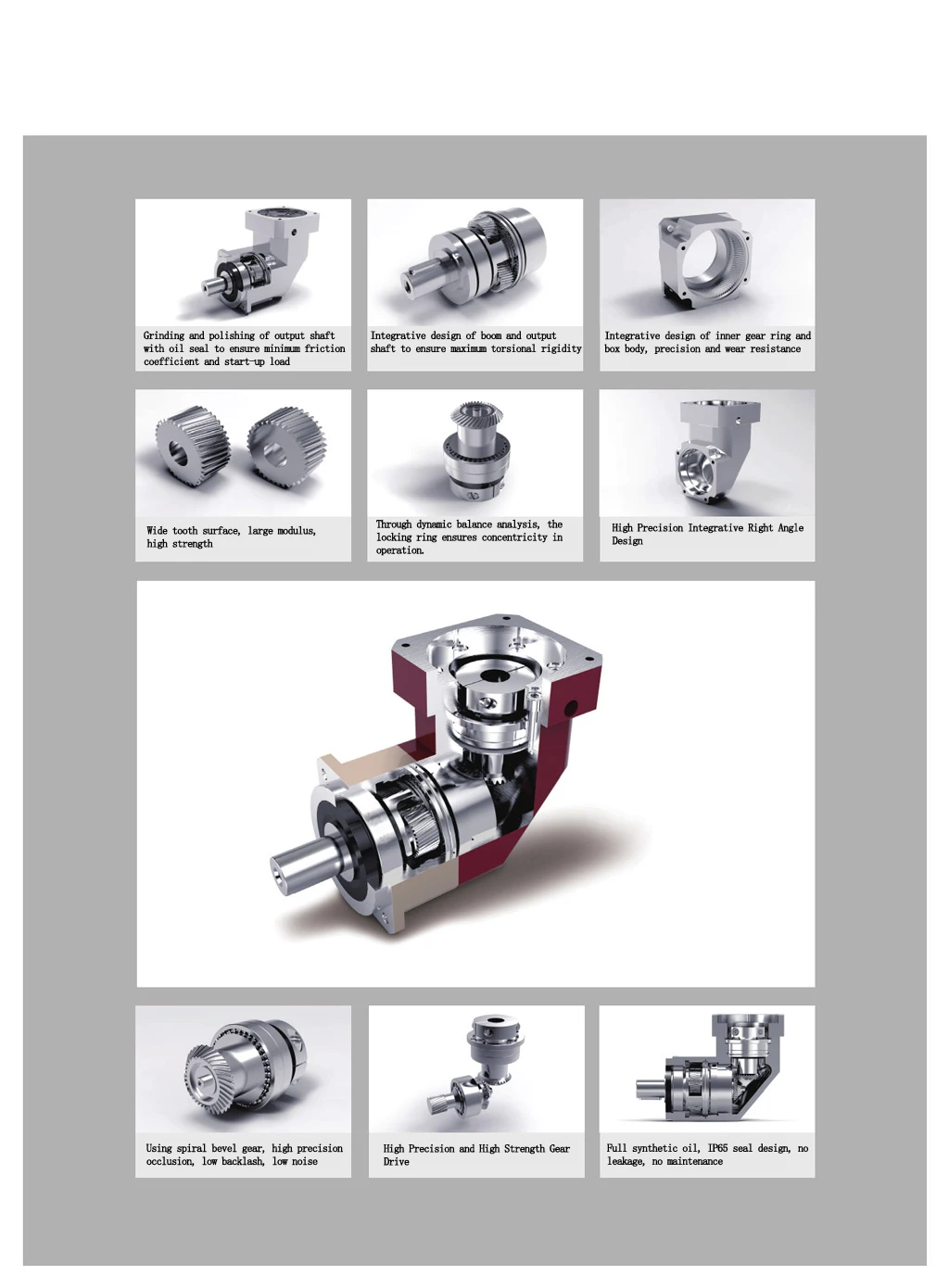

PHZ Series Gear Box Internal Structure Diagram


PHZ60 series detailed parameters of planetary gearbox:

Reduction ratio:3-100

Rated output torque:37-54NM

Maximum Output Torque:1.5 times rated torque

Rated input speed:5000RPM

Maximum input speed:10000RPM

Backspace:≤ 2-9 Arcmin





Average service life:20000h

Full-load transmission efficiency:≥   95%

Use temperature range:-10~+90℃(Customizable lower or higher temperatures)

Lubricating grease:Total synthetic grease

Noise value :≤63dB

Protection level :IP65

Weight           :2.6-3.3KG



PHZ60 Dimension Diagram

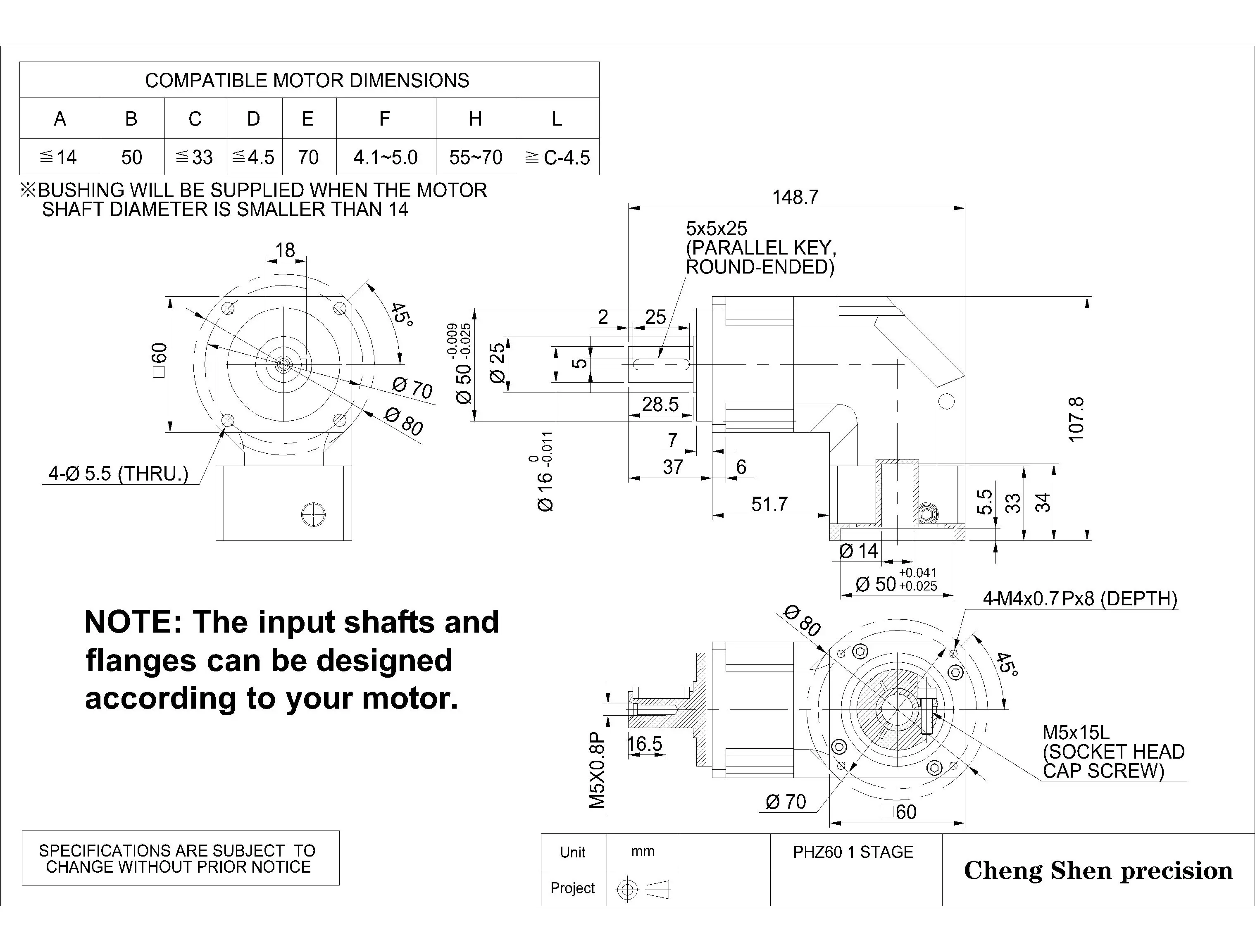

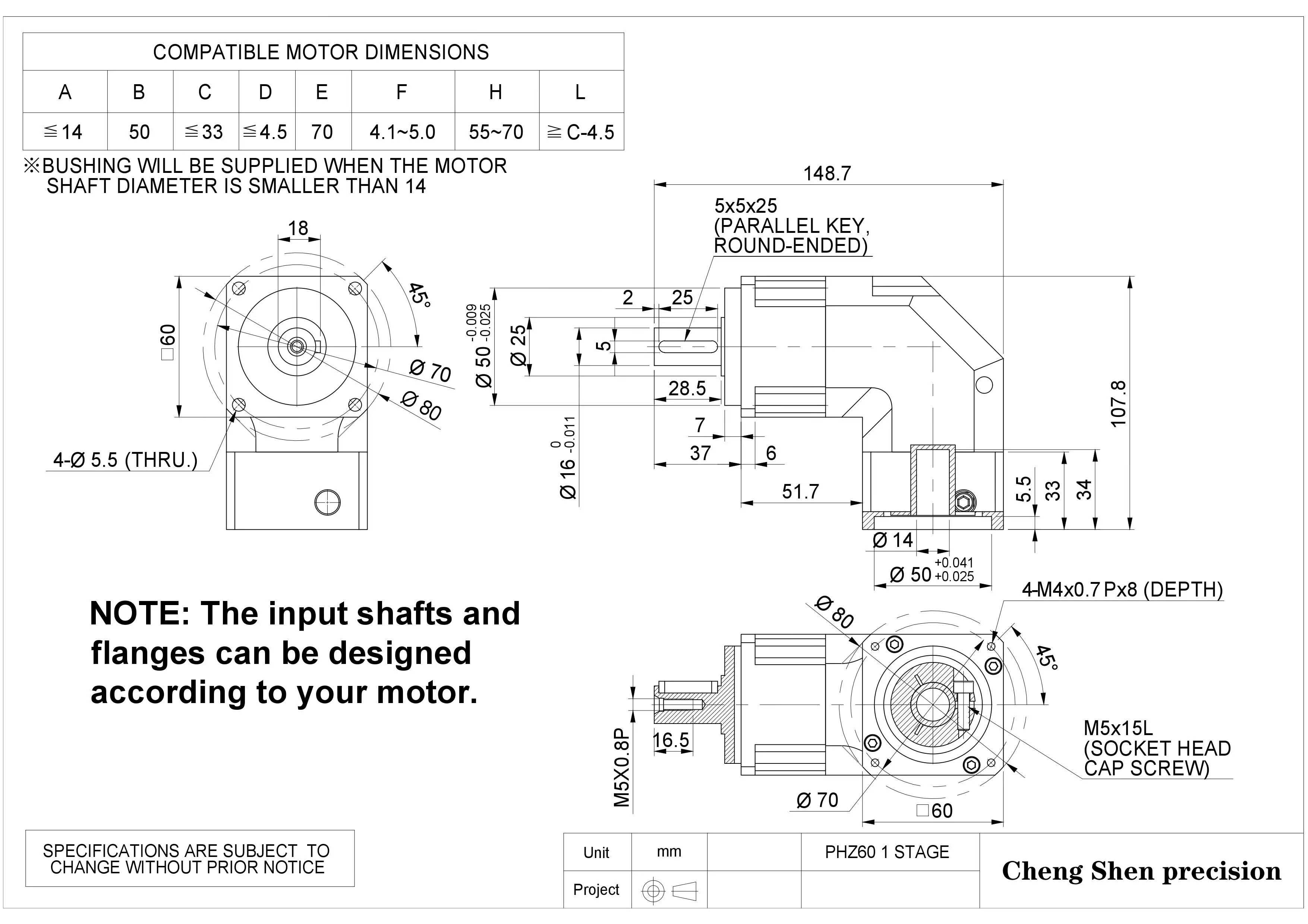

PHZ60 1 STAGE(ratio:3-10)

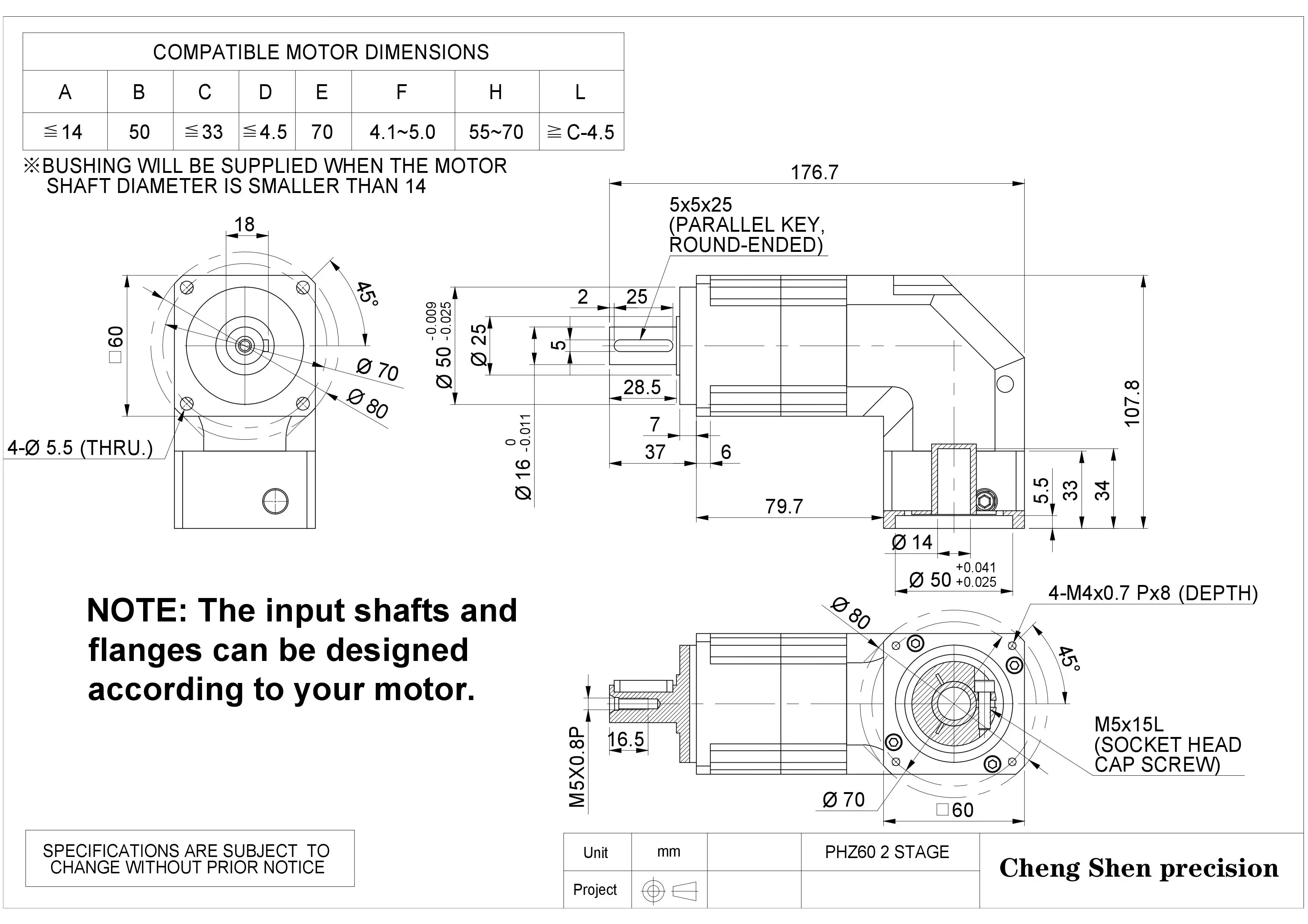

PHZ60 2 STAGE(ratio:15-100)



0001 (1).jpg



PHZ Series Performance Table
