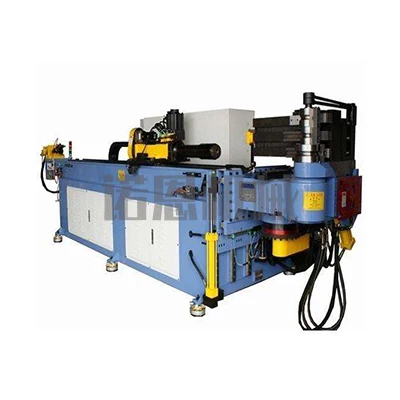

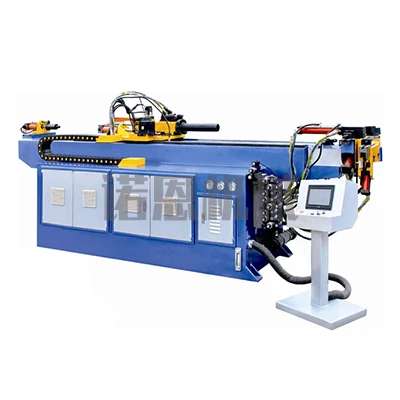

hot sale DW-63CNC single head hydraulic metal pipe bending machine tube bender machine

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

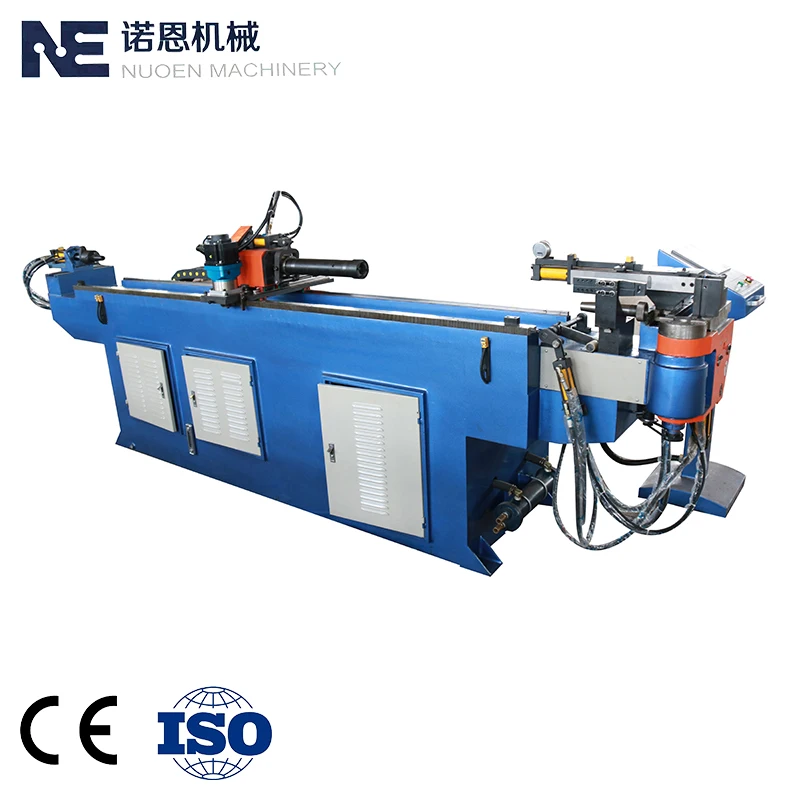

 IMG_0191 (2).jpg

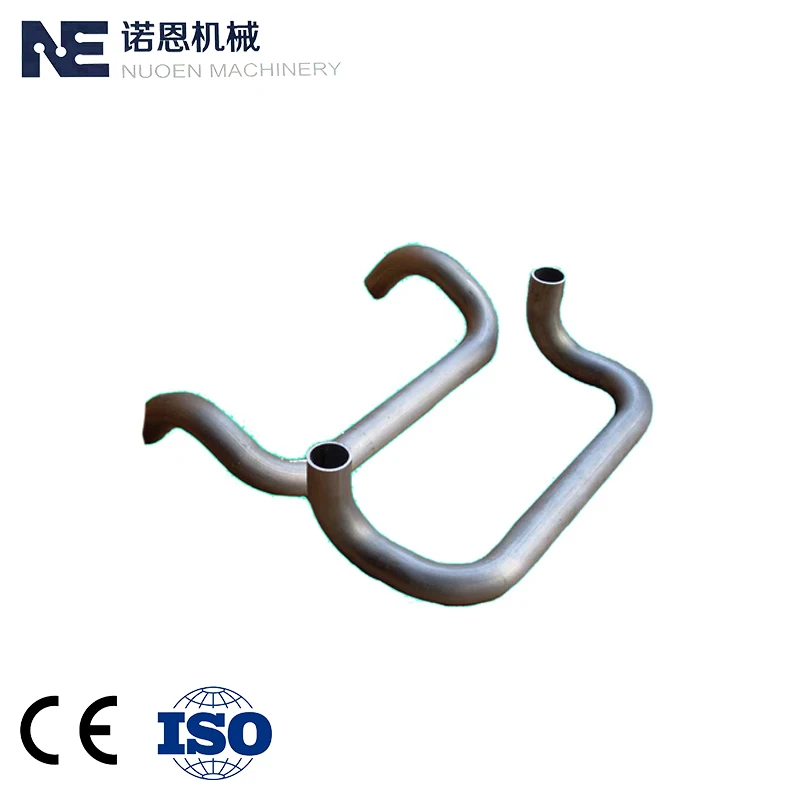

Co 22.jpg


DW-63CNC Hydraulic automatic pipe bending machine


A.   Introduction





The machine has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor. It is an ideal equipment for the pipe fitting processing industry.


1. The machine is controlled by NC, hydraulically driven, and prefabricated with a variety of different bending angles.


2, Chinese-English subtitle display, man-machine dialogue operation, you can choose manual, semi-automatic operation mode, mobile foot switch has both start and stop functions.


3, Using of high-performance imported hydraulic valve components ( Yuken from Japan).


4, Equipped with a cooling system to effectively control the working temperature.


5. The machine has the characteristics of convenient operation, stable performance, high work efficiency and high safety factor. It is an ideal equipment for the pipe fittings processing industry

B. The main technical parameters:






















































































Main Specifications



Unit



Model: DW-63NC



Remarks



Maximum Bending Pipe Diameter * Wall Thickness



mm



Φ63*3




  1. The minimum bending radius depends on the pipe diameter

  2. The maximum bending radius depends on the customer requirements

  3. The maximum core-through length may depend on the customer requirements



Maximum Bending Radius



mm



R350



Minimum Bending Radius



mm



According to the pipe diameter



Maximum Bending Angle



Degree



190



Standard Core-through Length



mm



2200



Control System







Microcomputer Control



Allowable Pipe Fitting Elbow Number



Unit



16



Storable Component Number



Unit



16*16



Oil Hydraulic Motor Power



KW



5.5



Maximum System Pressure



Mpa



12



Oil Hydraulic System Control







Solenoid Valve



Oil Tank Capacity



L



150



Machine Outline Dimensions



mm



3000*700*1030



Machine Weight



Kg



1220





C.Application:

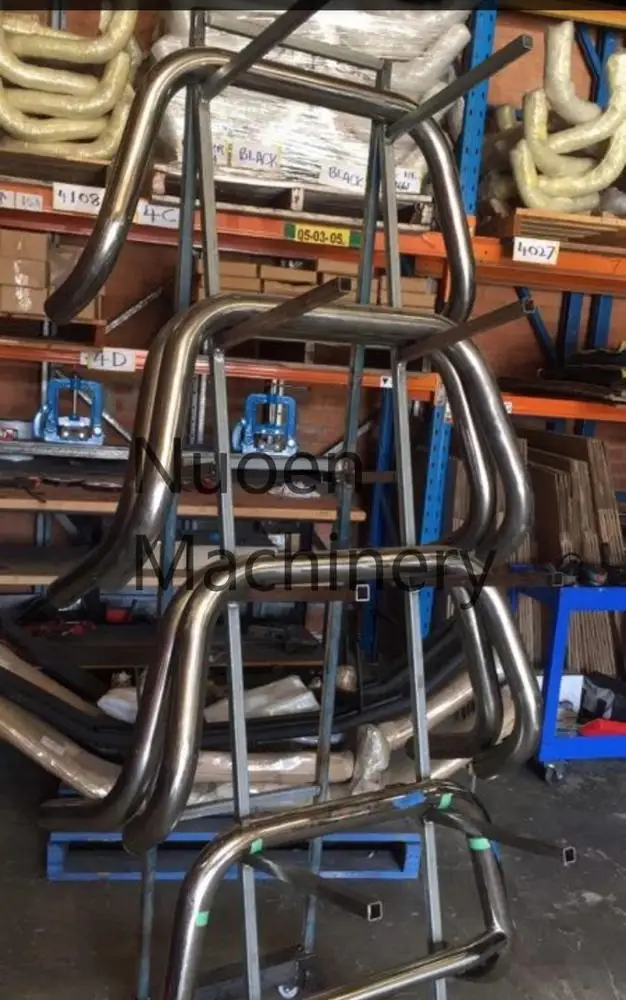

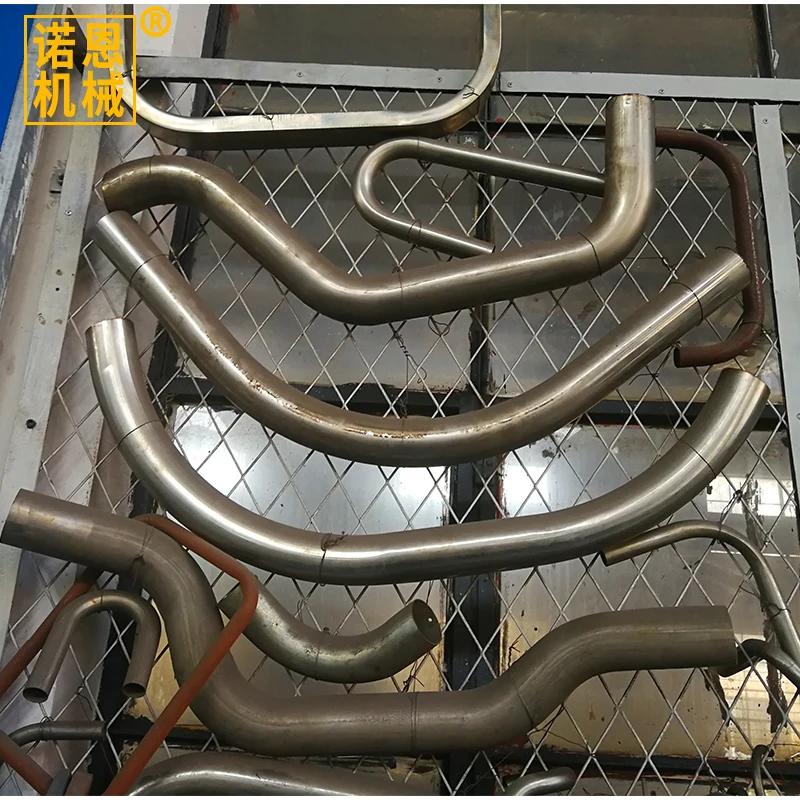

1. Exhaust pipe of car, motorcycle, airplane and other machinery.
2. Tubes of air conditioning, furnitures, bikes, outside street light, sports facilities
3. Pipes of  kitchen and bathing facilities, pipes of medical equipments.
4. Metal sheets of interior finishing, constructing facilities, outside protective equipments.






Our Services


 Company Details
Professional: More than 15 years in metal pipe proccessing machines fabrication.
Brand: NUOEN, China Famous Brand
Engineers: 9 professional and experienced engineers
Certificates: CE, ISO9001:2008
Letters patents: 12 official patents
Examining report: 5 official examining reports
Innovation project: 2 innovative program awards
Exported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc

Trade information:
FOB Ningbo, FOB Shanghai, CIF your port
Payment Terms: T/T, L/C, Western Union, MoneyGram
Delivery Terms: 30% deposit, 70% paid before shipment.
Delivery Time: 30days after receiving deposit
Minimum Order Quantity: 1 set
Warranty: 1 year
Package Details: wooden box
Supply Ability: 30 Sets per Month
