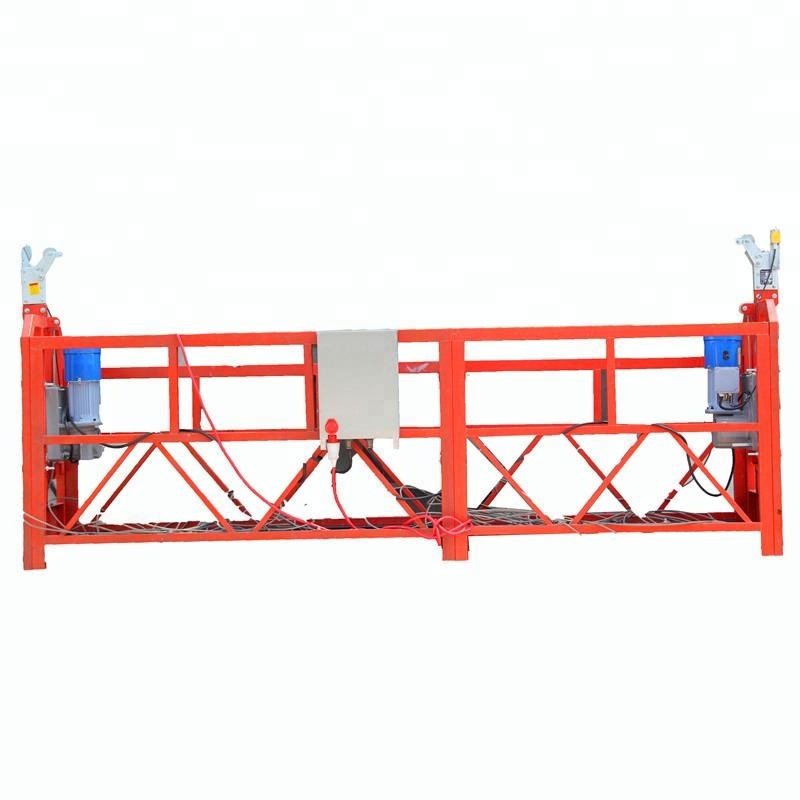

Aluminum Alloy ZLP630 Suspended Platform no counterweights work gondola

We are a factory specializing in the production of suspension platforms. Suspended platform is mainly composed by suspension mechanism, hoist, safety lock, electric control box, working platform.Its structure is reasonable and easy to operate.It can be assembled and disassembly accroding to the actual Demand.The cleaning platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.

Technical Parameter
Type
ZLP500
ZLP630
ZLP800
ZLP1000
Rated Load
500KG
630KG
800KG
1000KG
Platform Sise
5x0.69x1.18m
6x0.69x1.18m
7.5x0.69x1.18m
7.5x0.69x1.18m
Platform material
Aluminum Alloy type, steel type with hot galvanized,steel type with painting
Wire Rope Height
0-200m
Electrical Cable
(3x2.5+2x1.5mm2 )0-200m
Working height
0-200m
Steel rope
4pcsx100m,Ф8.3mm,Ф8.6mm,Ф9.1mm
Hoisting Machinery
(Copper winding)
 LTD5.0
LTD6.3
LTD8.0
 LTD10.0
1.5kwx2
1.5kwx2
1.8kwx2
2.2kwx2
15KN
15KN
15KN
15KN
Lifting speed
9.3m/min ± 5%
Safety Lock
LSG20
LSG20
LSG30
LSG30
20KN
20KN
30KN
30KN
Locking Cable Angle: 3°~8°
Suspension mechanism Hot Galvanized
Front beam overhang: 1.3 m
Support adjustable height: 1.1~1.6m
Power Source
380V/50HZ 3Phase, 220V/60HZ 3Phase , 220V/60HZ single phase
Counterweight
800kg
1000kg
1000kg
1200kg

Platform accessories

A.Features of Aluminum Alloy ZLP630 Suspended Platform no counterweights work gondola
1. Combination of the bottom platform
2. Convenient and reliable electric control system
3. Reasonable designed structure and Attractive appearance
4. The working height can be asjusted to customer need.
5.. The voltage and frequency can be changed according to different countries conditions.
6. The material of the suspended platform can be determined by customer: Steel material (finish treatment: power coated, hot dipping) or aluminum alloy material
7. Famous brand of galvanized stee wirel rope
8. The film of the ZLP Suspended platform is anti-corrosion( Steel material platform finish treatment is power coated or hot gavalnized could choosed; price will be different. )

B. Our CHINA ZLP800, ZLP1000, ZLP250, ZLP500, ZLP630 Suspended Platform|Cradle|Gondola|Swing Stage|Powered


Access Platform can be widely used parapet and complicated building in different height. And we can also supply customized platform to meet different requirements from customers.

1.The length of platform can be adjusted within 1M-30M.
2.The working height can be adjusted with your need.
3.The voltage can be adjusted with your need.
4.The platform materials can be adjusted with your need. 1) Aluminum alloy 2) Steel

C. Parts contains:


1. Suspended Cage: Steel or Aluminum Alloy (plastic coating or hot galvanization)
2. Suspension Mechanism: Steel (plastic coating or hot galvanization)
3. Electric hoists: LTD5, LTD6.3 or LTD8
4. Safety Lock: LSB30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm or 8.6mm
7. Power cable: 1.5mm²,2.5 mm², 4 mm² or 6 mm²
8. Counterweights: Cement or Cast Iron
9. Spare parts

D. Advantages of Aluminum Alloy ZLP630 Suspended Platform no counterweights work gondola


1. CE ISO international certificates.
2. One year guarantee time.
3. Special made can be accepted.
4. Factory direct sale.

Product detail

Main Parts of Aluminum Alloy ZLP630 Suspended Platform no counterweights work gondola

section
introduction
Platform(basket)
Steel or Aluminum Alloy (painted or hot galvanized)
Suspension Mechanism
Steel (painted or hot galvanized)
Electric hoists
LTD6.3 or LTD8
Safety Lock
LST30
 Electric control box
 Along with hoists
Steel wire rope
8.3mm ,8.6mm or 9.1mm
Safety rope
18mm,20mm
Electric cable
3*2.5+2*1.5
Counterweights
Cement , cement with steel cover & Iron counterweight
Products show

Parts of electric aluminium lifting suspended wire rope platform :

1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)

2. Suspension Mechanism: Steel (painted or hot galvanized)

3. Electric hoists:LTD6.3 or TD8.0

4. Safety Lock: LST30

Case:

Packing&Delivery
FAQ

1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of loading capacity, material and voltage.

2. Are you a factory or trading company?
We are direct factory with 40,4000 square meters factory and supply qualified products with factory price.

3. What quality certificate you own for your products?
Our products own CCC, CE and ISO9001 certificate.

4. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.

5. Payment term?
T/T or L/C at sight.

6. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.

7. Can you make suspended platform with our brand?
Yes.

8. Delivery time?
According to order quantity, 10-20 working days will be finished after getting the deposit.
