Многофункциональный 3 оси 1 сверлильно-1 Прошивная промышленный, без каблука, ролик, щетки диска делая машину для подметания пола

Share on:


Price:25 000,00 $
Price in USD:Details

Quantity:


Product Overview

Description

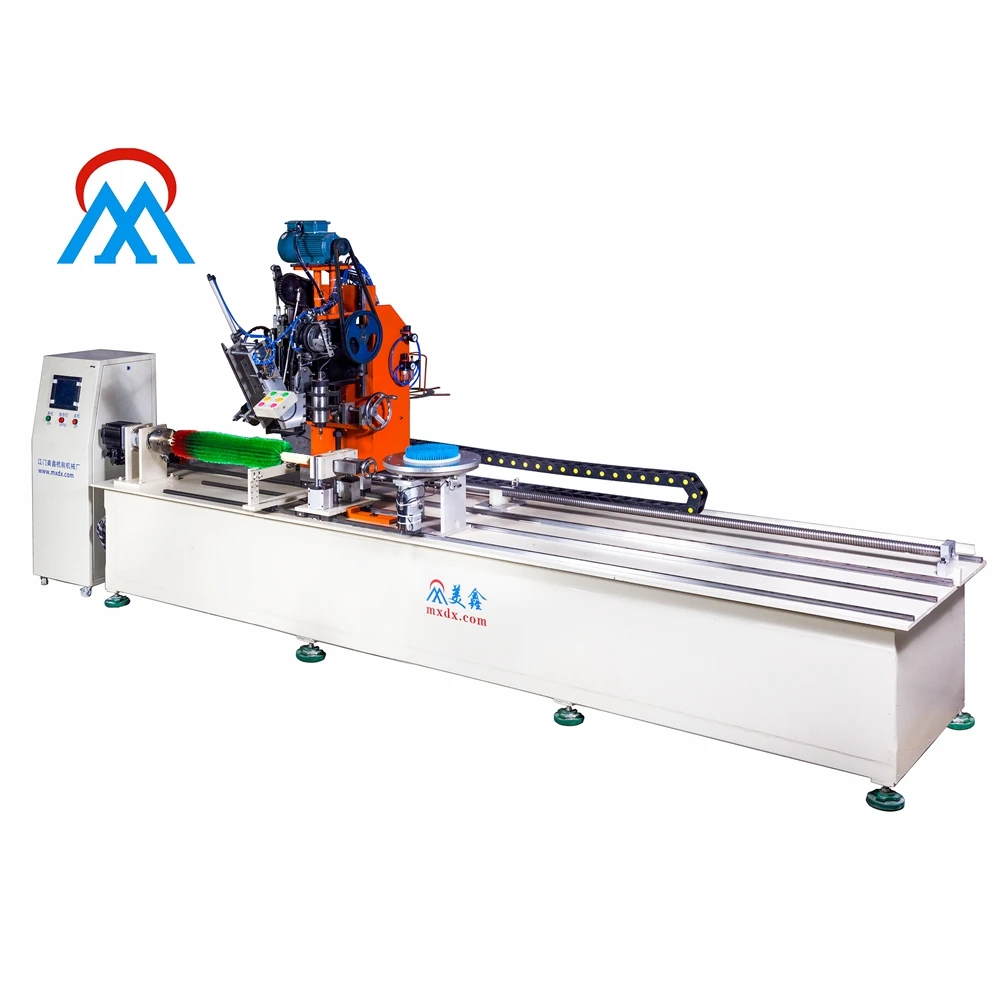

3a2

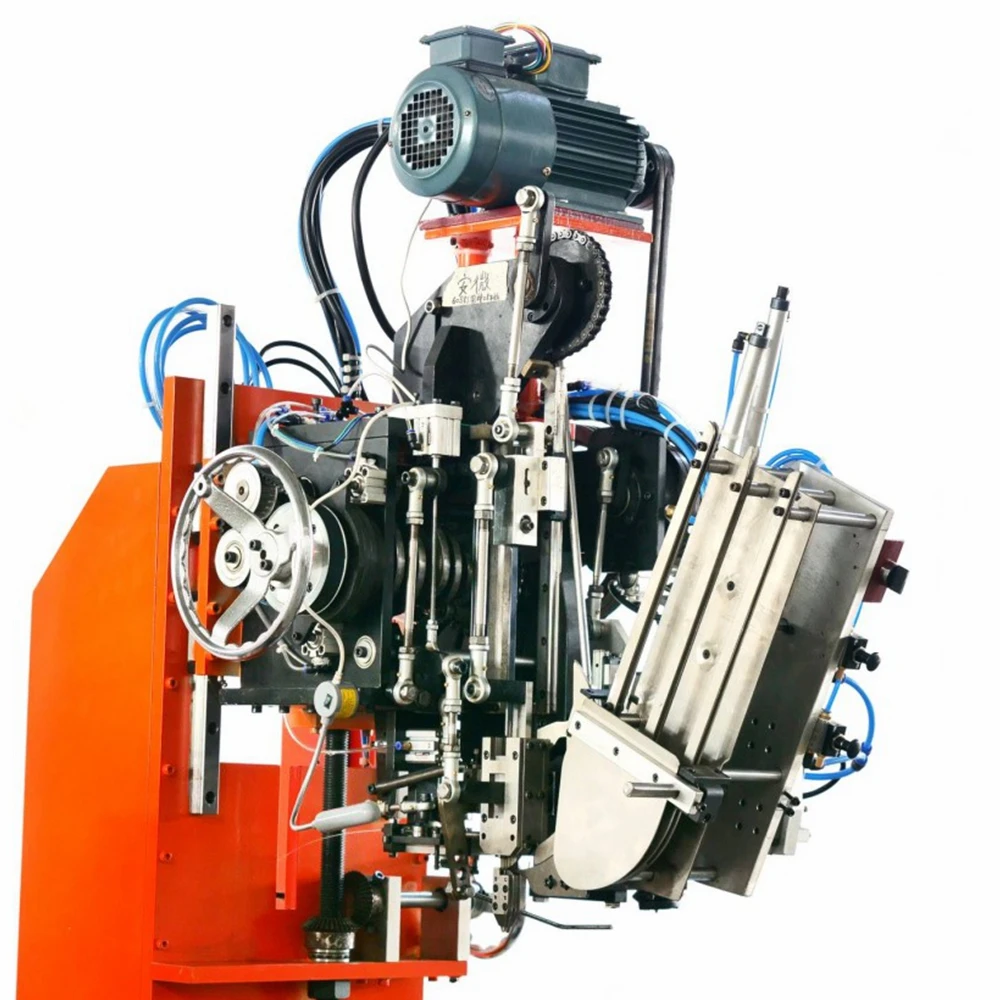

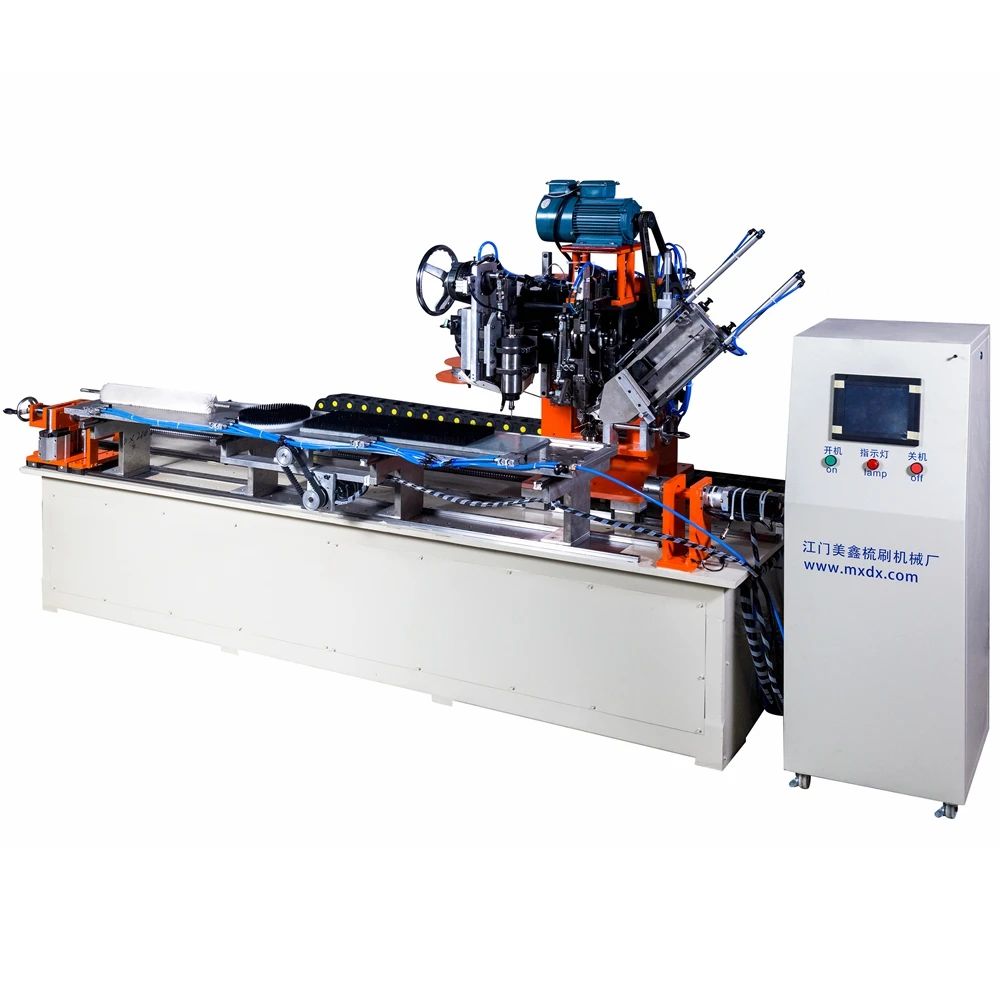

Multifunctional 3 axis 1 drilling and 1 tufting  industrial brush making machine



Machine data:

Description:
ModelMX-3ADT001
NO. of axis3 axis
Qty of heads1drilling and 1 tufting
ApplicationFat and regular angle , roller and disc brush.
brush typesCustomized
Brush base materialsPlastic, wood
Filament materialsPP,PET, Nylon,animal hair plant fiber etc.
The mold fixture size300*50mm
Diameter of hole 4~6mm
The length of filament(outside the hole)15~200mm
Colors of Brush Filaments2 colors
Parameter:
Drilling and tufting Speed4~6 holes/sec.
Power voltage, frequence220/380v , 50/60HZ  (customer choose)
Main motor power1.5KW
Air Source Input0.4~0.5Mpa
Equipment size3000*1100*1700mm
Weight1300KGS
Electrical parts:
Control System(PLC)MEIXIN Chinese and English version
Touch screenMEIXIN Chinese and English version
Main motor SNMA
Servo motorMaxsine
Relay IDEC (Janpan)
Variable-FrequencyDELTA (Taiwan)
Safety Protection:Schneider (France brand)

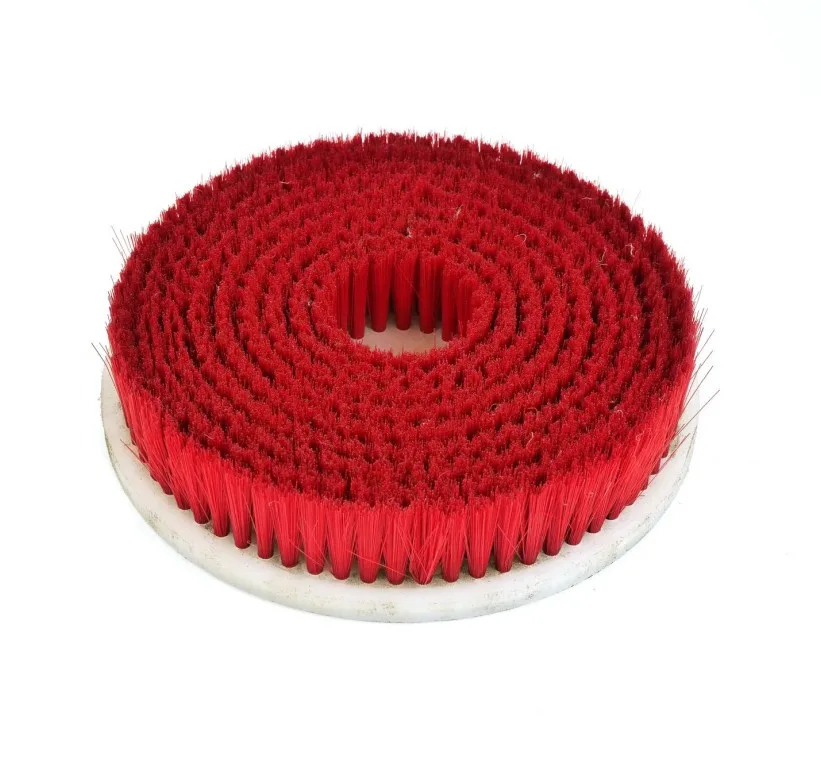

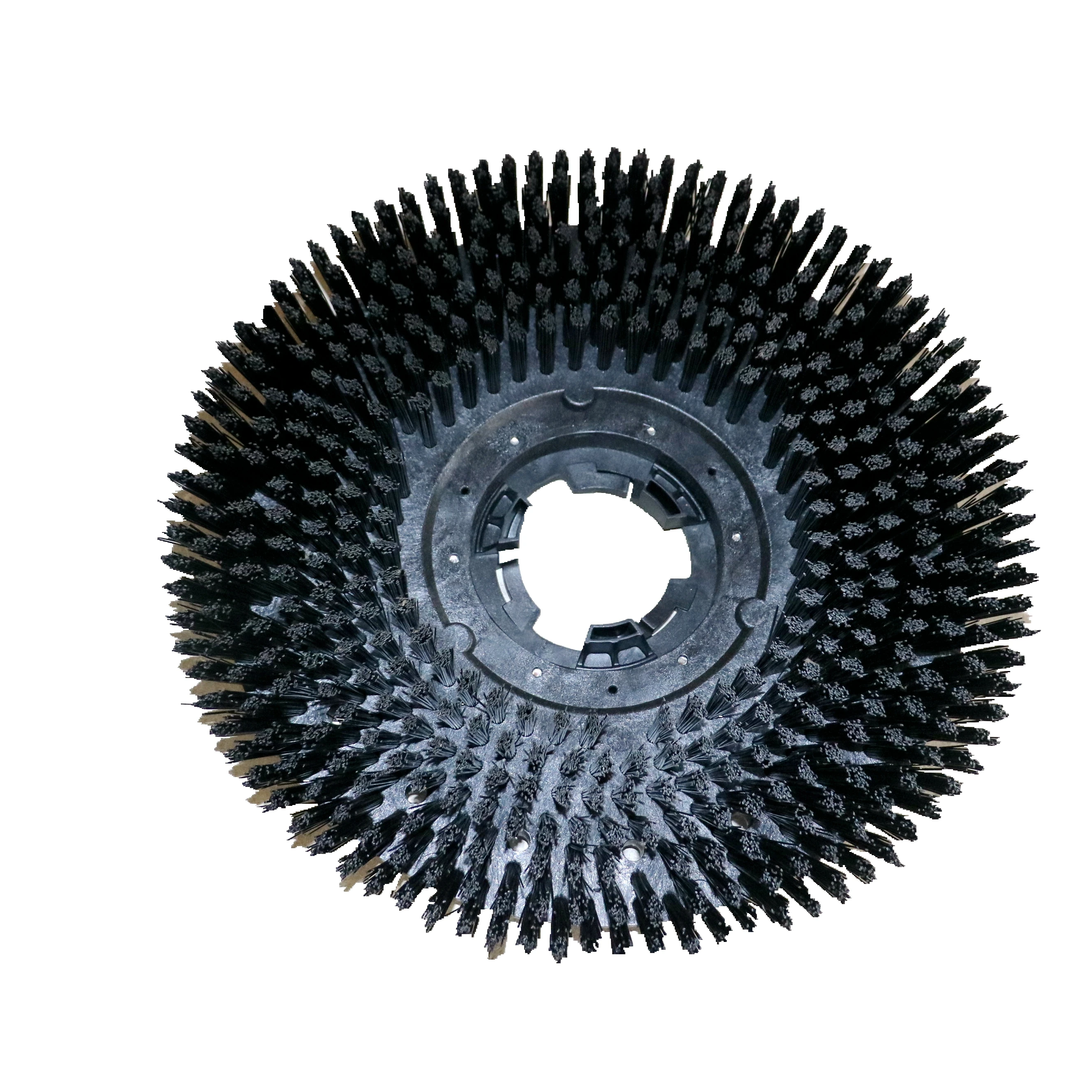

Production range: roller brush, flat brush, disc brush

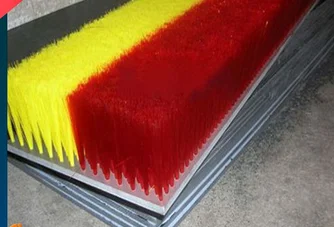

8410TIM20170907113058



Program: Can set up stock more than 100 programs on the PLC controller.



Different fixture different products.
