 Tubular type UHT sterilizer

applicable to heating, sterilization, heat preservation and cooling etc. technology requirements of fresh milk, fruit beverage and alcohol etc. heat sensitive liquids.

Tubular type UHT sterilizer Main features:

compact structure, small land area, high heat recovery, good effect of energy saving and consumption reduction, as well as simple operation.

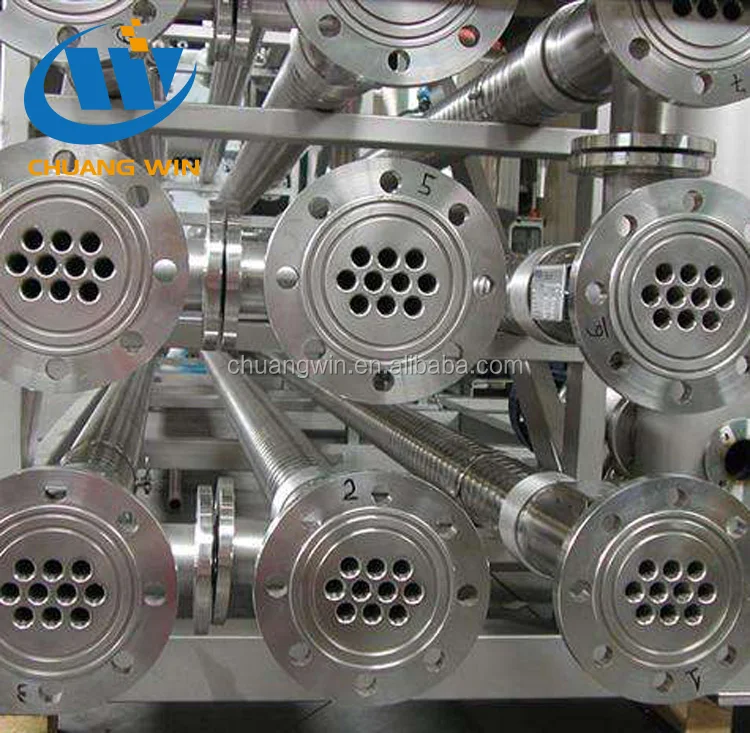

The equipment adopts multiple-tube type, the multiple tube consist of many parallel small tubes, then connect many section multiple tubes. Each segment called a lift, the inner tube of every lift connected by U type tube, the outer tube connected by branch pipe. Material flow in the inner tube, the heating medium reverse flow in the outside tube, through the inner wall to heat transfer. The qty and dimeter in each shell and tube can change, to meet the quality of the material and requirement of heat. The inside and outside of the tube adopt unique set of floating head and double seal design, to avoid the dangerous of pollution, it is convenient to open the pipeline to repair and inspect at the same time, it also can bear high pressure, the maximum allowable pressure can reach 100bar.



During the working process of the equipment, the product is in a completely closed system to produce, no secondary pollution; combine the direction of flow in the pipe design, to avoid the

qty of the end(such as T shape connection) and consider the thermal effect, mechanical effect, interfacial active effect of the cleaning, so as to improve the security and cleaning effect. It equipped with alarm and fault handling system, it can effectively put an end to unqualified products output. In addition, the equipment is signal chain with the filling machine, to prevent the wrong operation of filling material, ensure the quality of the product.



1.Good quality of the finished product

The equipment is through digital heat balance design, accurately design the heating up of the product, cooling the required heat exchange area and process, make the products short time quenching heat treatment, reduce the loss of product’s flavor and nutrition, and sterilization.

In addition, the equipment can add many section of cooling, regulate the outlet temperature, suitable for cooling filling according to customer’s requirements.



2.Long running time

The equipment adopts high quality, high standard tube, to ensure the good heat transfer efficiency of the heat exchange tube. The control component used in control system adopt international known brand product, include programmable logic controller, smart touch screen, electrical element, steam regulating valve, pressure reduce valve, seat valve, automatic angle valve, constant pressure valve, hot water pump, material pump. It has good quality, heat transfer efficiency and high precision temperature control, the system running stable, have long running time.



3.Easy to operate, high production efficiency

During production, just touch the screen, the system will complete all production operation automatically, include pump, valve on and off, the automatically regulating of the sterilization temperature, and pipe cleaning. It si full automatic control system, every operation only need simple training before guard operation, which greatly improve the production efficiency.



All the control components are imported international brand, guarantee the control precision and quality.



It is easy to maintenance, it only need to replace O sealing ring during maintenance, without any heavy tools.



The manufacturing material meet the standard of food GMP, in accordance with the ASME welding specification, adopt GTAW welding process.

Detailed Images

 0



 1





33



12

 CIPIMG_2366

Company Information









Packaging & Shipping



Our Services



1.Find our products through websit .

2.One year warranty for the whole system.

3.Free equipment installation and debugging.

4.After one Year,we can help you to maintain the machine and the accessories are provided olny one the cost price.

5.Every 3 years,we can help to overhaul the machine freely(Labor).

6.We can provide internship servise and help you train the operator and mechanic.

7.Free production technology and process configuration.

8.We can help you to design the production line,workshop and provide turn-key project.



FAQ



Q: How to get an appropriate offer from your company?

A: Please inform us:

     1, production capacity per hour/per day/per month ... ...

     2, filling liquid: water, juice, carbonated drink, beer or ... ...

     3, bottle type: plastic bottle, glass bottle, can or ... ...

     4, cap type: screw cap, crown cap, can lid or ... ...

     5, for water treatment, it's better offer us the raw water quality report ... ...



 Q: This is the first time I cooperate with your factory. How can I trust you about the machien quality?

A: Before ordering the machine, we will make the offer very clear. For example, the material thickness, the brand etc. We can have the video call and I will show what we have in the factory



Q:What’s your guarantee or the warranty of the quality if we buy your machines?

 A:We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years



 Q:When can I get my machine after I paid?

 A:We will deliver the machines on time as the date we agreed both side.



Q: Can I run the machines in your factory if I buy the complete line in your factory?

A: Sure, why not. We will have the line connected and tested in our factory before shipping even you didn't mention; We will make it working before arriving at your factory;



 Q:How about the spare parts?

 A:After we deal down all the things , we will offer you a spare parts list for your reference.



Q: How can I install the machine and commissioning? Do you have the technician to my factory?

A: We have the technician available to your factory for machine installation and commissioning; BUT client should be responsible for the round-way flight tickets, technicians' daily salary, local transportation, local hotel and eating.
