Three Rolls Mechanical Type Symmetrical 25Mm 6Mm Thick Plate Manual Roller Bending Machine (62151005234)

Share on:


Price:$1,000.00
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

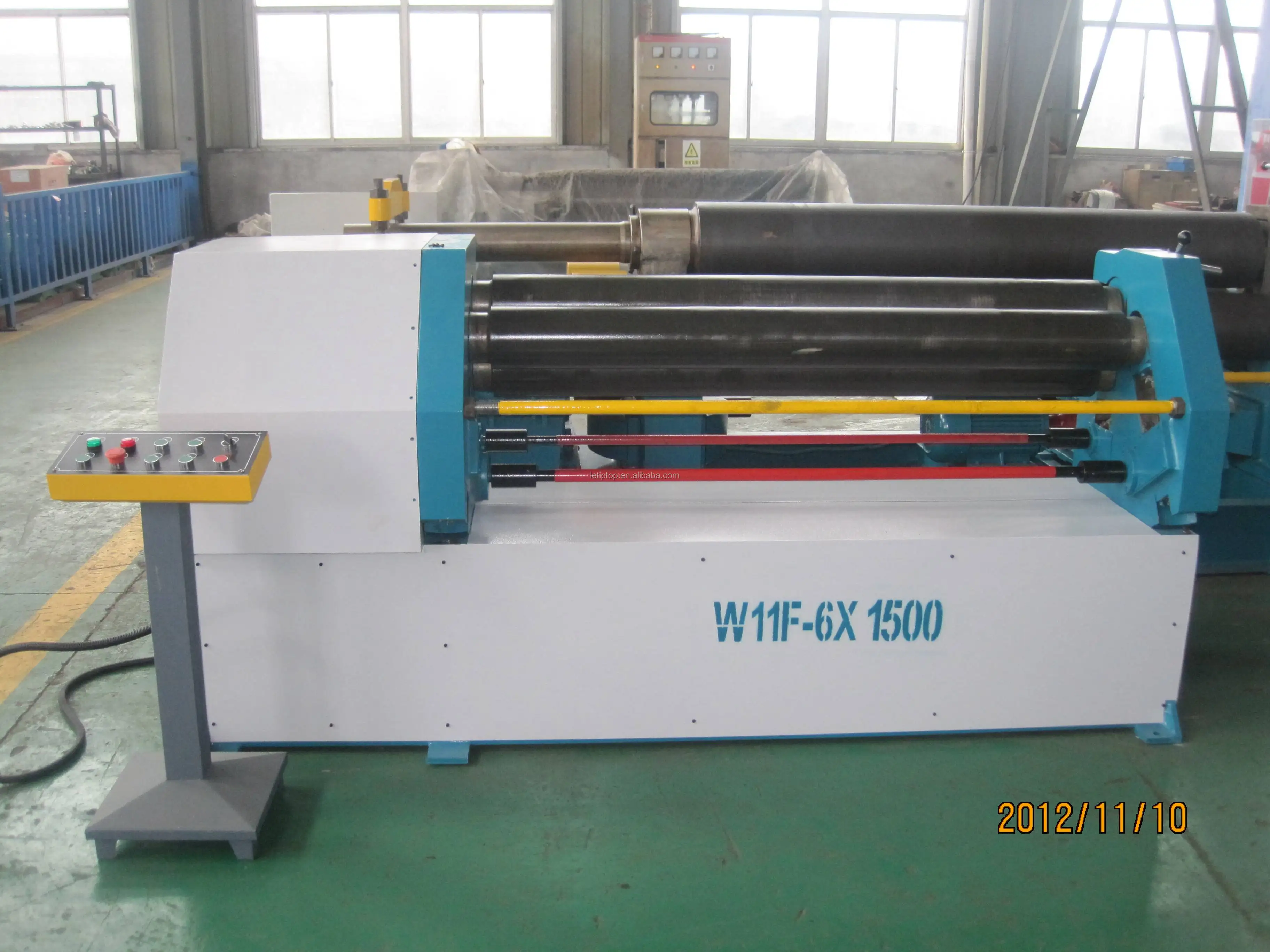

Three Rolls Mechanical Type Symmetrical 25Mm 6Mm Thick Plate Manual Roller Bending Machine

Specifications:

Useful length from 1000mm to 6000mm.
Thickness from 2 up to 100mm.
With our four rolls plate bending machine,plate can be bent on both side without return.
Full automatic controlled by PLC,there's no need for additional processing steps for bending the ends.

The flat edge is 1.5-2 times of the thickness.
Quality certificate such as CE and ISO9001.

three rolls mechanial type symmetrical plate bending machine
Product Categories

                          Product Categories                                                                                      → View All

three rolls mechanial type symmetrical plate bending machine

3-Roller Asymmetrical Plate Rolling Machine

Top roller and bottom roller are all main drive roller. The bottom roler lifting up and down to clamp the plate tight.
Through the meshing between top roller gear and bottom roller gear to drive the top roller. The side roller move titling to pre-bend the plate and circle. It's compact and easy operate and maintain.
*Initial pinch
*Once forming, high process effcincy
*Small diameter cylinder

three rolls mechanial type symmetrical plate bending machine

3-Roller Symmetrical Plate Rolling Machine

W11 SERIES MECHNICAL SYMMETRICAL PLATE ROLLING MACHINE

The top roller do the movement of elevation in the central position of the two bottom rolls. It is transmitted screw nut and worm gear. Two bottom rolls are main drive rolls. They rotate by the meshing between the output gear of the gear box and the bottom roller and supply the torque for bending plate. It is compact, easy operate and maintain
Extended shaft for profile bending.

three rolls mechanial type symmetrical plate bending machine
three rolls mechanial type symmetrical plate bending machine

W11S SERIES UPPER ROLLER UNIERSAL PLATE ROLLING MACHINE

1 The upper roller is designed as drum shape.
2 Special bending craft, high precision pre-bending of the edge, digital control for bending process
3 Variety shape bend such as O, U, R etc
4 Cone bending device for conical bend easily
5 Whole chassis, simple ground foundation, it is convenient to move the workplace
6 Economic digital display type or TNC digital control type is optional.

three rolls mechanial type symmetrical plate bending machine
three rolls mechanial type symmetrical plate bending machine
three rolls mechanial type symmetrical plate bending machine

4-roller CNC Plate Rolling Machine

W12 SERIES 4 ROLLER CNC HYDRAULIC PLATE ROLLING MACHINE

1 It is easy to operate, variety shape bend
2 CNC control, digital readout for position of each rollers. High accuracy and precision circle
3 Full hydraulic drive, High efficiency and energy saving, the drive power is equivalent to the
traditional 60%
4 Once forming, the productivity is higher 50%-80% than three roller bending machine

5 Aligning the material is convenient and accurate, avoid the wrong side phenomenon
6 Cone bending device
7 Permanent lubrication(bearing life without refueling)

8 The top and bottom roller clamp the plate during rolling without slippingle
9 The minimum bending diameter of the cylinder can get to 1.1 times the diameter of the top roller
10 The carrying device and feeding device and support device can be installed easily

three rolls mechanial type symmetrical plate bending machine

PRODUCTION WORPIECE

three rolls mechanial type symmetrical plate bending machine
Our Company

▶ ABOUT US

Jiangsu TIPTOP Machine Tools Co., Ltd. is a well known worldwide manufacturer of machines for sheet metal working, such as Hydraulic Ironworker, Hydraulic Shearing Machine, Press Brake, Plate Rolling Machine and Section Bender utilizing the most recent technologies and constantly refined by our design engineers to meet the most demanding market requirements for flexibility.

                                                          view more>>

three rolls mechanial type symmetrical plate bending machine
three rolls mechanial type symmetrical plate bending machine
Certifications
three rolls mechanial type symmetrical plate bending machine
three rolls mechanial type symmetrical plate bending machine
three rolls mechanial type symmetrical plate bending machine
three rolls mechanial type symmetrical plate bending machine
Our Service
three rolls mechanial type symmetrical plate bending machine
three rolls mechanial type symmetrical plate bending machine

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
three rolls mechanial type symmetrical plate bending machine
\t
Packaging
\t
Size
\t
According to model
\t
Weight
\t
According to model
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
three rolls mechanial type symmetrical plate bending machine
