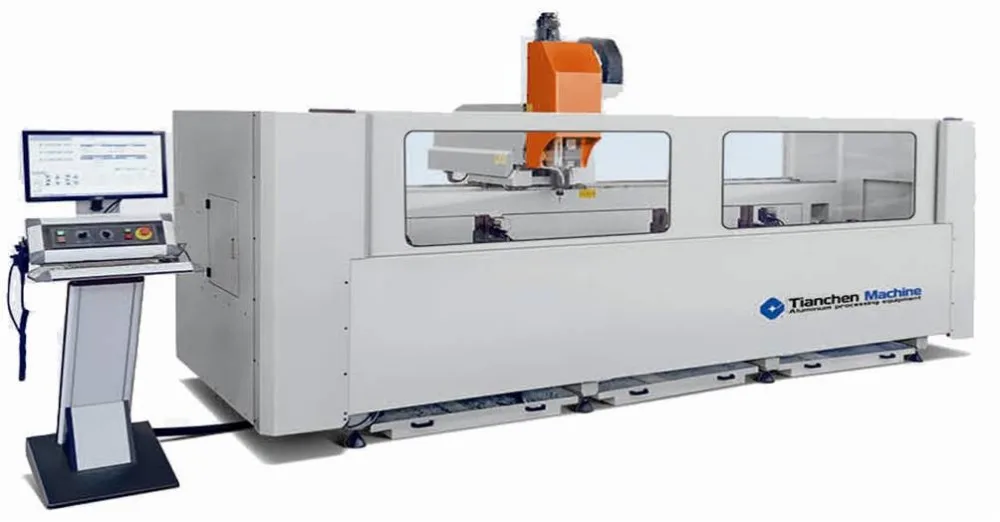

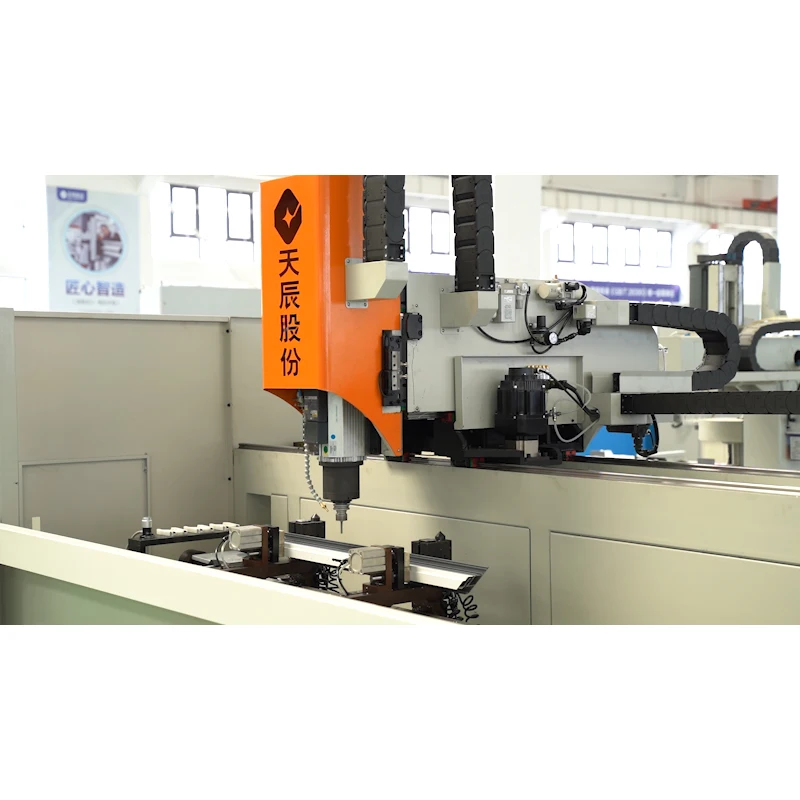

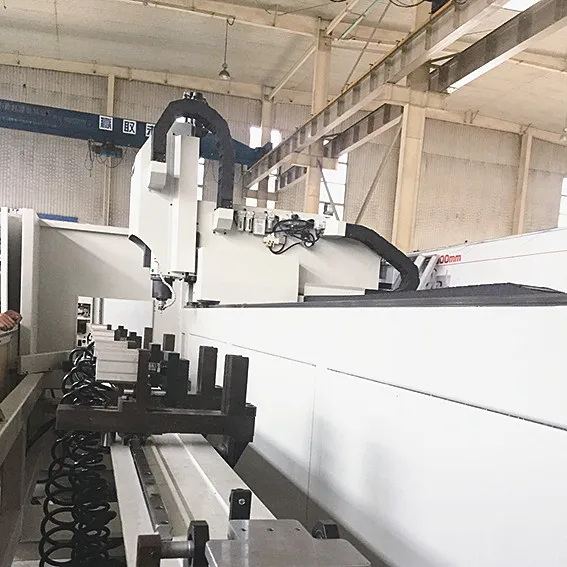

Window Door Making Machine Aluminium processing high speed CNC Milling Drilling Machining Center

Share on:


Price:RUB 3,801,182.40
Price in USD:Details

Quantity:

Add to Cart
  • add to wishlist

Product Overview

Description

Product Description

Application

★ Applicable for CNC milling and drilling processing for multiple parts of aluminum window and door curtain wall or industrial aluminum profile, copper, PVC profile and etc.

Main Features

★ Applicable for CNC milling and drilling processing for multiple parts of aluminum window and door curtain wall or industrial aluminum profile, copper, PVC profile and etc.

★ Adopt high precision guide rail pair, ball screw, gear rack and imported high quality servo system, make sure the stable working, with better positioning and processing accuracy.

★ Adopting high speed electrical auto switching tool spindle, with good and reliable performance.

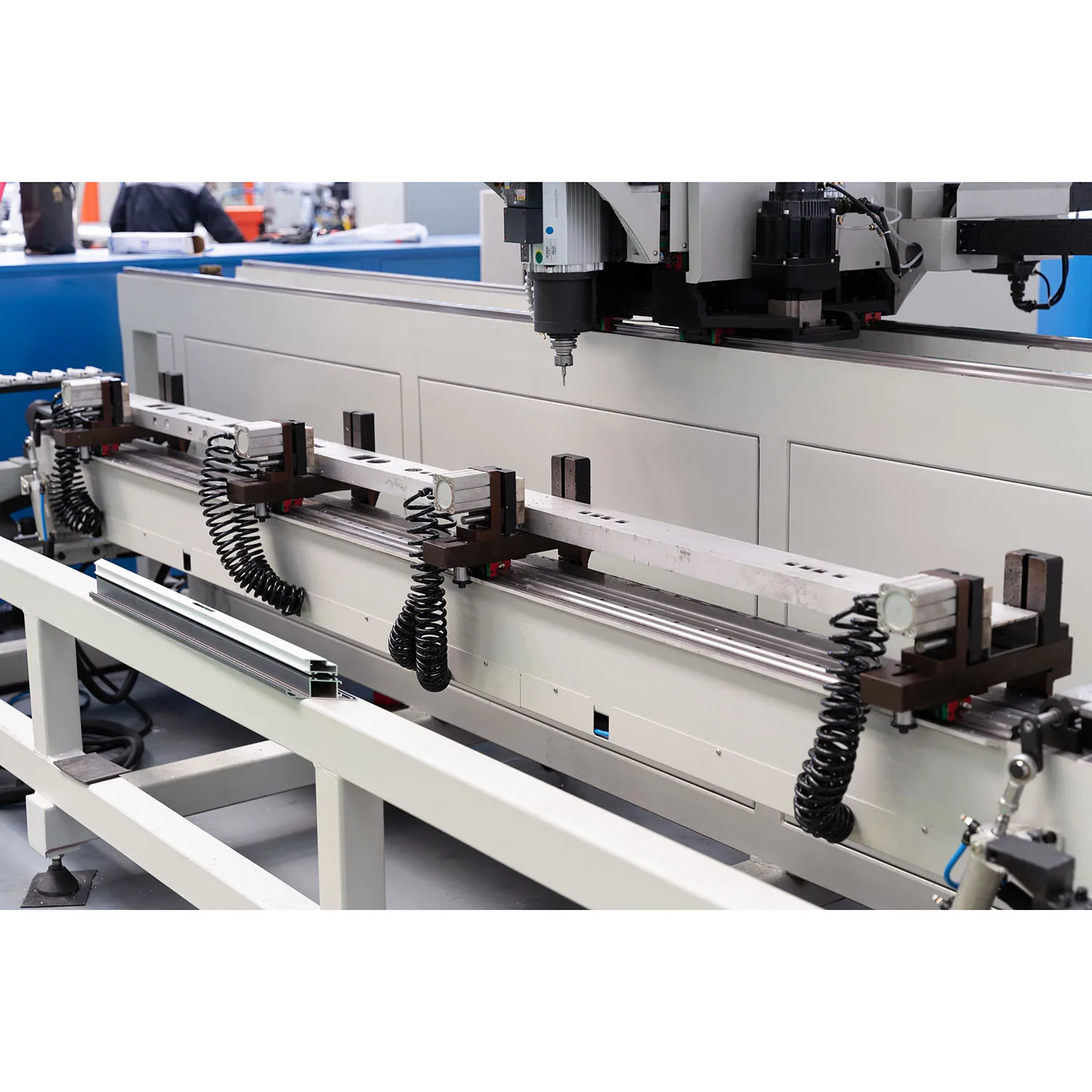

★ There are positioning devices at double ends of the worktable separately. It can realize the dual processing in two areas for short profile, which greatly improve the working efficiency.

★ Adopting semi-closed protective shield and receiver at the bottom, with better safety. And effectively avoid the chippings pollution to the environment; help building a good working environment.

★ It is convenient to operate with intelligent CNC system and brief intuitive interface

★ The rotary work table is able to change among the -90°,0°, and 90°, realized the milling and drilling processing at three surfaces for one time clamping.

Technical Parameters

Item
Specification
X-axis Range
3500mm
Y-axis Range
450mm
Z-axis Range
350mm
X-axis Moving Speed
0~60m/min
Y-axis Moving Speed
0~30m/min
Z-axis Moving Speed
0~30m/min
Spindle power
7.5kw/9kw
Spindle Max Rev.
24000r/min
Spindle Taper
ISO30
Max Processing Range
160x160x3200mm
Tool Magazine Capacity
3pcs
Quantity of Clamp
4
Area
4500mmx2300mm
Weight
2500kg

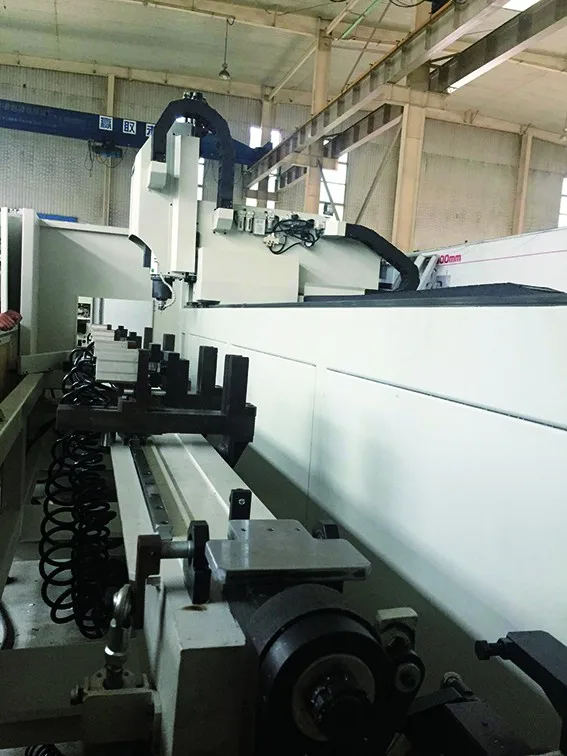

Detailed Images

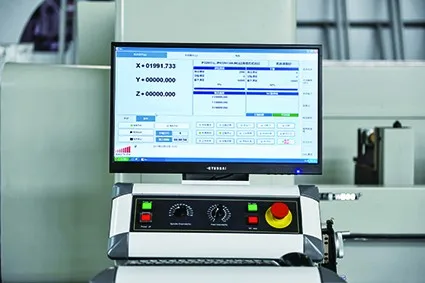

★ It is convenient to operate with intelligent CNC system and brief intuitive interface

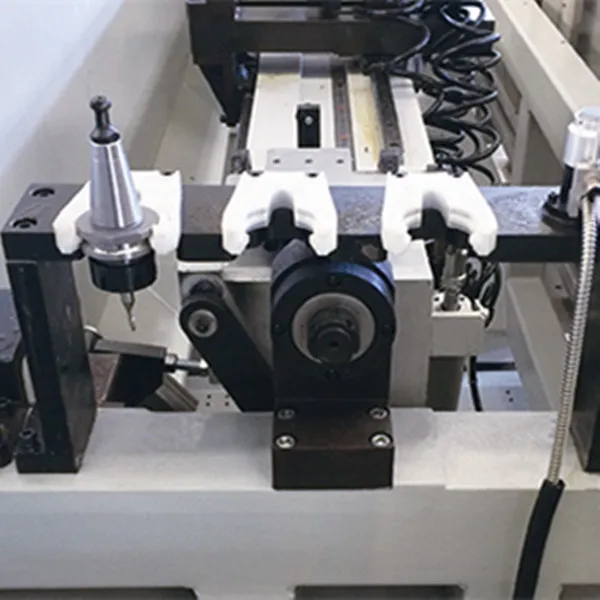

★ There are positioning devices at double ends of the worktable separately. It can realize the dual processing in two areas for short profile, which greatly improve the working efficiency.

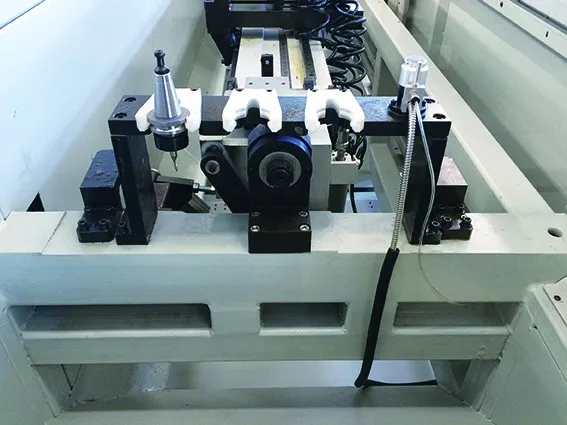

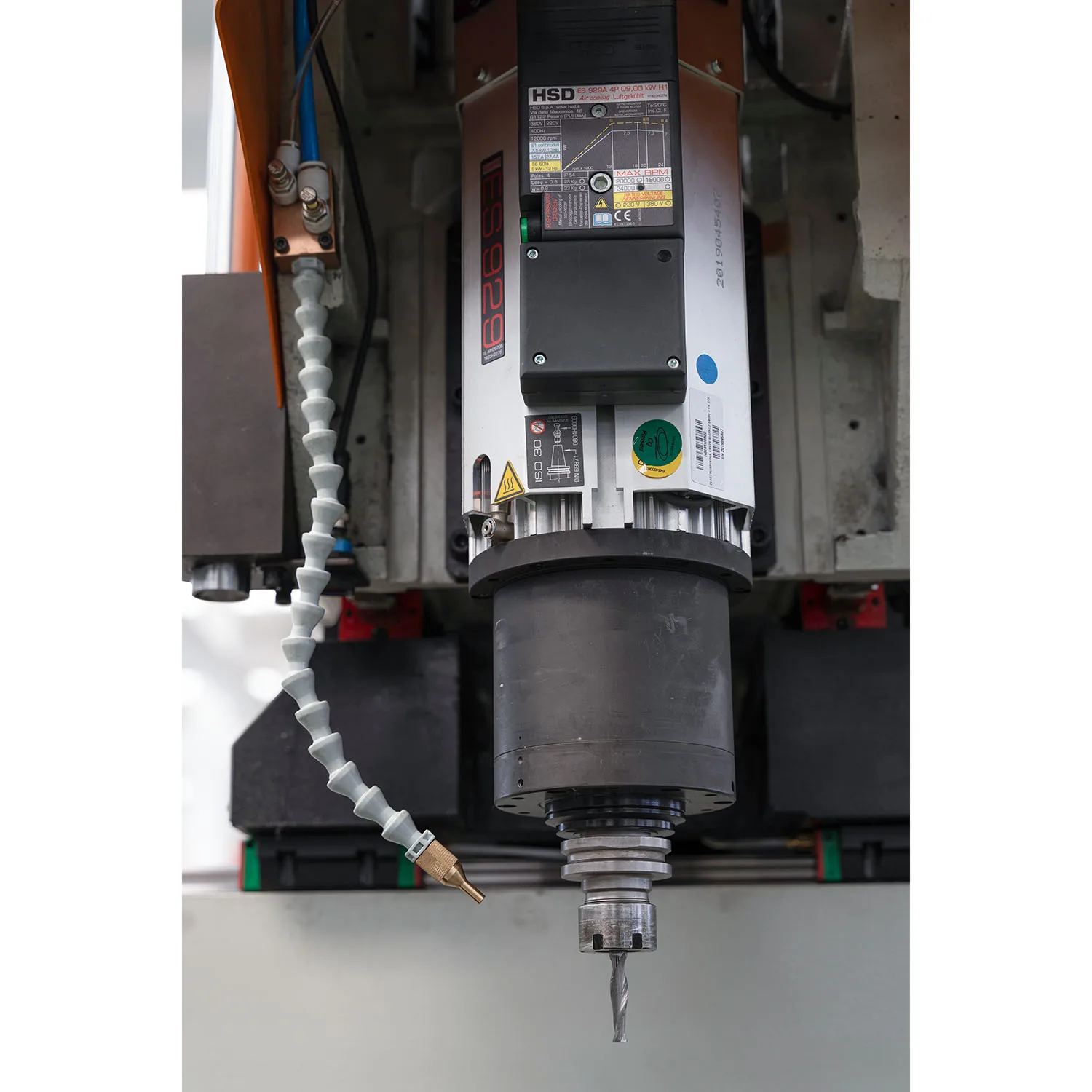

★ Adopting high speed electrical auto switching tool spindle imported from Italy, with good and reliable performance.


Certifications

                   CE certificate

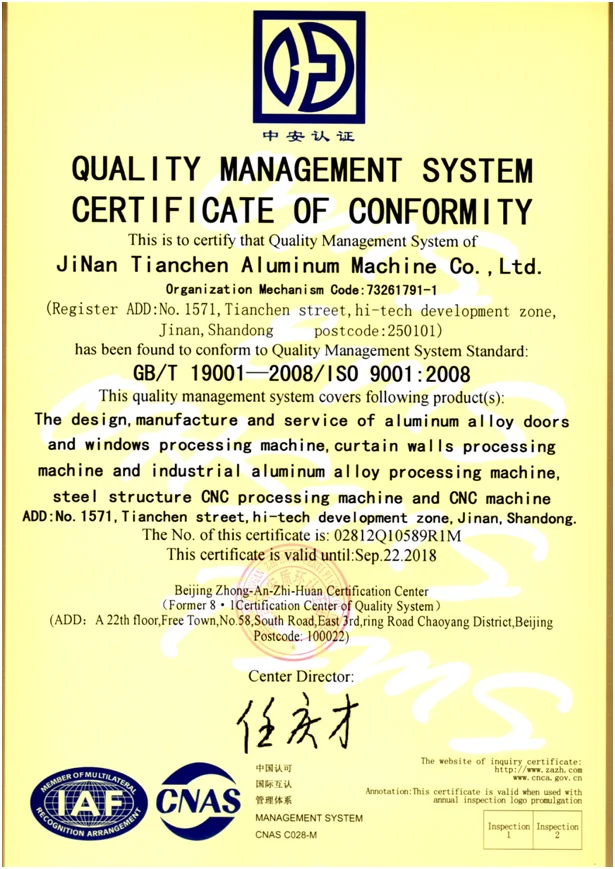

           ISO certificate

AAAA Grade in Good Standardizing Practice Certificate (2016-2019)

The First Selected Brand of Manufacturing Equipment in 2018~2019 The 14th AL-survey Chinese Doors, Windows and Curtain Wall Industry Brand List

High-tech Enterprises of Shandong Provinces in 2017~2020

Outstanding Contribution Enterprise for Thirty Years of Chinese Building Curtain Wall Industry

Green Products of China Formwork and Scaffold Industry(2018-2019)

Key Enterprises in Shandong Construction Machinery Industry

Famous Trademark in Shandong, China

Service and Warranty

1. 24hr online customer service

2. Offering customized service and OEM service

3. Engineers available to service machinery overseas

4. 12 months warranty for whole machine, excepting the wearing parts.

Packing & Delivery

Packaging: Clean and lubricate the machine and necessary parts before delivery; carefully packed them with protective film, and stably fixed in the container.

Shipping: by sea, by air

Our Company

Jinan Tianchen Aluminum Machine Co., Ltd is the first listed company in China for door and window curtain wall equipment, and it is a holding subsidiary of Jinan Tianchen Machinery Group, a well-known enterprise in Shandong Province. The company focuses on the research and development and manufacture of aluminum door and window curtain wall and industrial aluminum deep processing equipment. It is a comprehensive high-tech enterprise integrating scientific research, production, sales, testing and service. Tianchen Aluminum Machine has developed into a professional manufacturer of aluminum door and window curtain wall industry with the most complete varieties, the largest production and sales volume, and the largest number of service outlets in China. The products include aluminum door and window curtain wall processing equipment, aluminum formwork production line and industrial aluminum deep processing equipment for rail transit and automobile lightweight industry.

As a world renowned Chinese brand, Tianchen has created a team of responsible, dedicated and dedicated professionals in technology, marketing and after-sales. With professional ability and service spirit, we provide customers with stable and technologically advanced processing equipment based on industry needs.

The people oriented design concept, strict mechanical processing technology and perfect quality assurance system have created the outstanding quality of Tianchen. Tianchen has the most powerful parts processing and manufacturing capabilities in the industry. It has introduced dozens of large-scale processing equipment, CNC machining centers, laser interferometers, ball-bars and other high-precision testing equipment. Tianchen Company adheres to the model of independent innovation and lean manufacturing, continuously improves the level of R&D and manufacturing, and has won the unanimous approval from the market and customers. At present, Tianchen has provided machines to more than 7,000 aluminum door and window manufacturers and more than 100 aluminum curtain wall manufacturers in China, with a domestic market share of over 40% (more than 70% in some major markets) and over 60% of the top 100 companies in China's building curtain wall industry have become loyal users of Tianchen, and has been exported to more than 60 countries and regions such as the United States, Russia, South Korea, Singapore, Thailand, Vietnam, the Philippines, Australia, the United Arab Emirates, South Africa, France, Greece, Italy, India and etc, and enjoys world wide reputation.

"Doing new, doing well", Tianchen closely follows the development trend of domestic and foreign door and window curtain number of patents fill the gap in the industry. In the future, Tianchen will adhere to innovation-driven development, help transform old and new kinetic energy, and promote industry progress!

Never forget the original heart, practice the spirit of artisans; work hard to create a national brand!

Exhibitions
FAQ

1. Which machine should I choose?
A: Tell us your specific requirements for the machine; we will give you perfect suggestions and solutions.

2. How to use the machine, what should I do if problems occurred to the machine?
A: You can refer to the user's manual or instructions delivered along with the machine; if anything unclear, please feel free to contact us. We will support you by email, telephone or instant messengers. If still have difficulties, we offer oversea installation, maintaining and training service.

3. Which payment method do you accept?
A: We accept T/T, L/C and etc.

4. What is the delivery time?
A: The delivery time differs depend on the machine model and the order quantity. Usually the delivery time shall be 15-40 working days after deposit.
