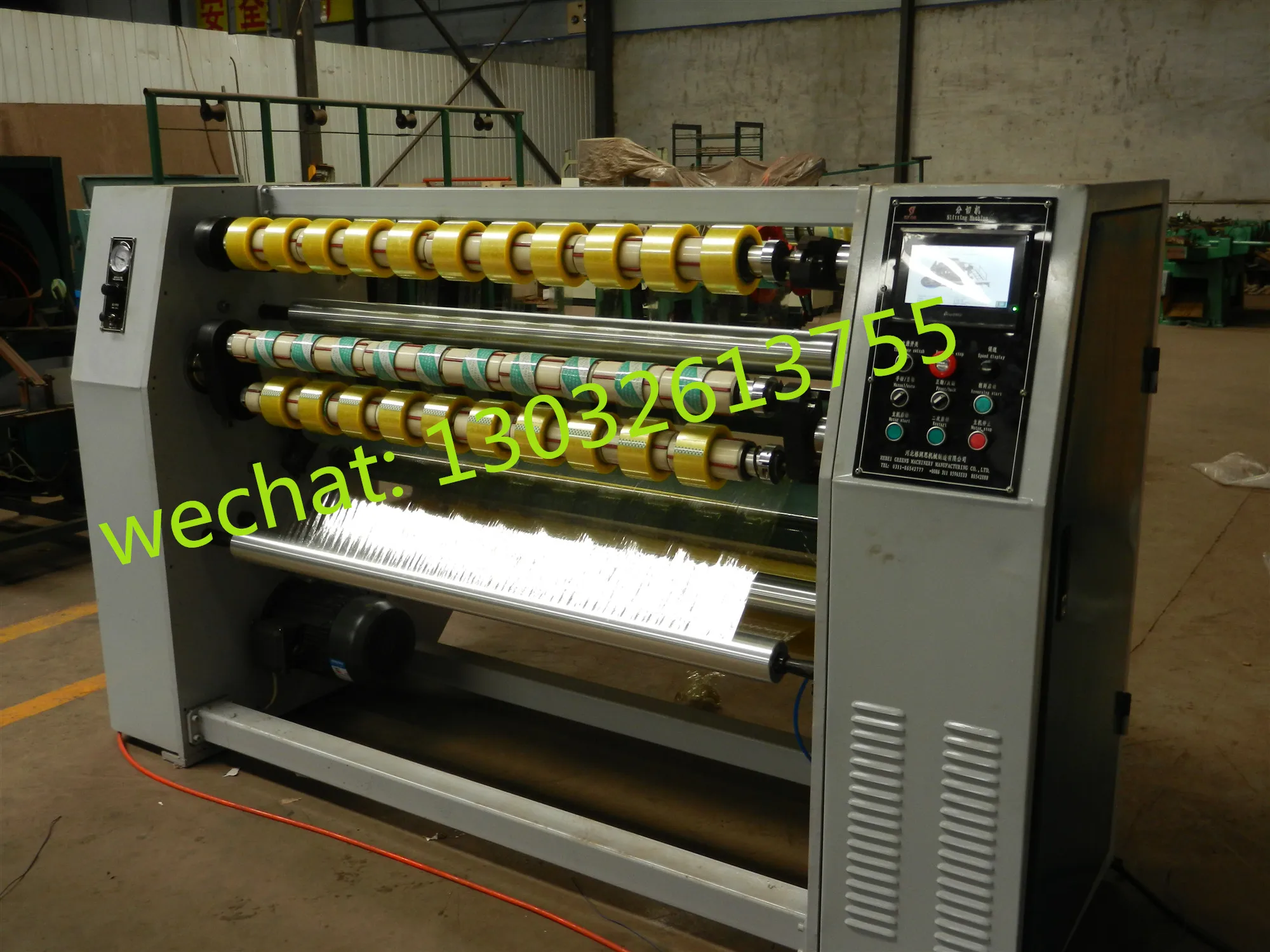

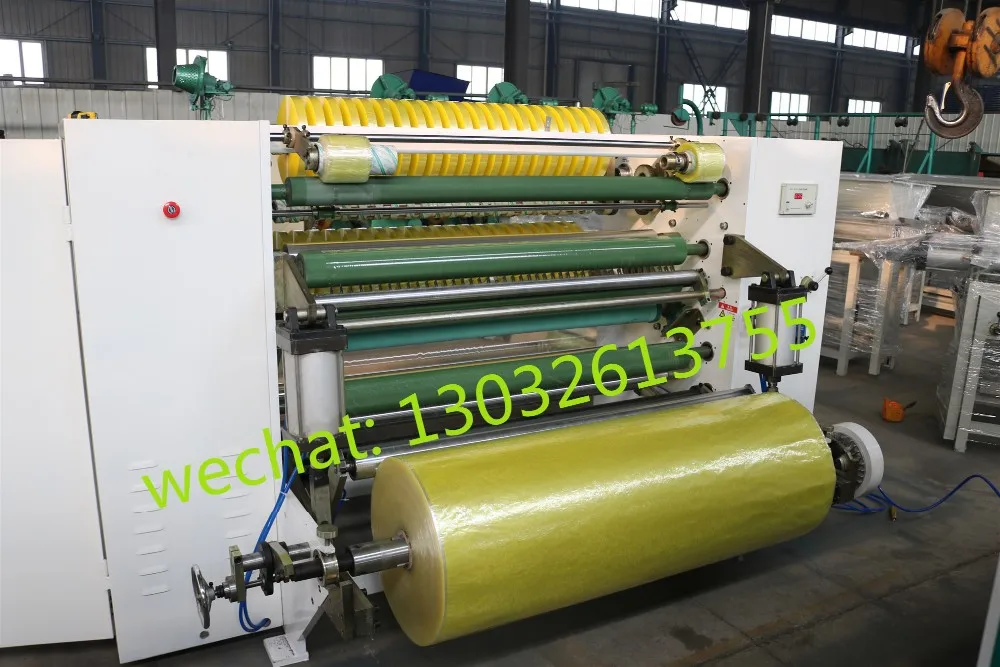

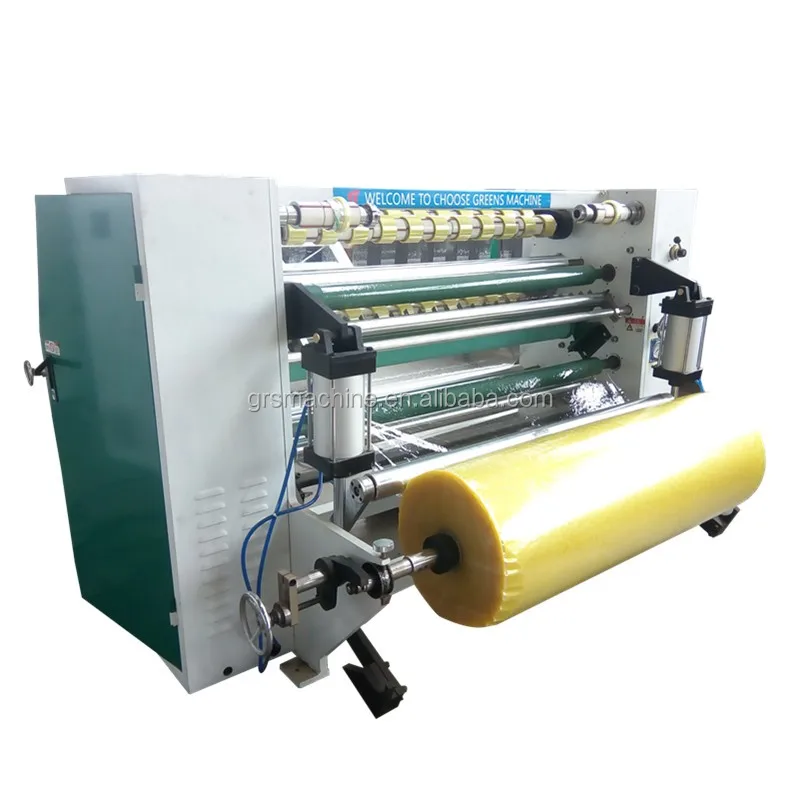

opp tape slitting machine(automatic log slitter, roll adhesive tape slitter)

Share on:


Price:$12,500.00
Price in USD:Details

Quantity:


Product Overview

Description


Product Description

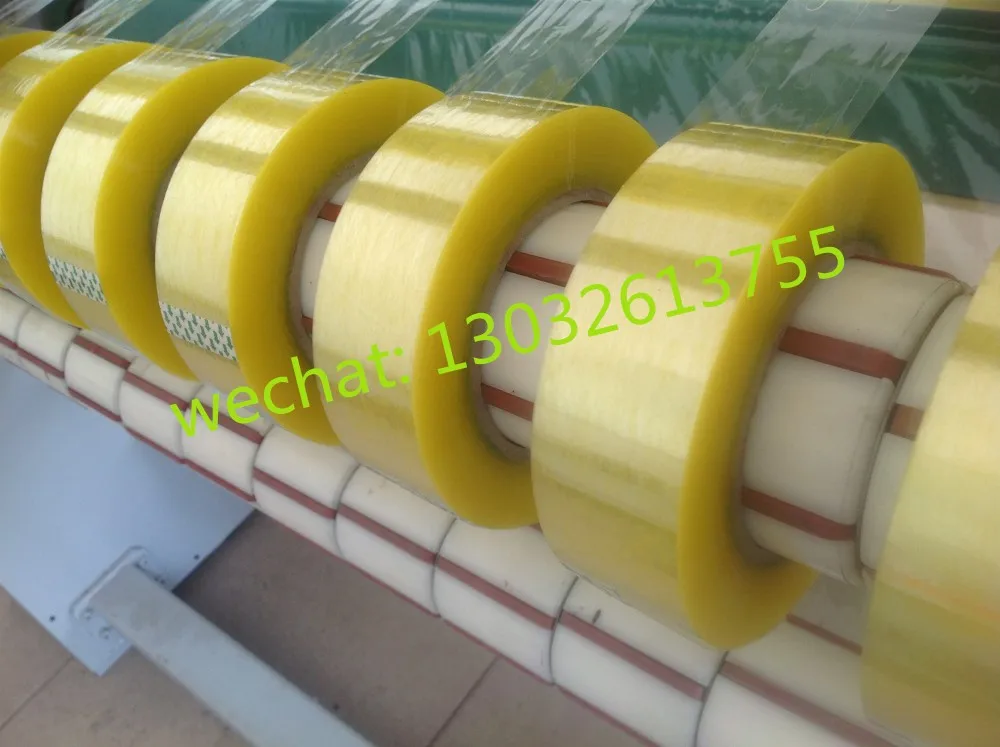

Product Application


Specification \t1300mm
Max unwinding diameter \t800mm
Max rewinding diameter\t150mm
Min slitting width \t12mm
Paper core diameter \t76.2mm
Max speed of machine \t200m/min
Motor power \t4KW
Voltage \t380V 50HZ
Air pressure \t0.4-0.6Mpa
Machine dimension \t2650*1450*1550mm (1300 type)

Main Features

1)\tTo control each part through operation panel;
2)\tMuch bigger diameter of Mechanical driving shaft will make machine run more stable;
3)Human-computer interface apply PLC control, input and display by LED touch screen, easily and simply to operate;
4)Roller type automatic shift cycloid collecting wasted edge device will reduce stop machine times;
5)Unwinding part has automatic loading jumbo roll device;
6)Unwinding part has magnetic tension control device;
7)Unwinding shaft apply pneumatic shaft unwinding type, it's easy and convenient to operate;
8)Rewinding part adjust Tension Disk by manual and independently;
9)non-stop changing roll device;
10)whole machine apply chain driving

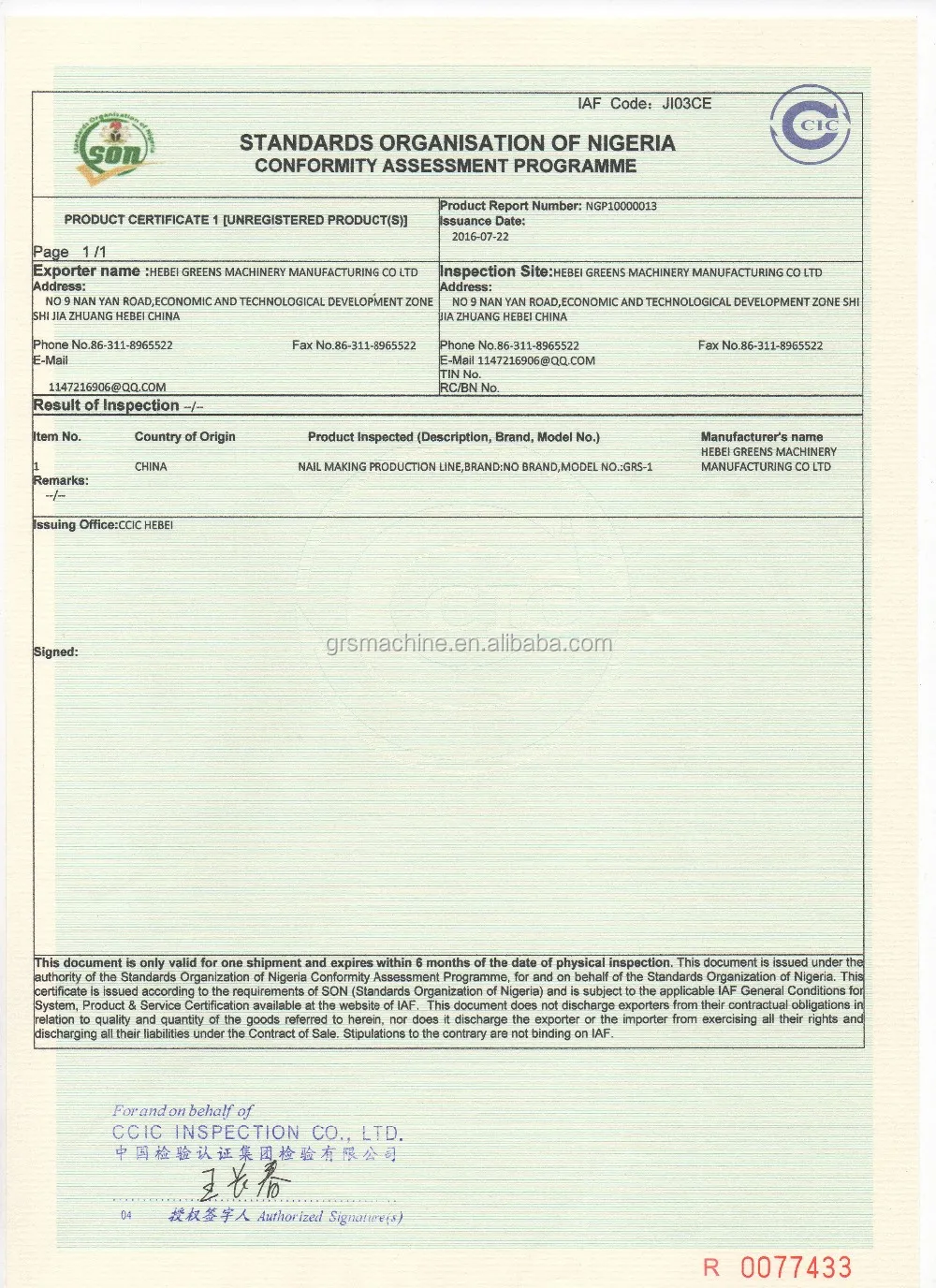

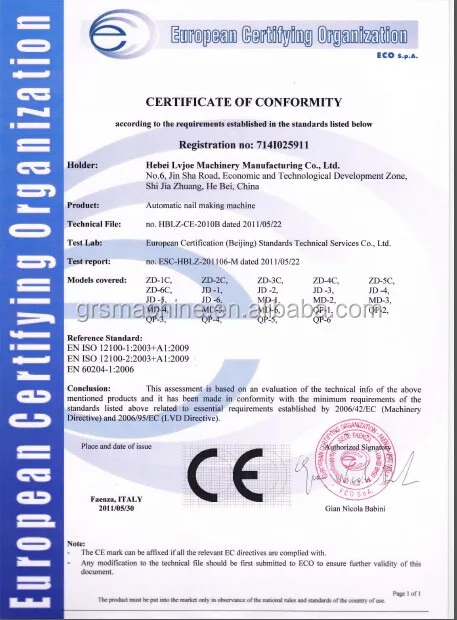

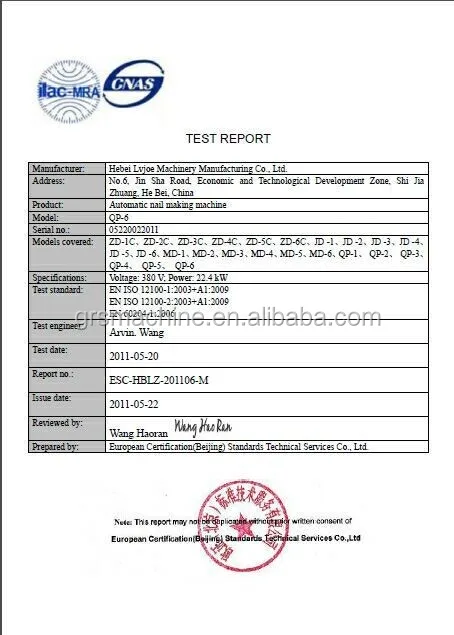

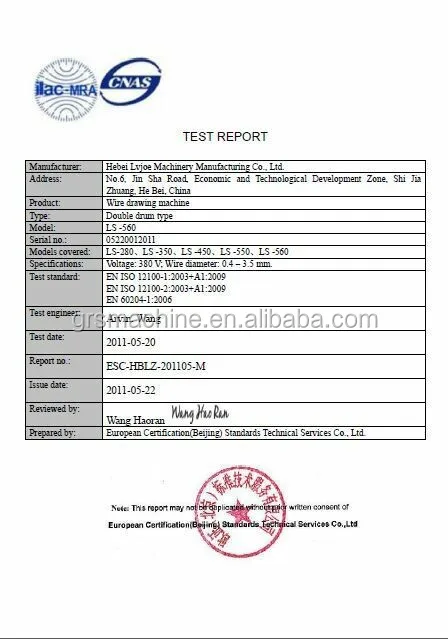

Certifications
Detailed Images

Machine Parts

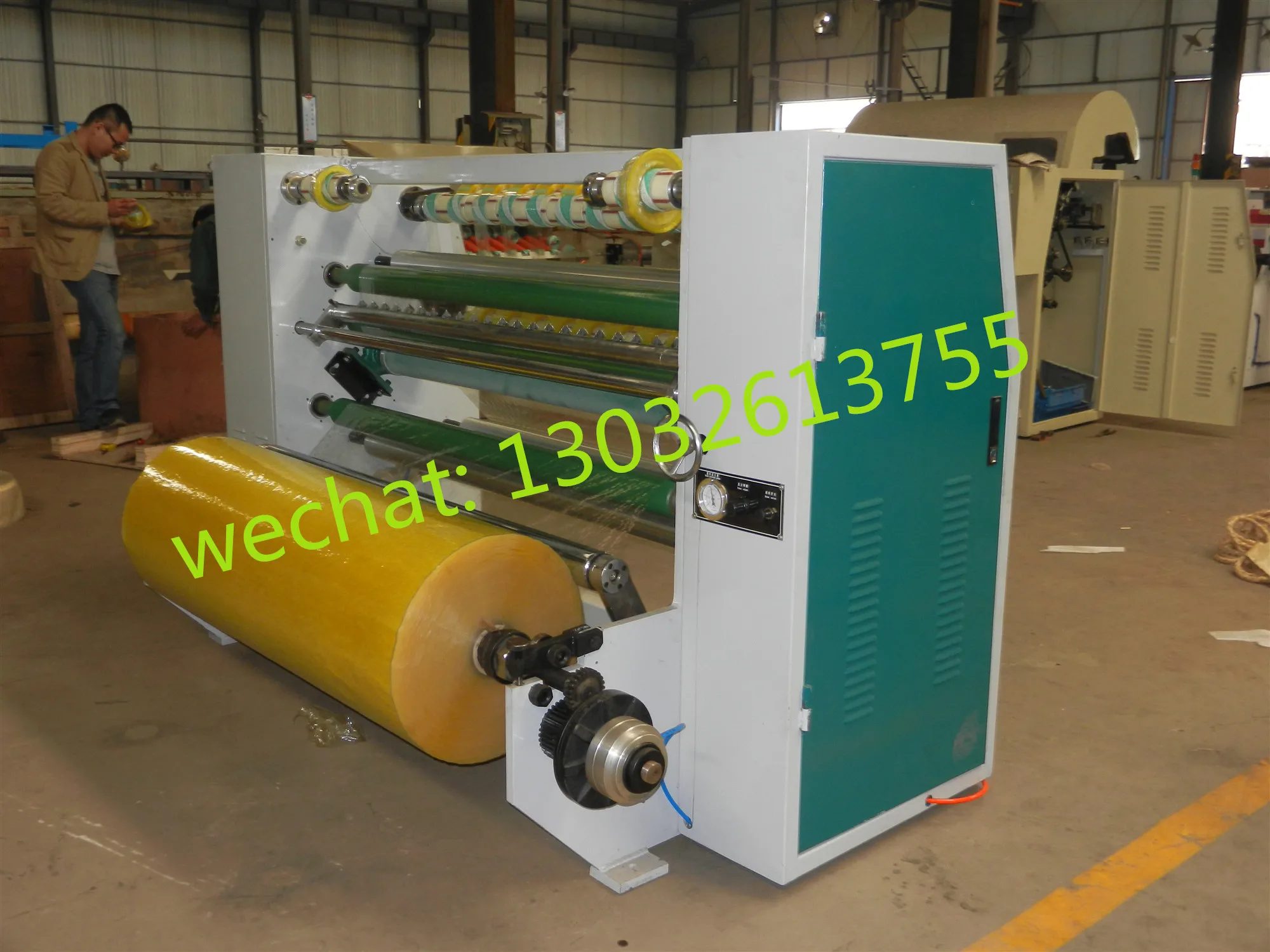

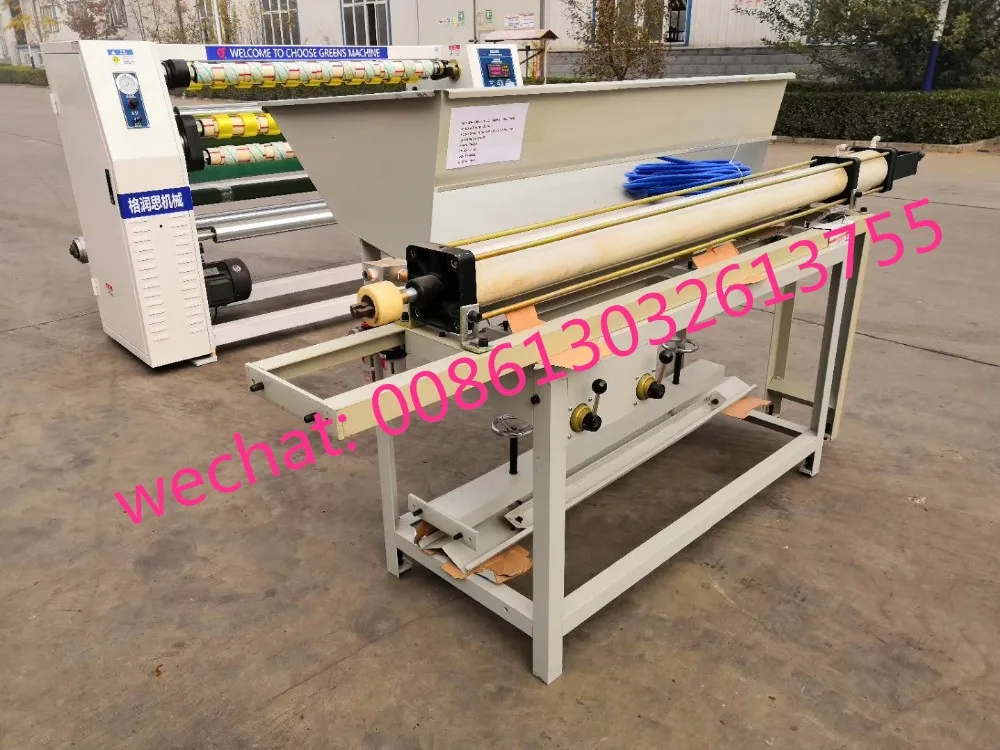

Name: Unwinding part

Brand:GRS

Original: CHINA

Automatic loading jumbo rolls with cylinder

Main Features

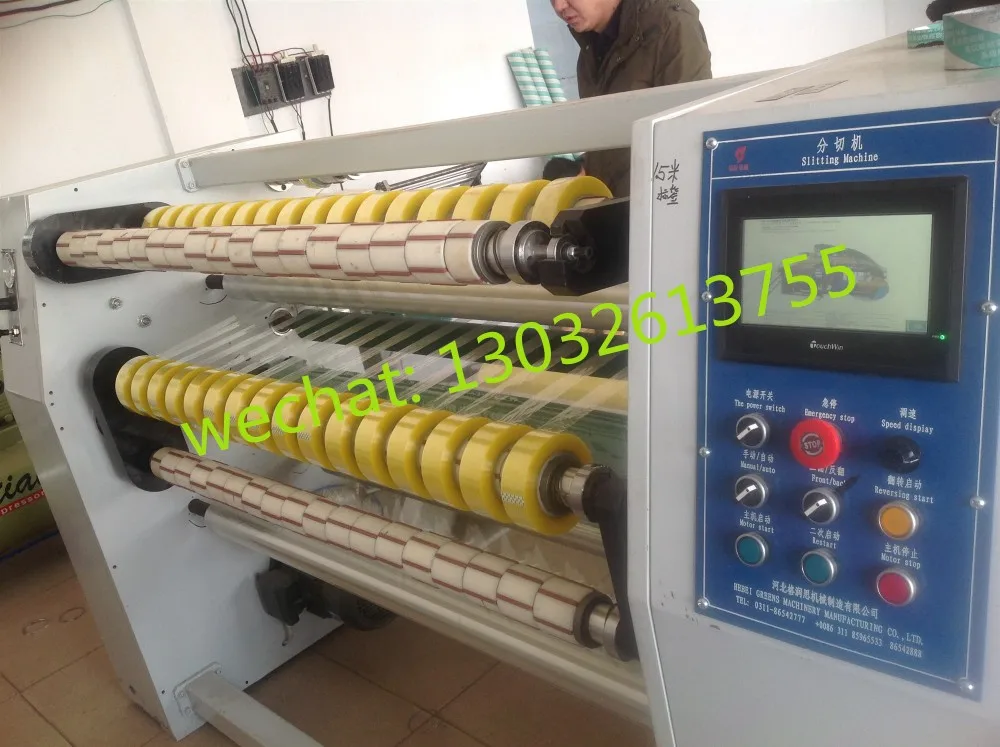

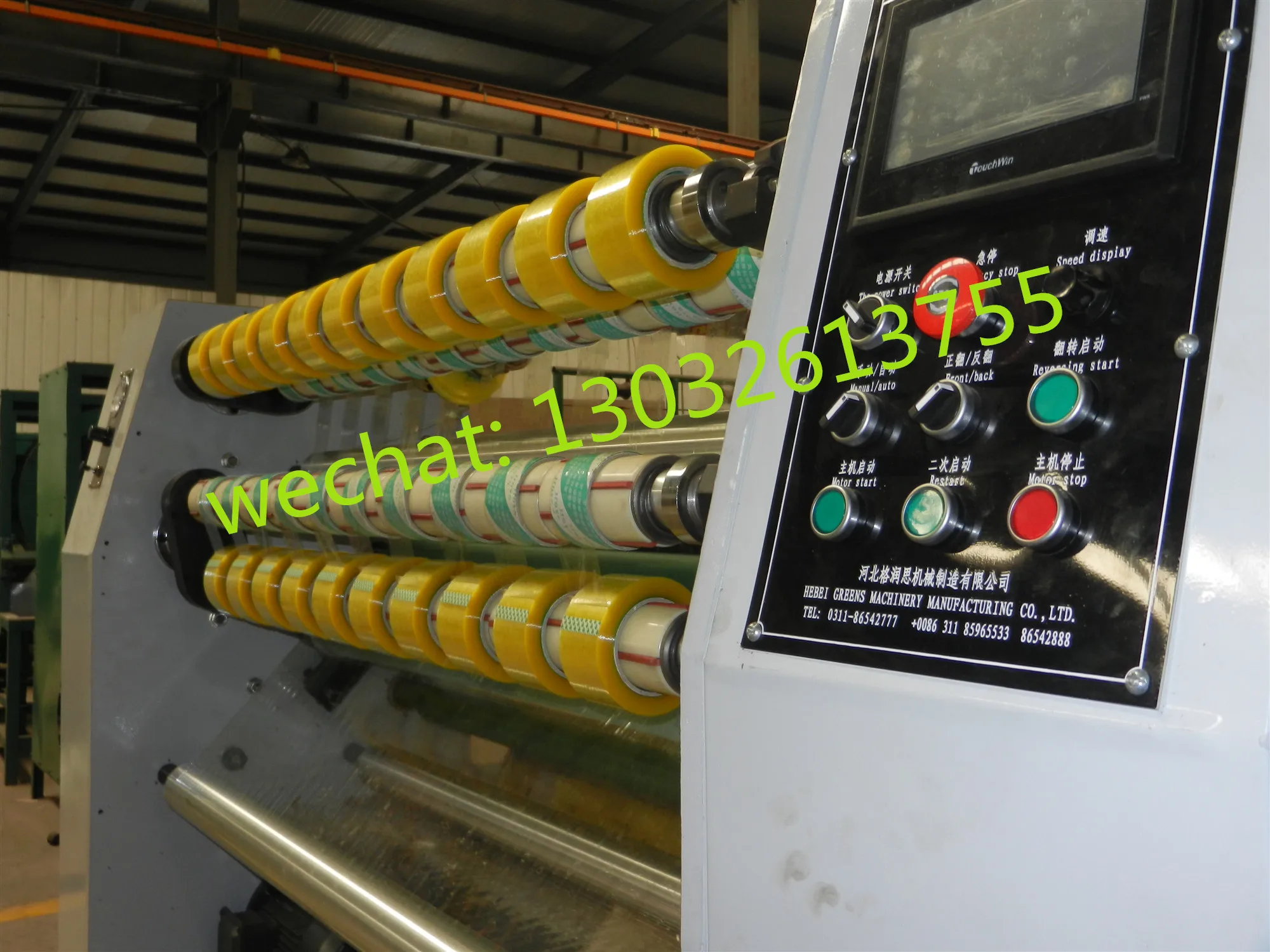

Name: PLC+touch screen
Brand: iNOVANCE
Original: China
Domestic famous brand, it is easy to operate.

Machine Parts

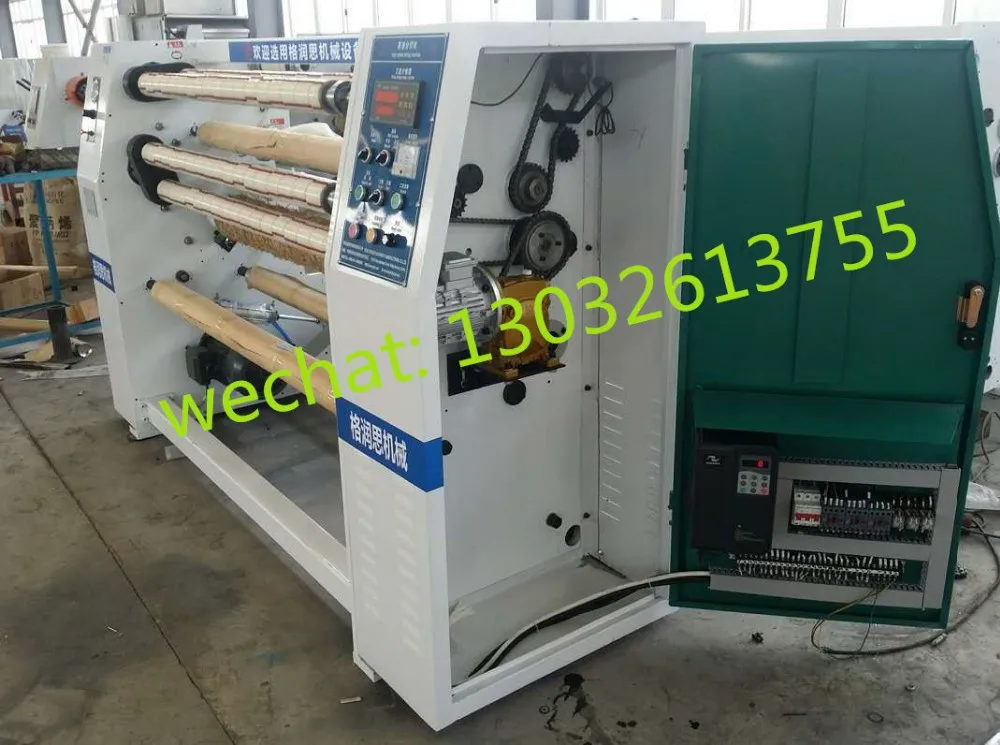

Name: electric cabinet
Brand: Mitsubishi
Original: Japan

Main Features

Name: rewinding shaft
Brand: GREENS
Original: CHINA
Pneumatic shafts, using friction or magnetic powder to control the rewinding tension.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

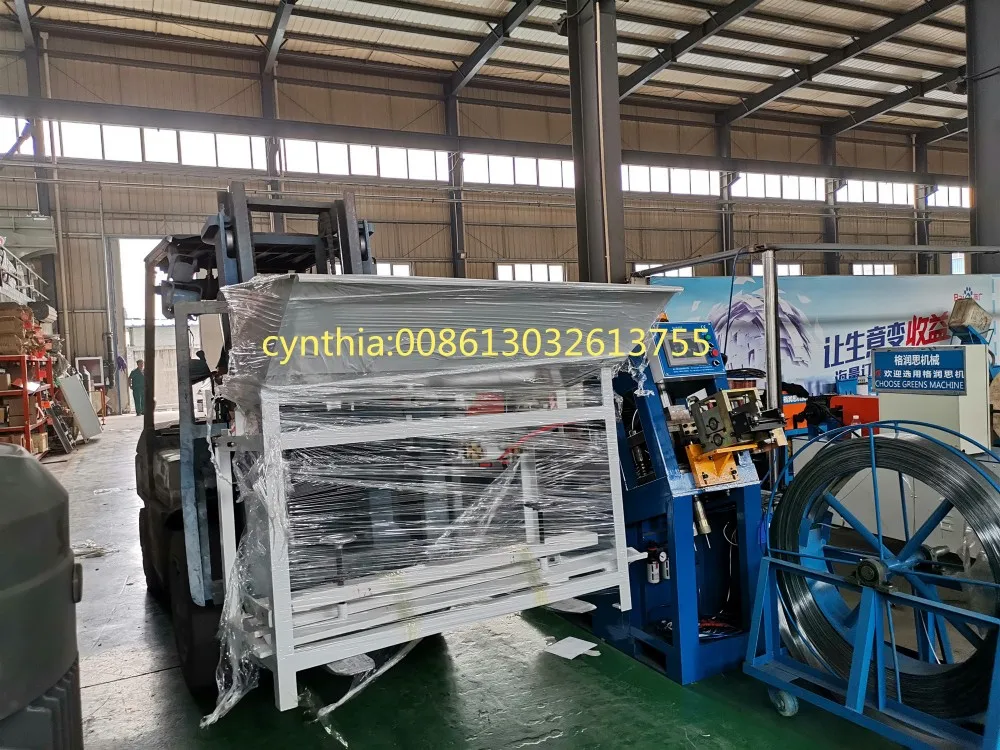

Packing & Delivery
\t
Packaging
\t
Size
\t
1960(L) * 1500(W) * 1340(D)
\t
Weight
\t
1.2 T
\t

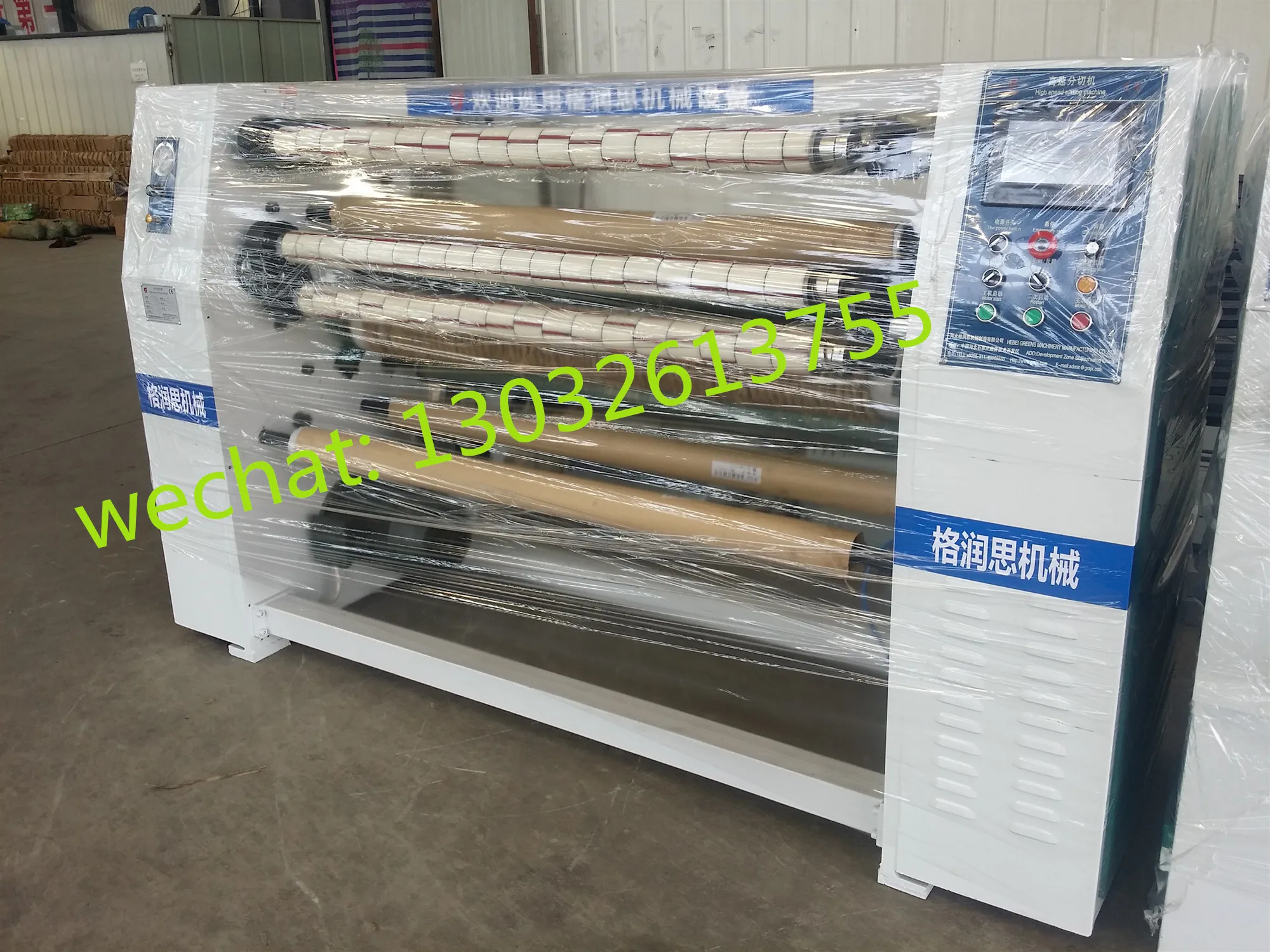

Packaging Details
\t

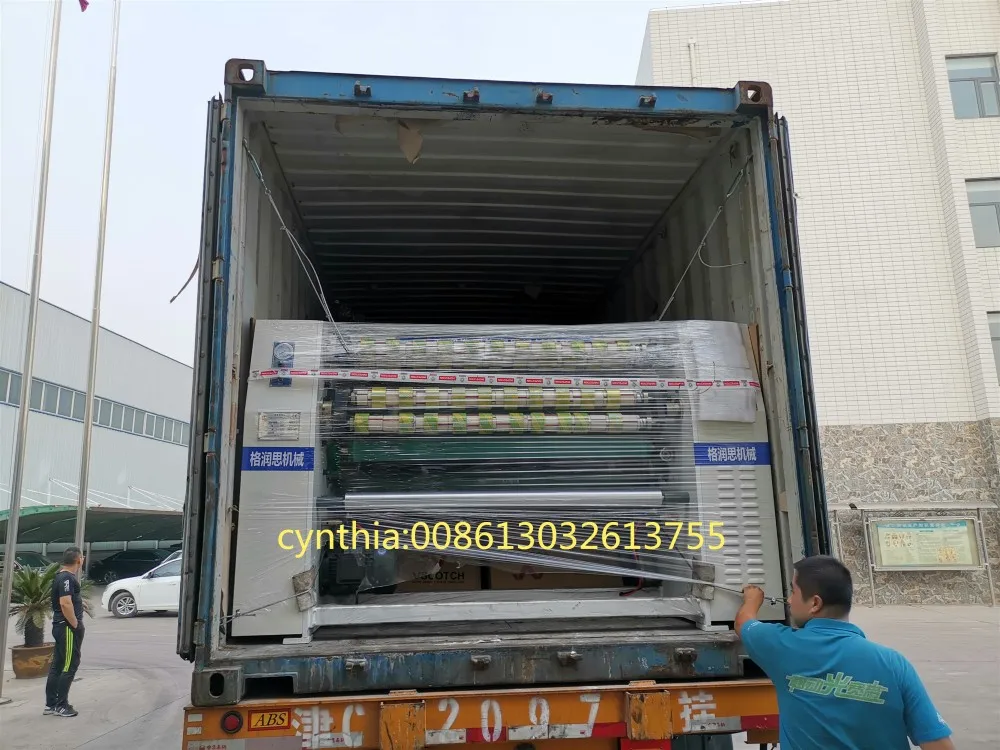

The normal package is container with plastic films. 1 20' contaier can load two sets of slitting machines; if customers only buy 1 set usually they also buy some jumbo rolls which also can be packed in the container.
\t
Packaging
\t
Size
\t
1980 (L) * 1500 (W) * 1360 (D)
\t
Weight
\t
1.2 T
\t



Packaging Details
\t
The normal package is plastic film(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
