Haichen new type horizontal aluminium road stud die casting machine (62212822274)

Share on:


Price:$46,500.00 - $48,820.00
Price in USD:Details

Quantity:


Product Overview

Description





Haichen new type horizontal aluminium road stud die casting machine
















HAICHEN Machinery has own medium-sized factory in Ningbo over 10 years.


Our high quality hot and cold chamber die casting machines could meet different products material production demand.







Product name: road spike barriers


Material: aluminium alloy


size:100-150mm x 100-150mm


weight: 200g-400g


Mould: 2cav/4cav













Road spike barriers mould: 2cav as samples
















Road spike barriers die casting machine description



Product description


die casting machine.jpg







































































































































INTERNATIONAL CLASS NO HCC 300T
Clamping ForcekN3000
Clamping Strokemm480
Die-thickness(Min.Max)mm250-680
Platen size(H*V)mm900x900
Space between Tie-baismm

580x580


Diameter of Barsmm110
Casting Force kN142-340
Casting Stroke mm

440


Injection  Plunger Diametermm50/60/70
Max.Casting  Volume(AL)kg1.6/2.2/3.1

Casting Pressure (Min-Max)


MPa72.3-173
50-120
36.9-88.3
Cast  projection Areacm²162-759
Injection Position mm0,-160
Ejector Space mm150
Extruding Flange Diametermm110
Heigh of Extruding Flange Patternmm12
Ejection Force kN180
Ejection Strokemm105
System Working PressureMPa162-759
Motor PowerKW18.5
Tank CapacityL850
Machine Weight kg12500
Overall Dimensions of Machine(L*W*H)mm6630x1640x2840


All above technical parameters are subject to change without prior notice.


 We can according to your production details (sizes & weights, mold sizes if available)   to recommend related machine to you if you need help.



Haichen die casting machine introduction:





PLC CONTROLLED UNIT


PLC with LCD Touch Screen provides function as parameter setrtings and production monitoring.Machine adopts the world famous brand electrical components to ensure stable,safe and reliable performance.





CLAMPING UNIT


High strength and wear resistant casting platens and toggles.toggle system adopts double link tie bar guidance,achieves the effect of rapid,strong,durable and stable.Hydarlic driven gear type die thickness adjusting device makes the operation quickly and guarantees the accuracy.





HYDRAULIC SYSTEM


oil hydralic system adopts proportional controlled system pressure and flow,achieves multi-stage pressure& speed control,and low pressure die clamping function.European or japanese famous valve and oil seals ensure quality and durability;The well-known brands improve the performance.The high-low double pump or single pump with low noise save energy and improve production efficiency.





INJECTION UNIT


2 stages Injection controls with piston type accumulator and high flow cartridge valve achieves high speed operation & stable injection.All hot parts are made of high-quality steel to ensure stable operation in the environment of high temperature,high pressure and high speed.

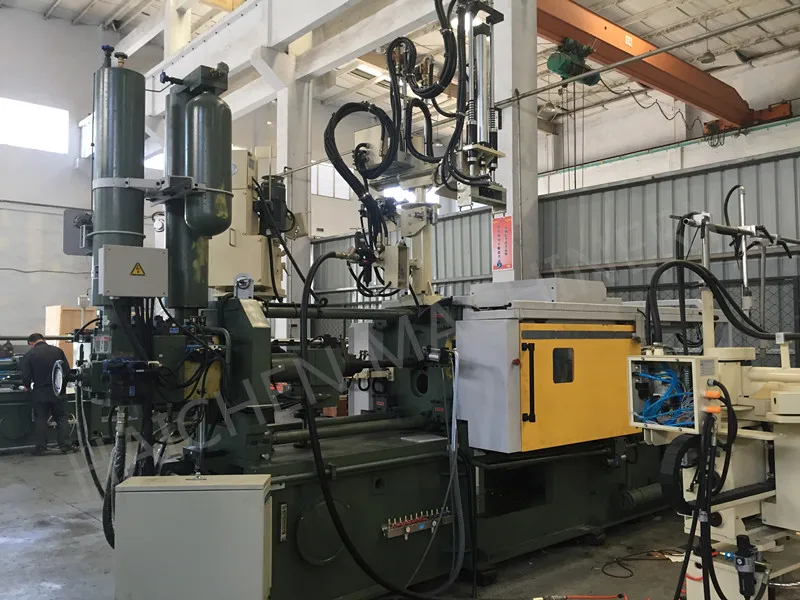

COLD3_
