Explosion Proof Glass Reactor Chemical lab equipment for Lab

Share on:


Price:RUB 74,301.64
Price in USD:Details

Quantity:

  • add to wishlist

Product Overview

Description

Explosion Proof Chemical lab equipment for Lab

Glass reactor is with double glass design,the inner layer placed reaction solvent can do the mixing raction,the outer layer can be added with the different hot and cold sources(frozen liquid,hot oil)to do loop cooling or heating reaction,Under the conditions of constant temperature setting,the mixing reaction can be carried on inside the sealted glass reactor according to requirments under the conditions of atmospheric pressure or negative pressure,and the dripping,reflux and distillation and stirring etc can also be done.

Model
PGR-3
PGR-20
PGR-50
PGR-80
PGR-100
PGR-200
Volume(L)
3
20
50
80
100
200
Neck No.on Cover
4
6
6
6
6
6
External Diameter of inner veesel(mm)
150
290
365
410
460
600
External Diameter of outer veesel(mm)
200
330
410
460
500
650
Cover Diameter
150
265
265
340
340
340
Vessel Height(mm)
300
850
850
950
950
1200
Motor Power(w)
40
40
140
250
250
750
Vacuum Degree(Mpa)
0.098
0.098
0.098
0.098
0.098
0.098
Rotation Speed(rpm)
50-1400
50-600
50-600
50-600
50-600
50-600
Torque(Nm)
0.27
2.23
2.23
3.98
3.98
6.37
Power(V)
220
220
220
220
220
220

MORE DETAILES,LEASE CLICK HERE.

Main Features

1. Frequency control, geared motor, constant speed, no brush, no spark, safe and stable, can work continuously.
2. The complete glass is made of high borosilicate glass GG17 3.3, which has good chemical and physical properties.
3. The overall stainless steel column mobile frame structure, six reactor lids. The large mouth design is easy to clean,     and the standard port socket can be equipped with a distillation synthesis device such as reflow, liquid addition and temperature measurement.
4. Stainless steel wrapped Teflon paddle for mixing and mixing of low to high viscosity liquids.
5. Lower flange of the discharge port and PTFE valve, there is no dead angle in the container, and the material can be removed and discharged to facilitate the quick and quick discharge of solid materials.
6. Alloy steel mechanical seal, Teflon joint, keep high precision seal under working condition.
7. PT100 sensor probe has high temperature measurement accuracy and small error.
Detailed Images

Machine Parts

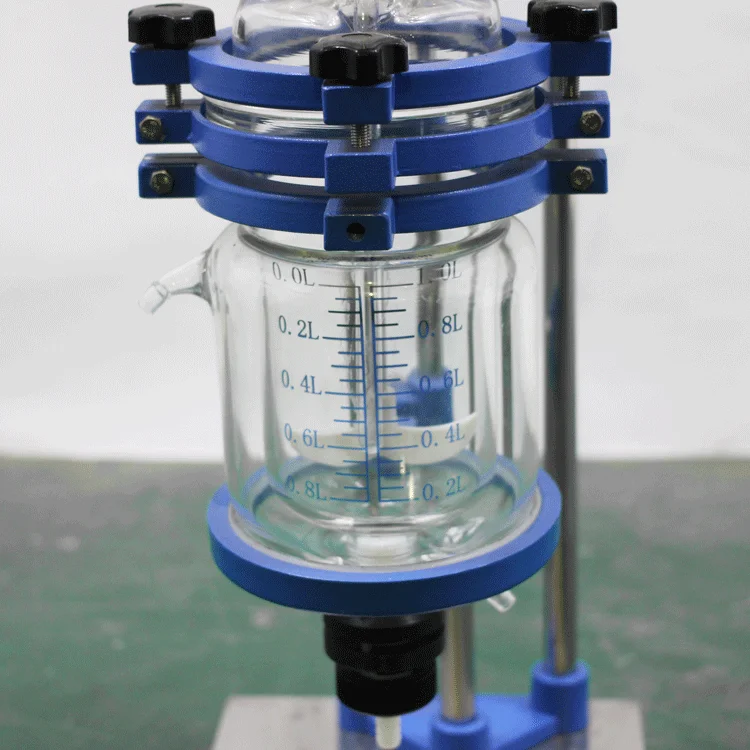

Name: VESSEL

Brand: NTSJ

Original: CHINA

Vessel is made of 3.3 borosillicate glass,

0.25L-200L is optional.

Main Features

Name: PT-100 THERMOMETER
Brand: NTSJ
Original: CHINA
PT100 sensor probe has high measurement accuracy,

less error and is hard to be broken,improved the

working efficiency.

PTFE coated outside without pollution,the anti-corrosion

effect is excellent.

Machine Parts

Name: RECEIVING FLASK
Brand: NTSJ
Original: CHINA
Adopt 3.3 borosilicate glass,flange type connector,

the bottom discharge valve can discharge material

continuously,1L-100L is optional.

Main Features

Name: CONDENSER
Brand: NTSJ
Original: CHINA
Efficient coil condenser is made of 3.3 borosilicate

glass,0.3m²-3m² is optional.

Related Products
Packaging&Delivery
We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free.
* Sufficient inner protection with different materials, including bubble bag, foam board and others.
* Qualified wooden package or carton for different products or as customer require.
Strict packing process to ensure the safety and completeness of the goods .
Flexible and multiply shipping methods for on-time shipment:
We have good cooperation with many international express companies such as DHL/ UPS/ FedEx/TNT and other, as well as large shipping companies to provide air shipping and sea shipping.
We can also arrange global shipment as clients' requirement.
About Us
Sanjing Chemglass is one of the leading and professional manufacturers and traders specialized in research, development and production of chemical glass instrument in China. Main products include high-end customized glass reactor, wiped film evaporator, rotary evaporator, short path molecular distillation and chemical glass accessory which has received the certification of ISO9001,CE and BV. The founder of Sanjing Chemglass Mr. Xing has over 30 years relevant experience.

Sanjing Chemglass is able to provide professional service with design, manufacturing, equipment selection, instrument supporting, installation, debugging and maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, CBD oil purification and new material.
Sanjing Chemglass is located in Nantong which is very convenient and only takes 2 hour-drive-away from Shanghai Airport. Sanjing Chemglass is the largest scale of production glass factory in China with over forty thousand square meters area. And we have over two hundred employees with high rate capacity utilization. The annual sales figure of Sanjing Chemglass has reached twenty million dollars.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee customer satisfaction. As a result of our high-quality products and outstanding customer service, we have formed global sales network including Russia, America, Switzerland, India, Paraguay, New Zealand, Netherlands, Thailand and South Africa. In addition, we also build the relationship with more than 10 overseas distributors.

If you are interested in any of our product or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world.
Our Service
FAQ
Q:Are you trading company or manufacturer?
A: We are professional manufacturer of lab equipment and we have our own factory.
Q: How long is your delivery time ?
A: Generally it is within 3 working days after receiving the payment if the goods are in stock. Or it is 5-10 working days if the goods are notin stock.
Q: Do you provide samples? lisitfree?
A: Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we'll give you our best price including shipping cost.
Q: What is your terms of payment?
A: 100% Payment before shipment or as negotiated terms with clients. For protecting clients' payment security, Trade Assurance Order is highly recommended.
