Product Overview
Description
Product Description
This 16x1 HDMI KVM switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to switch easily and reliably between any HDMI computers using one HDMI compliant display.
The 16x1 HDMI KVM switch supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel source selector buttons, RS232 commands, IP commands, IR signals and hot keys on keyboard.
With EDID emulators in every input ports, keep PCs always have correct display information, prevent display settings changed while switching input ports.
HKS1601A10 | 16x1 HDMI KVM Switch | |
Functionality: | ||
Auto Scan | Yes | |
Port selection | Front panel buttons | Yes |
Keyboard hotkeys | Yes | |
IR remote control | Yes | |
Console commands | RS232 / IP | |
Technical: | ||
Max. Resolution | 3840x2160@30Hz | |
Auto to get EDID | Yes | |
Data rate | 10.2 Gbps | |
Auto scan interval | 5~3600 Seconds | |
Beep Sound | On/Off | |
OSD | No | |
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |

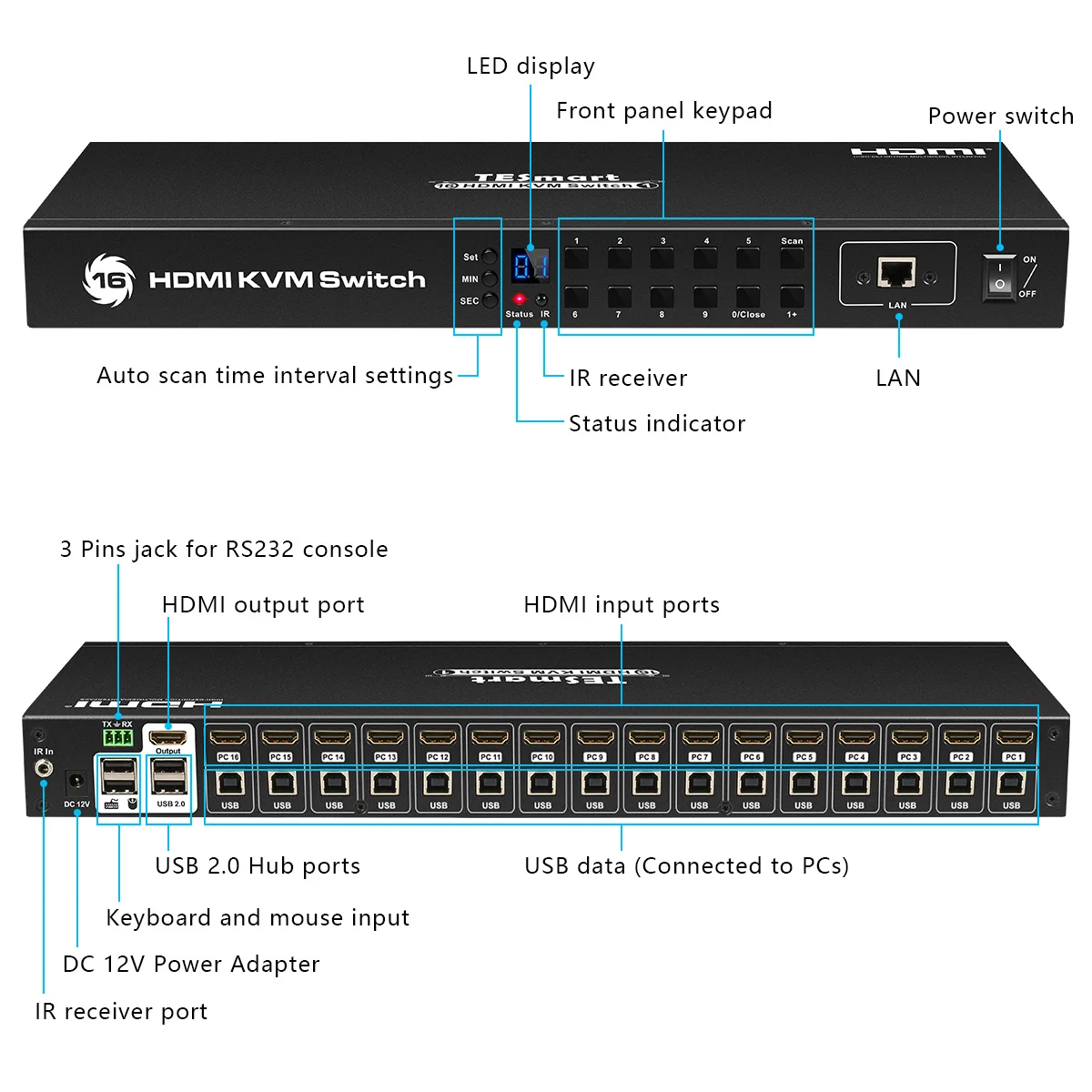

Console ports | Keyboard emulation | 1 * USB Type A |
Mouse emulation | 1 * USB Type A | |
USB 2.0 Hub ports | 2 * USB Type A | |
Video /Audio | 1 * HDMI Type A | |
RS232 | 3 Pins jack | |
LAN (TCP/IP) | 1 * RJ45 | |
IR extension input | 1 * AUX | |
System ports | USB Data | 16 * USB Type B |
Video / Audio | 16 * HDMI Type A | |
ESD protection | Human body model - ±8kV (Air-gap discharge) | |
Mechanical: | ||
Chasing material | Metal | |
Product Dimensions | 440 (L) x 150 (W) x 44.5 (H) mm | |
Item Weight | 1800g | |
Features
| ● | Using 1 USB console controls 16 HDMI computers. | |
| ● | Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |
| ● | With EDID emulators in every input ports, keep PCs always have correct display information | |
| ● | Support hot plug, connect or disconnect devices to the KVM switch in any time and without turn off devices | |
| ● | Support auto switching to monitor computers in a specified time interval | |
| ● | Support front panel buttons, IR signals, keyboard hot keys, RS232 serial commands or IP commands to control KVM switch. | |
| ● | Available to use keyboard without any delay after switch input sources. | |
| ● | Support resolution up to 3840*2160@30Hz | |
| ● | With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM just as you have plug these devices directly to computer. | |
| ● | Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters. |

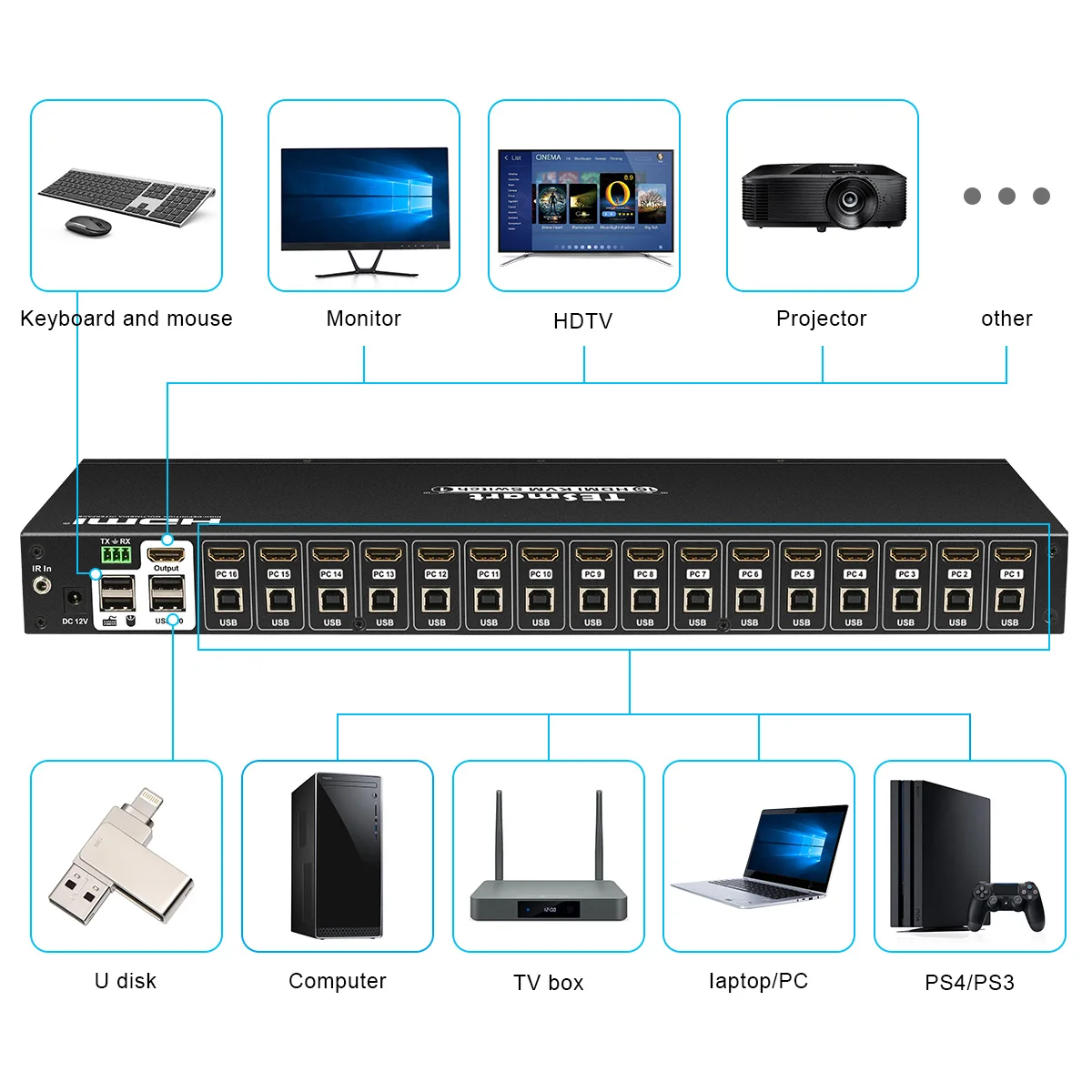

Connection Diagram

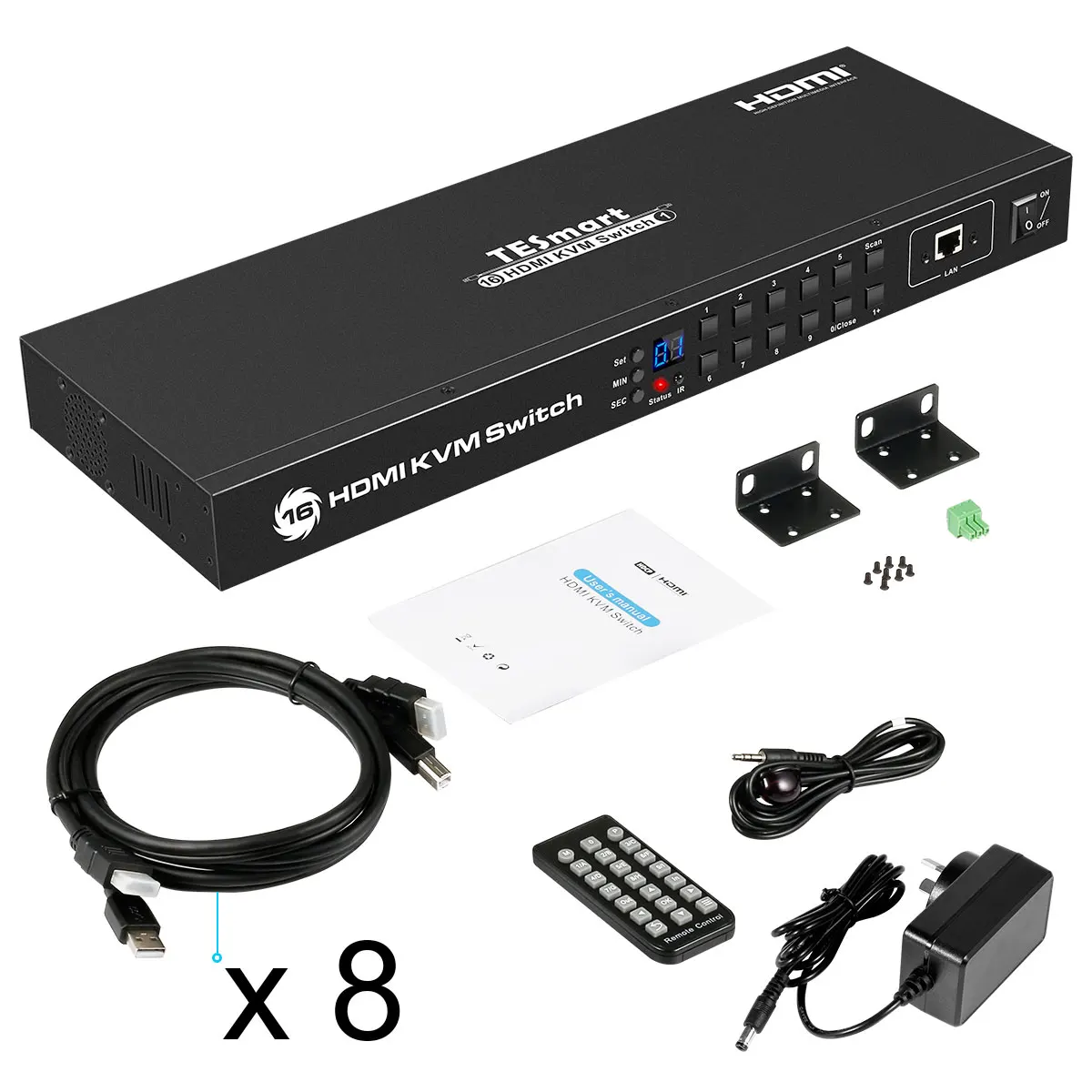

Packing & Delivery
