Low price Mining Mobile Stone crushing plant Portable diesel engine PE150x250 Jaw Crusher in Kenya (62250504235)

Share on:


Price:RUB 105,289.04
Price in USD:Details

Quantity:


Product Overview

Description

1.  We are factory and be able to give you the lowest price than market one;

2.  Our products have been exported to over 80 countries and widely used in global mining and construction industry;

3.  we have a professional after-sale service team to promptly and thoroughly solve your problems;

4.  Provide free process design.

Factory price direct supplier granite crushing plant rock stone crusher
This small size PE series jaw crusher max. feeding size is 130-210mm, output size is 10-60mm, capacity is 1-20 tph. Mining crusher crushing materials including granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, building construction, construction wastes etc.
Factory price direct supplier granite crushing plant rock stone crusher

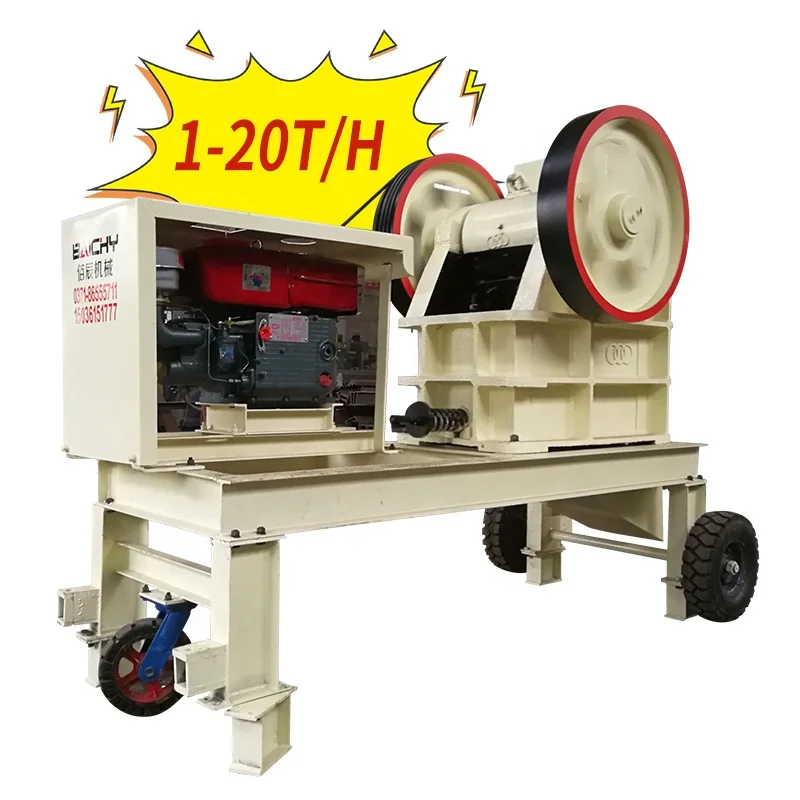

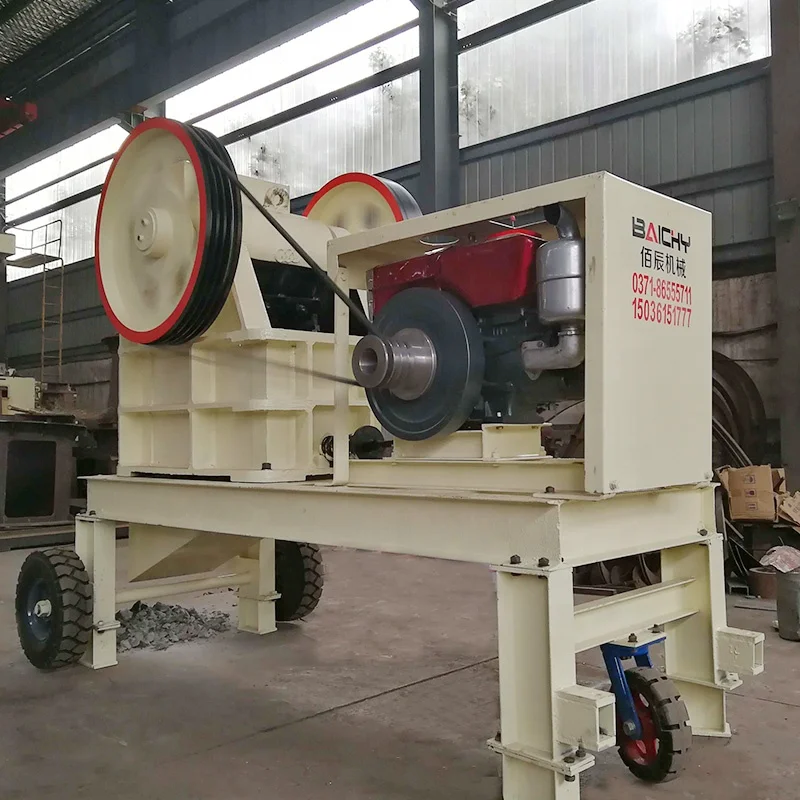

jaw crusher is widely used for crushing various materials like stone, granite, trap rock, coke, coal, manganese ore, iron ore, emery, fused aluminum, oxide, fused calcium carbide, lime stone, quartzite, alloys, etc. The application of tires makes the machine more convenient to move and adapt to various application, especially when your place lack of electricity or you need to move machines frequently.
Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa, such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.

Working principle

The electromotor drives the belt and pulley to make the movable jaw move back and forth, up and down through the eccentric shaft. The raw material is squashed or splitt when movable jaw plate moves towards fixed jaw together with movable jaw. When movable jaw and movable jaw plate turn back by eccentric shaft and spring, the raw material, which is squashed or split before discharges from the bottom outlet under jaw plate. The bulk-production comes true while electromotor rotates continuously and the movable jaw crushes and discharges the raw material periodically.
Model Feeder Opening Size(mm) Max. Feeding Size (mm) Discharging Opening Size(mm) Capacity (t/h) Motor Power (kw) Overall Dimension (mm)
PE150x250 150x250 130 10-45 1-4 5.5 896x745x935
PE200x300 200x300 180 15-50 2-6 7.5 910x750x990
PE200x350 200x350 180 18-70 3-10 7.5 1000x870x990
PE250x400 250x400 210 25-60 5-20 15 1215x1240x1210
Eccentric shaft adopt 40Cr steel precise forged, Advanced Movable jaw plate assemble made from high quality casting parts, Tooth-shape plate, deep V-chamber, high manganese steel material ZGMn13-4 make crusher more reliable, Precise casting heavy fly wheel,Jaw crusher frame adopt thick Q235B heavy steel plate welding process.Machine blasting, anti-rust painting, surface painting at least three times paintings.
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
