Great Product 2 port seamless hdmi kvm switch with pip
- Category: KVM Switches >>>
- Supplier: Shenzhen,Tesla,Elec,Technology,Co.,Ltd
Share on:
Product Overview
Description
Products Description
2x1
Seamless HDMI KVM Switch2x1
Seamless HDMI KVM Switch
Seamless HDMI KVM Switch2x1
Seamless HDMI KVM Switch
This 2x1 seamless HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to share one set of keyboard, mouse and monitor with two PCs.
The 2x1 HDMI KVM switch supports PIP mode, two signals can display on one display simultaneously. It supports seamless switching of HDMI sources with same resolution, ensures no switching delay and no blank video delay. Supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel buttons, IR signals, keyboard hot keys, etc.This 2x1 seamless HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to share one set of keyboard, mouse and monitor with two PCs.
The 2x1 HDMI KVM switch supports PIP mode, two signals can display on one display simultaneously. It supports seamless switching of HDMI sources with same resolution, ensures no switching delay and no blank video delay. Supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, such as the front panel buttons, IR signals, keyboard hot keys, etc.This 2x1 seamless HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to share one set of keyboard, mouse and monitor with two PCs.
Features
\t
\t
\t\tl Using only 1
set of keyboard, mouse and monitor to control 2 PCs
\t
\t
\t\tl No latency,
support seamless switching
\t
\t

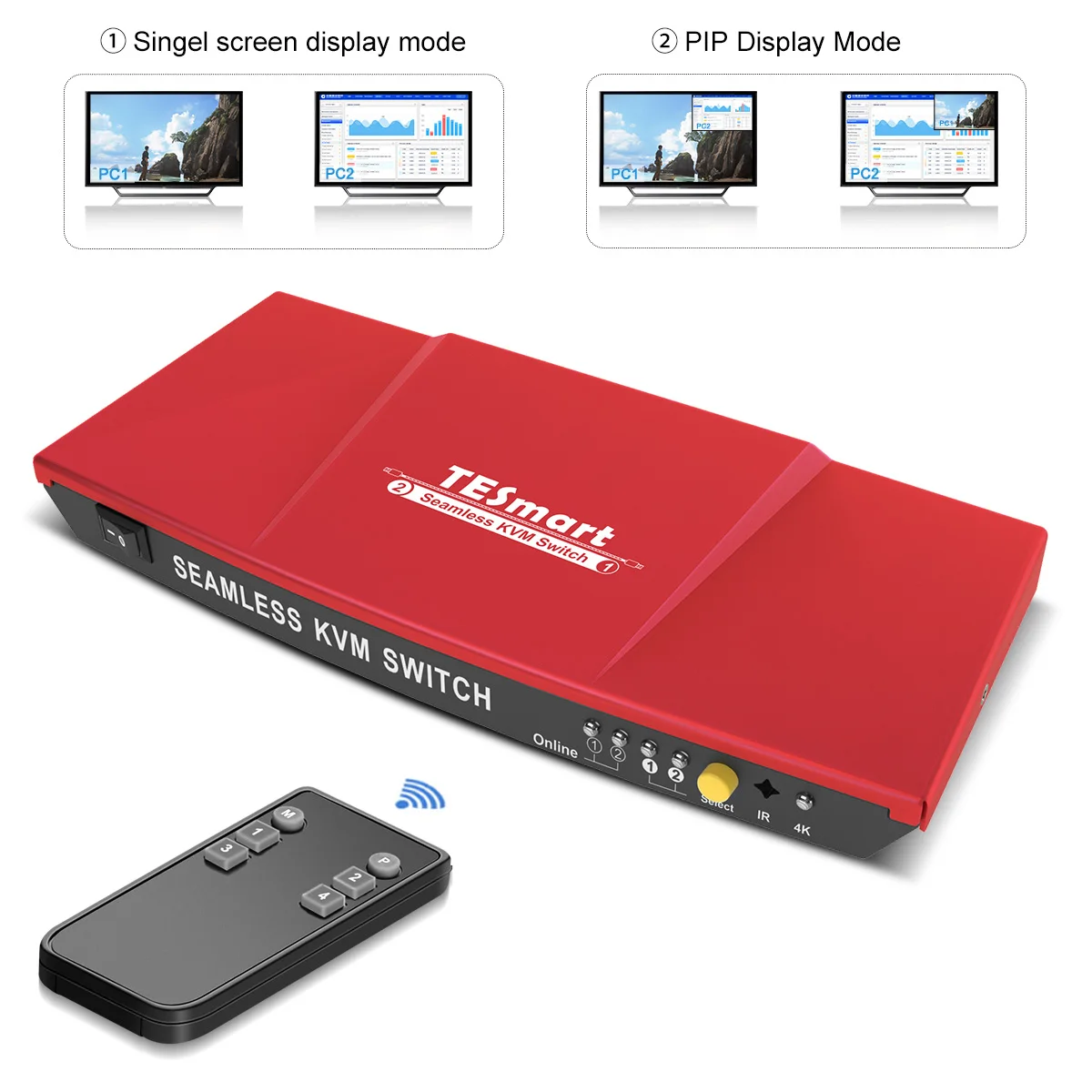

\t\tl Support
PIP(Picture-in-Picture) mode, display two sources simultaneously on one
display
\t
\t
\t\tl Support
resolution up to 3840*2160@30Hz
\t
\t
\t\tl Support auto
switching to monitor computers in a specified time interval
\t
\t
\t\tl Available to
use keyboard and mouse without any delay after switching inputs
\t
\t
\t\tl Support hot
plug, connect or disconnect devices to the KVM switch at any time without turning
off devices
\t
\t
\t\tl With extra
standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard
drive or other USB devices to KVM just as you have plug these devices directly
to computer
\t
\t
\t\tl With EDID
emulators in each input port, keep PCs always having correct display
information
\t
\t
\t\tl Supports the
use of DVI sources and DVI displays with DVI-to-HDMI cables
\t
\t

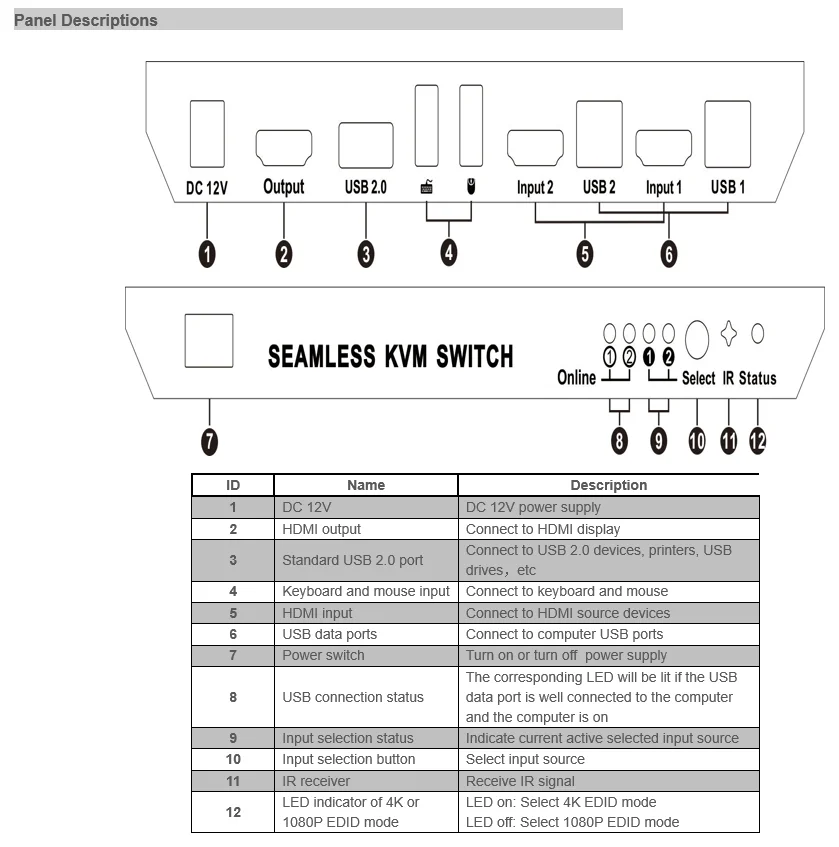

\t\tl Switches between two computers using front panel button,
keyboard hot keys, mouse gesture or IR remote control
Details Images
Specification
HKS0201A30 | 2x1 Seamless HDMI KVM Switch | |
Functionality: | ||
Auto Scan | Yes | |
Port selection | Front panel buttons | Yes |
Keyboard hotkeys | Yes | |
IR remote control | Yes | |
Mouse gesture | Yes | |
Console commands | No | |
Technical: | ||
Resolution | Up to 3840x2160@30Hz | |
Auto to get EDID | Yes | |
Data rate | 10.2 Gbps | |
Auto scan interval | 1~250 Seconds | |
Beep Sound | On/Off | |
OSD | No | |
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based system | |

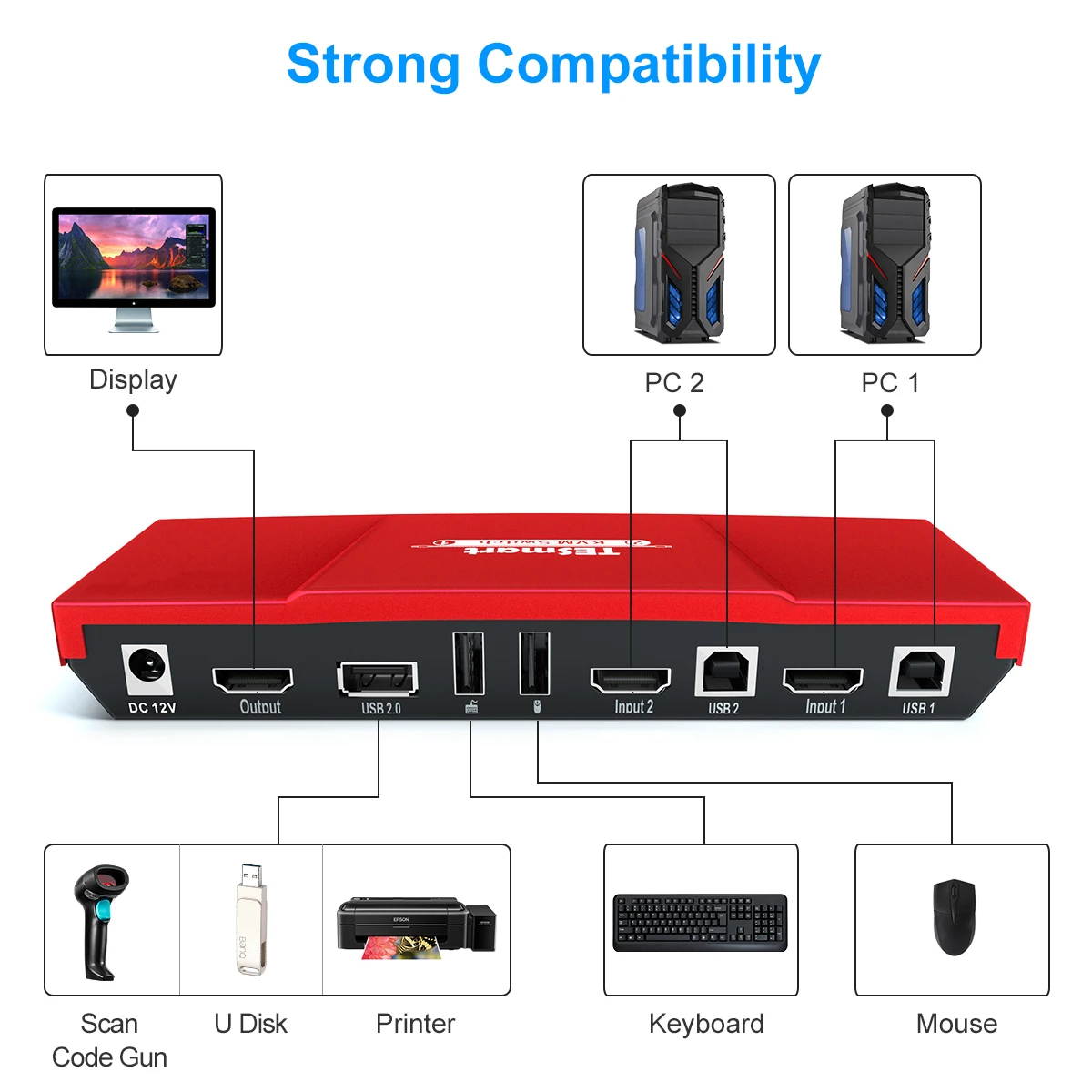

Console ports | Keyboard emulation | 1 * USB Type A |
Mouse emulation | 1 * USB Type A | |
USB 2.0 Hub ports | 1 * USB Type A | |
Video /Audio | 1 * HDMI Type A | |
RS232 | NA | |
LAN | NA | |
System ports | USB Data | 2 * USB Type B |
Video / Audio | 2 * HDMI Type A | |

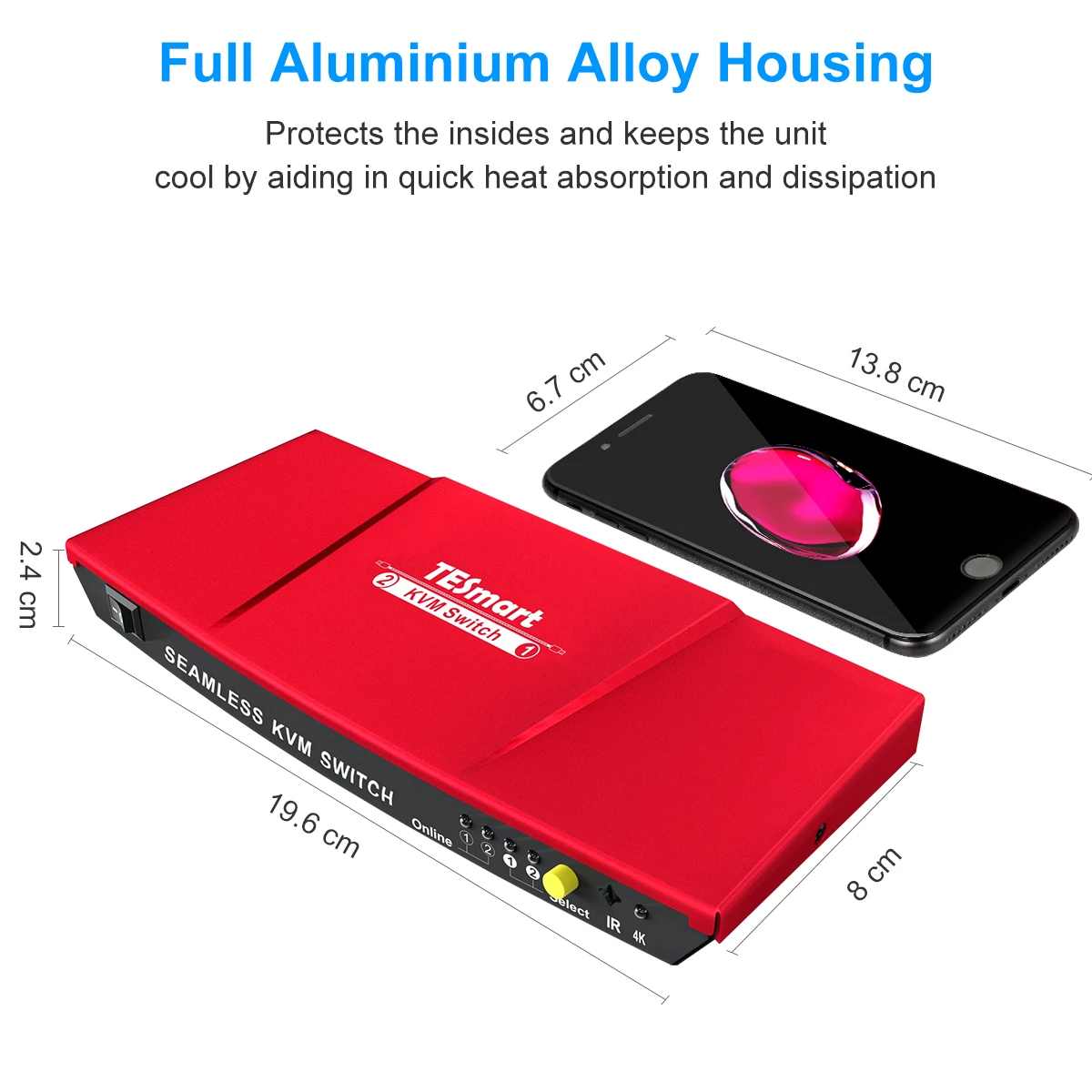

Mechanical: | ||
Chasing material | Aluminum Alloy | |
Product Dimensions | 196 (L) x 80 (W) x 24 (H) mm | |
Item Weight | 500g | |
Company Profile
Established in 2013, Tesla Elec Technology Company limited is a professional manufacturer and exporter that is concerned with the design, development and production of audio and video matrix, splitter, switcher, KVM, extender and converter.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. We have a R&D team with over ten years experience providing ODM and OEM services in various video related products, just tell us your requirements, we can do more than you can imagine. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Certifications
Our Advantages
Product Advantage
CE/FCC/UL/KC/Rohs ... certified
10+ years experience on HDMI compatible issues5+ years experience on USB HID compatible issues
Stable quality
Hot plug and play
Easy to setup
FAQ
Why choose TESmart
1.We have our own warehouse, which can ensure us of shipping out orders within 24 hours after payment (weekends and holidays excluded).
2.We have a R&D team with over ten years experience, providing ODM and OEM services in various video related products.
How to order
1.Pls send email or chat with us via Platform, Whatspp, Skype, and let us know your requirements on order details.
2.We will reply you with Proforma invoice based on your order request.
3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
4.Sample order supported.
Shipment & payment
1.T/T, PayPal, Western Union available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
