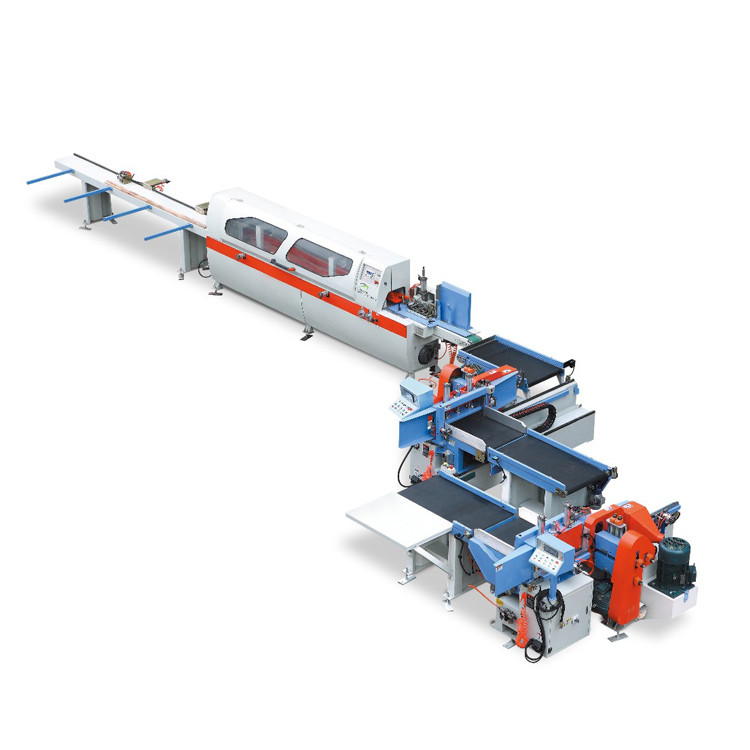

Automatic finger joint shaper machine is mainly used for combing of medium and short wood.It is a mechanical processing equipment to improve the utilization rate of wood and the performance of wood.It is widely used in wood processing industry, especially suitable for construction company
1. Precision bearing is adopted in this machine for convenient operation.
2. Large area workbenches can effectively process and operate more wood
3. The machine is equipped with pneumatic clamping device, which can effectively reduce the error caused by manual operation and make it safer and more efficient
4.The machine adopts automatic feeding and stop function.
5.Automatic glue coating, the short wooden side of mortise and milling teeth, the long after glue application, the hydraulic pressure is tight, use this machine to connect the long square wood, the joint strength is greater than the strength of the wooden side itself.
6.The machine is equipped with motor overheat automatic protector and emergency stop switch to effectively protect the safety of operators.
7.Adopt imported PLC microcomputer control, simple operation, only one employee per set
1.The whole machine adopts automatic control system, which reduces human intervention and has higher efficiency
2.Equipped with dust-absorbing and dust proof system, free sawdust, long service life
3.The machine adopts an automatic system, and the accurate combing and combing wood waste little, which can save the labor cost and raw material cost for the enterprise
4.This machine has high precision, high combing efficiency and is the preferred machine for processing square wood and box board
|Max working width||600mm|
|Shaper blade size||Φ160xΦ50mm|
|Main saw blade size||Φ255xΦ30mm|
|Scoring saw balde size||Φ180xΦ19mm|
|Shaper spindle speed||5000rpm|
|Main saw blade speed||2840r/min|
|Scoring saw spindle speed||2840r/min|
|Shaper spindle power||11kw|
|Main saw blade power||4kw|
|Scoring saw power||0.75kwx2|
|Gluing pump power||1.5kw|
|Pressure of air system||0.6-0.8MPa|
Packing &Service 1.Delivery:We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.2.Package:We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.We will add stretchy film for the whole machine and spare parts for delicate protection.We will make export standard strong Wooden box case package as your request. 3.Guarantee:The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.4.Technical support:Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.We provide English version manual and Operational video.Engineer available to service machinery overseas.5. After sales services:Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
