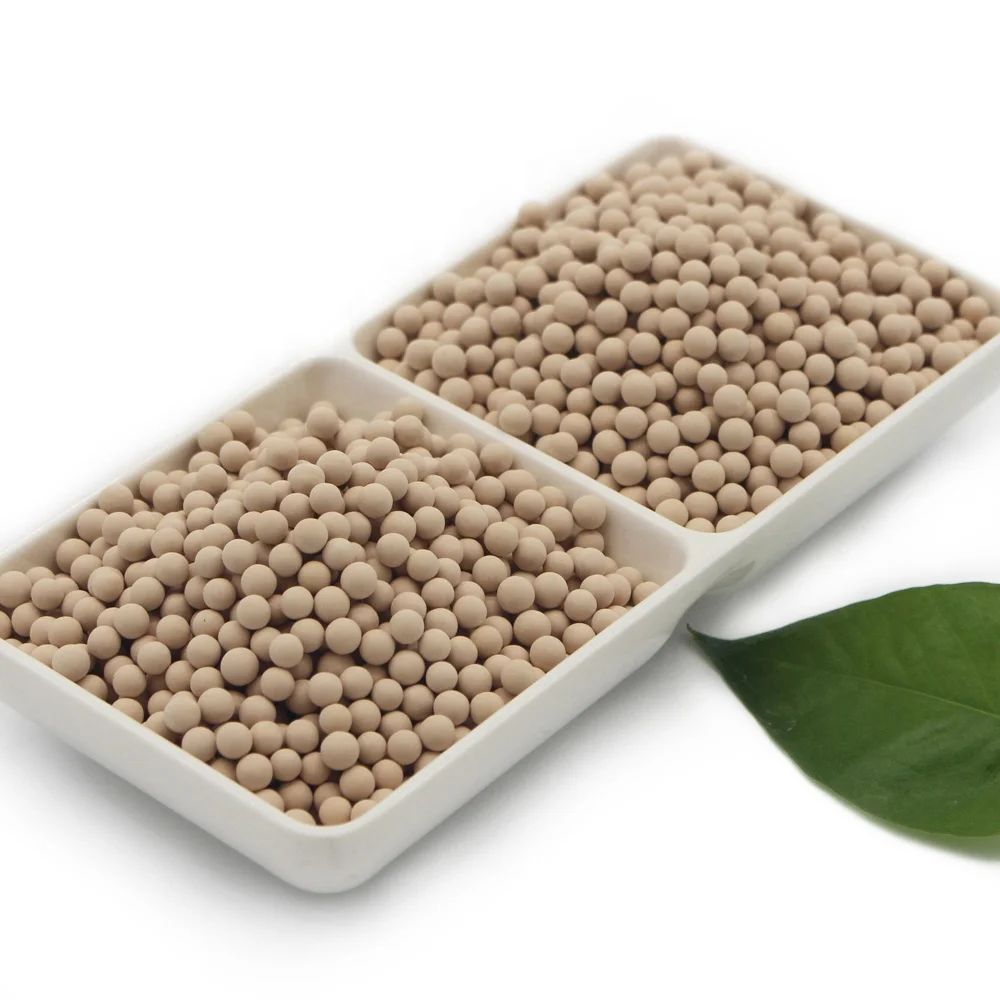

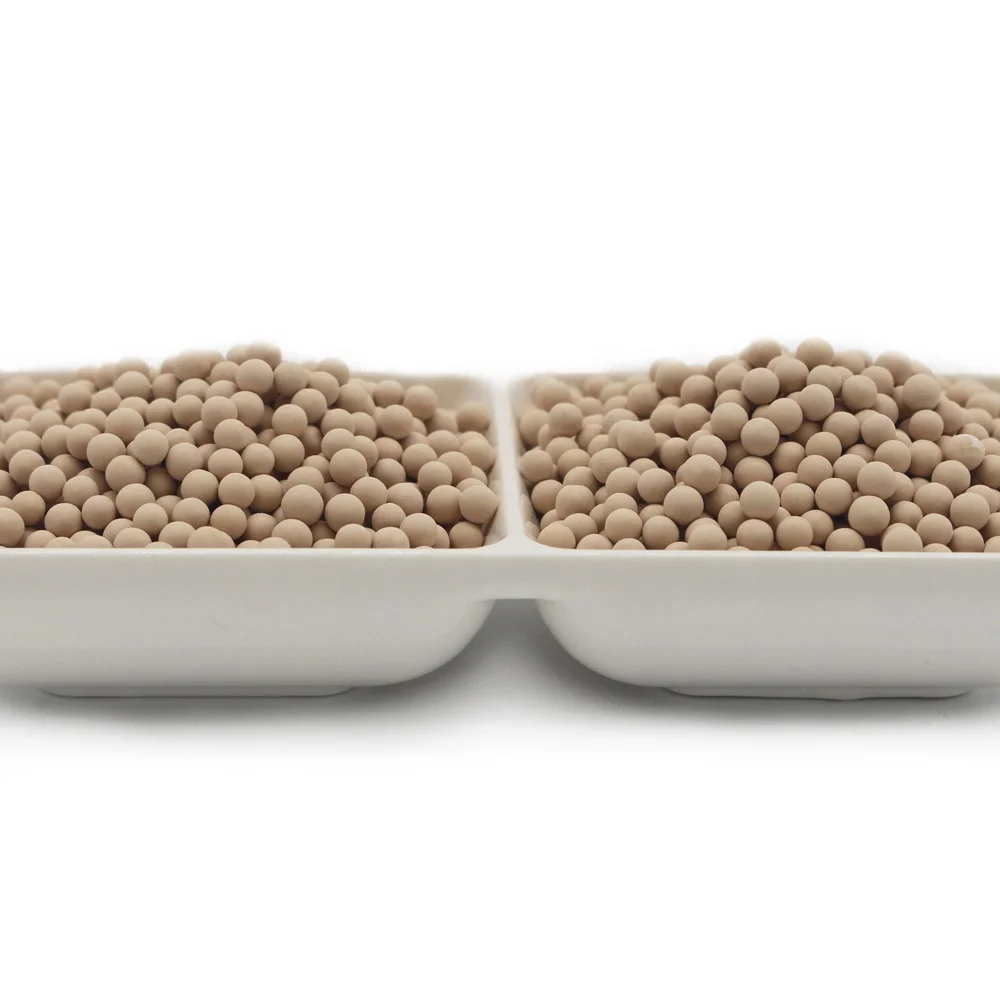

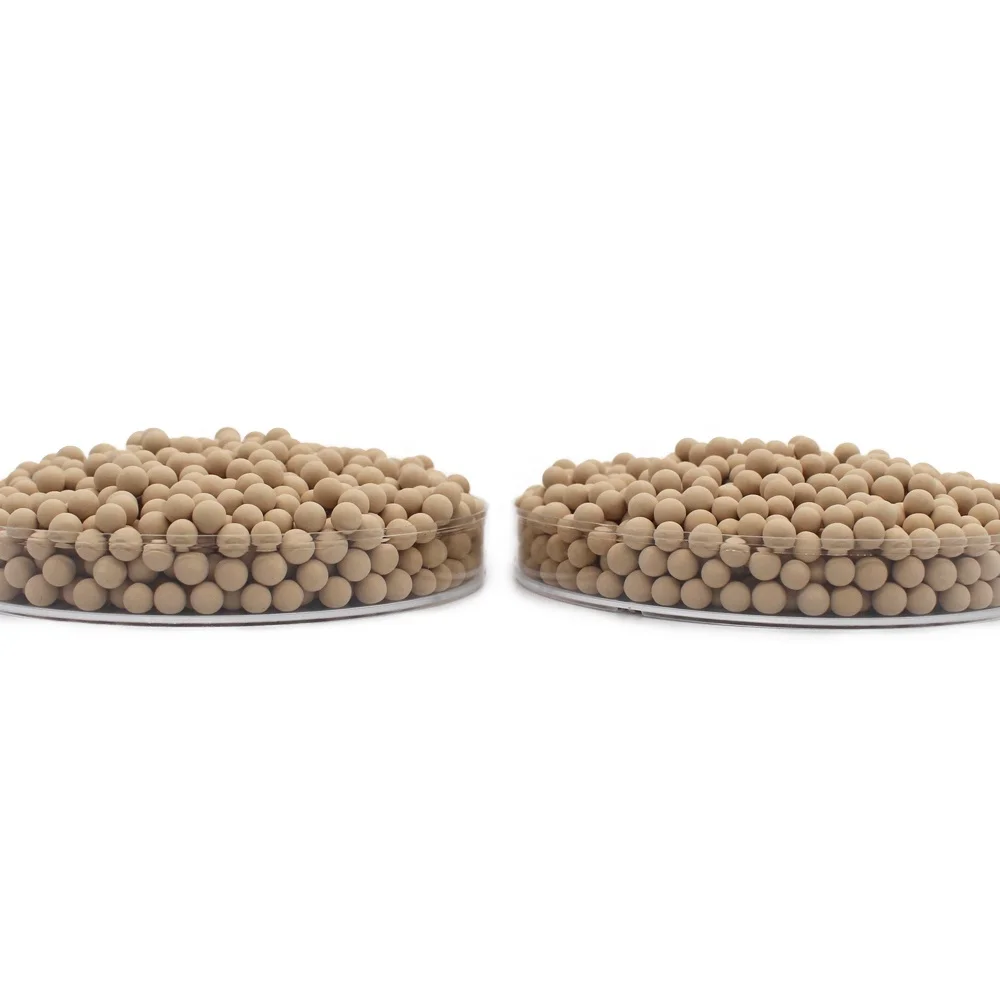

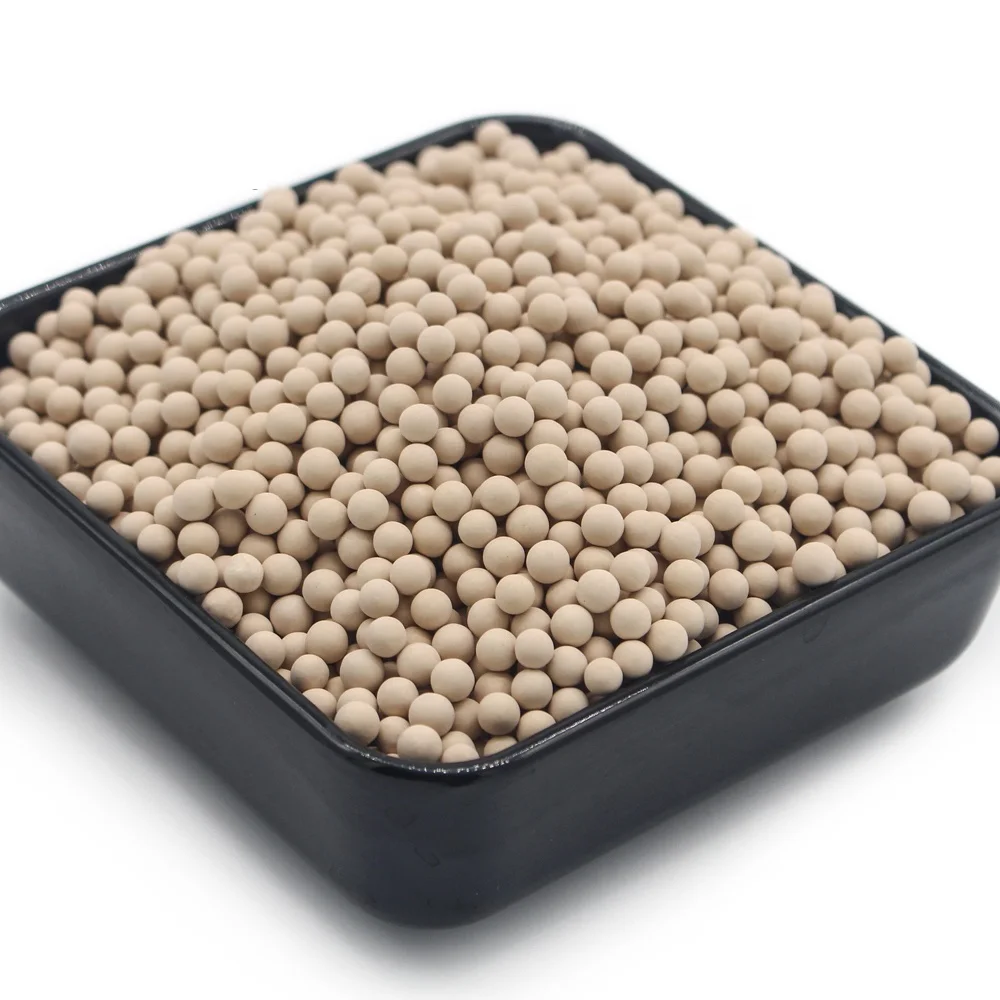

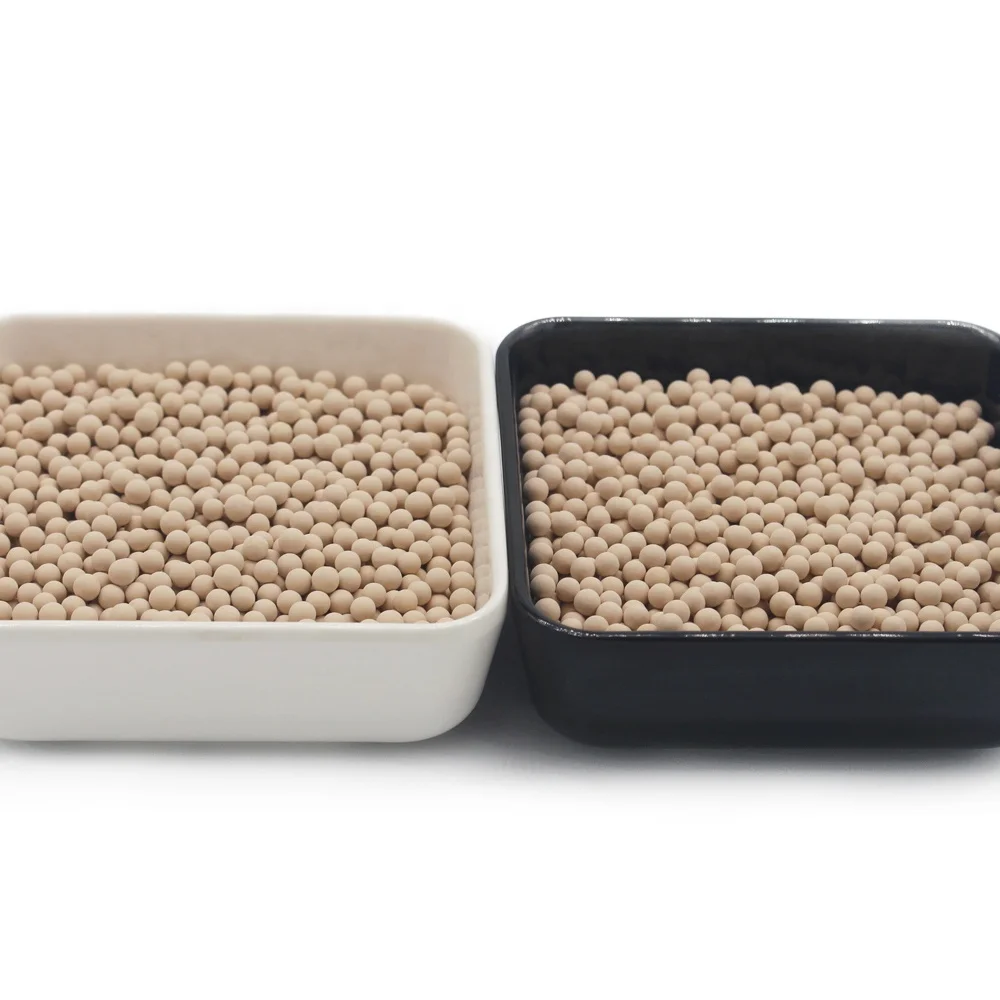

3-5 мм цеолит 3A 4A 5A адсорбент из молекулярного сита

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Inquiry to packing mall



Product Description




Zeolite 3a 4a 5a adsorbent


3A Molecular Sieve, is an alkali metal alumina silicate. It is the potassium form of the type A crystal structure. It has an effective pore opening of about 3 angstroms(0.3nm). This is large enough to allow in moisture, but excludes molecules such as unsaturated hydrocarbons which can potentially form polymers.
"Packing-mall" 3A Molecular Sieve, has the advantages of faster adsorption speed, more regeneration times, higher crushing strength, stronger anti-pollution ability, greater utilization efficiency and longer service life.





4A Molecular Sieve, is an alkali alumina silicate. It is the sodium form of the type A crystal structure. It has an effective pore opening of about 4 angstroms(0.4nm). It will adsorb most molecules with a kinetic diameter of less than 4 angstroms and exclude those larger.
"Packing-mall" 4A Molecular Sieve, the pore size distribution is very uniform, has very good adsorption properties and good oil adhesion, and has a certain buffer alkalinity effect. It is non-toxic, safe and reliable to human body, and has no adverse effects on ecosystem.





5A Molecular Sieve, is an alkali alumina silicate. It is the calcium form of the type A crystal structure. It has an effective pore opening of 5 angstroms(0.5nm). It will adsorb molecules with a kinetic diameter of less than 5 angstrom and exclude those larger.





"Packing-mall" molecular sieve psa 13X is the sodium form of the type X crystal and has a much larger pore opening than the type A crystals. It will adsorb molecules with a kinetic diameter of less than 9 Angstrom (0.9 nm) and exclude those larger.
It also has the highest theoretical capacity of the common adsorbents and very good mass transfer rates. It can remove impurities too large to fit into a type A crystal and is commonly used to separate nitrogen from oxygen.


















































































Type



Packing-mall Molecular Sieves



Shape



Pellet / Cylindrical



Sphere / Beads



Size



1/16’’ 1/8’’



1.6-2.5mm


3.0-5.0mm


4.0-6.0mm



Type



3A



4A



5A



13X



13X-APG



Bulk density (g/ml)



≥0.70



≥0.70



≥0.70



≥0.62



≥0.62



H2O capacity (%)



≥21



≥21.5



≥22



≥25



≥27



CO2 adsorption (%)



-



-



-



≥18



≥18.5



Water content (%)



≤1.2



≤1.2



≤1.2



≤1.2



≤1.2



Wear ratio (%)



≤0.30



≤0.30



≤0.10



≤0.10



≤0.10



Size ratio up to grade (%)



≥98



≥98



≥96



≥96



≥98



Remarks: The data is for Sphere / bead, if need pellet data please contact us.






Warranty:    By National Standard HG/T 2690-2012.


                     Free consultation during the warranty period.


=====================================================================================


Other Molecular Sieve for PSA / VPSA equipment:










13X HP Molecular Sieve
Application: PSA /VPSA Oxygen Generator





Size: 0.4-0.8mm, 1.4-2.4mm
N2 purity: 90-94%
H2O capacity:≥ 30%


CO2 capacity: ≥ 19.8%


N2/O2 selectivity: ≥ 3


Package: 55lbs / 275lbs iron drum











Carbon Molecular Sieve
Application: PSA Nitrogen Generator




Size: 0.95mm, 1.1-1.3mm, 1.6mm
N2 purity: 98.5-99.999%
Pressure: 0.6-0.8MPa
Bulk density: 650-700g/l
Package: 44lbs / 88lbs plastic drum














Packaging & Shipping











































Package



25kg/carton



30kg/paper drum



150kg/steel drum



1 Pallet




Quantity



750kg / 1,650lbs



540kg / 1,188lbs



600kg / 1,320lbs



Delivery Time



2~3 days



2~3 days



2~3 days



20’ feet




Quantity



15,000kg / 33,000lbs



10,800kg / 23,760lbs



12,000kg / 26,400lbs



Delivery Time



7~10 days



7~10 days



7~10 days



Remarks: The data is for ocean freight, and pallet size is 1.1*1.1*0.1mm
