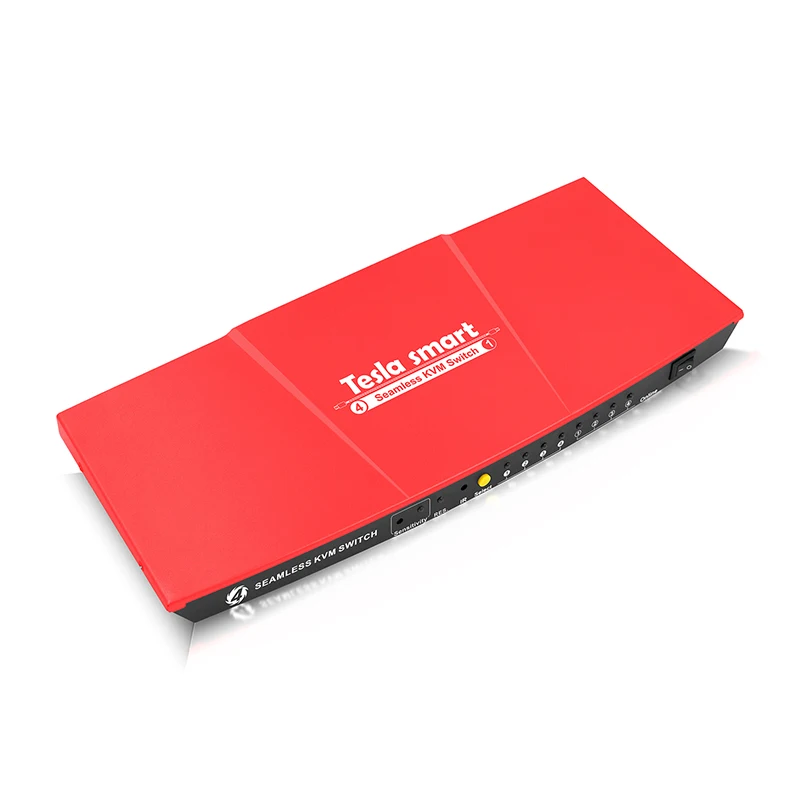

TOP PIP 4 Ports RS232 Kvm Switch Usb 2.0 Seamless switch

Share on:

Price:$141.26 - $203.22
Price in USD:Details


Product Overview


Product Description

TOP PIP 4 Ports RS232 Kvm Switch Usb 2.0 Seamless switch

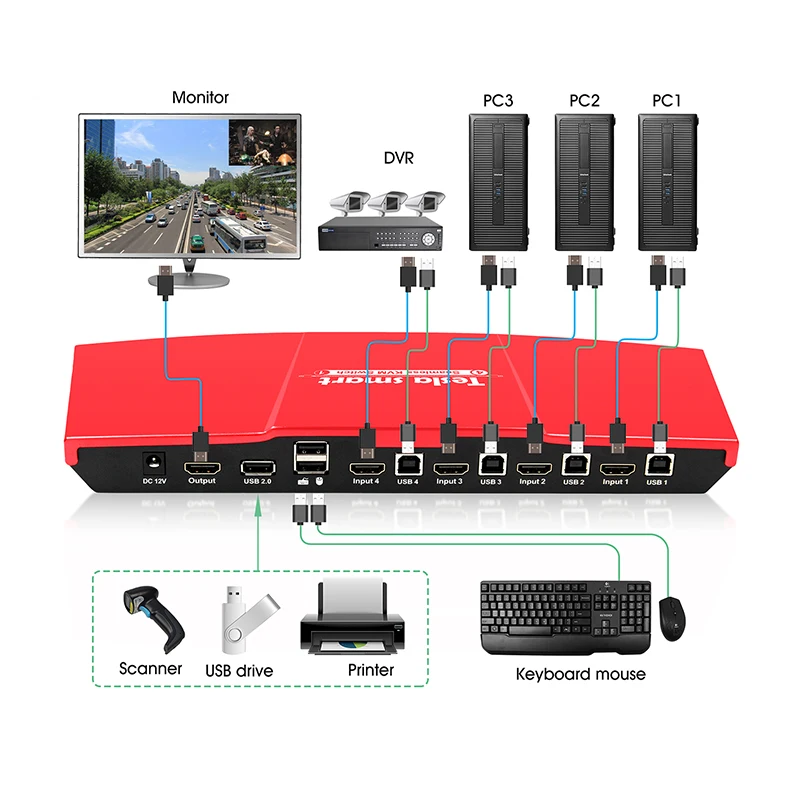

This 4 Ports Seamless HDMI KVM Switch provides you with great flexibility in integrating cross-platform computer equipment easily. It makes you available to share one set of keyboard, mouse and monitor with four PCs.
The 4 Ports Seamless HDMI KVM Switch supports PIP mode, you can display one source or any two different sources on one display in the form of PIP . It supports seamless switching of HDMI sources with same resolution, ensures no switching delay and no picture loss. Supports USB 2.0 hub and USB 2.0 keyboard /mouse. By using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM. Switching can be controlled through variable methods, the front panel buttons, IR signal, keyboard hot keys and mouse gesture.


l  Using only 1 set of keyboard, mouse and monitor to control 4 PCs

l  No latency, support seamless switching

l  Support PIP (Picture in Picture) mode, one small window will be laid over another window

l  Support resolution up to 3840*2160@30Hz

l  Support auto switching to monitor computers in a specified time interval

l  Available to use keyboard without any delay after switching inputs

l  Support hot plugged, connect or disconnect devices to the KVM switch at any time without turning off devices

l  With extra standard USB 2.0 hub port, it is possible to connect bar code scanner, USB hard drive or other USB devices to KVM

l  With EDID emulators in each input port, keep PCs always having correct display information

l  Supports the use of DVI sources and DVI displays with DVI-to-HDMI cables

l  Switches between four computers using front panel button, keyboard hot keys, mouse gesture or IR remote control



4 Ports Seamless HDMI KVM Switch


Auto Scan


Port selection

Front panel buttons


Keyboard hotkeys


IR remote control


Mouse gesture


Console commands




Up to 3840x2160@30Hz

Auto to get EDID


Data rate

10.2 Gbps

Auto scan interval

1~250 Seconds

Beep Sound




Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

Console ports

Keyboard emulation

1 * USB Type A

Mouse emulation

1 * USB Type A

USB 2.0 Hub ports

1 * USB Type A

Video /Audio

 1 * HDMI Type A

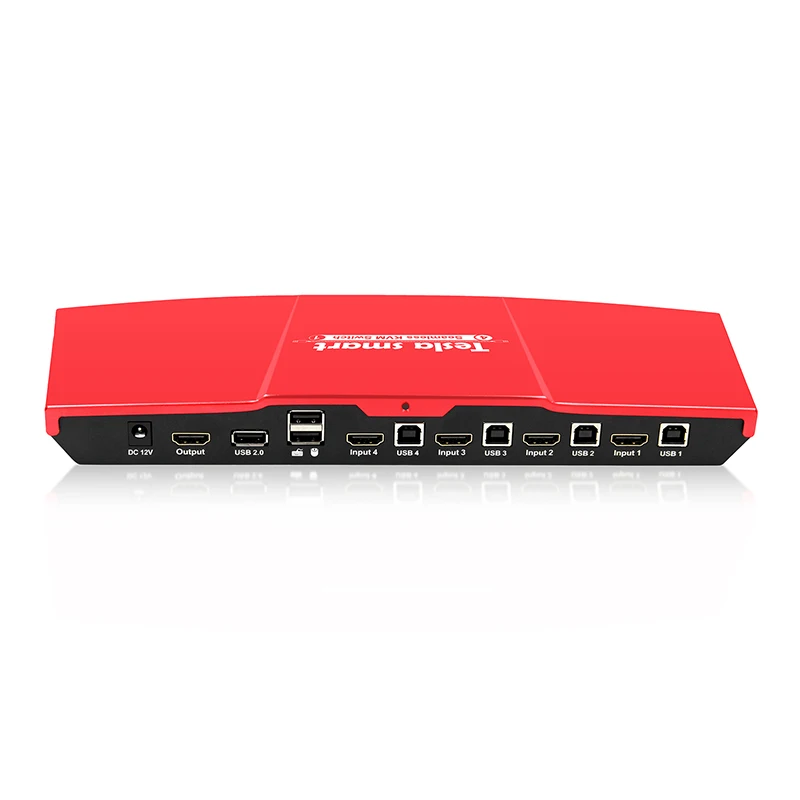

System ports

USB Data

4 * USB Type B

Video / Audio

4 * HDMI Type A

ESD protection

Human body model - ±8kV (Air-gap discharge)


Chasing material

Aluminum Alloy

Product Dimensions

300 (L) x 117.5 (W) x 30.5 (H) mm

Item Weight


Details Images
