PTC immerging heating element

Share on:


Price:RUB 798.78
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

 Non-insulated air heater7D50D25PTC Air heater5

Packaging & Shipping



Water heating element

1)     Transflux type. Water flows in the hole of the heating element and the water could be heated by the heating element.

2) Immerging type. The heating element is immerged in a water container, and the water could be heated by the heating element.

3) Underside type. The heating element can be put under a water container, and the water could be heated by the heating element.

4) Surrounding pipe type. The heating element can be surrounded out of the metal water pipe and the water in pipe could be heated.

The above types can be consist of materials below:

1) Aluminium shell or pipe, it is not good in resistance to corrosion. Anti-corrosion coating could be betterin resistance to corrosion.
2) Brass or copper shell or pipe, it is good in resistance to corrosion. But it costs higher.
3) Ceramic shell, it’s good in resistance to corrosion. But its heating power could not be very large.
4) Stainless steel shell or pipe, it’s very excellence for preventing corrosion, and meets food safe standard. But it costs higher and has bigger bulk.

5) Titanium shell, it’s very good in corrosion resistance, but the cost is quite high.



3. Some samples of uses.

PTC water heater could be used for shower, footbath, washing hand, vegetable and dish, drink warmer and boiler, fermenter, tea warmer, coffee wamer, milk warmer, vapor generator, sauna bath.

They could be used in heating diesel oil, gasoline or other liquid. Using PTC as a heating element could prevent the oil burning, it’s safer.



4. Notice in appliance.

PTC as a heating element, it fits for high safety, long life-time, slap-up product. In some situations, it’s low cost and convenient.

The electric power of PTC water heater changes with the temperature of water. The higher is the temperature of water, the smaller is the power.

Using higher switch temperature PTC can get higher power, 220~270Cswitch temperature PTC is selected usually. But if the switch temperature is too high, the reliable will reduce.



4. Current products.

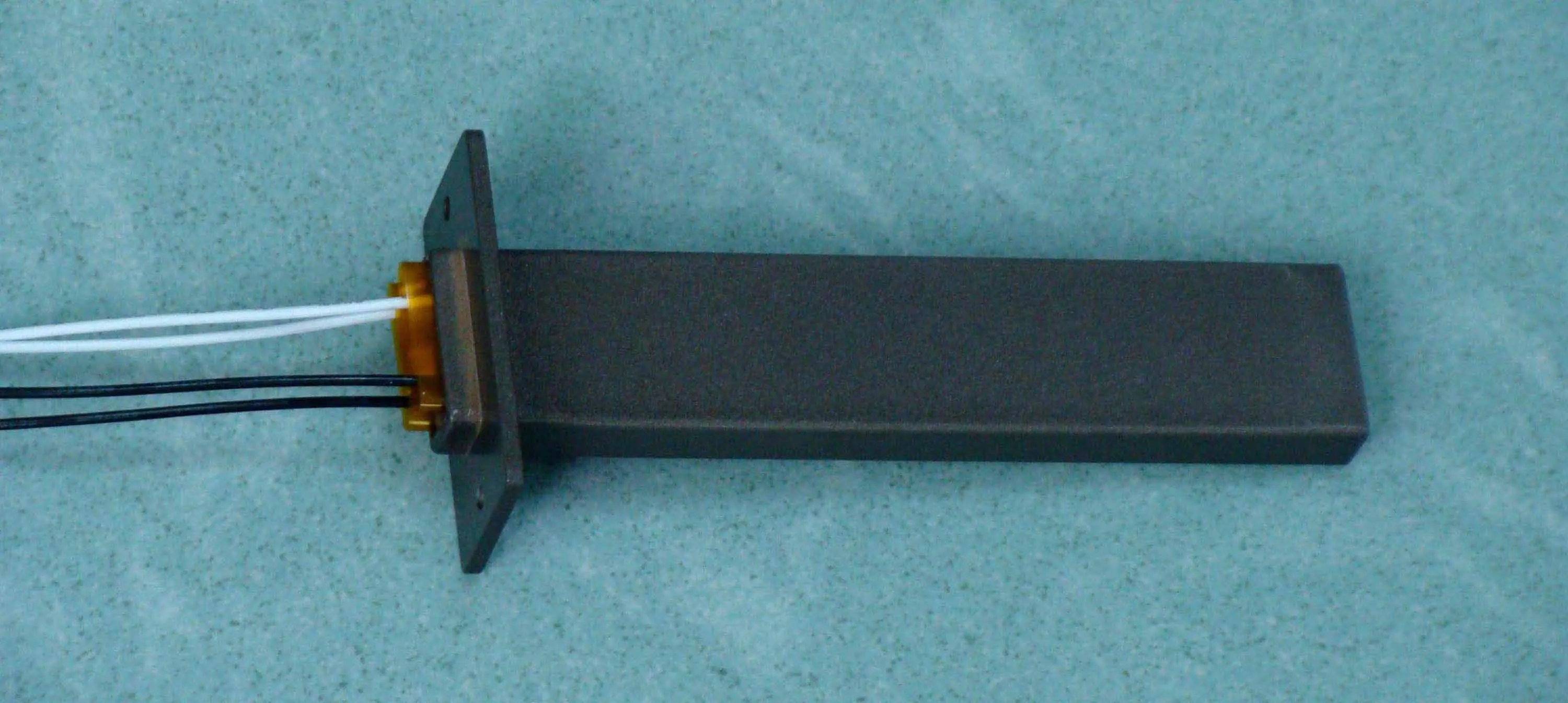

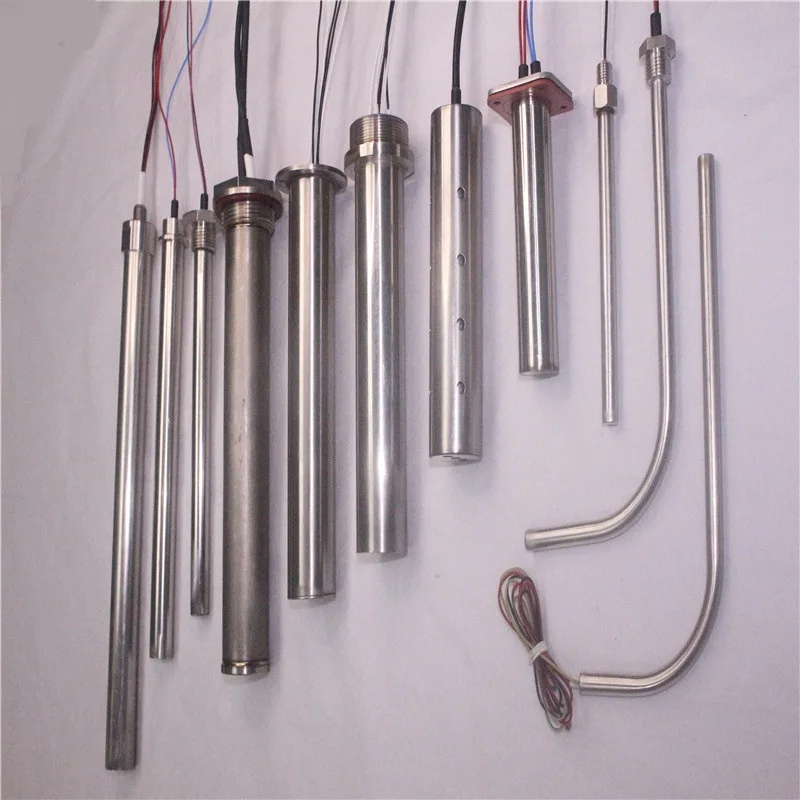

Some immerging heating elements.

Shape

Width /mm

Thickness /mm

Length in water /mm

Screw or flange

Applied
voltage / V

Surface temperature without water /C

Power
in 25
C
water /W

Aluminium  tube

13.2

5.2

75

as required

220

250

100

Aluminium  tube

21.5

6.8

75

as required

220

260

160

Aluminium  tube

21.5

12

100

as required

220

260

450

Aluminium  tube

21.5

24

200

as required

220

260

2000

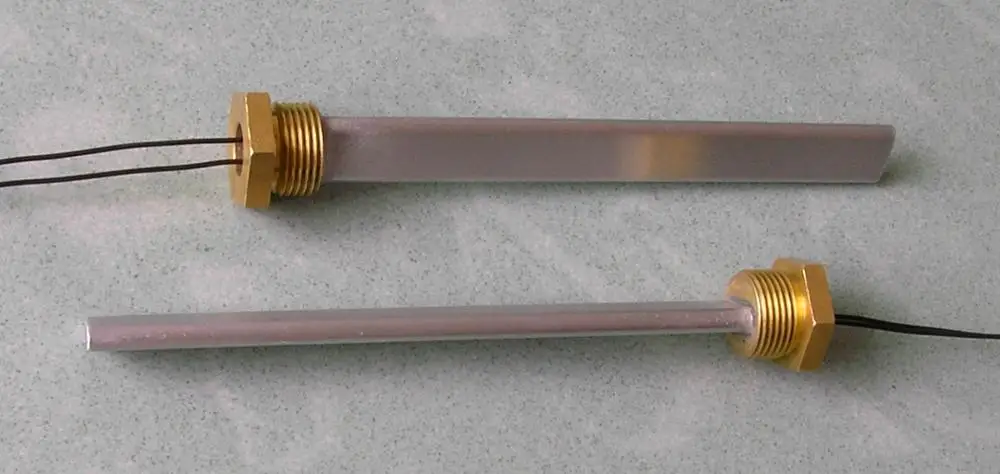

round brass tube



Φ11.5

75

as required

220

240

100

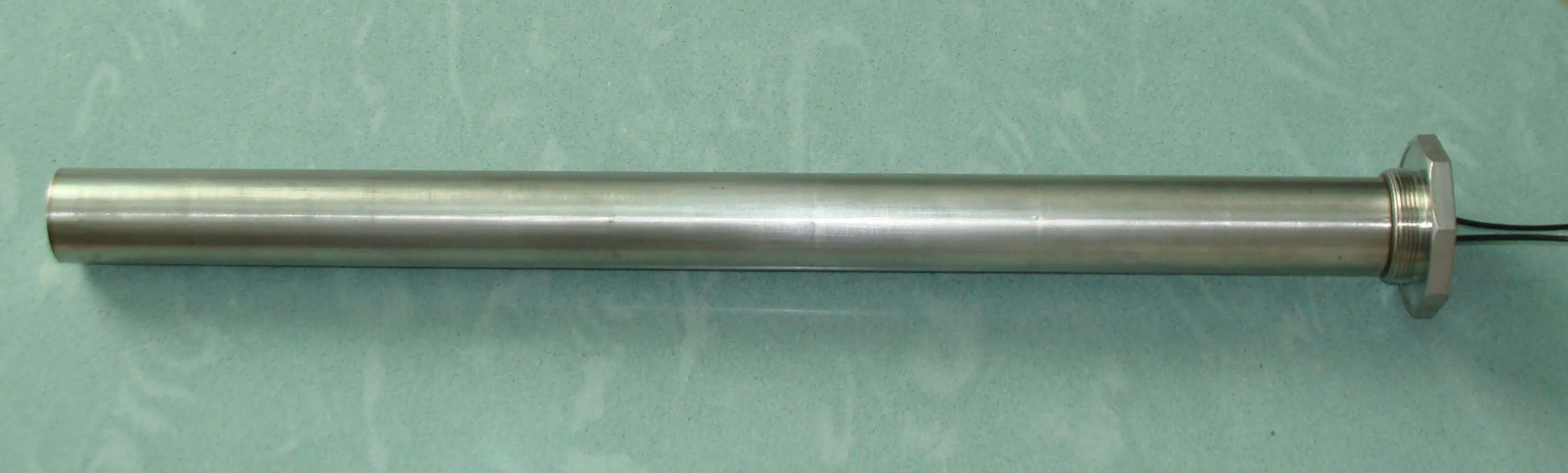

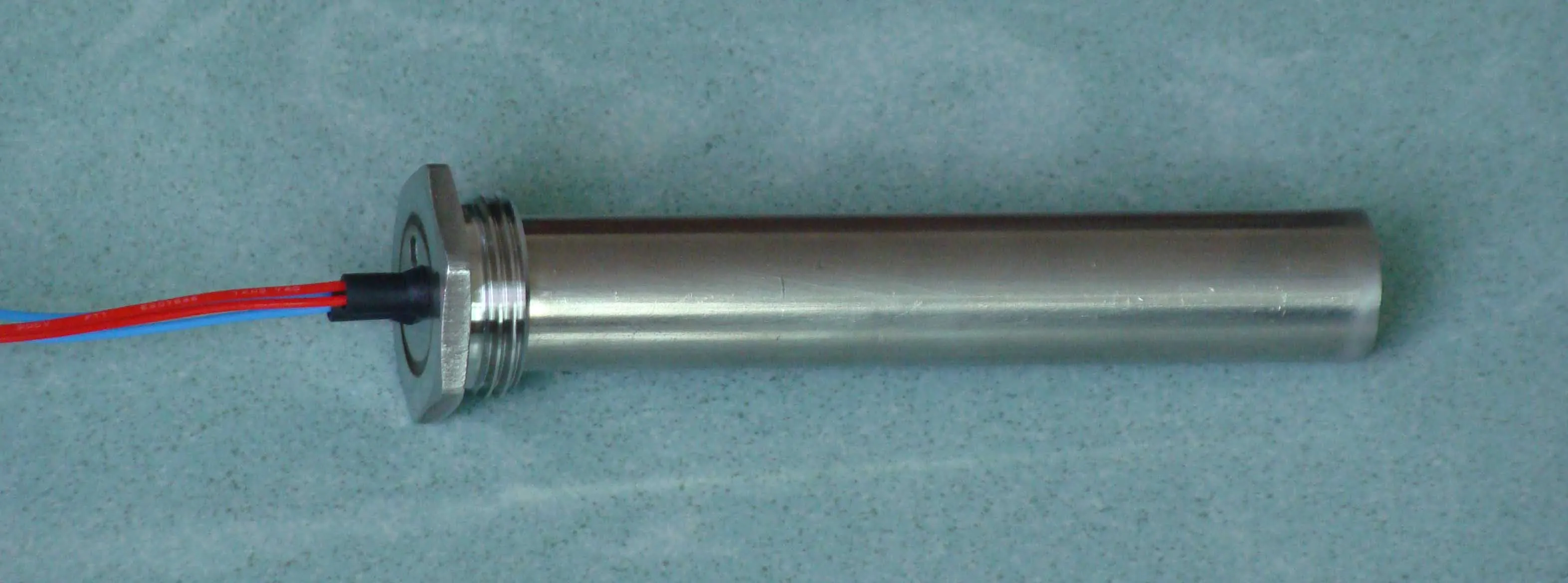

Stainless steel tube



Φ25

200

as required

220

250

1100

Stainless steel tube



Φ35

200

as required

220V

250

1500

Notice:
1) Applied voltage could be 12~36V, 100~380V.
2) The length could be selected between some range, larger power could be made with longer tube.
3) The fixing connected screw or flange could consist of brass, aluminum or stainless steel. The shape could be selected by customer.
4) The surface temperature without water, could be between 50~260
C, the higher is this temperature, the larger is the power.
5) For preventing corrosion, stainless steel shell, copper shell, titanium shell, monel shell, could be selectted. The surface can be nickel plating, paint anti-corrosion coating.

For more detailed information of our water heating element, please visit our website:

http://www.tiancheng-ptc.com
