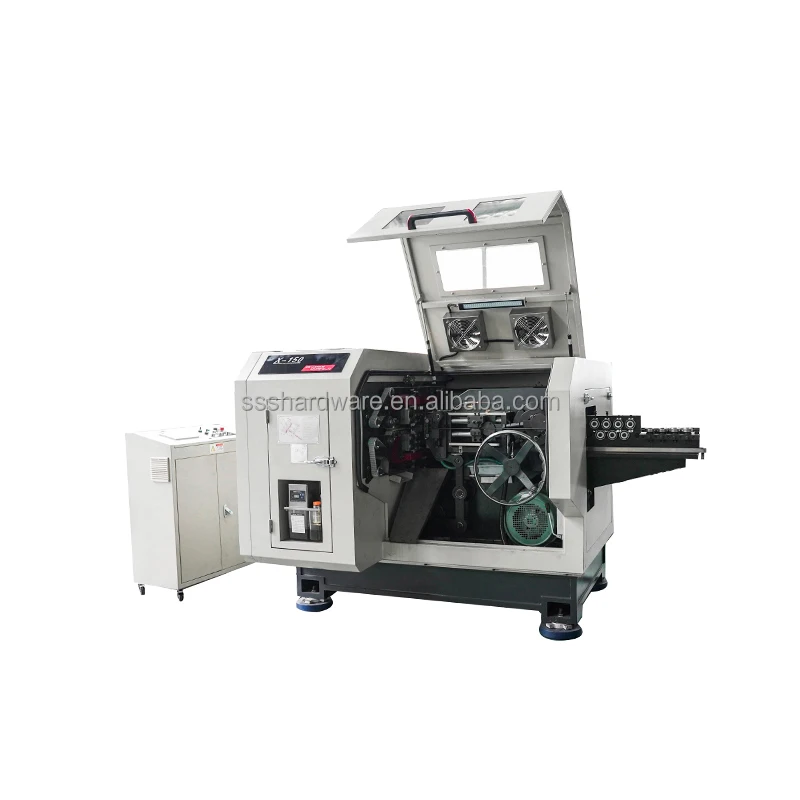

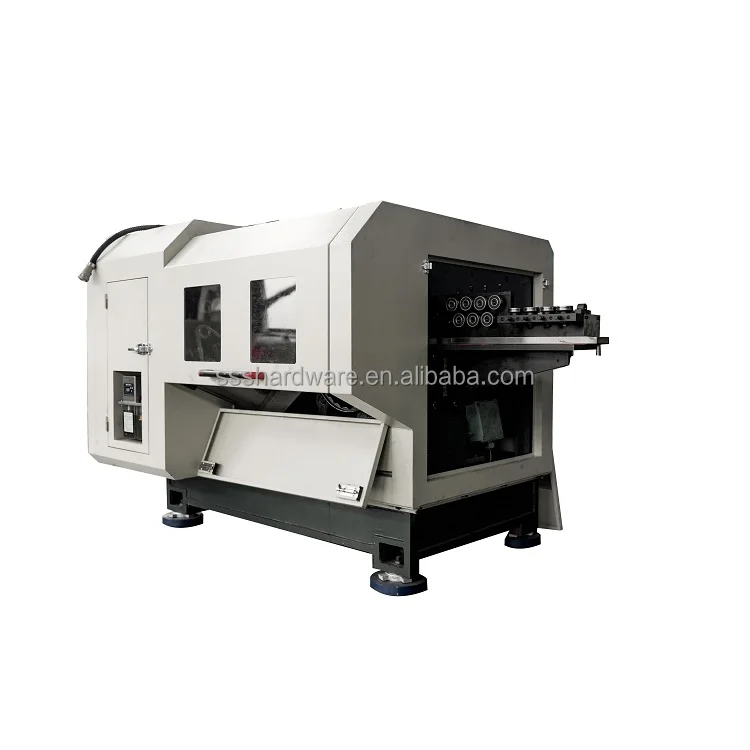

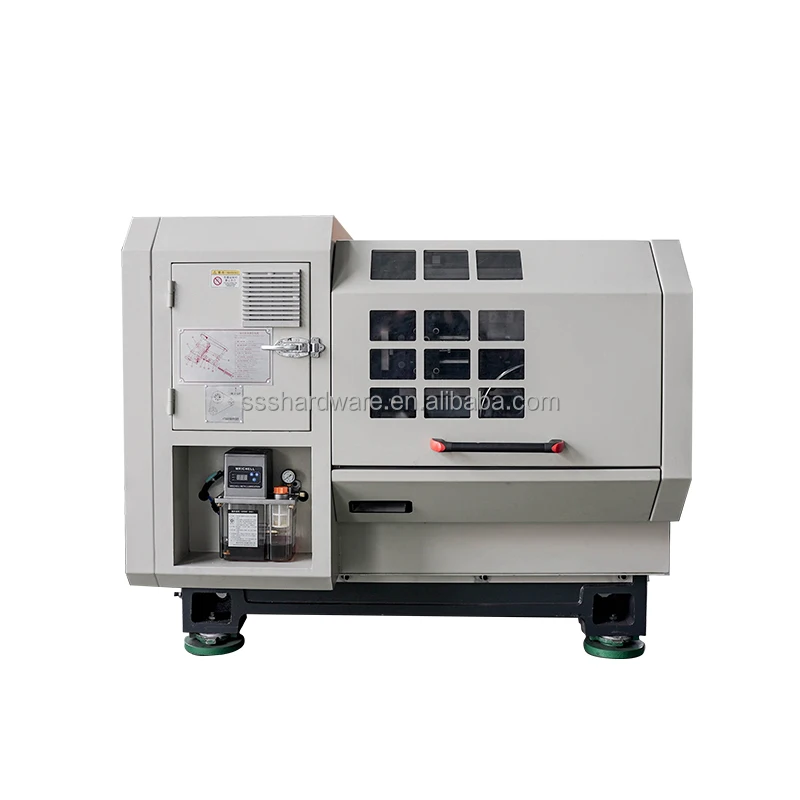

Nail making machine


The machine is a high-speed energy-saving nail-making equipment, mainly used for high-quality pneumatic nail and ordinary loose nail production.

Especially apply to coil nails and strip nails production under requirement of small diameter, big nail head, consistent nail shank





MODEL
SSS-YH-ZDJ-X50
SSS-YH-ZDJ-X90
SSS-YH-ZDJ-D90
SSS-YH-ZDJ-X130
SSS-YH-ZDJ-X150
Nail dia.
1.8-3.0 mm
2.0-3.8 mm
2.0-3.5 mm
2.4-4.5 mm
2.5-5.0 mm
Nail le.
28- 55mm
30-90 mm
45-90 mm
50-130 mm
70-150 mm
Speed
≤ 800 pcs/min
≤760pcs/min
≤680pcs/min
≤680pcs/min
≤700pcs/min
Power
7kw
7kw
7kw
9kw
14kw
Dim (mm)
1350*850*1170
1500*850*1600
1350*1220*1050
1500*800*1600
1350*1220*1050
1500*800*1600
1550*1220*1050
1500*800*1600
1650*1250*1300
1500*800*1600
Weight
2200 kgs
2800 kgs
3000 kgs
3500 kgs
4500 kgs


Nail making machine


Our Advantages


  1. 1. Shorter stroke (12mm), traditional machine around 100mm
  2. a. Stable performance, defective rate less than 1/100000
  3. b. Lower mechanical wear

c. Gripping dies and punches are more durable.

  1. 2. The nail length can be well controlled.
  2. a. The machine equipped with sensor for detecting longer or shorter nails
  3. b. Active wire feeding, can ensure straight shank and consistent length, no matter what the wire coil's weight is.
  4. 3. Metal scraps can be separated with nails very well
  5. a. Effectively protect the nail conveying belt
  6. b. Ensure the good shape nail head
  7. 4. Easy operation, 20 minutes to change and adjust the cutters, gripping dies and feeding unit while changing nail shank diameter and length.
  8. 5. Simplified maintenance, automatic inside oiling system, no grease needed.
  9. 6. Very round nail head, two times punching to ensure very good nail heads.
  10. 7. Consistent nail shank length, good for making coil nails and paper/plastic strip nails.
  11. 8. Safe and less noise
  12. 9. Durable and cheaper tools, lower using cost.
  13. 10. Decrease your production cost

Nail making machine


Detailed Images


Nail cutter holder adopts pendulum structure

  1. 1. Shorter stroke and lower mechanical wear
  2. 2. High precision, nail cutters work without touch with longer service life.
  3. 3. One set of cutters’ cutting times up to 10 million times
Unique patent, double-dies and double-punches structure

1. Bigger nail heads can be easily gotten

2. Nail heads are always very round and in the center.

3. Nail head without knock marks, consistent and good looking

4. Uniform thickness and diameter of the nail head.

Feeding and anti-backing structure

1. High-precision feeding unit. Length difference can be controlled within 0.3mm

2. With unique wire feeding and anti-backing structure,  the nail scraps can be completely separated from the nail shank to ensure quality.



Nail making machine


Wearing parts

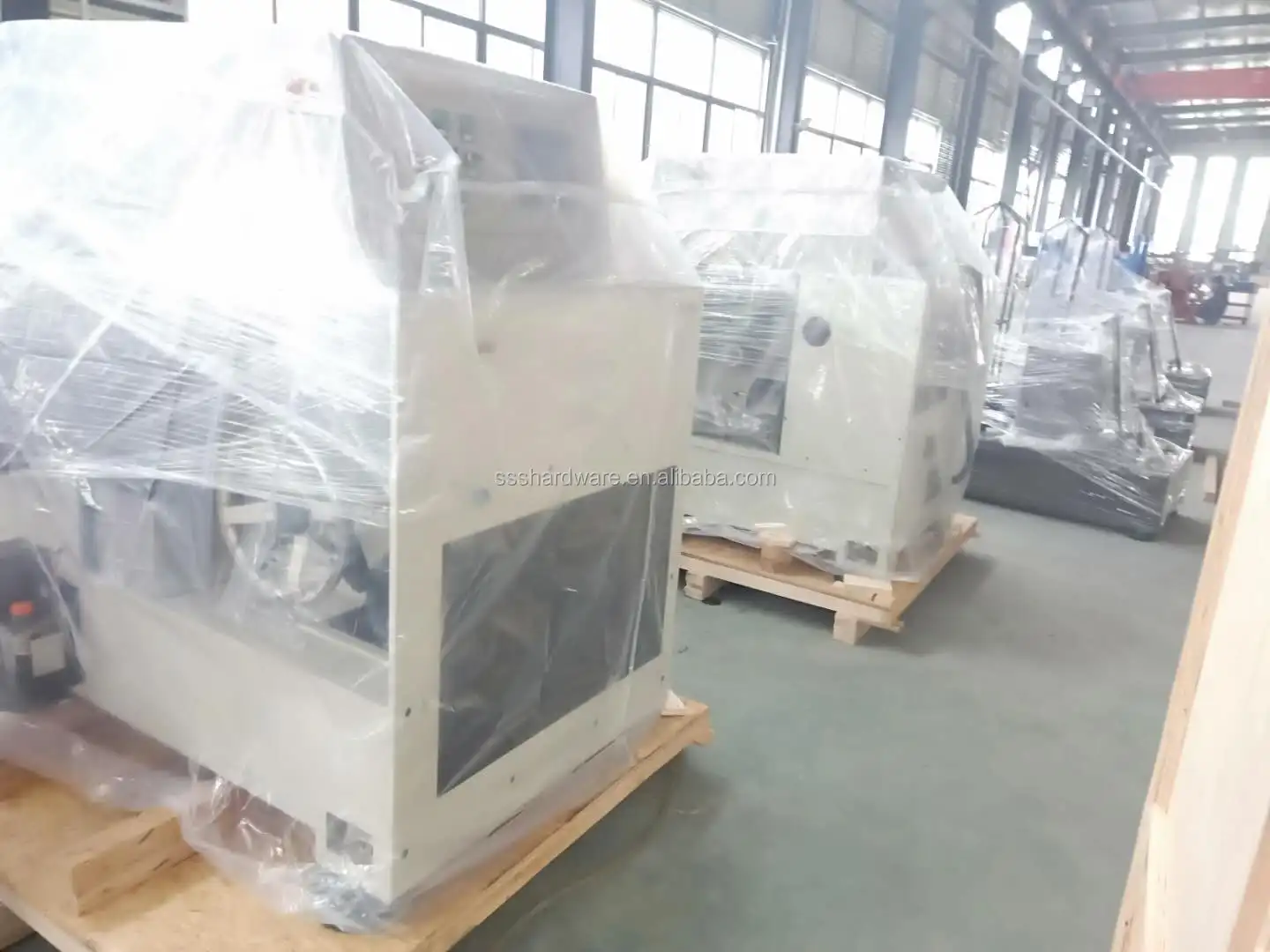

Packing&Shipping




Why Choose Us


Advantages we have:
A. 20-year experience in making nail machine.
B. Professional technical team and sales department for your service
C. 7*24 service for you.all the questions will be dealed within 24hours
Benefit you can get:
A. Stable quality -- Coming from good materials and technic
B. Good service -- Satisfactory service before and after sale
C. Delivery time – 15-30 days production lead time.
