The China top brand LZZG best sell factory mining construction sand gravel silica sand washer sand washing machine

Share on:


Price:RUB 393,564.00
Price in USD:Details

Quantity:

Add to Cart
  • add to wishlist

Product Overview

Description

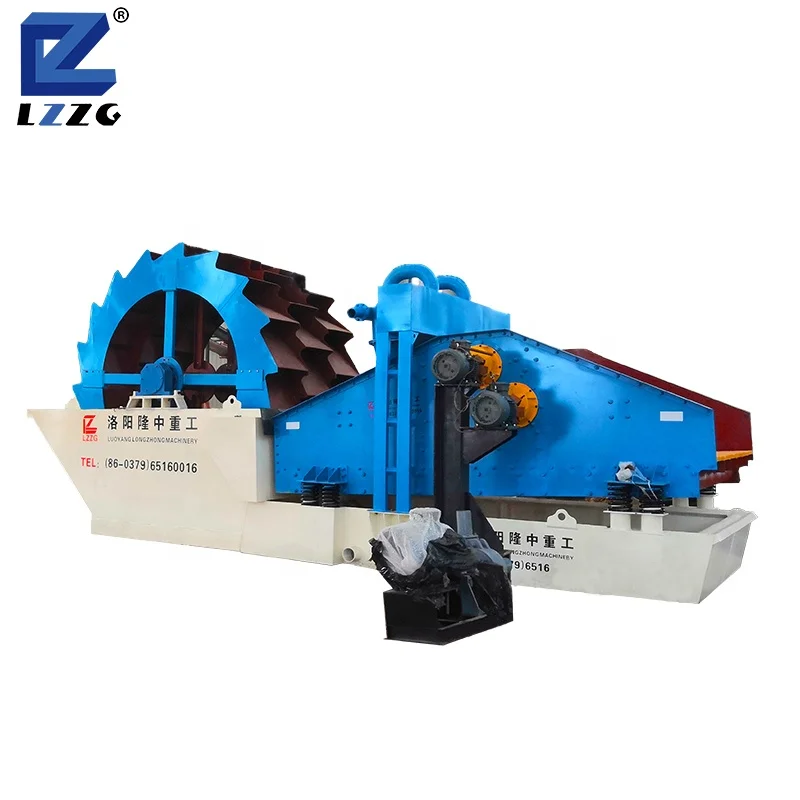

Sand washing machine is based on sand washer and sand recycling system main tech, we make it a compact multiple function sand washer. It is widely used for crushed sand, river sand, lake sand or sea sand washing, screening, recycling and dewatering.

Working principle


Step 1: Washing
The electric motor runs slowly with the impellor after decelerated by the belt, decelerator and gears wheel. The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other. The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished. The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.

Step2: Dewatering
Qualified sand is shoveled to the dewatering screen directly. This dewatering screen sieve is made of PU polyurethane material, no blocking, can bear high temperature and corrosion resistance is high, service longer working hours. From this step, wet sand moisture can be highly reduced.

Step3: Fines recycling
Waste sand water is extracted by slurry pump into high pressure sediment separator, fine sand 0.16-3mm is sprayed onto polyurethane screen also for de-watering, the waste water is back to return box and flowing out.

Main Features

1. Recycling 0.074-3mm fine sand;

2. High productivity and 95% fine particles in the material can be recycled;

3. Solving cleaning problem of sedimentation tank and improving economic performance at the same time.

Product Paramenters
Model
Cyclone specs(mm)
Feeding size(mm)
Sand
production(t/h)
Power
(kw)
Weight
(kg)
Overall dimension (mm)
LZ26-35-1224
FX350
≤10
50-80
28.4
4935
5800*5200*2750
LZ30-55-1530
FX250*2
≤10
80-100
39
7328
6700*5560*3100
LZ30-65-1530J
FX300*2
≤10
80-120
47
7500
6700*5560*3600
LZ30-75-1836
FX350*2
≤10
100-140
63
9761
7331*5560*3370
LZ30-120-1842
FX300*4
≤10
100-140
82
10565
7950*5560*3370
LZ30-75-1836D
FX350*2
≤10
100-140
59
9669
7420*5560*3670
LZ36-100-1842D
FX250*4
≤10
100-140
70
14040
8590*5560*4100
LZ36-100-1836J
FX250*4
≤10
120-160
74
13634
8120*5560*4100
LZ36-120-2448J
FX300*4
≤10
150-200
97
15480
9280*6450*4100
Detailed Images




Machine Parts

Bucket wheel

The screen is composed of thick steel plate and the mesh is punched.





Machine Parts

Cyclone

Polyurethane Lining, for recycling 0.074-3mm fines.





Machine Parts

Polyurathane Screen

The thickness is 40mm, fixed by bolts and it  works over 18 months.





Machine Parts

Motor

Three phase asynchronous motor

With the advantages of high overload capacity and mechanical strength, suitable for short-term or intermittent cyclical duty, frequent starting, braking and significant vibration and impact.





Machine Parts

Slurry pump
 Wear-resistant metal inner lining, impeller,     jacket, plate and other flow components.

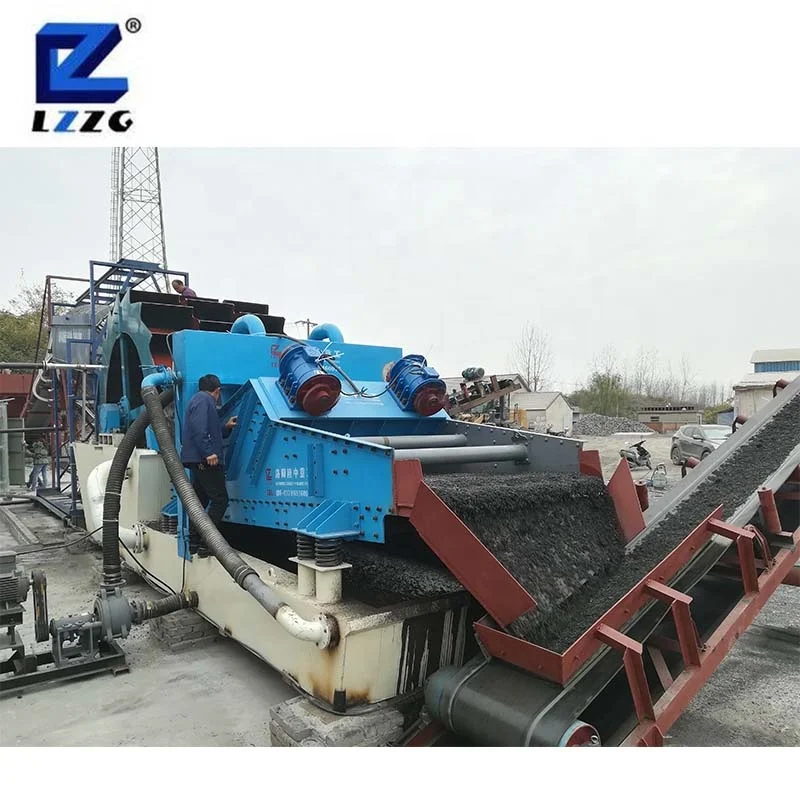

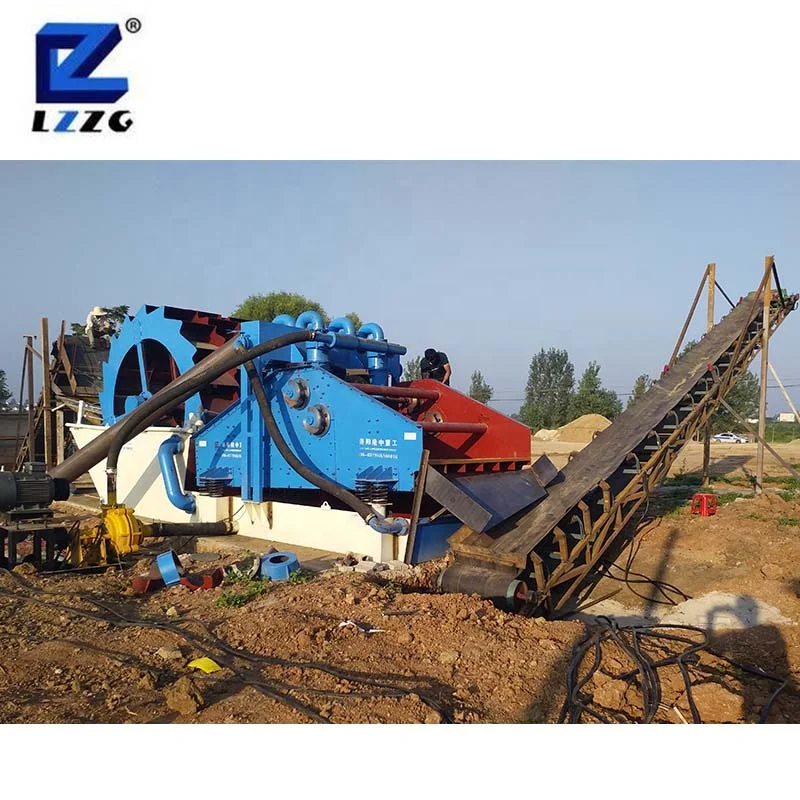

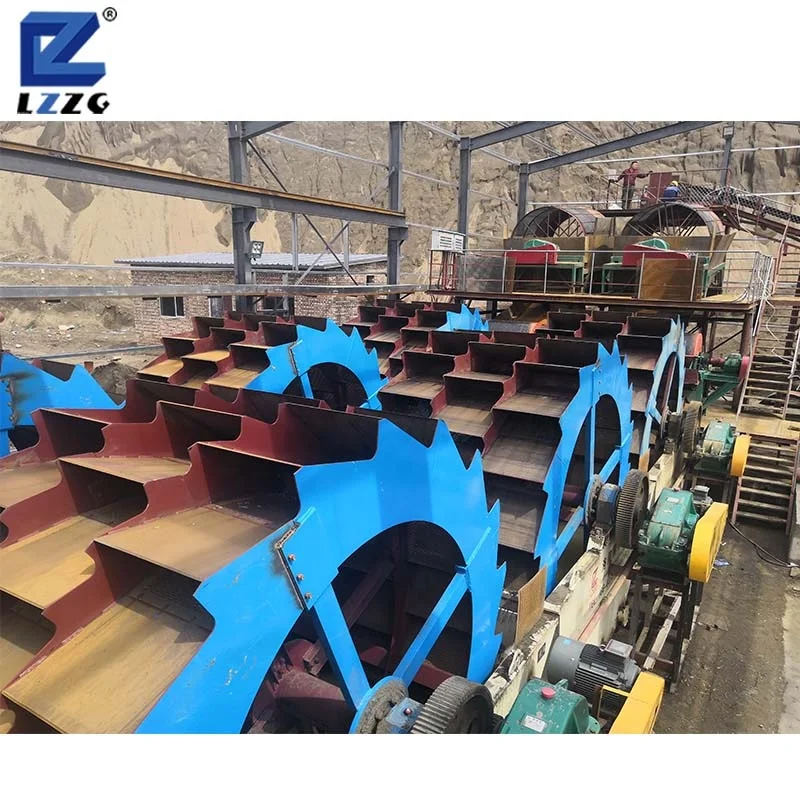

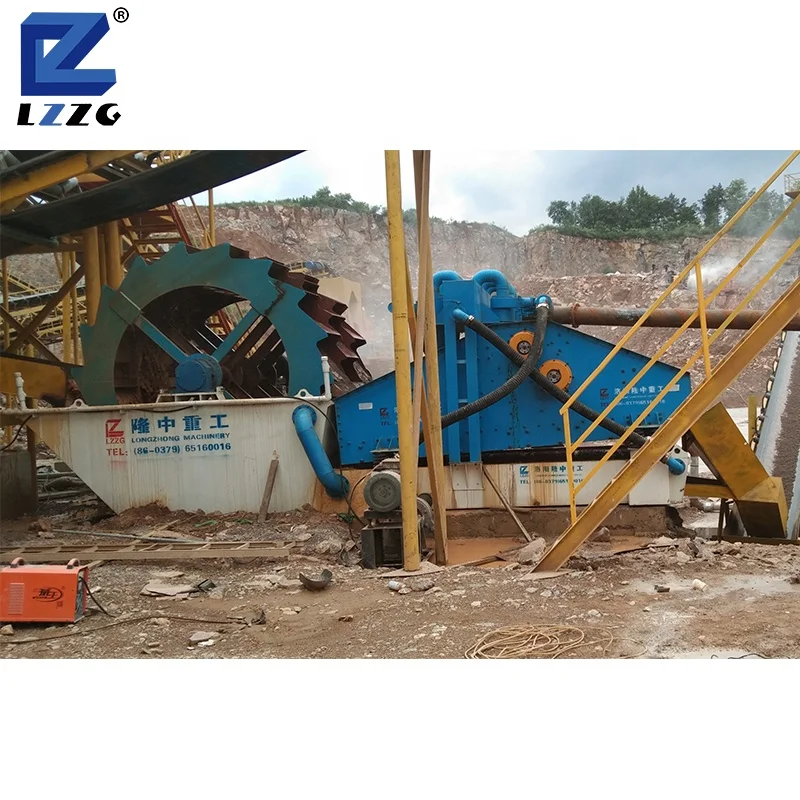

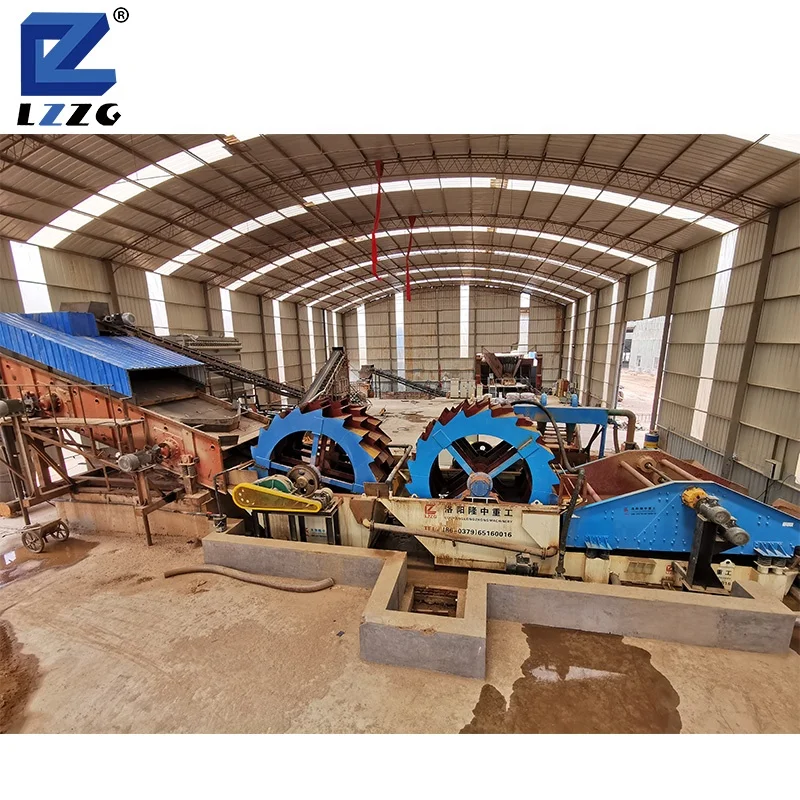

Working Site

Final Products

Packing & Delivery
Packaging
Weight
4.9-15.6T
Delivery
Sea Transportation



Packaging Details
Waterproof cloth package for main body of LZ series sand washing machine;
Wooden package for electric motor and parts of LZ series sand washing machine;
When arrive at the port, will all be loaded with containers.




Certifications
Company Profile
LZZG is a professional company that committed to the research, design, manufacture and service of washing mechanism sand and gravel, tailings treatment, piling mud purification and waste incinerator slag treatment process. We have a group of senior scientific researchers and engineers, including mechanical design, mechanical manufacturing, electrical control, environmental protection and other professionals.
Besides the professional equipment manufacturing plant, LZZG established a professional team in design, quality inspection, installation and commissioning, and after-sales service. Our series of products are exported to Australia, Malaysia, America, Mexico, Serbia, Vietnam, India, Nepal and more countries, and are highly praised by customers.
Our Team
Exhibition
Our Service

› Pre-sale Service:
  Choice of model
  Designing and manufacturing product according to customer's special requirement
  Company will arrange engineer to customer's site,designing site and discussing project

› On service:
  Product inspection
  Help customer to formulate the construction plan

› After-sale Service:
  Assign special after sale service team to site guiding customer to install and adjust machines
  Training operator on site
