Constructions frp beams flange fiberglass reinforced plastic frp i beams

01

g2701558166241_.pic_hd



Product Name

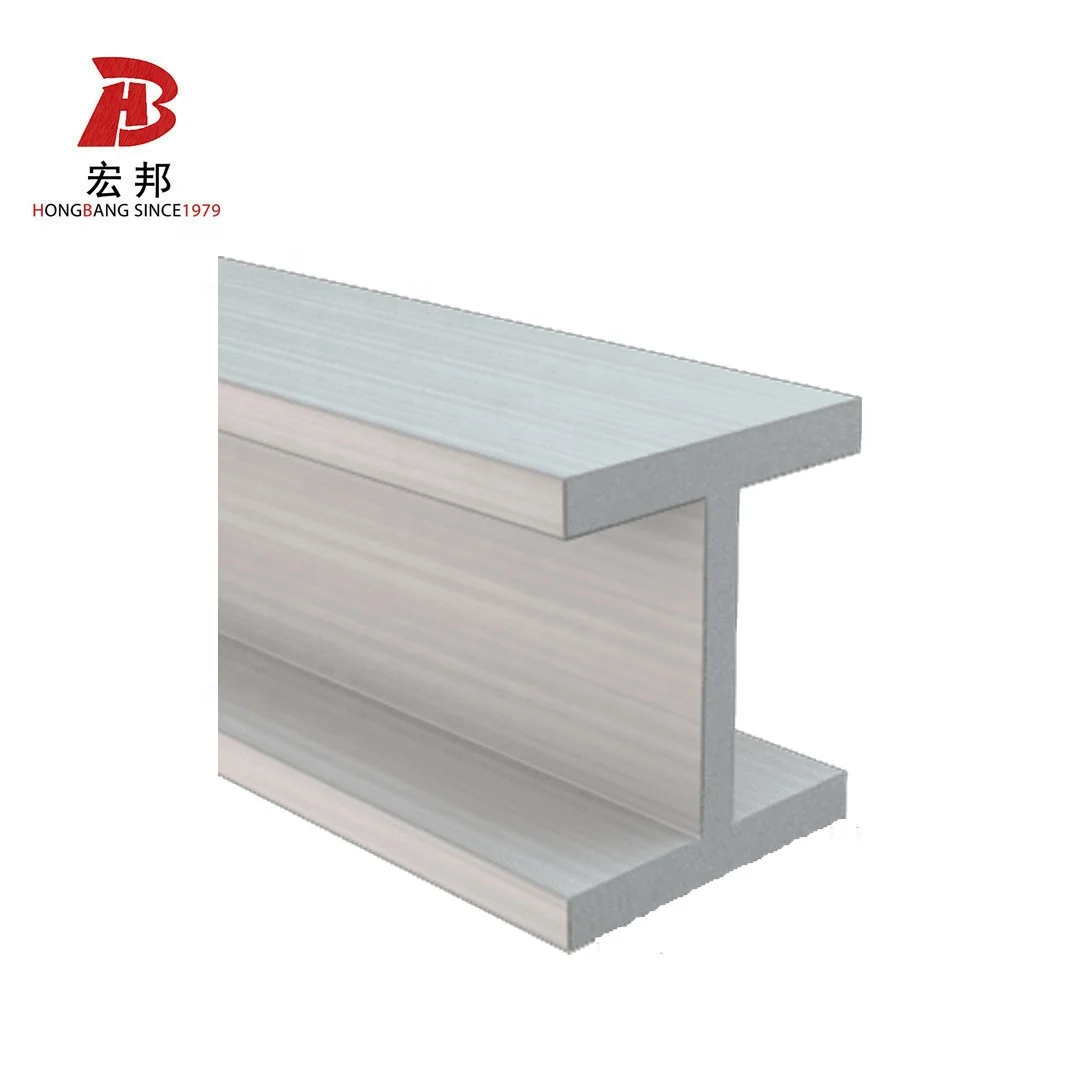

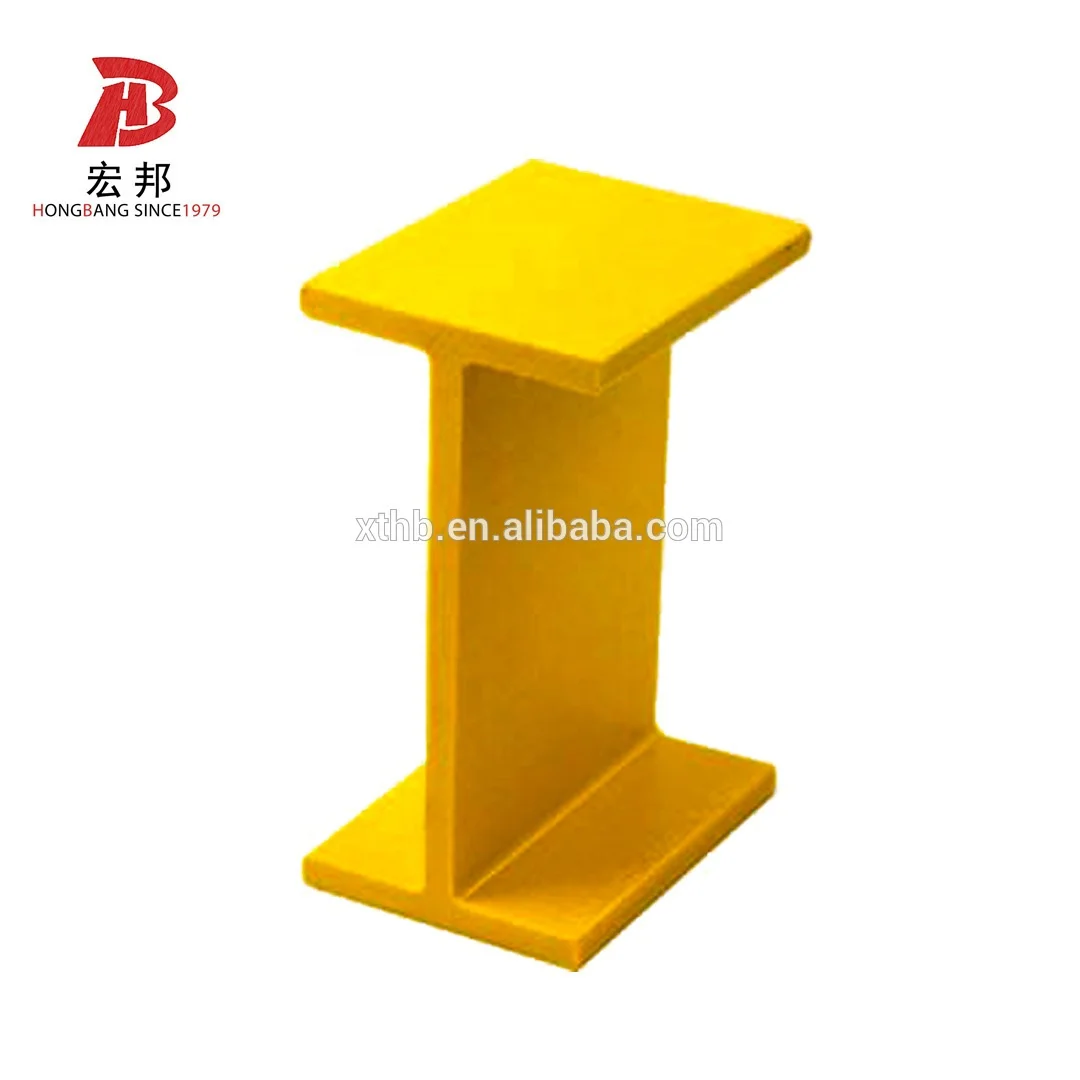

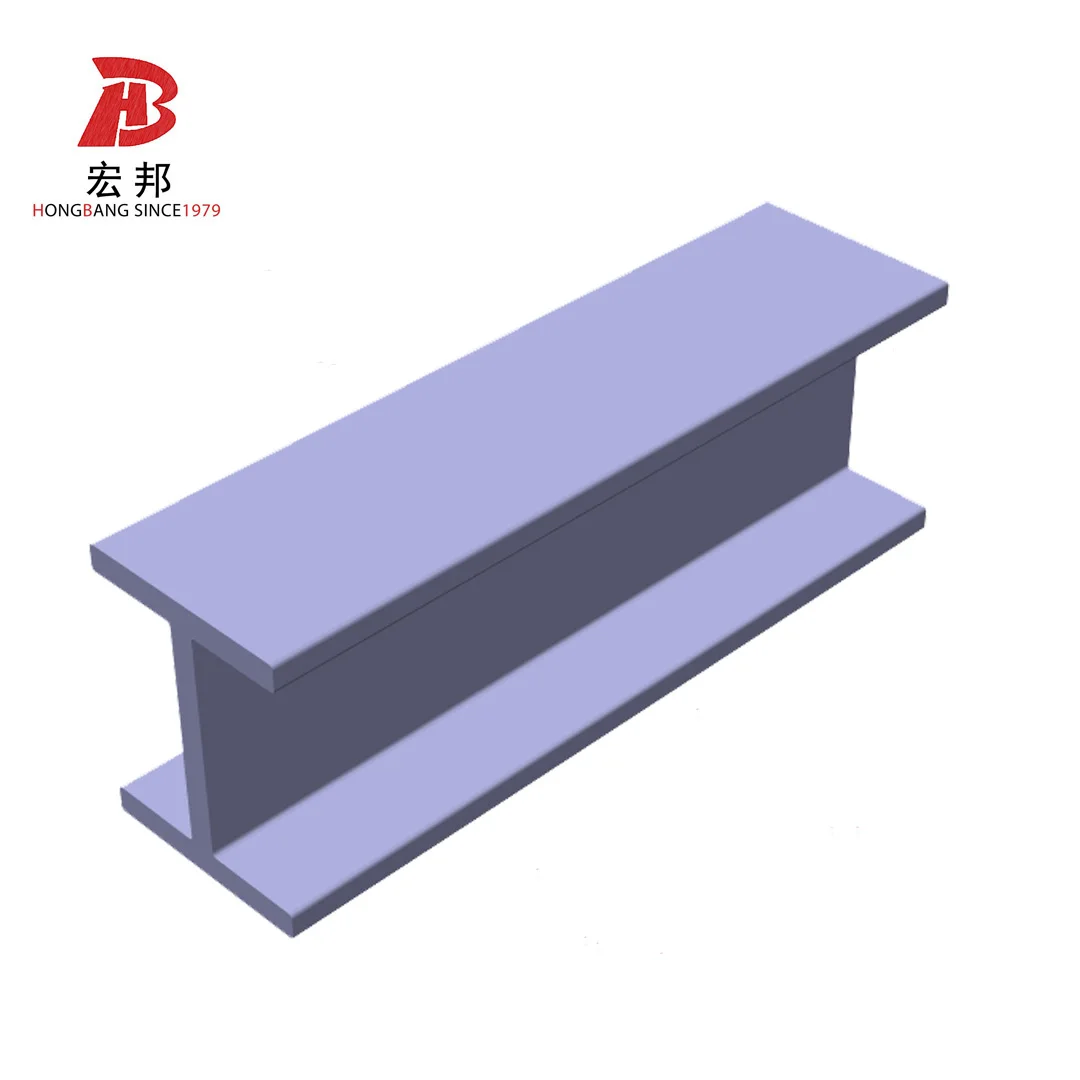

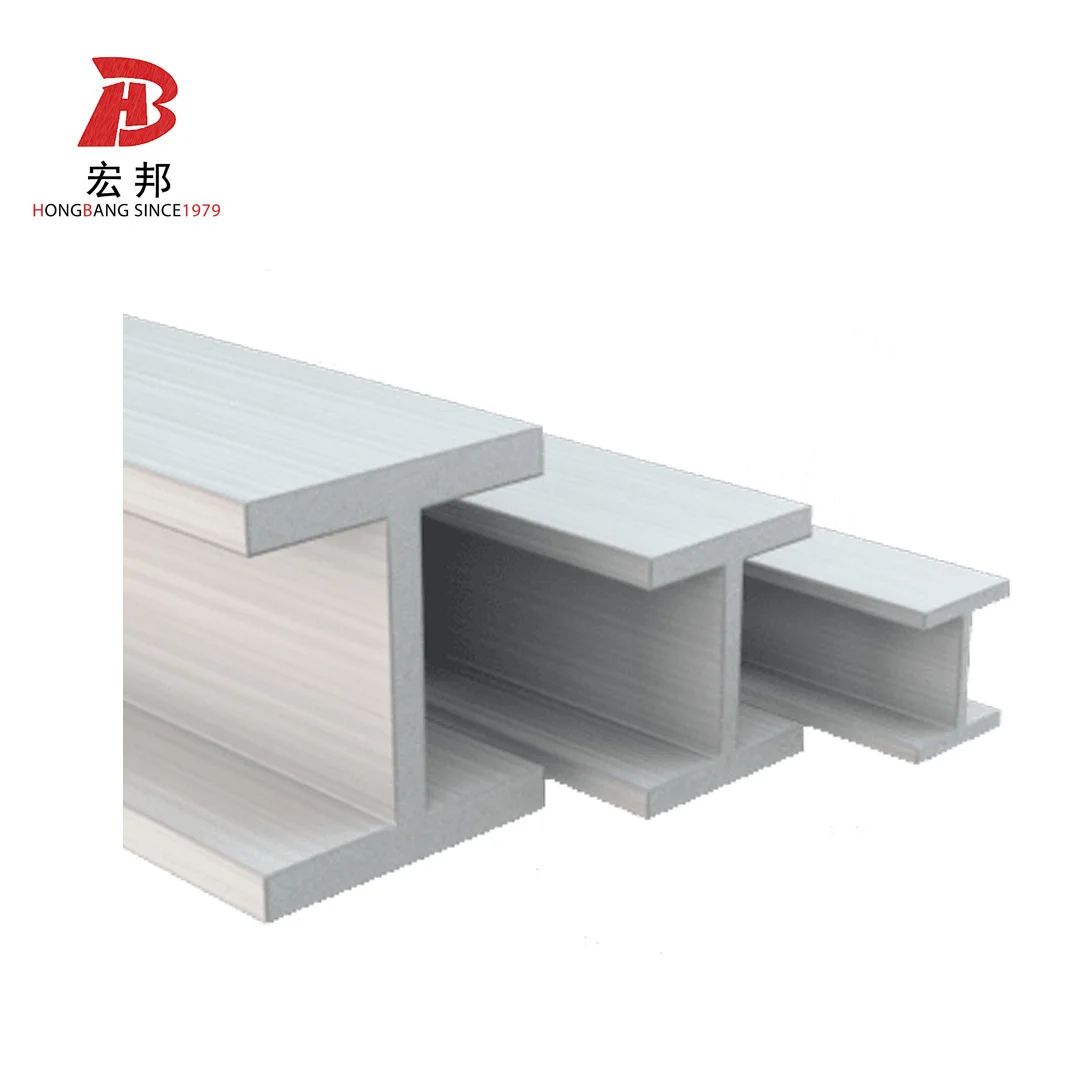

 High Strength fiberglass/ FRP I-beam/ H-beam

Brand

 HongBang

Material

 Composite / Fiberglass/ FRP

Feather

 Aging-Resistant, insulation, corrosion resistance

Size

 Customized size/ as your requirement

Color

 Customized color

Technique

 Pultrusion process

Application

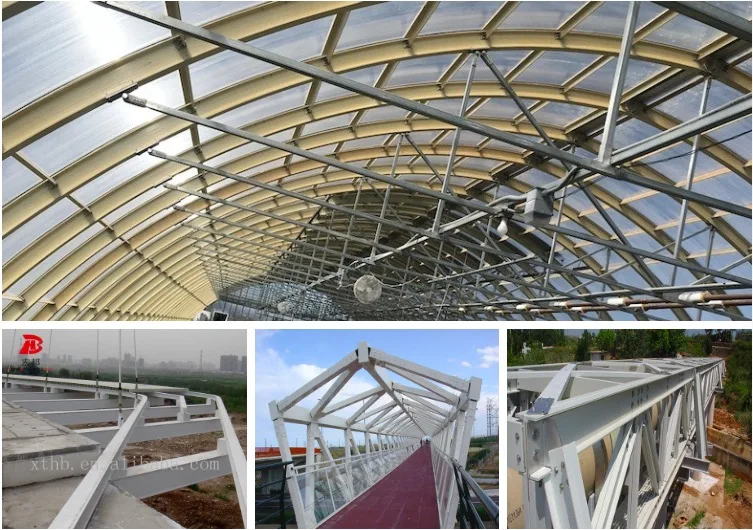

 Building structure, bridges, vehicles, brackets, machinery, etc.

Surface Treatment

 Smooth customized

OEM

 Accesptable

Product number

 HB02-001

Regular size

I beam

size(mm)

weight(kg/m)


25x15x4

0.35

30x15x4.5

0.39

38x15x4.5

0.505

38x15

0.573

40x30

0.641

50x15x4.6

0.61

50x25

0.86

58x4.8

0.71

58x15x4.3

0.62

58x15x4.6

0.72

58x15x5.26

0.76

65x30

0.9

70x15

0.89

70x15x5.2

0.94

100x15x6

1.162

100x30

1.233

100x100x10.5

3.65

150x125x10

7.53

150x100x10

6.13

200x100x10

7.53

300x150x13.5

14.74

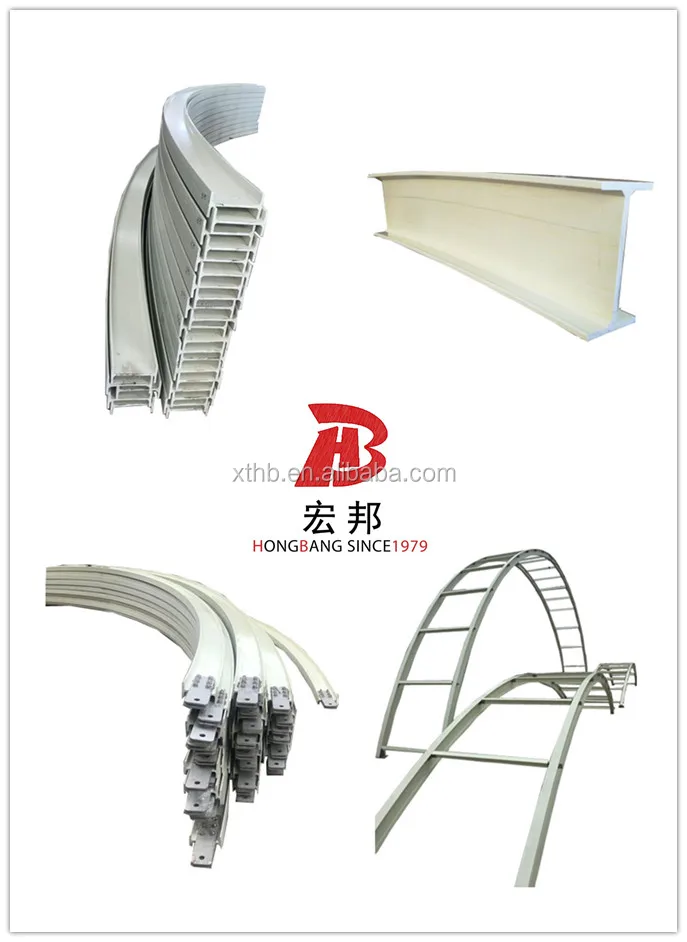

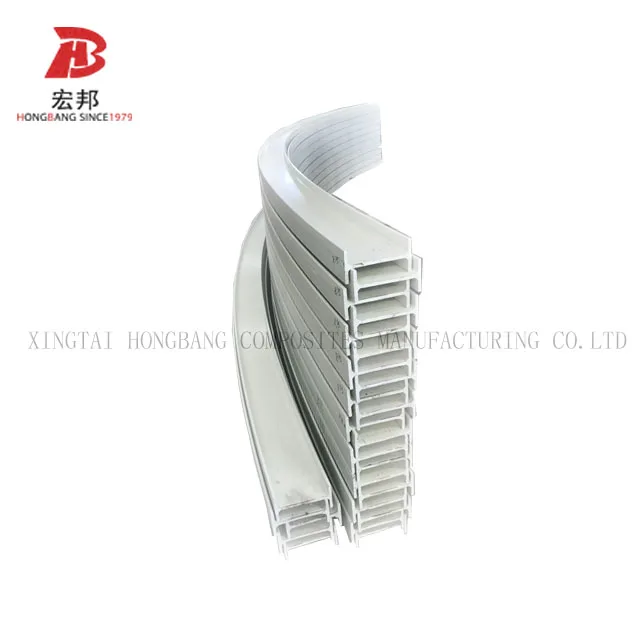

Even more, we can custom curved friberglass I beams for you!





_03









  1.  The relative density is between 1.5 and 2.0, only 1/4~1/5 of carbon steel, but the tensile strength is close to or even higher than that of carbon steel, and the specific strength can be compared with high-grade alloy steel.
  2. FRP is a good anti-corrosive material with good resistance to atmospheric, water and general concentrations of acids, bases, salts and a variety of oils and solvents. It has been applied to all aspects of chemical corrosion protection and is replacing carbon steel, stainless steel, wood, non-ferrous metals and so on.
  3. It is an excellent insulating material used to make insulators. Good dielectric properties at high frequencies.
  4. FRP has a low thermal conductivity, which is 1.25~1.67kJ/(m·h·K) at room temperature, and only 1/100~1/1000 of metal. It is an excellent thermal insulation material.
  5. According to the needs, we can flexibly design various structural products to meet the requirements of use, which can make the products have good integrity.
  6. The molding process can be flexibly selected according to the shape, technical requirements, use and quantity of the product.







_06

Company Name: Xingtai HongBang Composites Manufacturing CO.,LTD
Contact Name: Anna Lee





_08

  • Q: What’s FRP?
    A: Fiber Reinforced Polymer (FRP) is a composite material made of a polymer matrix reinforced with fibers. The fibres are usually glass, carbon, aramid, or basalt. Rarely, other fibres such as paper or wood or asbestos have been used. The polymer is usually an epoxy, vinylester or polyester thermosetting plastic, and phenol formaldehyde resins are still in use. FRPs are commonly used in the aerospace, automotive, marine, construction industries and ballistic armor.



  • Q: How can you guarantee your product quality?
    A: 100% of our products will be tested before delivery. To control quality, we are using high quality material from high quality supplier.



  • Q: Are you a trading company or a manufacturing factory?
    A:We are a manufacturing factory with export qualifications. Our factory is one of the Best FRP products manufacturer in China since 1979.



  • Q: I am interested in your products, could I get sample for free?
    A: We could supply a few pieces of FREE samples if we have some in stock. All you need to do is kindly offering your shipping account.



  •  Can you do the design for us?
    A: Yes. With experienced teams in fiberglass product design and manufacturing, we can provide customized shape,dimension, colors service.



  • What are the steps to cooperate for specific customized products?
    1.) we confirm CAD drawing according to buyer's requirement.
    2.) Confirm purchasing invoice after discussing by two joint parties.
    3.) Start mold munufacturing after 30% TT in adv. (100%TT for mold munfacturing cost)
    4.) Sample is sent to test.
    5.) Whole order production starts upon receiving sample confirmation from buyer.
    6.) Products are sent out after balance payment.
