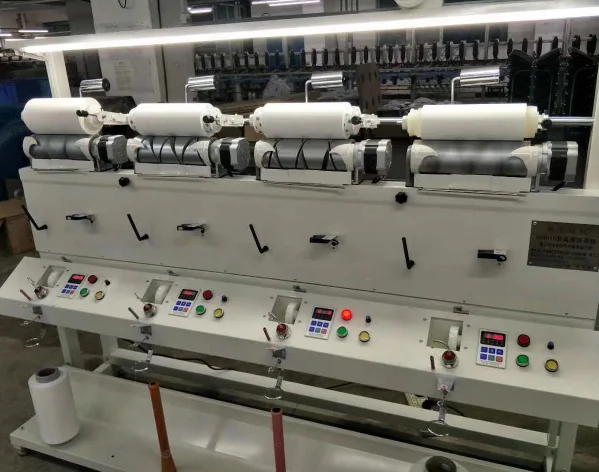

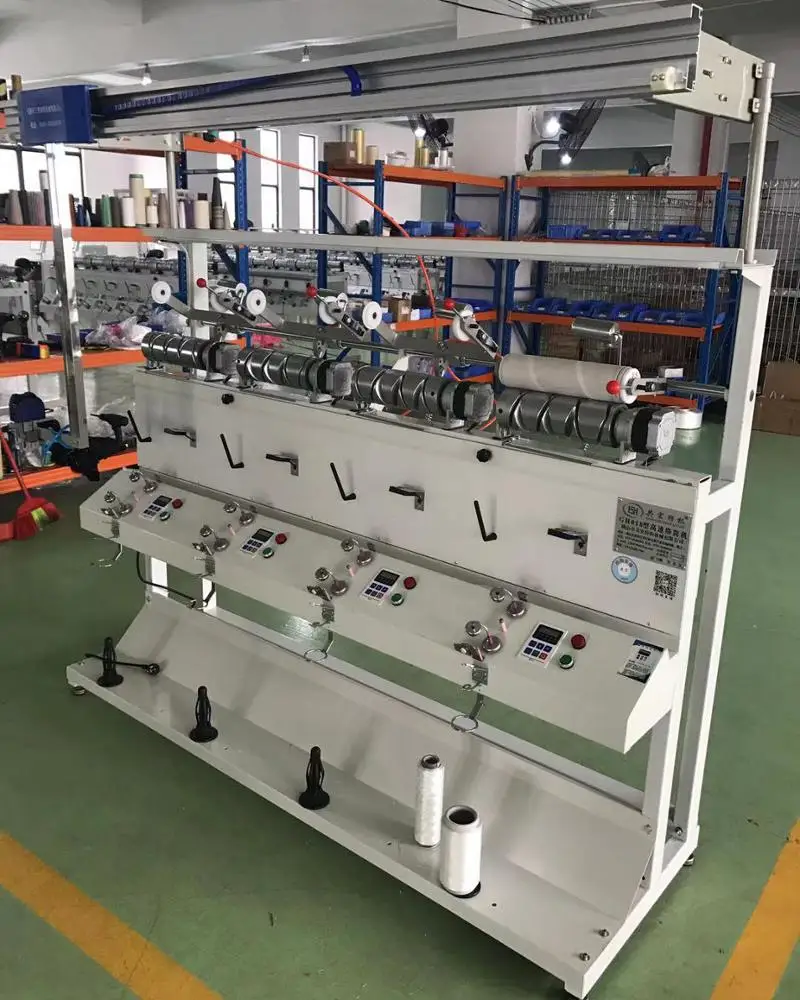

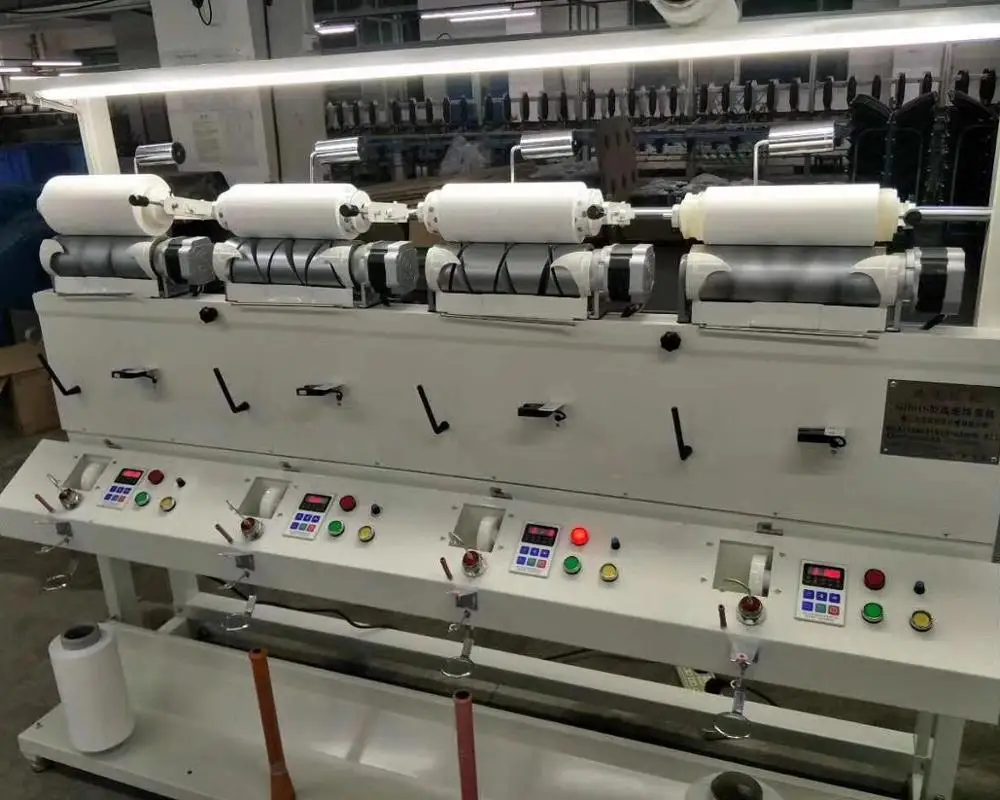

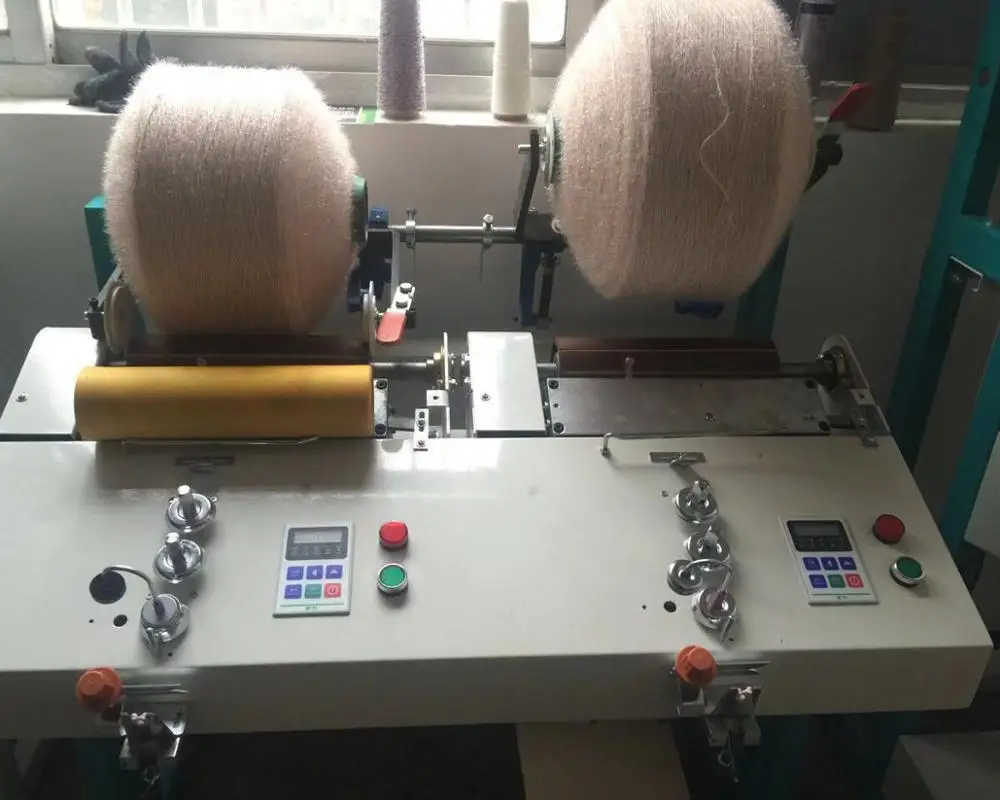

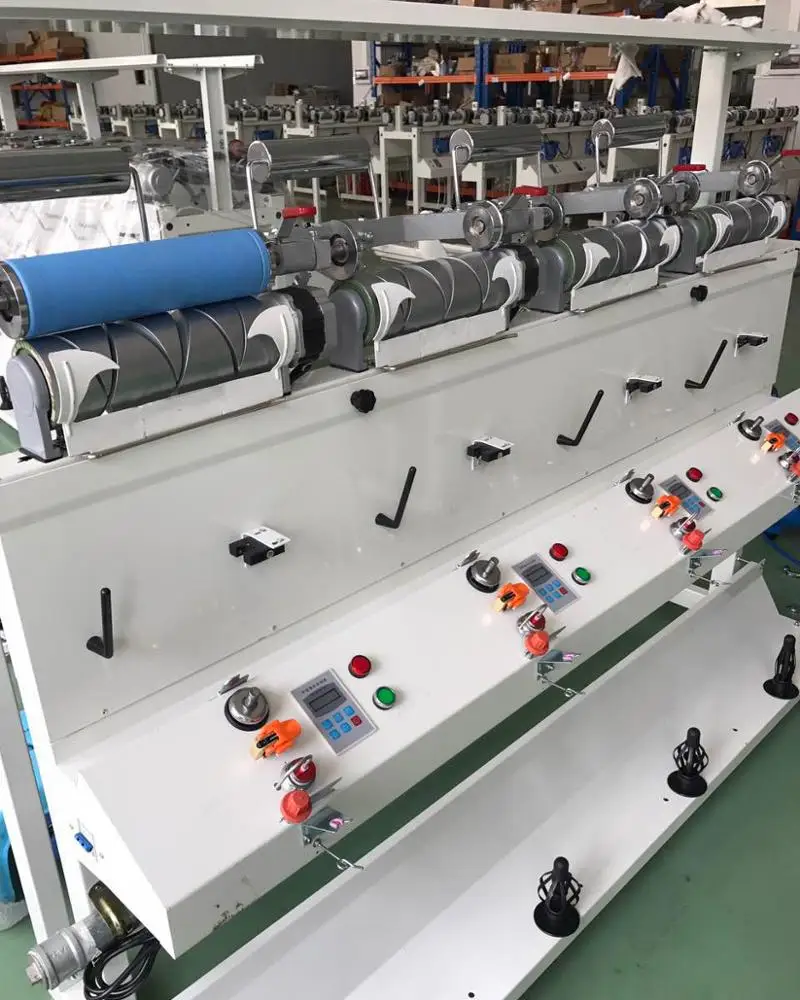

GH018-D 280 type High speed large volume winder


GH018-D 280 type high speed large package winder, used in chemical fiber, cotton yarn, industrial filament, low elastic yarn, mop line, winding into a conical or cylindrical, for the next process, good forming, high efficiency, without the phenomenon of edge collapse, GH018-D 280 type high-speed automatic function to alleviate the labor intensity of the process,adaptation high speed production.


Elastic type: the yarn bobbin inverted into a soft, for the next process (high temperature and high pressure dyeing machine)





GH018-D 280 type Technical parameters


















































































Technical characteristics



Technical parameters



Bobbin spec



10″(280mm-300mm)



Layout



Double sides, per machine has (4-48)spindles



Power supply



Three-phase 380V 50/60HZ



Transmission



Every spindle is driven by a AC motor individually



Power consumption



0.18KW/spindle

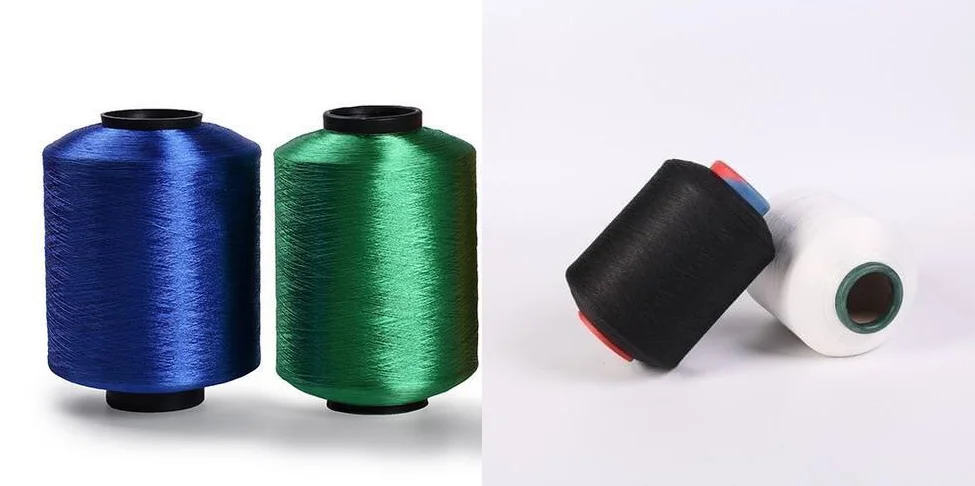

Take-up package



Cylindrical(0°);cone



Package diameter



Max.200 and 300mm



Yarn speed



300-1000m/min



Anti overlapping electronic device



Inverter control



Length counting device



Programmable controller (PLC) centralized control / display meter



Tension device



Every spindle has a self-cleaning yarn tension and waxer adjusting device



Slub catcher



Every spindle has a mechanical slub catcher



Yarn break control device



The spindle will stop when the yarn breaks by a yarn break control device



Speed regulation



Frequency control



Electronic slub catcher



Ordered separately



Air splicer



Ordered separately



Lighting system



Lamp



Dimensions



1920(length)×850(width)×1650(height)mm


4 spindles size
