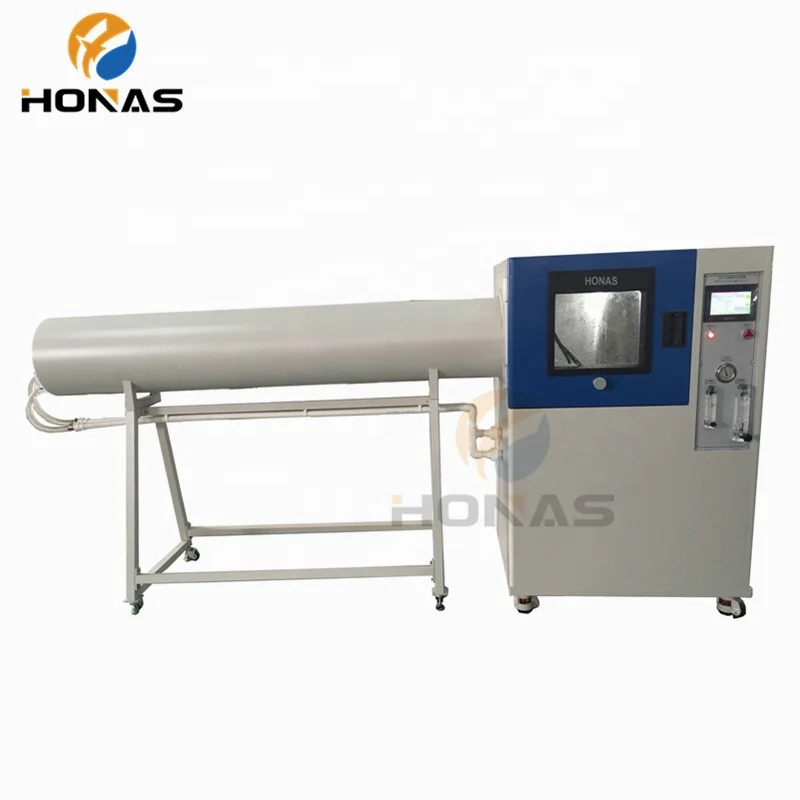

IEC60529 ip code rating water proof test equipment
Product Description
Application:
Water Ingress Testing is conducted to ensure the product is able to operate safely in it’s intended end-use. Depending on the intended use the test may involve dripping, spraying, or submerging the product under water. Depending on the water ingress code one of the following tests may be conducted
Why water test
Most electronic products will be exposed to water in one form or another over their life. Whether this be through direct contact as with rain, puddles, dew or even your garden hose – or in the home near kitchens, bathrooms or anywhere a drink could spill. The standard exists to ensure the product is safe in it’s intended end-use environment. It is therefore up to the designers to determine an adequate level of protection, and a test to confirm compliance.
Technical parameter
Level | Protected against | Testing for | Details |
0 | Not protected | — | — |
1 | Dripping water | Dripping water (vertically falling drops) shall have no harmful effect. | Test duration: 10 minutes Water equivalent to 1mm rainfall per minute |
2 | Dripping water when tilted up to 15° | Vertically dripping water shall have no harmful effect when the enclosure is tilted at an angle up to 15° from its normal position. | Test duration: 10 minutes Water equivalent to 3mm rainfall per minute |
3 | Spraying water | Water falling as a spray at any angle up to 60° from the vertical shall have no harmful effect. | Test duration: 5 minutes Water volume: 0.7 litres per minute Pressure: 80–100 kN/m² |
4 | Splashing water | Water splashing against the enclosure from any direction shall have no harmful effect. | Test duration: 5 minutes Water volume: 10 litres per minute Pressure: 80–100 kN/m² |
5 | Water jets | Water projected by a nozzle (6.3mm) against enclosure from any direction shall have no harmful effects. | Test duration: at least 3 minutes Water volume: 12.5 litres per minute Pressure: 30 kN/m² at distance of 3m |
6 | Powerful water jets | Water projected in powerful jets (12.5mm nozzle) against the enclosure from any direction shall have no harmful effects. | Test duration: at least 3 minutes Water volume: 100 litres per minute Pressure: 100 kN/m² at distance of 3m |
7 | Immersion up to 1 m | Ingress of water in harmful quantity shall not be possible when the enclosure is immersed in water under defined conditions of pressure and time (up to 1 m of submersion). | Test duration: 30 minutes Immersion at depth of 1m |
8 | Immersion beyond 1 m | The equipment is suitable for continuous immersion in water under conditions which shall be specified by the manufacturer. Normally, this will mean that the equipment is hermetically sealed. However, with certain types of equipment, it can mean that water can enter but only in such a manner that it produces no harmful effects. | Test duration: continuous immersion in water Depth specified by manufacturer |
Detailed Images

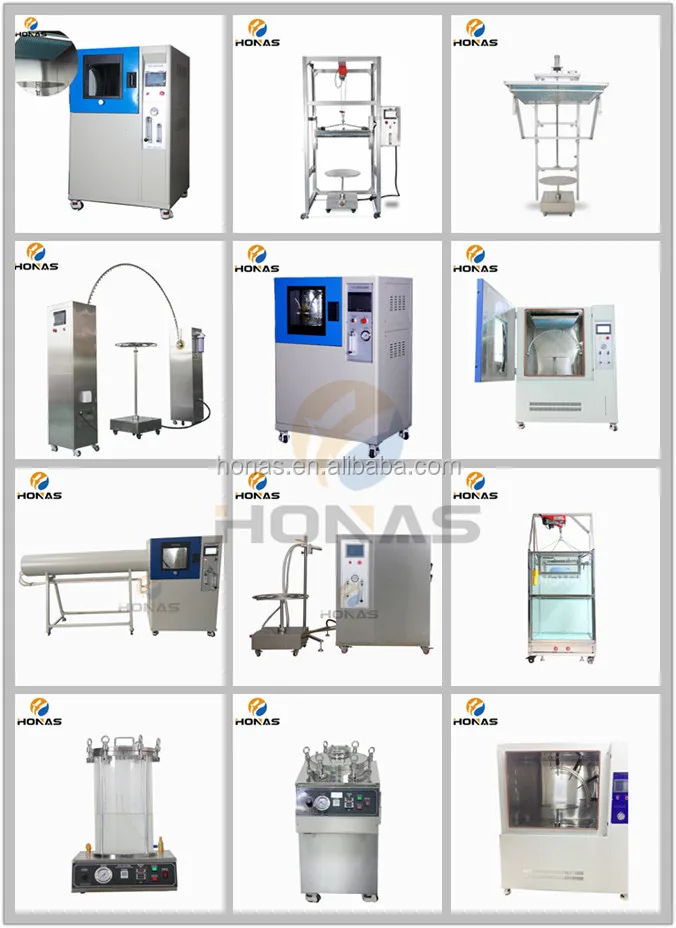

Recommend Products
1.Chamber type IPX34 rain test device
A.Comparing the other two models, the chamber type ipx34 rain test machine is more environmentally friendly;
B.The chamber type model has reduced the funds for the construction of the waterproof test room for customers;
C.The smallest swing tube is R200mm, biggest is R600, a little limited about the sample size .
B.The chamber type model has reduced the funds for the construction of the waterproof test room for customers;
C.The smallest swing tube is R200mm, biggest is R600, a little limited about the sample size .
2.Column type IPX34 rain test device
A. The size of the testing machine is up to 1600mm, which is more affordable than the box type rain tester;
B. It can test larger test samples; the detachable swing tube is convenient for the tester to be placed when not in use.
B. It can test larger test samples; the detachable swing tube is convenient for the tester to be placed when not in use.
3.Hand held type IPX34 rain test device
A.Simple manufacturing process, portable and not occupying too much floor space;
B.Manual spraying to clear the waterproof area of the test specimen;
C.The equipment price is cheaper than the test machines of the other two models.
B.Manual spraying to clear the waterproof area of the test specimen;
C.The equipment price is cheaper than the test machines of the other two models.
