Specification:
Commodity | die casting machine | |
Size & type | 25T hot chamber die casting machine | |
Dimension | 2500*1000*1900 | |
Packing | Wooden case | |
Payment terms | T/T,Western Union,Paypal are available | |
M.O.Q | 1 set | |
Weight | 1.4 ton |
Main features:
1 Machine hinge automatic lubrication system;
2 Automatic buckle nozzle,leaving the nozzle;
3 Hydraulic gear adjustment mode;
4 High pressure, fast speed,high efficiency, no burr;
5 Power or media oil can be selected at the time;
6 Oil cylinder push-out ,can adjust push-out distance and push-out of times;
Main advantages:
1 small zinc alloy die casting machine.
2 used computer controlled die casting machine.
3 used pressure die casting machine.
4 used hot chamber die casting machine.
5 time-saving and easy to handle.
6 the machine are suitable for making the metal button ,zipper head ,zipper silder ,hardware accessories and garment accessories ,belt buckle and etc.
Technical data of the machine:
Item | Unit | Specification | Item | Unit | Specification |
Clamping force | KN | 200 | Volume of Crucible | Kg | 85 |
Diameter of Di-cylinder | mm | 55 | Oil Pump Flow | L/min | 36 |
Tie Bar Diameter | mm | 40 | Accumulator Volume | L | 10 |
Opening Stroke | mm | 130 | Oil Tank Volume | L | 180 |
Space between Tie Bars(H*W) | mm | 230*230 | Dry Cycle Time | S | 3.5 |
Die Thickness(Min~Max) | mm | 120~300 | Heating Power of Spray Nozzle | Kw | 1.2 |
Stroke of injection Cylinder | mm | 70 | Heating Power for Material Melt | Kw | 9-12 |
Diameter of Injection Plunger | mm | 35~38 | Fuel oil use for Material | Kg/h | 1.5 |
Injection Force | KN | 20 | Motor Power | Kw | 7.5 |
Diameter of Injection Plunger | mm | 60 | Hydraulic Pressure | M pa | 6~8 |
Effective Shot Weight | g | 150~220 | Overall Dimensions | Mm | 2500*1000*1900 |
Traverse Stroke | mm | 220 | Machine Weight | T | 1.4 |

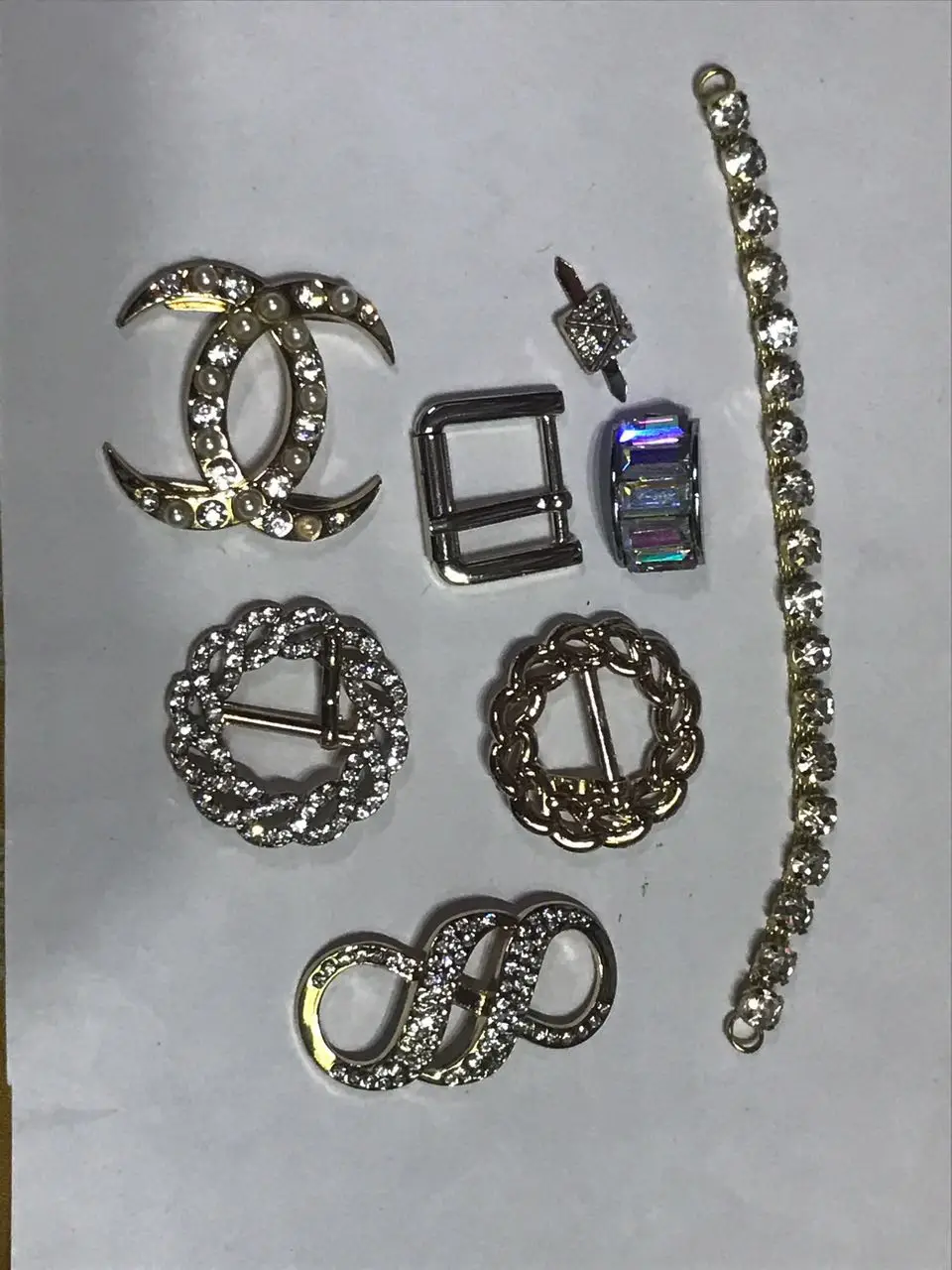

The machine are suitable for making:
1 metal button 2 metal badge
3 zipper silder 4 zipper head
5 belt buckle 6 precision machinery
7 hardware accessoires 8 garment accessories
The machine are suitable for making the following products:
About our factory:
Dongguan jintai die casting machine ltd., co.was founded in 1990,which specializing in making full automatic hot chamber die casting machine with the type
of25T,35T,38T.The products are widely sold in many areas ,such as guangdong,fujian,jiangxi ,hebei,shandong,zhejiang and overseas Vietnam, India,Bangladesh and Malaysia and etc.Many client are give high reputation due to the fine quality ,favourable price and our honest dealing .
It's an ideal products for you,there‘re so many kinds of products for your to choose,welcome you to come our factory to visit!
