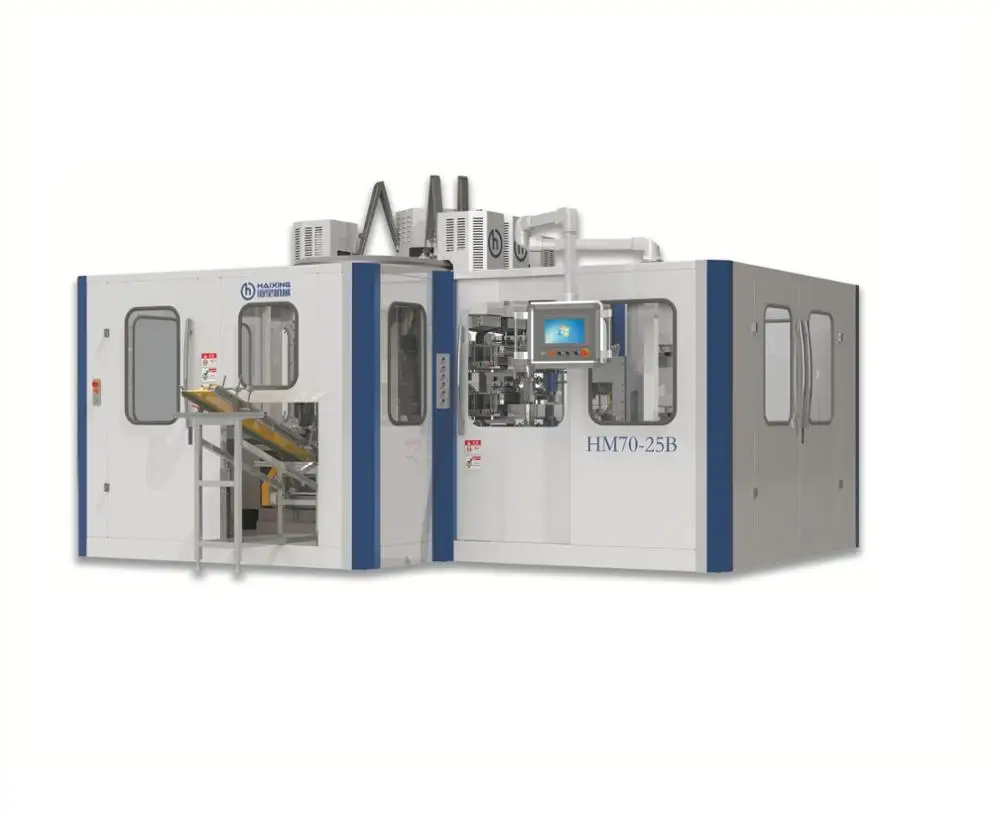

Horizontal 2 heads 5 stations Machine for Brush Making (drilling and Tufting) HM70-25B

With manipulator of feeding,blanking the hanlde automatically, it has 2 drills and and 2 tufting tool, modular and horizontal design, integrates drilling, tufting, trimming, labeling,etc and could meet varieties, small batch production needs.
This machine could be used as primary brush making equipment for factory and suitable for all kinds brush,e.g. toilet brush, disc brush, roller brush depending different platform.
1. Tufting way: flat wire or round wire
2. Control system:
*CNC control system, touch screen, Chinese and English interface,
*Allows 1000 different program stored. With virtual 2D and 3D display, it's easy to set up a new program.
3: Parts: standardized designs of wear and spare parts , convneient to replace and maintenance
4: Optional platforms:
* Platform for slope/vertical angle of brush( flat brush)
*Platform for spherical brush and semi-spherical brush( disc brush, toilet brush)
*Platform for tubular brush( roller industrial brush, hair brush)
Other key parameters are as follows:

ModelHM70-25A
Axis5
Tufting tool2
Drill2
processing methodContinuous
Station4
Maxium speed(hole/Min)1200
Servo moto19
Filament range(mm)50-240
Dia.of hole(mm)3-8
Voltage/frequency380V/50HZ
Air pressure0.6-0.8
Gas consumpation3
Power(KW)15
Weight(KG)22000
Size(L*W*H:mm)6100*4900*2210


5,Delivery time: 60 days after receive the 50% deposit and samples .
