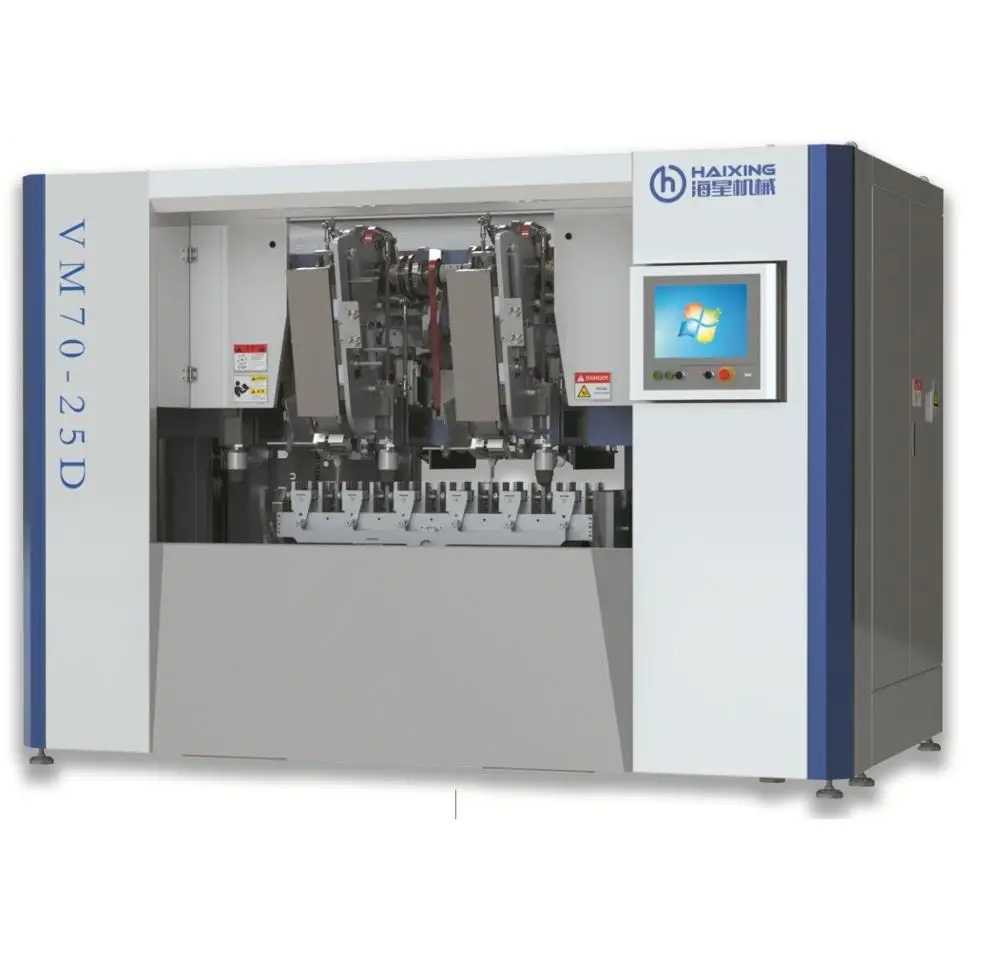

5 axis 3 drills and 2 tufting head brush-making machine (VM70-25D)
It has 3 drills and and 2 tufting tool, modular design, and could meet varieties, small batch production needs.
This machine could be used as primary brush making equipment for factory and suitable for all kinds brush,e.g. toilet brush, disc
brush, roller brush depending different platform.
1. Tufting way: flat wire or round wire
2. Control system:
*CNC control system, touch screen, Chinese and English interface,
*Allows 1000 different program stored. With virtual 2D and 3D display, it's easy to set up a new program.
3: Parts: standardized designs of wear and spare parts , convneient to replace and maintenance

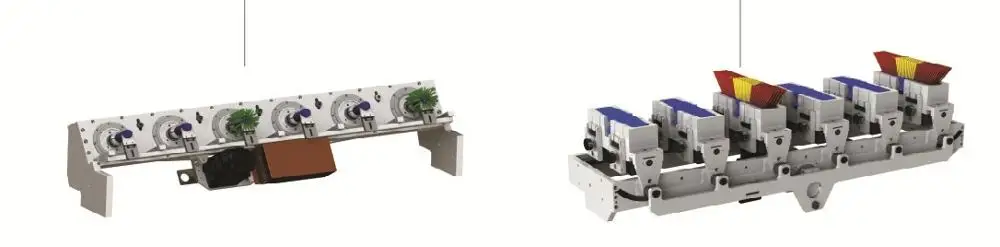

4: Optional platforms:
* Platform for slope/vertical angle of brush( flat brush)
*Platform for spherical brush and semi-spherical brush( disc brush, toilet brush)
*Platform for tubular brush( roller industrial brush, hair brush)

5,Delivery time: 30 days after receive the 30% deposit and samples .
Product Paramenters
Model
VM70-25D
Axis
5
Drill
3
Tufting tool
2
processing method
Continuous
Stroke
70
Maxium speed(hole/Min)
900
Maxium length of plate(mm)
600
Filament range(mm)
50-240
Dia.of hole(mm)
2.5-8.0
Power(KW)
7.5
Weight(KG)
3000
Size(L*W*H:mm)
3050*1750*2050
Control System
CNC control system
English and Chinese display, touch screen
Product packaging
Certifications
With introduction of German and Italy technology, we started business and are growing with clients together. With endeavor of employees, we have become an leading company in China and aboard and have as many as over 113 patents to make our brush machine more competitive in current rising market.
Company Profile
Our company set up in September 1985, with professional standards in the field of automation and sophisticated technology, the rapid rise in the brush machine area. Relying on technology and development and continuing to provide users with high-tech products are our constant pursuit. Equipment series: hydraulic cutting hair cutter, open flocking and flat hair machine, automatic flat ball-brush machine dozens of brush machine products, and our products have been widely used in metallurgy, chemical industry, lifting, water, machinery and equipment and other public payments field, and also according to customer requirements developed special brush machinery. We are an excellent brush machinery manufacturer and supplier for the future development of the strategic objectives, adhering to humanistic this priority. Adhering to the "human, sharing, development, and responsibility" core values, Haixing consistent implementation of the "customer-oriented" business philosophy, we consistently adhere to the "technological innovation as the core, market demand-oriented" business policy to continually improve the "common good establishment, responsibility, reward and punishment, learning and growing," the corporate culture, and we work hard to brush the sustainable development of industrial automation.
Contact Info.
Contact person
Manager: Andy Xu
HP:+8615161881350(Whatsapp, Wechat)
Company address:
Yangzhou Haixing CNC Brush Machine Co., Ltd
Add: No.16, Dongzhuang road, Yangzhou, Jiangsu province, China.
Tel: +86-0514-87279835 /Fax: +86-0514-87499755
