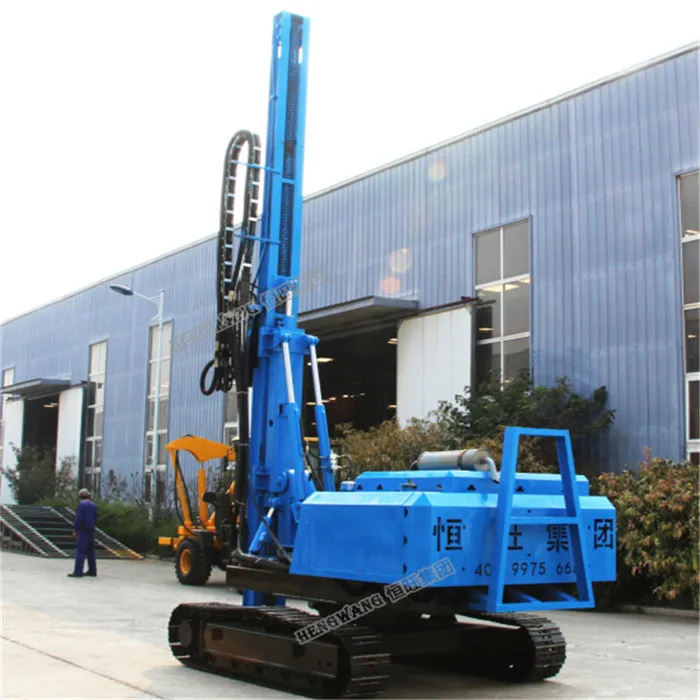

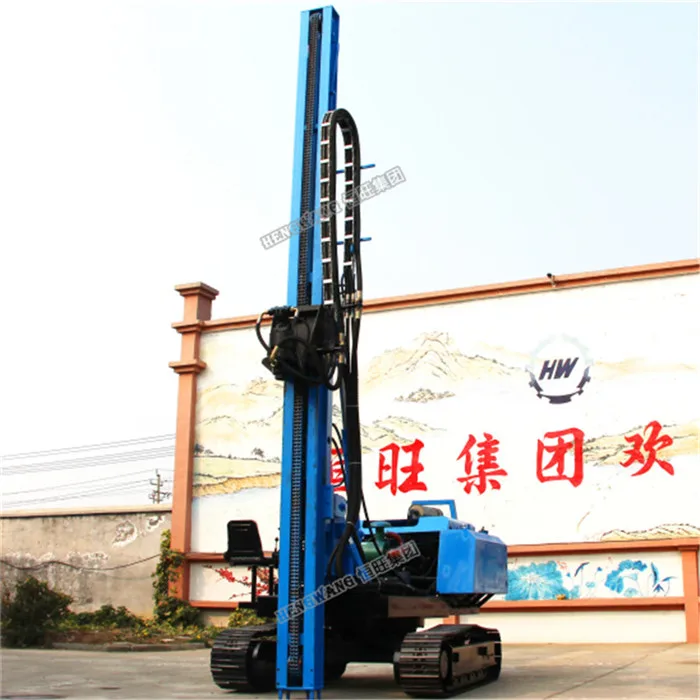

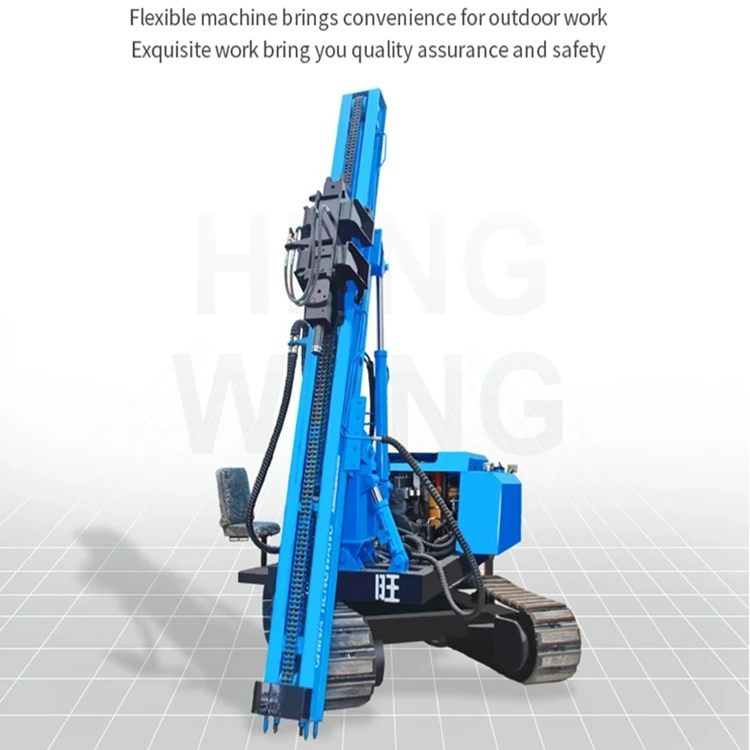

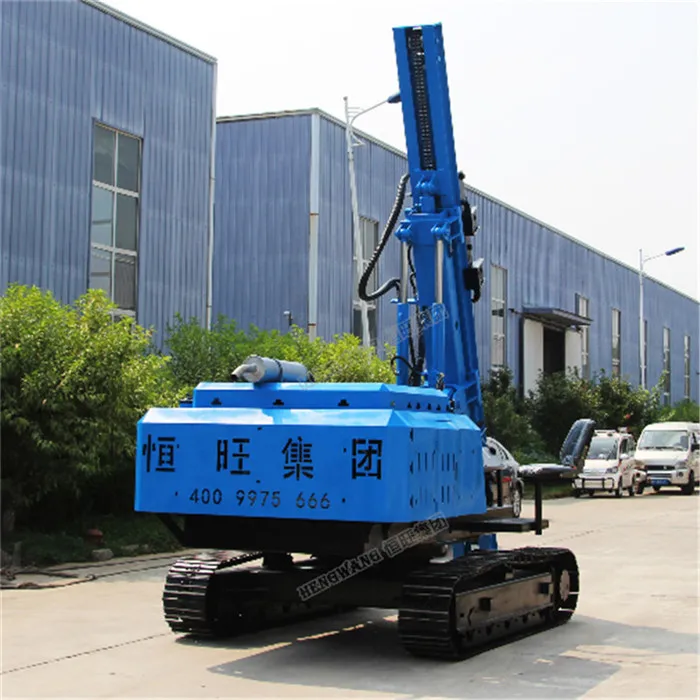

360 degree Rotary Vibro Post Driver Driving piles

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description


Product Application solar pile ramming piling driving rig machine

1.HWL crawler hydraulic drilling rig, using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.


2.The drilling rig structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.


3.The drilling rig is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.


Advantages

1.the machine can 360 degree rotary , it is very convenient for working.
2.the working speed is fast, it only takes 90s can finish one pile.
3.our machine can work on the big gradient.





SPECIFICATIONS FOR HAMMER PILE DRIVER
Model
HWLH600R
Remark
Hammer impact
780J
Joule,we can make more powrful impact as your demand
Pile length
0-6000
mm
Duplex gear pump pressure
20
Mpa
Duplex gear pump displacement
40
ml/r
Hydraulic system pressure
20
Mpa
Main valve flow
120
L/Min
Overall Machine weight
6
T
Diesel engine power
84
KW
Rated Speed
2400
R/min
Starting Voltage
24
V
Rotation angle
360
°
Rotation semi diameter(rotating shaft to Pod distance)
1925
mm
Effective press pile stroke
0-5000
mm
Dimension(LXWXH)
6200×2200×2850
mm
Track shoe
350
mm
Walking motor total displacement
1575
ml/m
Walking motor rated pressure
18
Mpa
Walking motor output torque
4300
N.M
Walking motor rotate speed
50
r/min
Press Pile Diameter
0-600
mm
Drilling Depth
0-6000
mm
Operating Speed (m/min)
1.5
90s/per pile
Number of impacts / strokes per 1 minute
900
times/min
Maximum lengh of Piles to be rammed
6
m
Walking speed
5-10
Km/hr
Gradeability
0-35
°
Oil tank capacity
200
L
Hydraulic tank capacity (L)
500
L
















Detailed on site








Visiting






Our Service


Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.



Engineer in Customer Working Site
1. we machine warranty is one year;

2. Free Spare Parts are available;

3. Engineers are available for site teaching and debugging;

4. Strong after-sales service, no worry about machine using and working;




Packing & Delivery




Packaging
Size
6200 (L) * 2200 (W) * 2850 (H)
Weight
5.8T

Packaging Details
The normal package is just like photos shown , if you have another requirement ,please tell me in advance ,we will packed as your need.
