CE Certified Laboratory Medical Deep Freezer Cold Storage Chamber

Share on:


Price:$2,500.00 - $3,000.00
Price in USD:Details

Quantity:


Product Overview

Description


CE Certified Laboratory Medical Deep Freezer Cold Storage Chamber

Gande is to provide the  -188℃ Cryogenic freezer,-150℃ Cryogenic freezer,-135℃ Cryogenic storage tank,-86℃ Ultra freezer,-60℃ Tuna freezer,-50℃ Ultra freezer,-40℃ Ultra freezer,-25℃ Freezer,-18℃ Cold Storage Room,Light-Resistant Cold Closet,Medical refrigerator,Ultra Cold Storage Freezer and Ultra Low Temperature Refrigerator

Grande -86℃ Ultra Low Temperature Freezer is ideal for long term preservation of virus,germ,

vaccine,biological tissue and organs,special food,medicines,reagents etc.

Material

Outer with color sprayed steel;inner with SUS304;insulation with PU whole foam,CFC free,efficient environmental friendly;2 inner SUS doors and 3 SUS shelves

Cooling System

Optimized two-cascade system,more stable cooling system;all the parts could be replaced,convenient for maintenance,the device could work under 43℃ high temperature

Used Temp rite Oil separator,Bitzer or Tecumseh compressor,friendly refrigerant

Control System
Micro

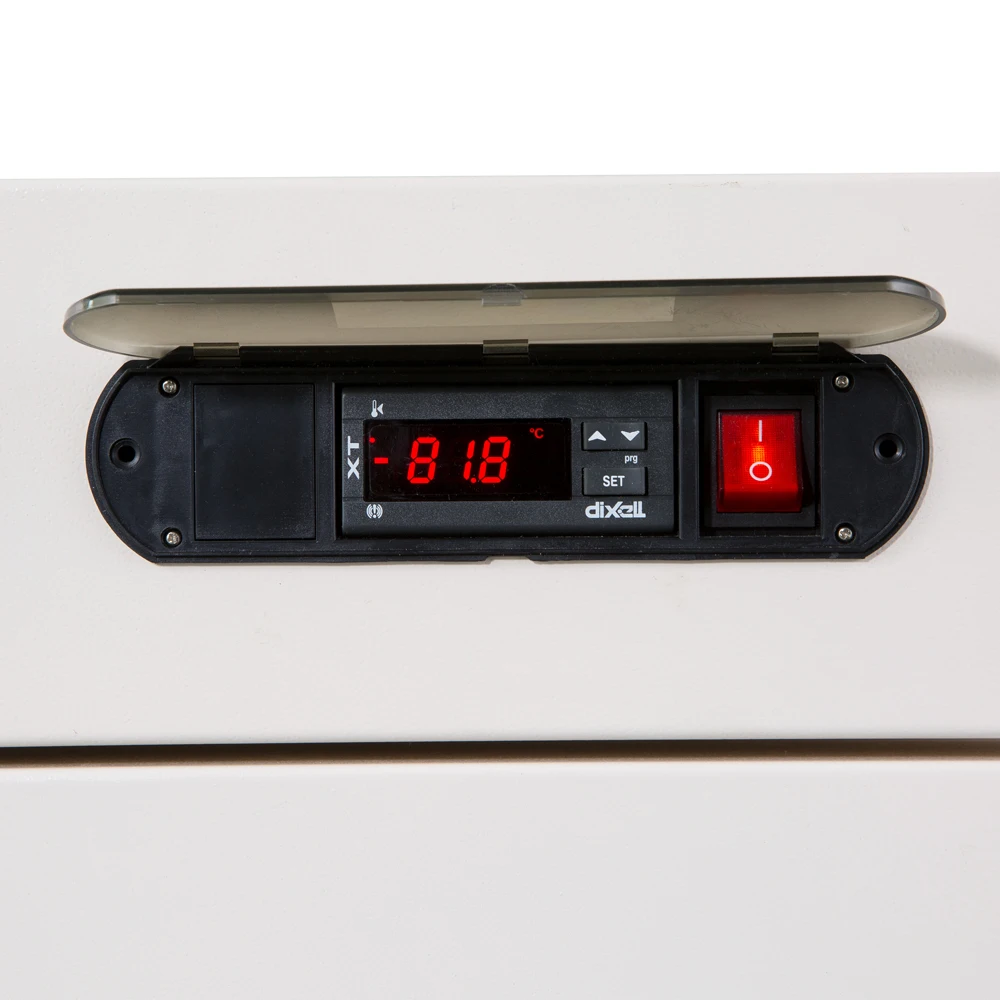

 sensor based temperature control,digital temperature display

LCD touch screen for clear observation and easy programming

Three months temperature and alarm records could be read via the USB port

Optional monitoring module and exclusive software to realized remote monitoring equipment safety

Safety

High/Low temperature alarm,Power failure alarm for hours, Voltage abnormal alarm.Sensor error alarm.Low battery alarm,Automatic clean-filter alarm,High ambient temperature alarm,Door ajar alarm
Alarm style:audible and visible alarm,remote alarm

Backup battery for alarm hours when power off

Battery life reminder function to prompt the user before the battery needs to be replaced

Keyboard lockable,password protection prevent set parameter randomly

Power failure protect;the device will be attacked by the high current when all devices restart same time.The start relay function will start the device in safe time interval

Features

Removable condenser cover,convenient for maintenance

Place for installing chart temperature recorder

Safety lock design,prevent abnormal door status

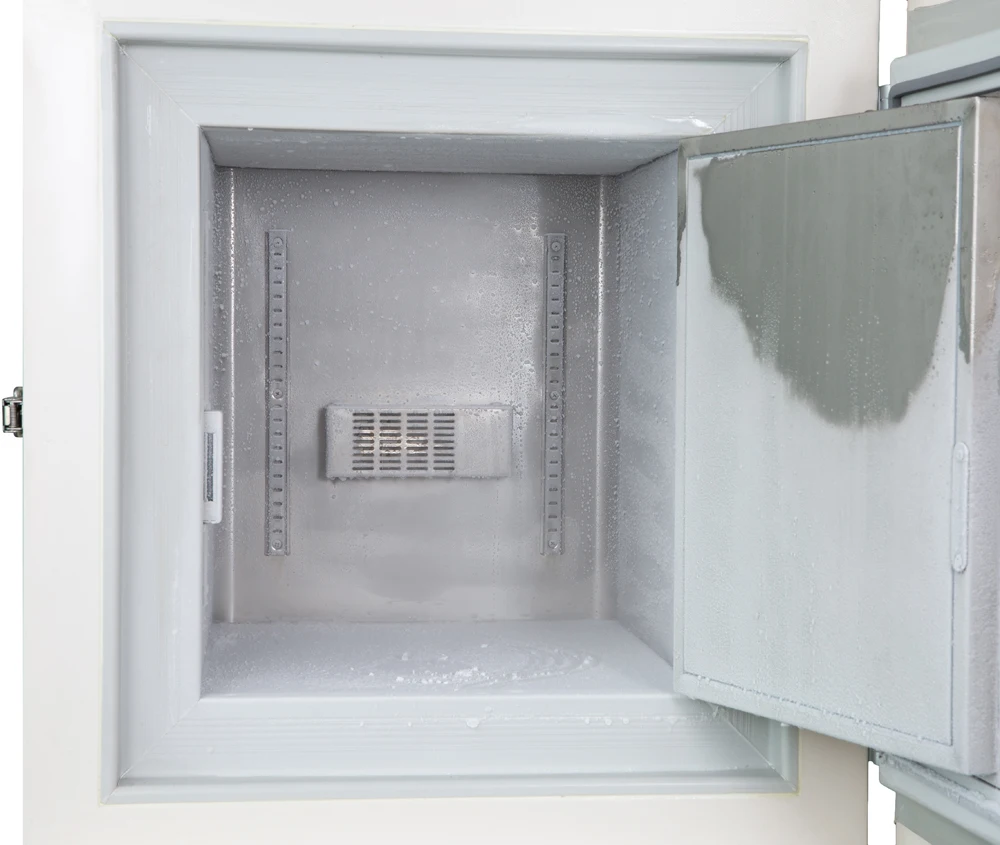

Removable inner doors

Adjustable SUS shelves

Professional two testing holes

Four Casters,convenient for moving

Optional Frozen racks

Product detail.jpg

P01C2116 750.jpgProcess.jpg



Vertical -86 Degree Ultra Low Temperature Freezer Laboratory Freezer Deep Freezer

Pls. check Here To Get More Discount!

Technology Parameter:



Model

GFR-86V50

GFR-86V188E

GFR-86V340II

GFR-86V340E

Cabient Type

Vertical

Vertical

Vertical

Vertical

Inner Door

1

3

2

2

Cooling system

Direct cooling

Direct cooling

Direct cooling

Direct cooling

Defrost

Manual

Manual

Manual

Manual

Refrigerant

HFC

Mixed refrigerant

HFC

Mixed refrigerant

Ambient Temperature

10~32℃

10~32℃

10~43℃

10~32℃

Temperature Range

-40~-86℃

-40~-86℃

-60~-86℃

-40~-86℃

Controller

Manual

Manual

Manual

Manual

Digital Display (LCD/LED)

Digital Display

Digital Display

Digital Display

Digital Display

Voltage(V/Hz)

187-242 V,50Hz~60Hz

187-242 V,50Hz~60Hz

187-242 V,50Hz~60Hz

187-242 V,50Hz~60Hz

Power(W)

450W

600W

1350W

1650W

Capacity

50

188

340

340

Net/Gross Weight(kg)

75/95

145/180

190/220

175/205

Outer Sizes (W*D*H)mm

540*620*1115

830*810*1607.5

845*1072*1907

855*1006*1920

Alarms

High/Low temperature alarms
Power Failure

Voltage abnormal

Sensor error

Automatic clean-filter alarm

Controller error

Low battery alarm

High ambient temperature
Door ajar Alarm

Accessories

Foot,Caster Testing hole,diameter

USB port,

Alarm port

Temperature recorder(Optional)

Certificate

CE,ISO

Customized service

Welcome to Non-standard,Special requirements,OEM/ODM orders.

The technical information will be subjected to change without notice
