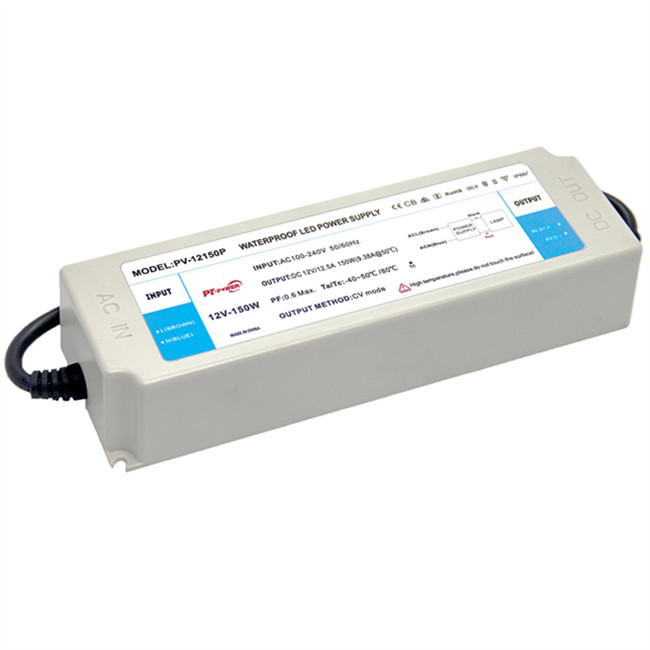

OEM IP67 waterproof power supply 12V/10W 20W 25W 30W 36W 50W 60W 80W 100W 120W 150W 250W transformer water-resistant LED Driver

Share on:


Price:RUB 1,594.51
Price in USD:Details

Quantity:

Add to Cart

Product Overview

Description


Product Description

OEM IP67 waterproof power supply 12V/10W 20W 25W 30W 36W 50W 60W 80W 100W 120W 150W 250W transformer water-resistant LED Driver



DC OutputDC Voltage:12V

DC Current : 0-20A

Ripple & Noise: 80MV
DC Adjustable Range: ±10% Rated Voltage
Voltage Tolerance: ±2.0%
Line Regulation: ±0.5%
Load Regulation: ±1%
Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
AC InputAC Voltage Range: 85-264VAC
Frequency Range: 47-63Hz
Efficiency:90%
AC Current: 0.86/115V  0.4A/230V
AC Inrush Current: 20A/115V   40A/230V
Leakage Current< 0.5mA /240VAC
ProtectionOver-load: 105%-150% hiccup mode,Auto-recovery
Over-voltage: 115%-135% Cut Off the Output,Auto-recovery
Over-temp. : Shut down O/P voltage, Auto-recovery
EnvironmentWorking temp.: -10~ +60C°  (Refer to output load derating curve)
Working Humidity:20 ~ 90% RH, non-condensing
Storage Temp.: -10~ +60C°
Storage Humidity: 10 ~ 95% RH
SafetyIsolation Resistance:I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25/ 70% RH
Withstand Voltage: I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Safety standards: CE,RoHS,FCC,ISO9001


Related products
Related products



12(1)_03

Features: 110V/220V AC to DC Power Series
3V 5V 6V 9V 12V 13.8V 15V 18V 24V 28V 36V 48V
Model Series Link  (View more)
3V Series: 3V5A, 3V10A, 3V20A, 3V30A, 3V40A, 3V60A

5V Series: 5V2A, 5V3.8A, 5V5.5A,  5V10A, 5V20A, 5V30A,5V40A, 5V60A

6V Series: 6V10A, 6V20A, 6V30A, 6V40A, 6V50A
9V Series: 9V2A, 9V5A, 9V10A,9V20A,9V30A

12V Series:12V1A, 12V2A, 12V3.2A, 12V5A, 12V8.5A,

                    12V10A, 12V12.5A, 12V15A, 12V16.5A,

                    12V20A, 12V30A, 12V40A,12V50A.

13.8V Series: 13.8V30A
15V Series: 15V2A,15V5A, 15V10A,15V20A
18V Series: 18V2A, 18V3A, 18V5A, 18V7.5A,18V10A,18V20A

24V Series:24V1A, 24V2A, 24V3A, 24V5A, 24V7.5A, 24V10A

                    24V15A, 24V20A, 24V25A

28V Series:28V1A, 28V10A
36V Series: 36V2A, 36V5A, 36V10A
48V Series: 48V2A, 48V3A, 48V5A, 48V7.5A,48V10A,48V15A
About Us
About Us

SOMPOM is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. SOMPOM wins customers favor by its high  efficiency, reliability and long life span. Each of the switch power is extremely safe and stable after 5 times testing. All of our powers have the ISO9001,CE,FC,ROHS certification. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.


Our certificate



Q1:What is your MOQ of switch power?

  A:Our MOQ is 1 piece.

Q2:How many year warranty of your Led driver?

  A:Two years.

Q3:Do you offer sample of power?

  A:Yes,We offer free sample,but you need pay the shippment.

Q4:Do you have switch power factory?

  A:Yes,we are OEM & ODM manufacturer in Donguan.

Q5:Is your power with copper transform or something?

  A:We can do with complete copper transform and copper cladding aluminum.

Q1:What is your MOQ of switch power?

  A:Yes,we have CE,RoHS,FCC and ISO9001 right now.If you need other certification with large order,
We can apply for it.

Our factory




522.jpgADVANCED MACHINE
Its brand SOMPOM is well-known at home
and abroad.
LONG-TIME BURN-IN TEST
Each of the switch power is extremely
safe and stable after 5 times testing.
OEM&ODM SERVICE
This company is engaged in the design,
manufacture and sale of switching power
series.
OUR CERTIFICATE
All of our products have the ISo9001
CE,FC,ROHS certification.
