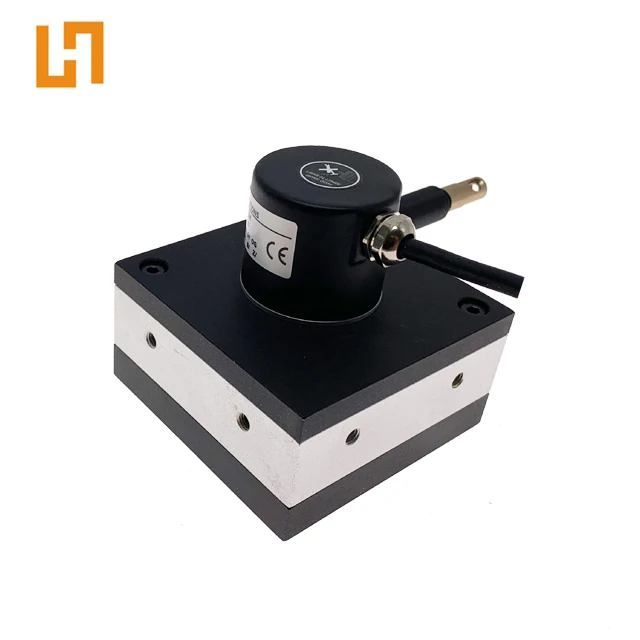

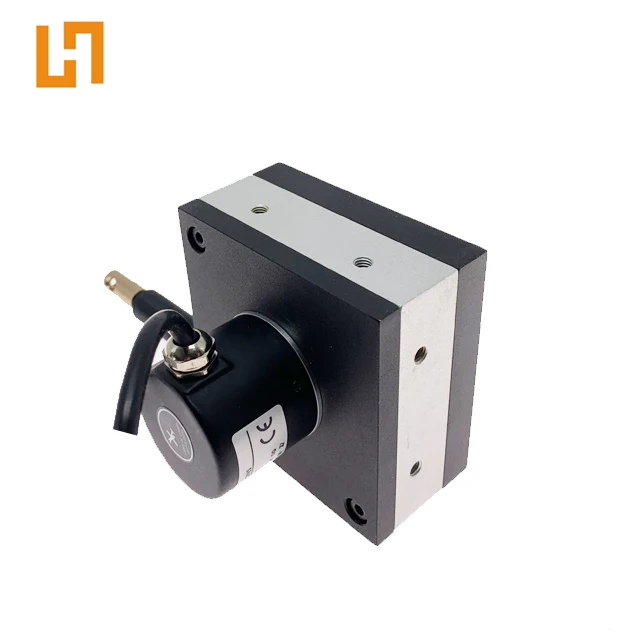

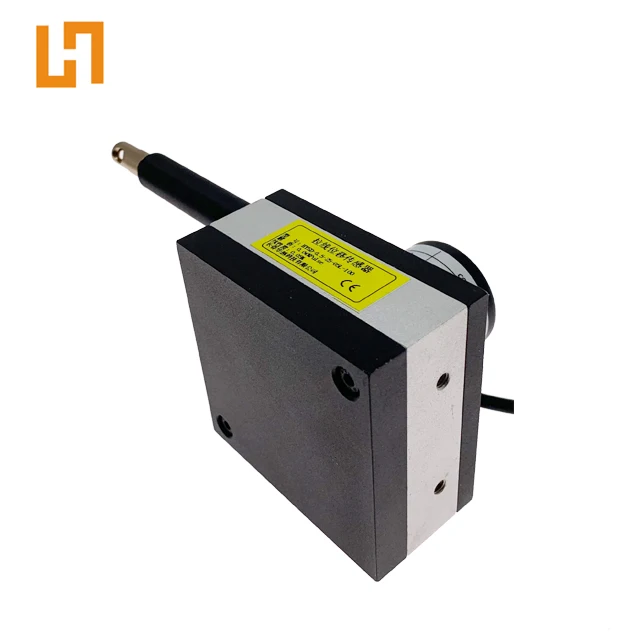

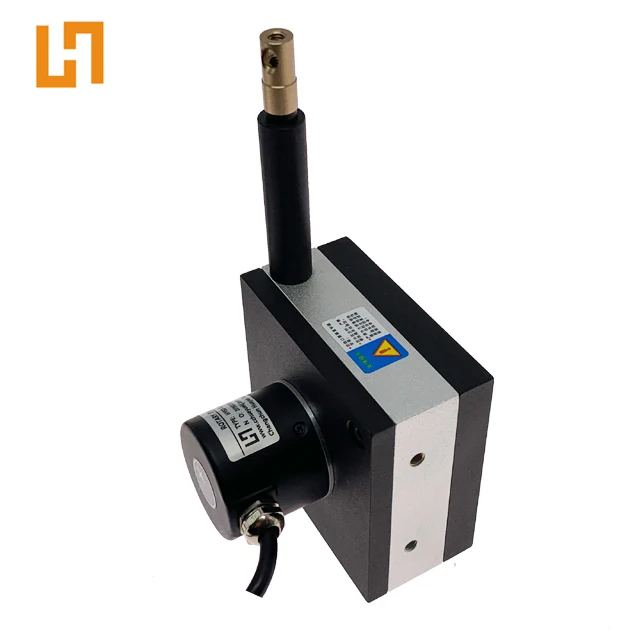

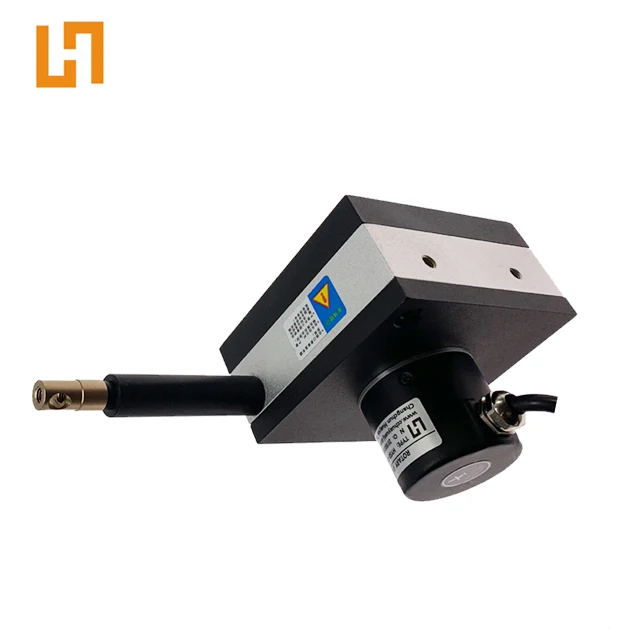

Analog output 4-20mA 0-10K linear encoder 0- 2000mm measurement analog pull wire position sensor

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description



Product Description






























































Sensor type



Analog Wire-pulling Sensor



Size



78*78mm



Measuring Range



0-3000mm;0-2000mm



output signal



4-20mA,0-10V,0-5V,0-10K,0-5K,485



Hub circumference


200mm

Linearity


±0.05%FS - 0.08%FS
Repeatability Accuracy0.01%

Circuit protection



Error prevention connection



Power



100kHz - 300kHz



Vibration



10Hz ~ 1500Hz   10G



Life Cycles



>10 million times



Wire retraction force



2N ~ 4N



Cable Length



Optional



Housing Material



Aluminium alloy, oxidation surface treating,wear and corrosion prevention








Model Code







Product application


 .jpg





Company Information


 Changchun Huayue Technology Co., Ltd., was established in 2016. Huayue is a integrating R&D, design, production and sales. The company's main products are:
photoelectric encoder, coupling, absolute encoder, linear displacement sensor (rope displacement encoder), grating ruler, etc.,
widely used in elevators, machine tools, pressure, paper, textile, printing, packaging, stone, metallurgy, lifting, metal
products, plastic, horizontal control, construction machinery and other fields.
Huayue actively participates in the promotion and industry exchange activities, and pursues the policy of "aggressive, realistic,
rigorous and united", constantly pioneering and innovating, taking technology as the core, striving for survival with quality,
striving for development with service, and aiming at respecting contracts and keeping promises, wholeheartedly providing you with
high-quality industrial automation products.1.jpg





Our Certifications


 .jpg





Packaging & Shipping


 .jpg





Our Services





1. The questions about the encoder will be answered within 24 hours.


2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.


3. Warranty 12 months: Free replacement of defective products within 12 months.


4.OEM solution will be offered to meet all your requirement.





FAQ





Q1:How to order our product ?


A:1).Please tell us the model and quantity and other request you need.


2).We make the PI for you.


3).After you confirm the PI, we arrange the order for you after receiving your payment.


4).After the goods finished, we send the goods out to you and tell you the tracking number.


5).We will track your goods until you receive the goods.





Q2:Can I have a sample for testing?


A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price is the same for 1-20 sets including the sample





Q3:Can I add my logo on the encoder ?


A:Yes,OEM and ODM are available for us. But you should send us the Trademark authorization letter.





Q4:How can i get the after-service?


A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare parts,but you should pay. For our range hood motors it is lifelong maintenance.





Q5 :Do you have inspection procedures for encoder ?


A:100% self-inspection before packing
