Medical use Grade 5 ELi titanium alloy GR23 6al4v titanium bar

Share on:

Price:RUB 1,897.53
Price in USD:Details

Quantity:

Add to Cart

Product Overview

Description

Medical use Grade 5 ELi titanium alloy GR23 6al4v  titanium bar

Product Description

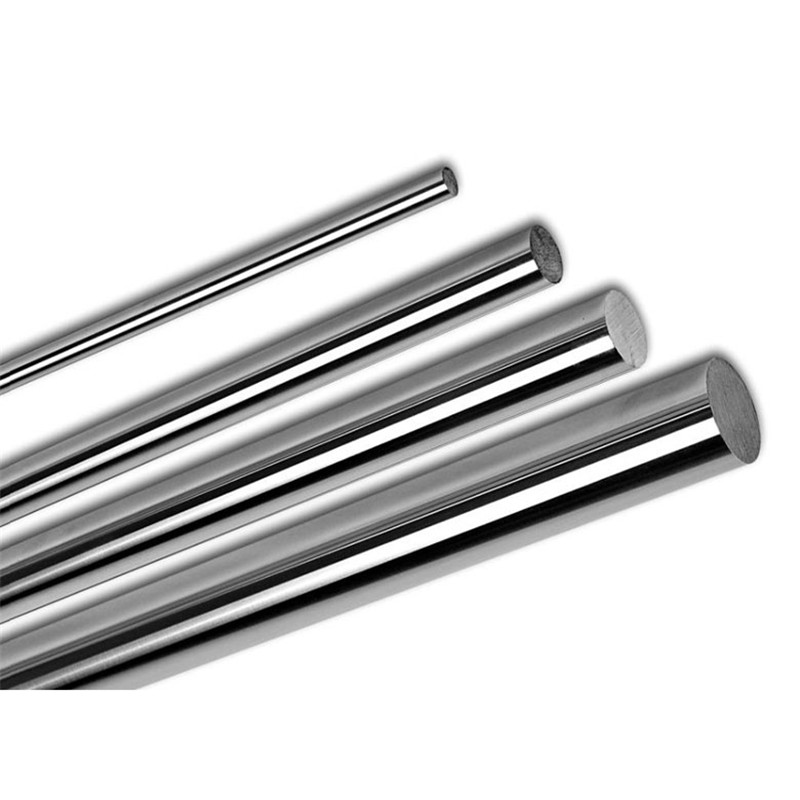

 Titanium bar

Product name

Medical use Grade 5 ELi titanium alloy GR23 6al4v  titanium bar

Standard
ASTM B348/ASME SB348, ASTMF67, ASTM F136, ISO-5832-2(3), AMS4928, MIL-T-9047G, JIS etc
Titanium Type
Commercially Pure(CP) / Titanium alloy
Grade

Gr1  Gr2  Gr3  Gr4  Gr5  Gr6  Gr7  Gr9  Gr11  Gr12  Gr23  Ti15333

BT1-00  BT1-0  BT1-2

Diameter
3-350mm
Length
Max6000mm
Technique
Forging ,Machining
Surface
Acid surface or polishing, sand blasted surface
Shape
Round, flat, square, hexagonal
Application
Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc.



1.Chemical requirements
Grade N(≤) C(≤) H(≤) Fe(≤) O(≤) Al(≤) V(≤) Pd(≤) Mo(≤) Ni(≤) Ti
GR1 0.03 0.08 0.015 0.2 0.18 / / / / / bal
GR2 0.03 0.08 0.015 0.3 0.25 / / / / / bal
GR3 0.05 0.08 0.015 0.3 0.35 / / / / / bal
GR4 0.05 0.08 0.015 0.2 0.4 / / / / / bal
GR5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / / / bal
GR7 0.03 0.08 0.015 0.3 0.25 / / 0.12~0.25 / / bal
GR9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / bal
GR12 0.03 0.08 0.015 0.3 0.25 / / / 0.2~0.4 0.6~0.9 bal
GR23 0.05 0.08 0.012 0.25 0.13 5.5~6.5 3.5~4.5       bal



2.Tensile requirements
Grade Tensil strength(≥) Yeild strength(≥)) Elongation(≥)%)
ksi Mpa ksi Mpa
GR1 35 240 20 138 24
GR2 50 345 40 275 20
GR3 65 450 55 380 18
GR4 80 550 70 483 15
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR9 90 620 70 483 15
GR12 70 483 20 345 18
GR23 120 828 110 760 10





Titanium Bar Production  Process

2 1.png
