Lifting Swing Arm Pillar Slewing Electric Suspend Bridge 20ton Jib Crane

Lifting Swing Arm Pillar Slewing Electric Suspend Bridge 20ton Jib Crane

Category: Jib Cranes >>>
Supplier: Henan,Kino,Cranes,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

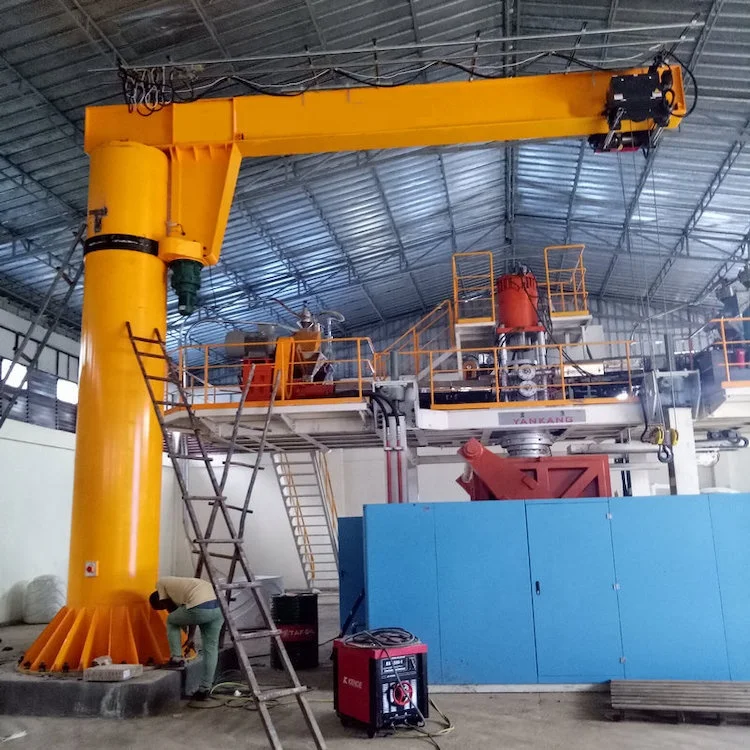

Column Mounted Slewing 2t Jib Crane

Product Description

Column Mounted Slewing 2t Jib Crane is a small and medium-speed lifting equipment developed recently . It has characteristics of unique structure , safe and reliable operation , high , efficiency , energy-saving , effort-saving , and flexibility . It can be operated under three dimensional environment . It is superior in the cases of short distance , concentrated lifting . It is widely used at various sites for various trades .

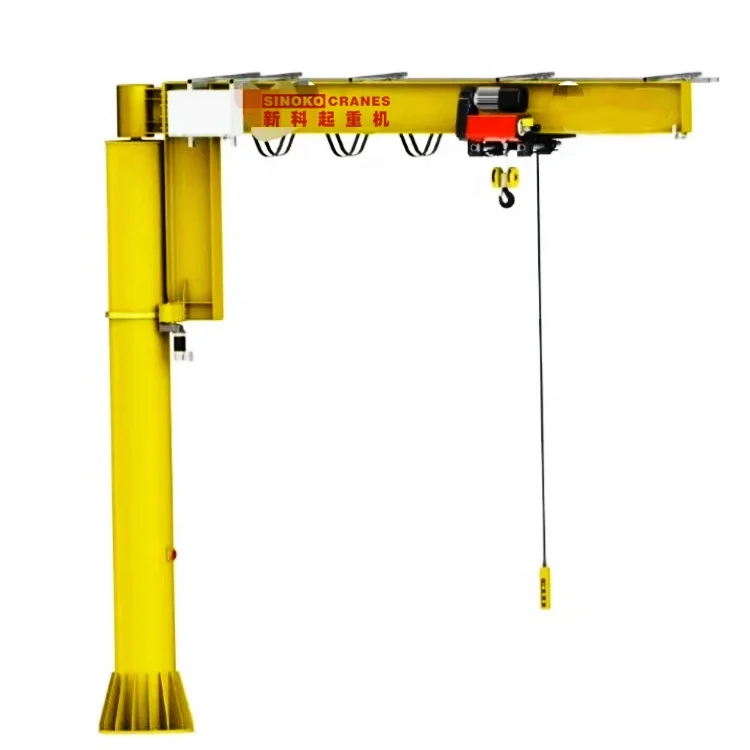

Column Mounted Slewing 2t Jib Crane work for light intensity, crane by post, rotating arm rotation drive device and electric hoist, column bottom through on the concrete foundation with anchor bolt, cantilever rotary driven by cycloidal pinwheel reducer, electric hoist on the cantilever beams as a straight line running from left to right, and lifting heavy objects. Jib crane for hollow steel structure, light weight, big span, lifting weight, economy and durable.

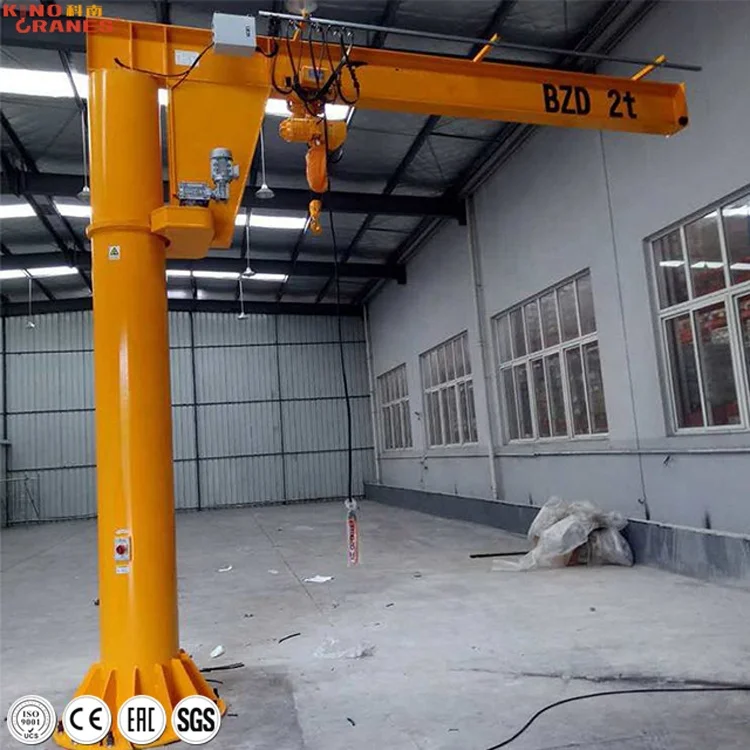

JIB Crane Prices

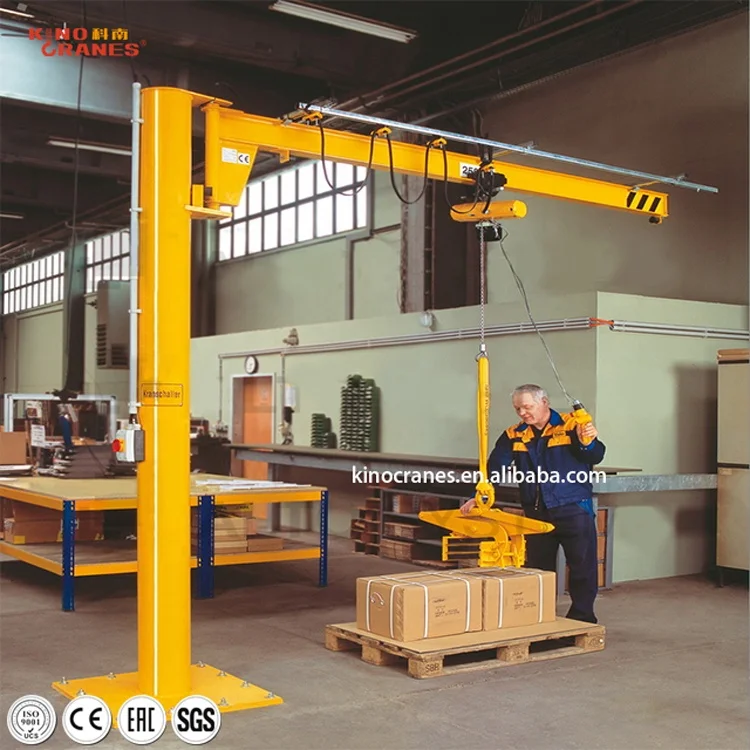

Wall mounted JIB cranes

Technical Data

Technical Parameter
Type		BZ0.25	BZ0.5	BZ1	BZ2	BZ3	BZ5	BZ8	BZ10
Lift Capacity (t)		0.25	0.5	1	2	3	5	8	10
Max. Lift Height(m)		3	3	3	3	4	4	6	8
Slew Angle(0)		360	360	360	360	360	360	360	360
Lift Speed (m/min)	Normal	4;10;8	5;10;8	8	8	8	8	8	8
Lift Speed (m/min)	Slow	1;2.5;0.8	1.25;2.5	0.8	0.8	0.8	0.8	0.8	0.8
Level Travel Speed (m/min)		20	20	20	20	20	20	20	20
Slewing Speed (r/min)		0.7	0.7	0.7	0.7	0.6	0.6	0.6	0.6
Lift mechanism		wire rope electric hoist or chain electric hoist
Power supply		220~6900V,50/60HZ,3phase or customized
Control mode		Pendent pushbutton control or remote control
Above parameter just for your reference,jib crane can be customized design Max.20t according to your demands.

Product Advantage

Column Mounted Slewing 2t Jib Crane Advantages:

1.Installation with high strength bolt connection;

2.Convenient in operation,safe and turn to flexible;

3.Low noise,commodious cabin and good looking;

4.High quality and efficiency, competitive price;

5.Reasonable and simple whole structure,Light self-weight, conform to the state standards;

6.Inexpensive handling systems doesn't require modification of the building structure around.

Aplication

Column Mounted Slewing 2t Jib Crane application:

1. The most common applications for jibs are individual workstations; machine tools, welding/fabrication stations, and some small assembly stations.

2. They are also often used in simple loading / unloading operations where it is not necessary to spot a load precisely.

3. Jib cranes most often handle lighter loads at lower duty cycles than their bridge and gantry crane counterparts.

4. If there is a need for precise locating of heavy loads, a large area of hook coverage, or frequent use for heavy loads, the jib crane may not be the best solution.
