Portable Medical Biomedical Vaccine Blood Cooler Box Keeping 2C to 8C For 72Hrs

Share on:


Price:$70.00 - $80.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

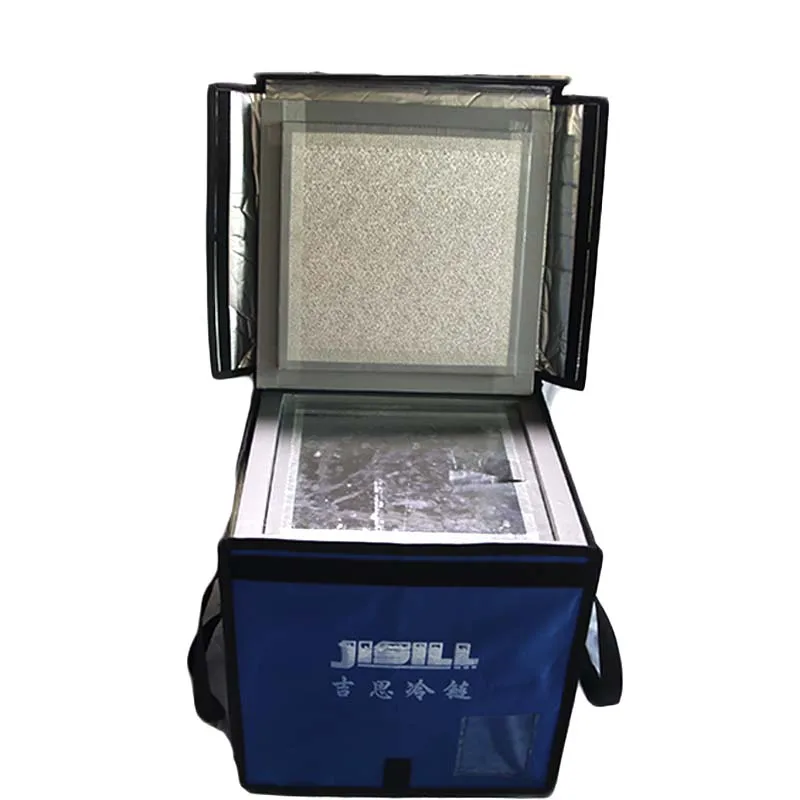

Portable Medical Biomedical Vaccine Blood Cooler Box Keeping 2C to 8C For 72Hrs
1. Optional temperature: 15~25C,2~8C,0C,-5C,-10C,-15C,-18~-25C 2. Duration: 24hours,48hours,72hours,96hours,120hours 3. Core Material: PU foaming or PU+VIP panels 4. Application: cold chain logistics for vaccine,insulin,detection reagent,blood,etc.




Project test repost

1) maintain 2-8C degree for at least 48 hours in condition of 35C environment temp.
2) maintain -20C degree for 40 hours in condition of 35C environment temp.








Detailed Images

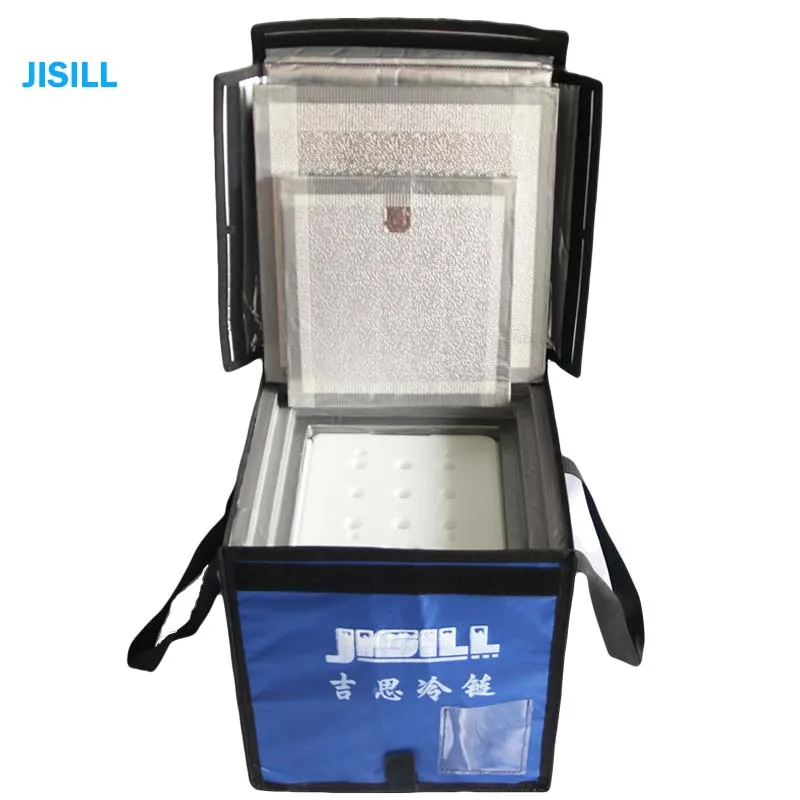

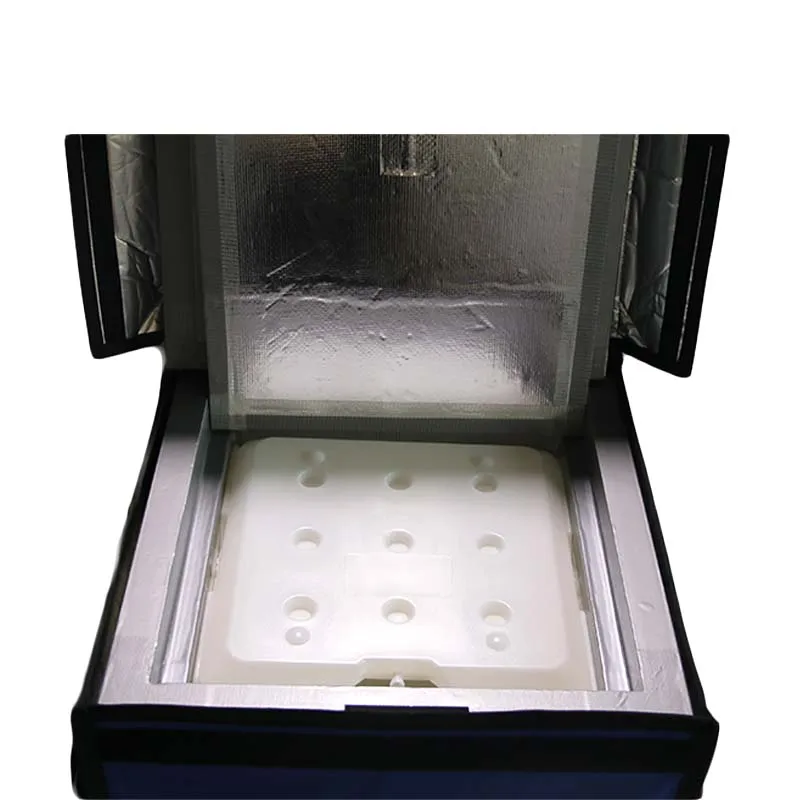

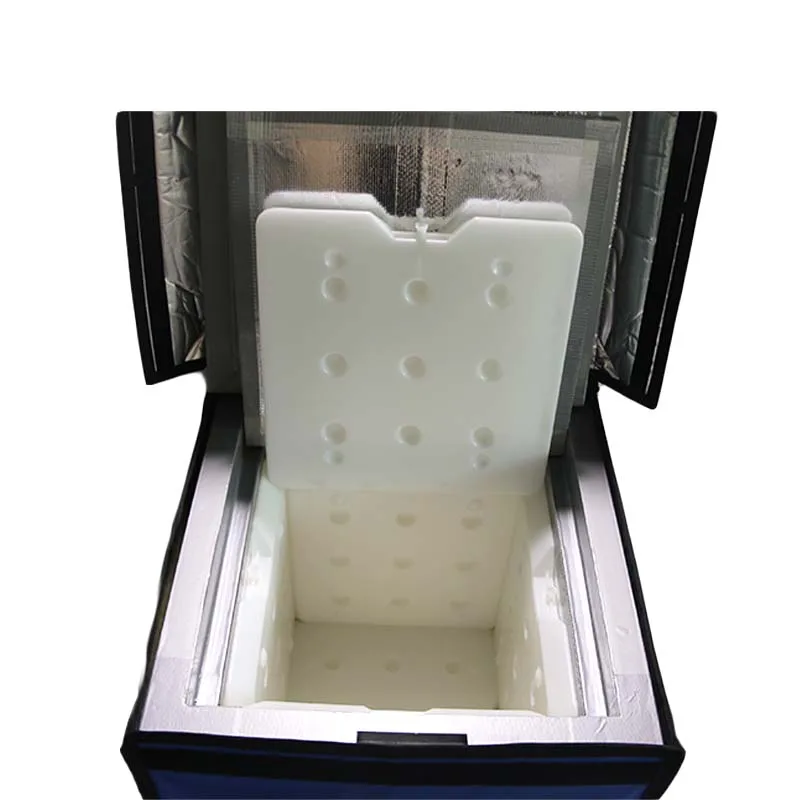

Product detail drawing




* Outer Oxford fabric cloth bag is durable and with thermal layer.
* Can be printing logo on.
* Can with two handles and shoulder straps.
* With Velcro tapes around the lid.

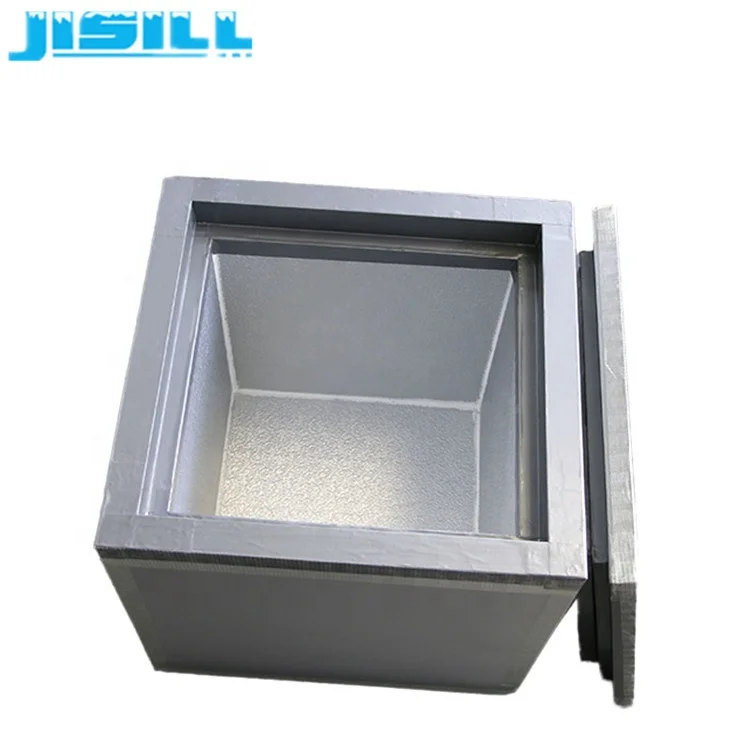

* Inner is made of PU or VPU panels.
* Aluminum sheet cover the entire of the cold box with uniform temperature.
* Seamless joint technology and can be self-assembly.
* PU/VPU vacuum insulation panels.
PU foam moulding, have super thermal insulation,
* The thermal conducitivity is lower than 0.003w/m.k.


Introduction of product characteristics or application effect or application mode


Characteristics
* Save electricty;
* Long time cold keeping performance,8h,12h,24h,48h,72h,96h;
* Widely & Easily use in daily life;
* Portable,durable
* Lightweight
* Aluminum sheet cover the entire of the cold box with uniform temperature
* Seamless joint and self-assembly
* Save space and reduce freight cost


Application
* Medicine Vaccines,insulin,blood
* Breeding Programs
* Biopharmaceutical, Life Science and other Medical Products
* IVD products and biological specimens
* Selected fresh food, drink and dairy products
* Mobile Refrigeration and Cold Chain Solutions such as Insulated shipping containers and temperature controlled transportation solutions


Application mode
* Freezing ice packs and cooler boxes for 12 hours
* Take the ice packs out in environment temperature for chilling 20-30 minutes
* Before using,placing cooler pack into the cooler box
* Put the medicine,vaccine,insulin,or other pharmaceutical products into the cooler box


Advantages
* Dimensions can be customized
* Inner & Outer material can be flexible based on customers' requirements
* We are able to match the most suitable PCM ice bricks to the cooler box
* The freezing/melting point of the ice bricks is various,such as -30℃,-25℃,-18℃,-15℃,-10℃,0℃,5℃,18℃,25℃


Product Presentation


Product introduction




Product Name
Portable Medical Biomedical Vaccine Blood Cooler Box Keeping 2C to 8C For 72Hrs

Material
Aluminum Plate outside; PU foaming/PU+Vacuum Insulation Panel inside

Outer size

46*46*48 cm

Inner size

35*35*35 cm

Net size

30*30*30 cm

Capacity

42L

Effective volume

27L


  • More Size introduction and size picture



Item.
Outer size
Inner size
Net size
Volume
Effective volume
JS-005
38*38*38CM
26*26*26CM
20*20*20CM
17L
8L
JS-010
59*46*46CM
48*35*35CM
43*30*35CM
58.8L
45L
JS-011
50.5*46.5*50CM
36.5*32.5*36.5CM
30*26*29.5CM
43L
22L




Certificate

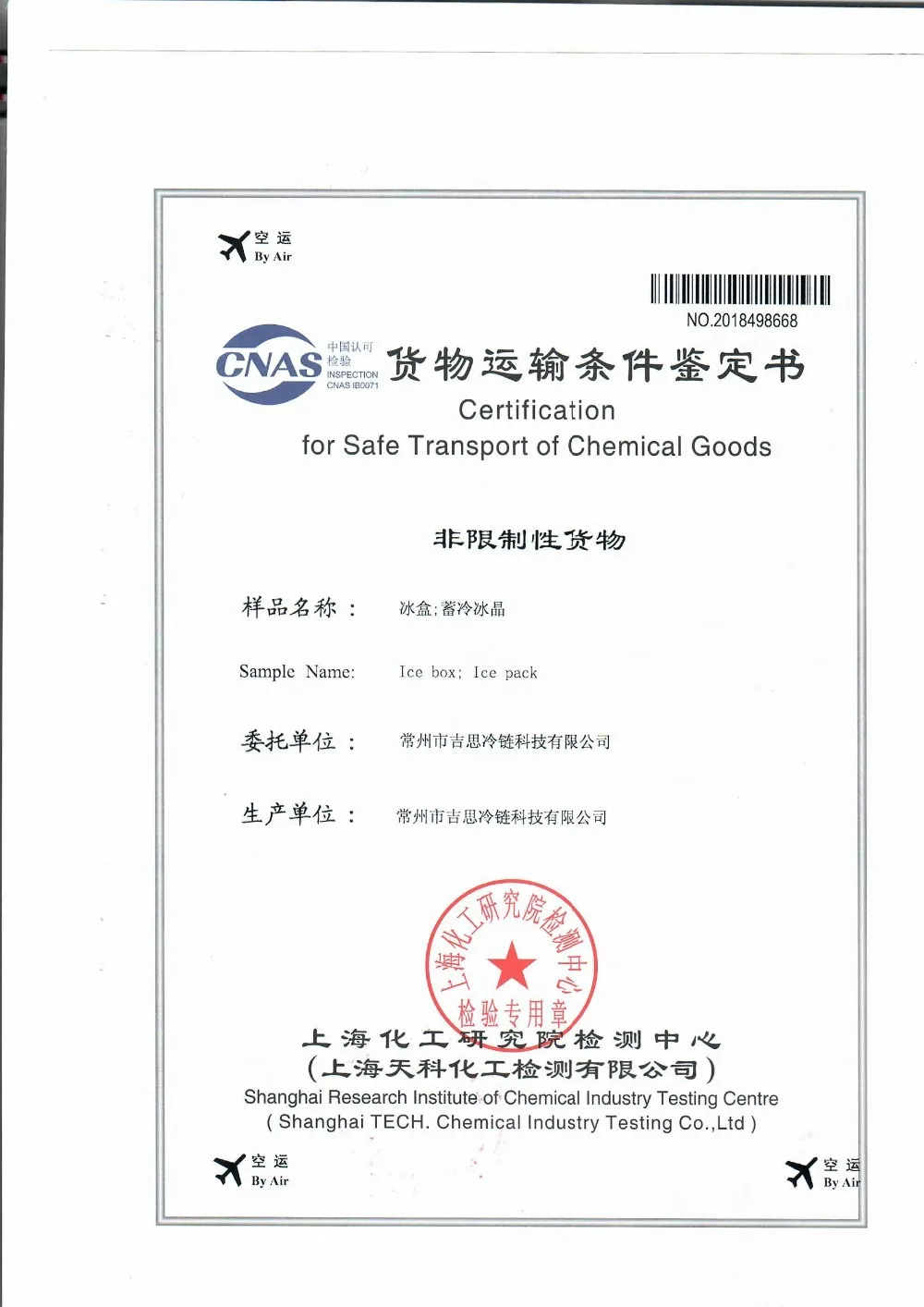

They are our Utility Model Patent Certificate and Safe Transport Certificates




Related Products




Company Introduction


Our factory estabished in 2005,our overseas business in 2013,and in the possession of 4500 square meters ,We have many blow molding machines and injection molding machines and ultrasonic machines.All of our ice packs passed MSDS and CPSIA certificates.Our products are ideal for use when rigidity or reusability are required, or when rough environments or reuse are required. Nontoxic and resistant plastic ice pack(ice box/brick/bag), rigid HDPE thermal (bottle form) cold ice pack offers excellent performance in terms of resistance to breakage andcompression. Reusable & designed to maintain products at refrigerated temperatures throughout the cold chain, the Gel bottle provides resistance to breakage and compression.
At the end of 2016, we start to do VIP cooler box. Our cooler box of lining is VIP box, in this case, the VIP panel will help you to extend the period of cold, it can be used in vaccines, insulin, medicine, and the blood of long transportation. At the same time, Our ice packs can be used as accessories in cooler box. In this way, we can keep your contents up to more than 72 hrs for 2-8 ℃,-10℃,-15℃,-20℃,or -25℃.




Packing&Shipping




FAQ


Q: Are you a factory or trading Company?
A: We are a factory.

Q: Can I get samples?
A: We are honered to offer you sample.

Q: How do your factory do regarding quality control?
A: Quality is 1st priority. We always attach great importance to quality controling from raw material to shipping.
