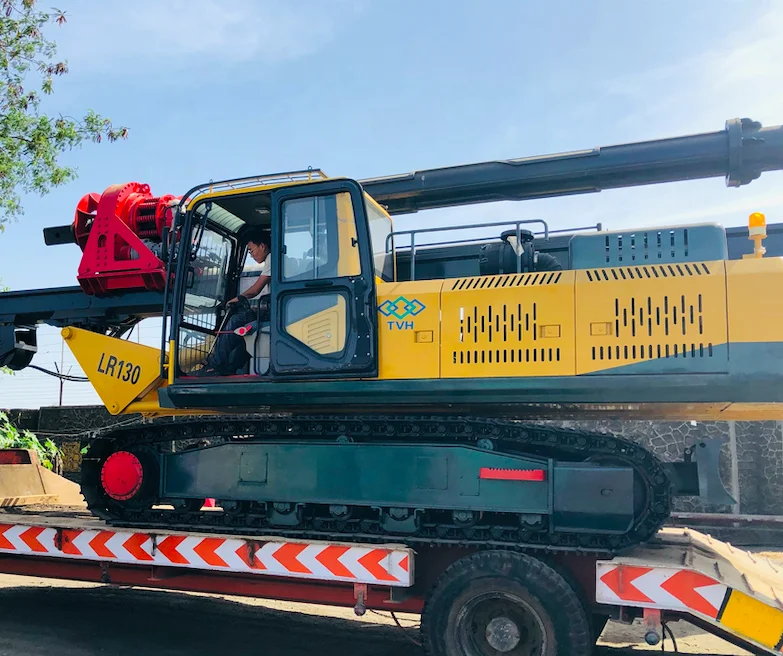

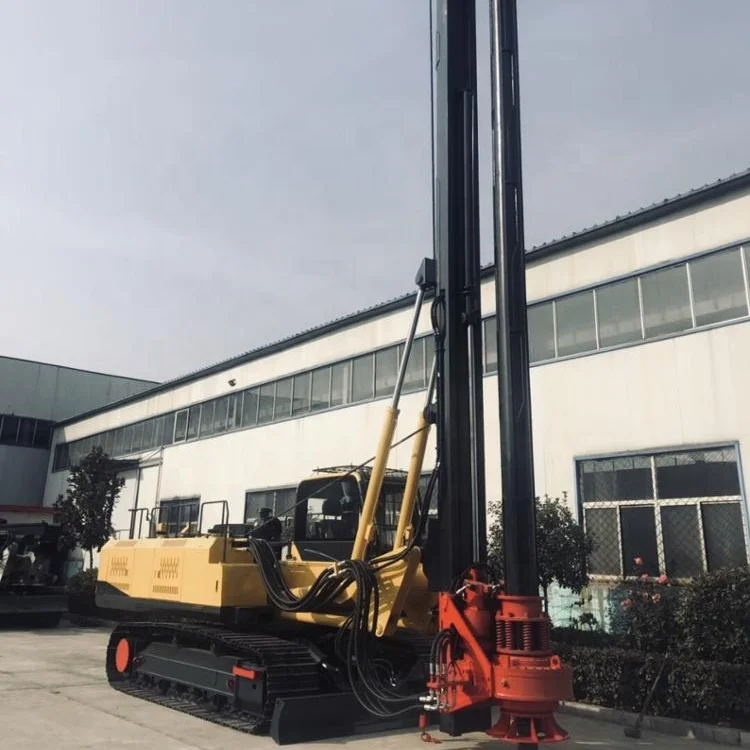

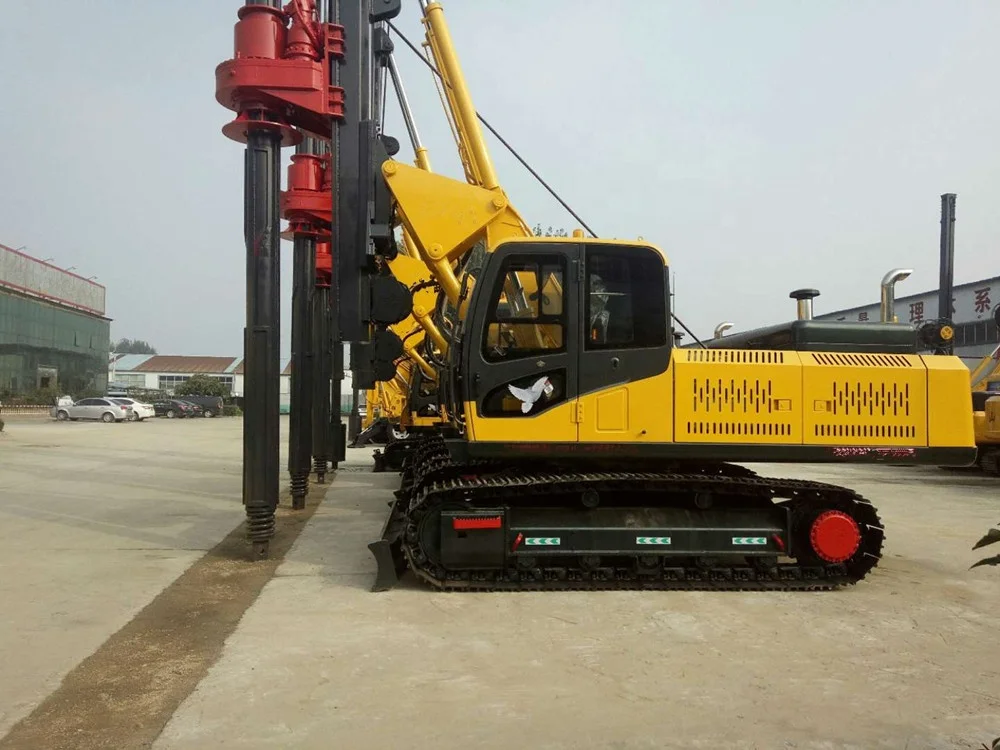

China Building Constructions Mini Hydraulic Pile Driver Screw Piles For Foundations LR130 25m Rotary Drilling Rig

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

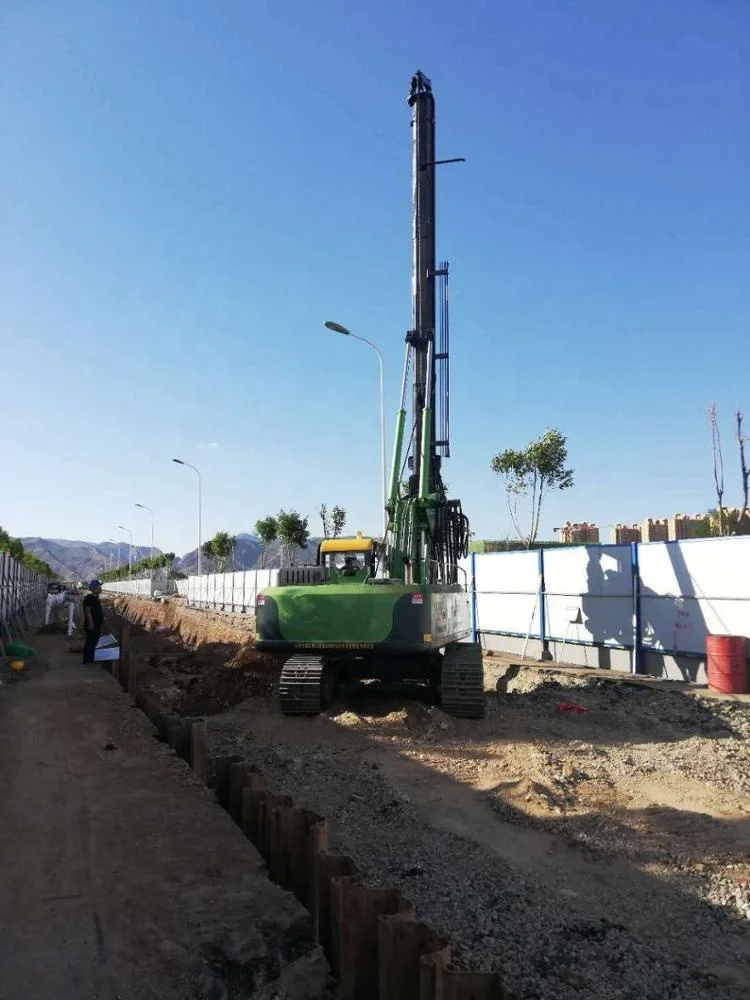

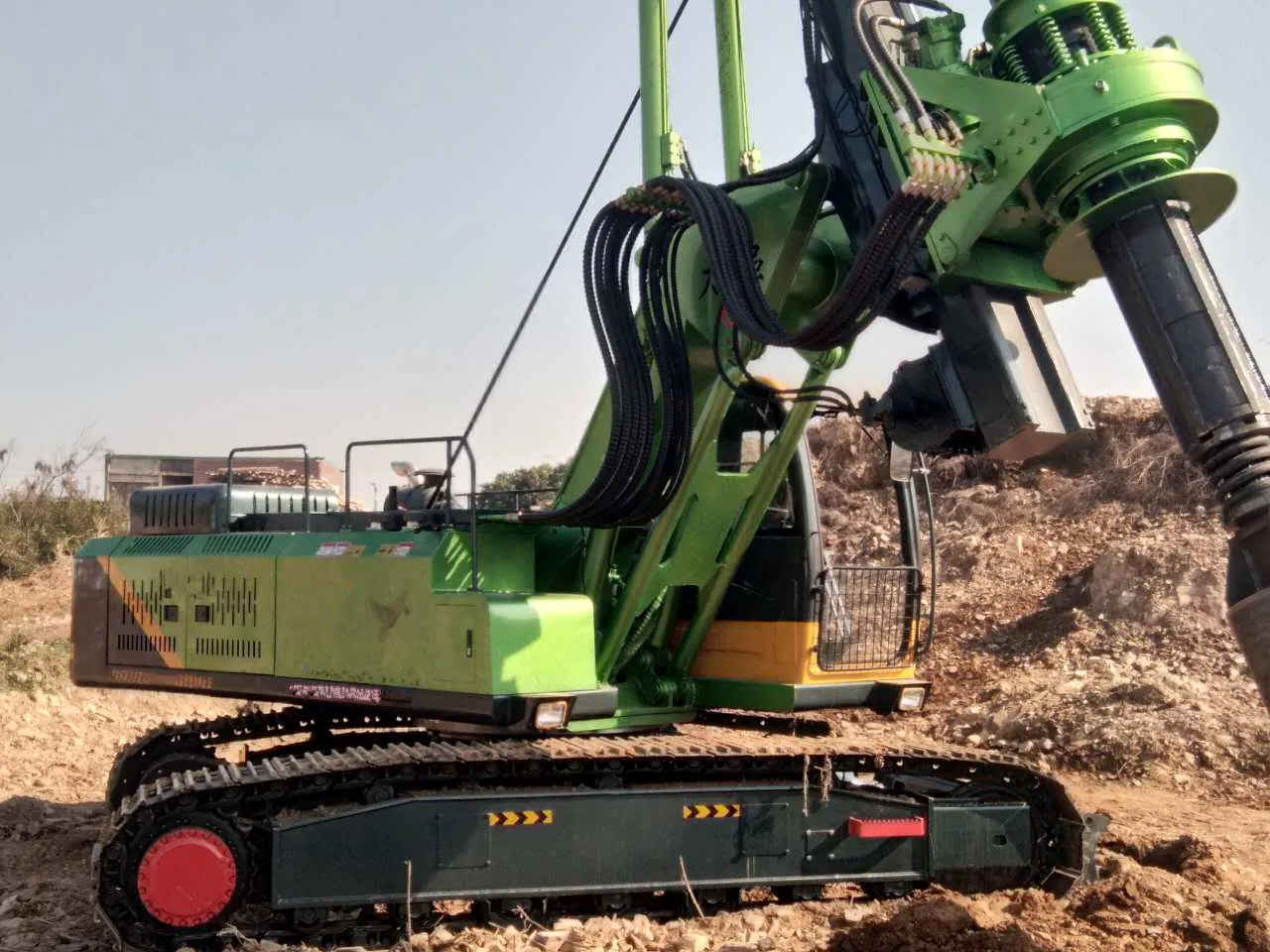

At Work Site:






On Exhibition:




Exhibition:
Greetings !
We are very happy to meet you in China and provide overseas after-sale service in abroad.

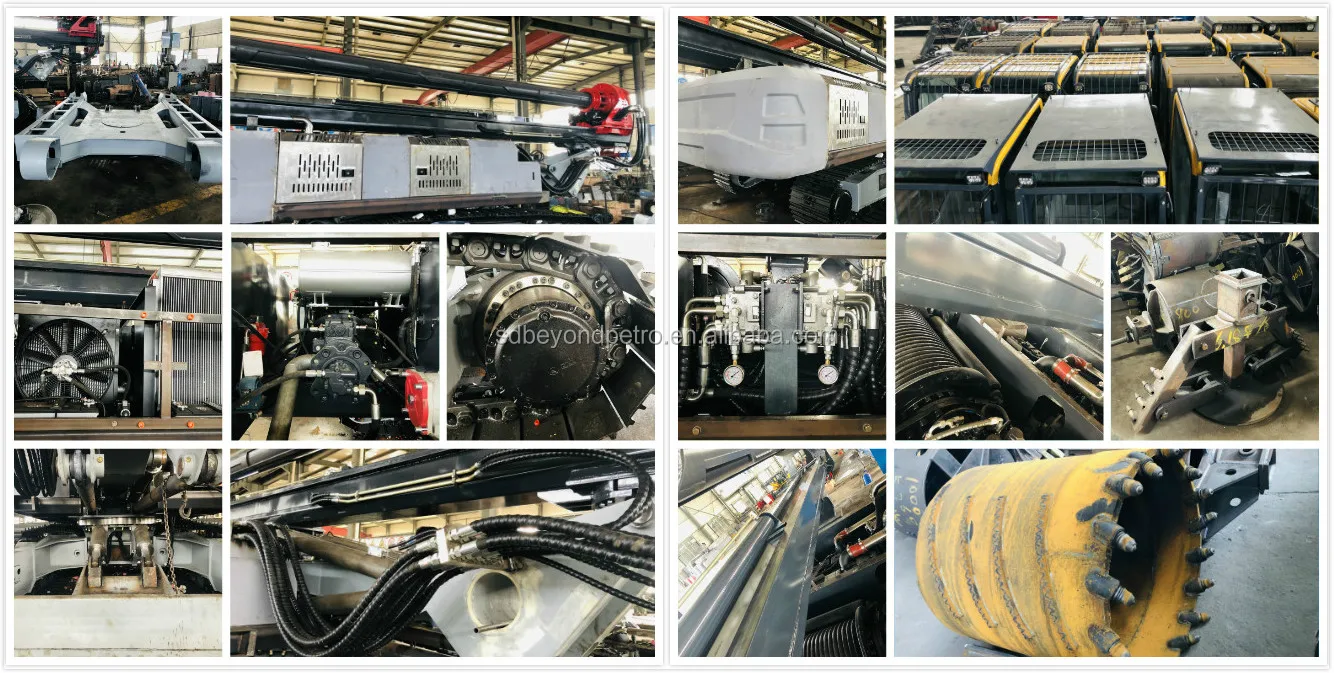

Pile Drilling Rig Main Parts:

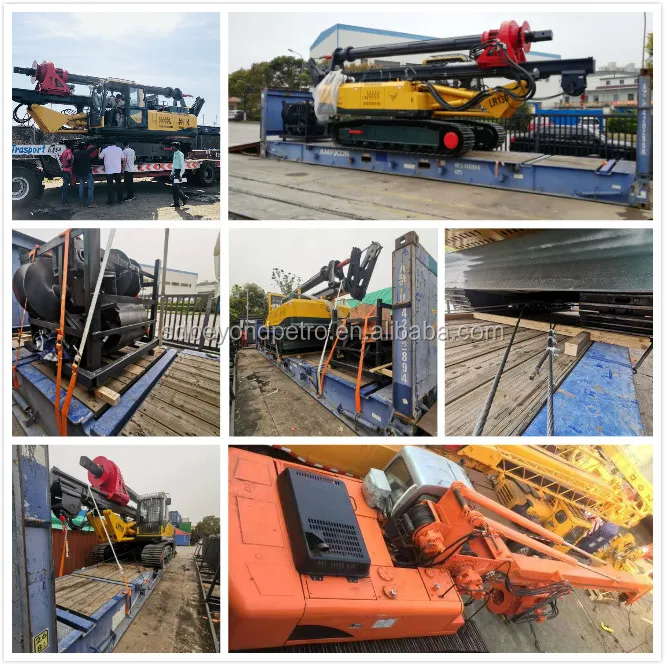

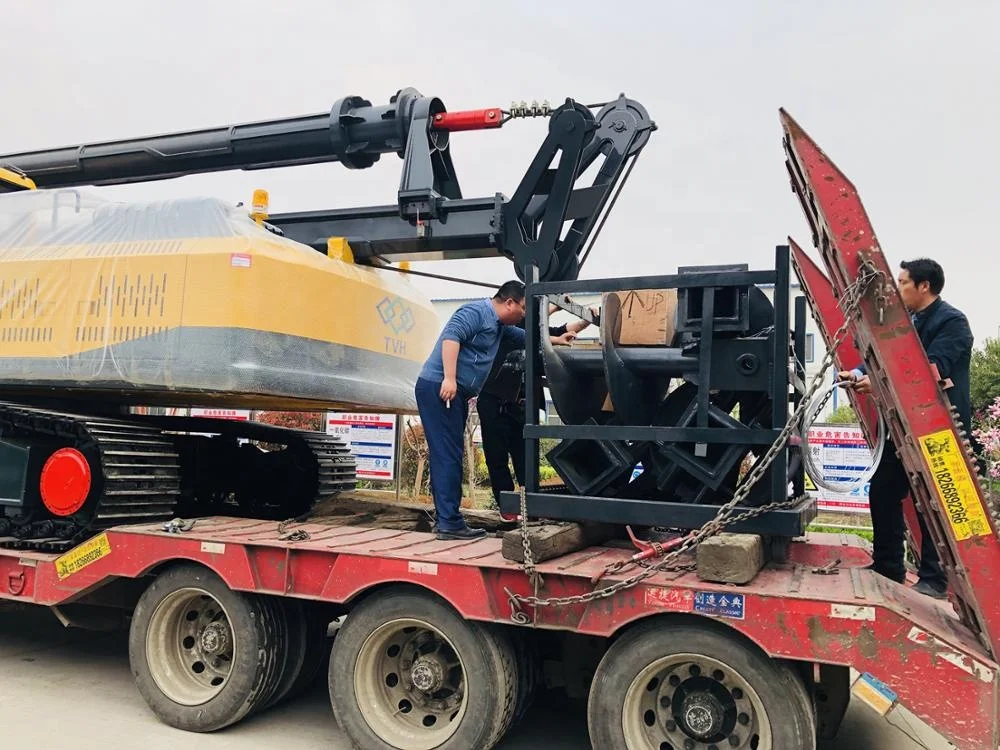

Packing & Delivery




Specification



NO
ITEM
LR80-21M
LR100-25M
LR130-30M
LR150-40M
1
ROTARY DRIVE
 (dual-motor, Brand: Rexroth)




1.1
Torque output
80 KN.M
100 KN.M
130 KN.M
150 KN.M
1.2
Rotary Speed
6-35 r/min
6-35 r/min
6-35 r/min
5-30 r/min
2
Crowd system




2.1
Maximum crowd push
80 KN
80 KN
100 KN
120 KN
2.2
Maximum crowd pull
120 KN
120 KN
130 KN
130 KN
2.3
Cylinder stroke
2500 mm
2500 mm
2500 mm
3500 mm
2.4
Maximum working pressure
30 Mpa
30 Mpa
30 Mpa
32 Mpa
2.5
Pilot pressure
4 Mpa
4 Mpa
4 Mpa
4 Mpa
3
Main winch (Brand: Rexroth)



3.1
Line pull
120 KN
120 KN
150 KN
       160 KN
3.2
Line speed
45 m/min
45 m/min
72 m/min
     62 m/min
3.3
Rope diameter
24 mm
24 mm
26mm
        24 mm
4
Auxiliary winch (Brand: Rexroth)



4.1
Line pull
20 KN
20 KN
40 KN
        80 KN
4.2
Line speed
60 m/min
50 m/min
60 m/min
      80 m/min
4.3
Rope diameter
14 mm
12 mm
 14 mm
        16 mm
5
Engine



5.1
Engine brand
Cummins
Cummins
Cummins
     Cummins
5.2
Model
QSB5.9-C210-30
Cummins
QSB5.9-C210-30
    QSB7-C169
5.3
Power
154kw@2200rpm
154kw@2200rpm
154kw@2200rpm
169kw@2050r/min
5.4
Emission Standard
EU Stage 3 A
EU Stage 3 A
EU Stage 3 A
EU Stage 3 A
5.5
Maximum torque
624 N.M/1400 rom
820 N.M/1400 rom
820 N.M/1400 rom
820 N.M/1400 rom
6
Chasis



6.1
Crawler width (Telescopic)
2600mm (open 3400mm)
2800mm (open 3600mm)
2800mm (open 3600mm)
3000mm (open 3800mm)
6.2
Track shoes width
600mm
600mm
600mm
       600mm
6.3
Max. travel speed
5 km/h
5 km/h
5 km/h
        5 km/h
7
General
7.1
Main pump brand
KAWASAKI/ LONGKIN
KAWASAKI/ LONGKIN
KAWASAKI/ LONGKIN
KAWASAKI
7.2
Drilling diameter
1000mm
1200 mm
450-1200 mm
500-1500 mm
7.3
Drilling depth
21m
25 m
30m
40m
7.4
Tail swing radius
3600 mm
3600 mm
3600 mm
4200 mm
7.5
Operate height
10800 mm
12200 mm
12800 mm
16500 mm
7.6
Operate weight
19000 kgs
23000kg
29000kg
41000kg
7.7
Mast inclination
90°/4°/4°
90°/4°/4°
90°/4°/4°
90°/4°/4°
7.8
Hydraulic tank capacity
200L
200L
200L
240L
7.9
Diesel tank capacity
200L
200L
200L
240L
8
Dimension (L*W*H) (mm)
11000*2650
*3350
11000*2800*3450
11500*2800
*3550
14000*3000*3800


Technical Features for BEYOND Piling Rig Machine:
LLR130 130KN 30m Crawler Pile Driving High Power Construction Work Piling Rig Machine
1. Compact design & small swing radius enable superior performance in restricted space considering limited working area;
2. Economical solution with high productivity for small diameter piles with low investment;
3. Easy transport with Kelly bar on a single trailer & Easy Maintenance;
4. High powered turbo-charged Cummins engine to provide strong power and conformity with Euro III emission standard; Engine running hours available in cabin panel
5. World class PLC with compatible instruments & touch-screen panel;
6. Reliable hydraulic system powered by Kawasaki main pump;
7. Optimal rotary drive with Rexroth/Lonking hydraulic motors & gearbox
8. Free supplied drilling bits with different specification are available for efficient construction on different layers;
9. Free attached expendable parts attached with machine for easy maintenance of machine;

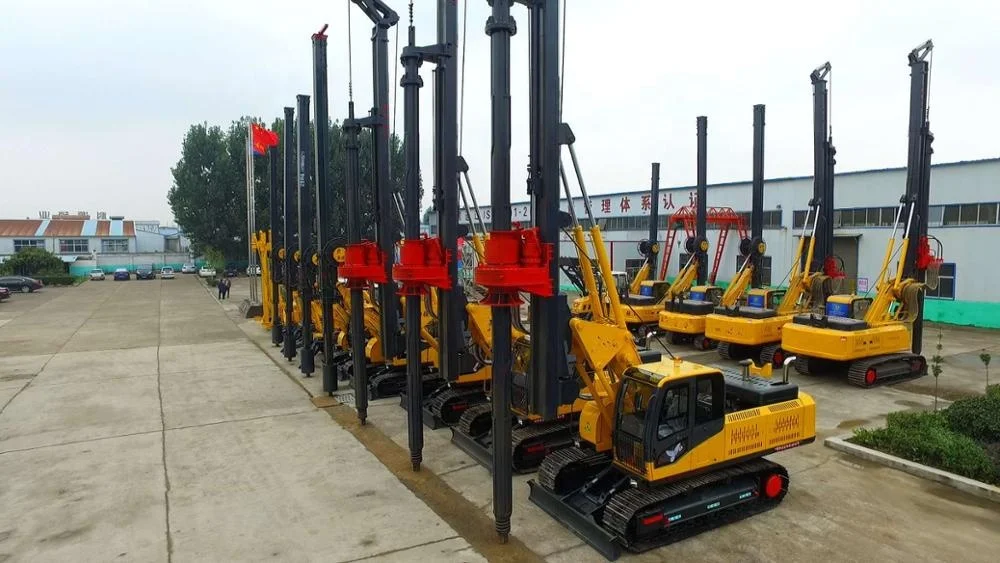

Warehouse:




Clients :






FAQ:
1,Are you trading company or manufacturer ?
We are professional trading company build base on our factory, and mainly products are oilfield drilling equipment, construction machinery, water well drilling rig and etc. Our products have been exported to more than 20 countries of Azerbaijan, Kazakhstan, Asia, South America, Africa, India, Egypt, and get a good reputation in the world.

2,How about your machine quality?
ISO9001 certified, All of our machines must pass a great number of strict testing in order to offer the best quality to our customers.

3,Do you have after-sale service?
Yes, we provide overseas after-sale service team which will offer you the best technical maintenance guidance, and now online technical support is a necessary.

5,What about the quality warranty?
We offer one-year quality warranty mainly the main mud pump, but for the small wearing parts around 6 months. We provide one year spares when delivery the mud pump .

6,How long can you deliver the machine?
Generally, parts mainly have at stock , pumps we can delivery in 20 working days.


Company Profile



We, Shandong Beyond Petroleum Equipment Co., Ltd. (Hereafter as “BEYOND”) was established to offer the best solutions for the overseas customers on equipment and spares for different drilling application like petroleum, geothermal, water well, HDD and construction foundation etc.
For construction foundation section, we are supplying quality rotary drilling rig (pile rig machine) with different drilling capacity from 10-40meters with model BYD-LR80, BYD-LR100, BYD-LR130 and BYD-LR150. BYD series of rotary drilling machine is applicable to different formation like soil, clay, fill soil, silt, silt layer, strata contain pebbles and gravel etc. It is widely used in different sectors of high-speed rail trestle piles, slop shield piles, photovoltaic power station foundation pile, power grids, civil construction, new rural construction, municipal construction, landscaping and other projects.
And we can offer customized piling rig based on customer different working conditions like with short Kelly bar for height-limited working environment.
So if you got any inquiry for rotary drilling rigs, please feel free to contact us as below:
