Air to Water Heat Pump
|Performance Condition (A)||Outdoor air 7℃/6℃ Inlet /Outlet water 40℃/45℃|
|Heating Capacity (A)||kW||4.2~12.0||5.6~14.8||7.2~20.0||9.8~27.3||11.5~31.5||15.0~41.0|
|Heating Power Input (A)||kW||1.2~4.0||1.6~4.8||2.1~6.8||3.5~10.6||4.4~13.6||5.0~13.8|
|Performance Condition (B)||Outdoor air 35℃/24℃ Inlet /Outlet water 12℃/7℃|
|Cooling Capacity (B)||kW||3.6~9.6||4.2~10.6||6.3~16.5||8.3~23.1||10.2~28.2||11.9~33.1|
|Cooling Power Input (B)||kW||1.2~4.0||1.6~4.8||2.1~6.8||3.5~10.6||4.4~13.6||5.0~13.8|
|Performance Condition (C)||Outdoor air 20℃/15℃ Inlet /Outlet water 15℃/55℃|
|Hot Water Capacity (C)||kW||5.3~13.5||5.8~15.1||7.5~21.1||10.0~27.5||11.8~32.0||15.5~41.5|
|Hot Water Power Input (C)||kW||1.5~4.3||1.6~5.0||2.1~7.1||3.7~10.8||4.5~13.8||5.2~14.0|
|Rated Voltage/ Frequency||/||208~240V~/30~90Hz||380V~460V/3N~/30~90Hz|
|Max. Power Input||kW||4.6||4.8||7.0||10.6||13.6||16.0|
|Max. Current Input||A||21.0||21.8||32||17||25.5||31.2|
|Water Flow Rate||m3/h||1.7||1.7||2.6||3.8||4.5||5.2|
|Refrigerant/ Proper Input||kg||R410A/2.2kg||R410A/2.5kg||R410A/2.8kg||R410A/4.5kg||R410A/5.0kg||R410A/6.6kg|
|Sound Pressure Noise (1m)||dB(A)||38~52||40~53||42~54||44~57||45~58||45~60|
|Operating Ambient Temperature||℃||-25~43||-25~43||-25~43||-25~43||-25~43||-25~45|
|Fan Motor Type||/||DC motor||DC motor||DC motor||DC motor||DC motor||DC motor|
|Fan Motor Power Input(Min~Max)||W||30~75||10~40||30~70||80~200||80~200||80~200|
|Water Pressure Drop||kPa||28||DN32||DN25/DN32||65||65||65|
|Circulation Pump Head||m||10||10||20||21||32||32|
|The data above is only for reference. For model specifications, please refer to the nameplate on the unit.|

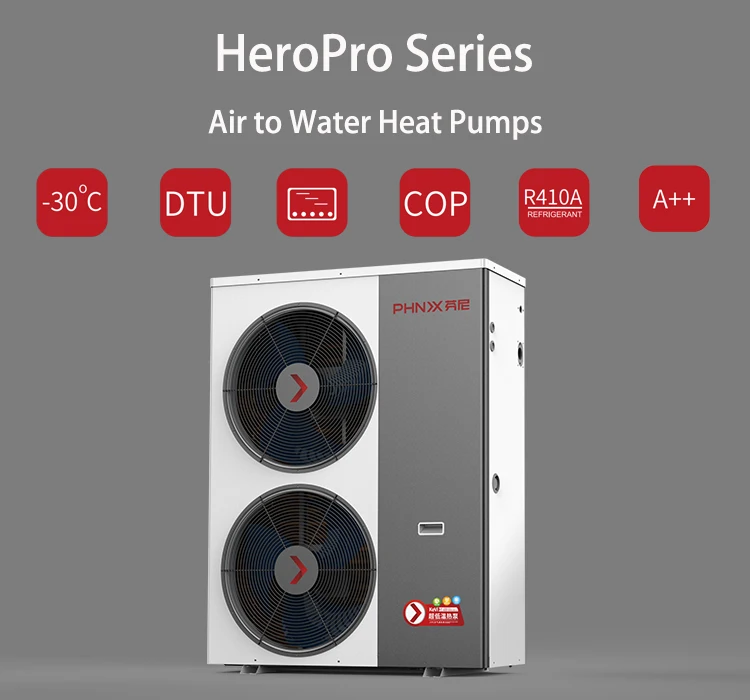

-30o C Inverter EVI
Being the smart heat pump elite, HeroPro perfectly combines eco-friendly R410A refrigerant and inverter EVI technology to produce 60oC hot water as well as stable house heating even under -30oC low temperature condition.
To deliver a better user experience, HeroPro series is designed with a DTU module for remote data transferring. Then easily you can monitor the running status of your heating system on the website page with your computer. DTU is optional and flexible.
Light Commercial Application
With the capability of stably running under extremely cold climate, HeroPro is an ideal option for hotels, holiday resort and schools in super cold areas, such as Northern Europe, Russia, etc.
Founded in 2002, PHNIX is one of the largest manufacturers of Swimming Pool Heat Pumps, House Heating Heat Pumps and Heat Pump Water Heaters in China. With more 487 patents, 355 licensed patents and 10 copyrights, PHNIX has built up a complete heat pump industrial chain.
PHNIX attaches great importance to high-end overseas markets, exporting more than 50 percent of its products to Europe, North America, Middle East, Australia, and other developed regions.
PHNIX Factory has an area of more than 35000 square meters. Over 30 percent of automatic production devices are put into use in manufacturing process, involving Copper Pipe Cutter, Pipe Bender Robot, Automated Vacuum Circulatory System, Robotic Palletization and Packaging and AGV and so on.
PHNIX values product quality control, which account for about 8% of the company's sales revenue. PHNIX has 13 laboratories, whose test types include UV, RoHS, heat exchanger efficiency, constant temperature, humidity, pressure and so on. PHNIX’s integrated performance laboratory can meet product testing standard EN14511 and EN14825 of the European and American areas.
Q: How many years have your company been in heat pump industry?
A: We are the NO.1 heat pump exporter in China.
We PHNIX has full experience in the field of heat pumps for more than 18 years. PHNIX has kept growing rapidly during these years since it was established. In 2016, our turn over reached an amount of 101 million US dollars and in the same year PHNIX was loaded on the China’s New OTC market.
Q: Do you accept OEM & ODM?
A: Yes. We can produce PHNIX standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q: How about the channel management?
A: First, in order to lead global positive market competition, PHNIX will not sell the same product to two clients in one region. Second, we are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer PHNIX’s own brand products and services to dealers.
Q: What support do you offer to clients?
A: We can: provide product certification requirements for local markets; provide catalogs, technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 36 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
