Product Overview

Description

                                                             plastic bag production line





if you can't find what you looking for,pls just feel free to contact me(skype:chovyting02). because we have  hundreds kinds of machine,and we also can  customize the machine according to the samples.



A.Film blowing machine

 Optional

1.AUTO LOADER    2. CORONA TREATER

3.  AIR COMPRESSOR   4.  MANUAL MECHANICAL SCREEN CHANGER

5.   DOUBLE WINDER       6.   DIE ROTARY DEVICE.



Technical Parameter

MODEL

CWHL-45

CWHL-50

CWHL-55

CWHL-65

SUITABLE MATERIAL

HDPE LDPE LLDPE

FILM WIDTH (mm)

260-600

300-800

 400-1000

 600-1300

FILM THICKNESS(HD) mm

0.009-0.15

0.009-0.1

0.009-0.1

0.009-0.13

MAX EXTRUSION OUTPUT

(HD)

30-45kg/hr

35-50kg/hr

40-70kg/hr

60-100kg/hr

(LD)

40-50kg/hr

30-60kg/hr

50-80kg/hr

80-140kg/hr

SCREW DIAMETER (mm)

45

50

55

65

SCREW L/D LENGTH

  28:1 / 30:1

SCREW AND CYLINDER MATERIAL

SACM-645/38 CRMOALA

CYLINDER COOLING

370W×2

 370W×2

550W×3

550W×4

TEMPERATURE CONTROL

3

  3

3

4

MAIN MOTOR

15KW

18.5KW

22KW

37KW

DIE SIZE



HD(mm)

60/80

60/80

80/100

100/120

LD

100/120

120/150

250/200

  300/250

TEMPERATURE CONTROL

3

AIR RING

1

CENTER STEADY STICK

2

HEIGHT ADJUSTABLE TYPE

700mm

TAKE-UP SPEED

10-100m/min

10-100m/min

 10-100m/min

 10-90m/min

ROLLER WIDTH(mm)

165×650

 165×850

165×1100

 165×1400

TYPE

SURFACE FRICTION TYPE

DIAMETER OF ROLLING

650mm

MACHINE DIMENSION(LXWXH) mm

5.0×2.0×4.5

5.0×2.2×5.0

5.5×2.5×5.2

5.8×2.8×6.5





























































B.Printing machine



Brief introduction:



this printing machine is for printing rolling material like BOPP,PET,PE,ALU, and roll paper .



Technical parameter :

Model

CWASY-8600B

CWASY-8800B

CWASY-81000B

Effective printing width

600mm

800mm

1000mm

max width size of web

650mm

850mm

 1050mm

max. Printing speed

150  m/min

150  m/min

150  m/min

max.diameter of unwindng/rewind

φ650mm

φ500mm

φ650mm

Diameter of printing cylinder

φ120-300mm

φ120-300mmm

φ120-300mm

Accuracy of registration

±0.1mm

±0.1mm

±0.1mm

TENSION CONTROL RANGE

3-25KG/fully width

3-25KG/fully width

3-25KG/fully width

Total power

133 Kw

161Kw

185kw

weight of machine

23000kg

25000kg

27000kg

overall dimension

(LXWXH)mm

14500x3300x2700mm

14500x3500x2700 mm

14500x3700x2700mm

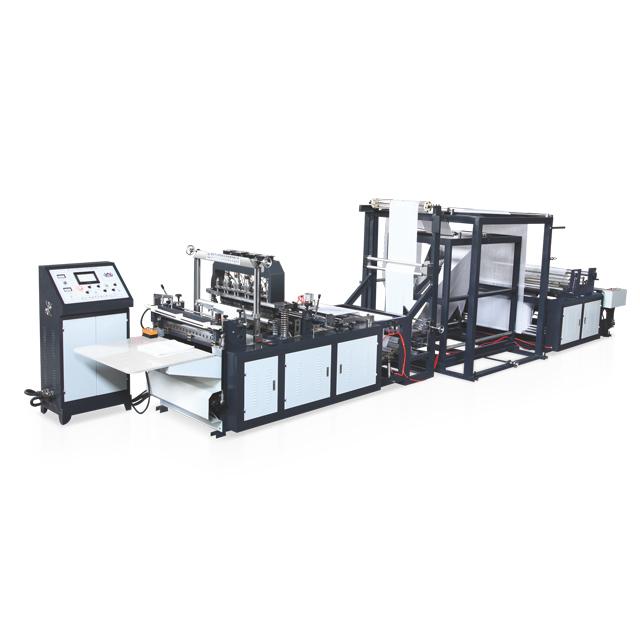

C. carry bag making machine

 Feature:

1. Flexible soft loop handle and patch film feeding system,fully automatic

2. Pre-sealing knife ,heated on double sides and strong for fusing,to make the bags without deformation

3.The best quality of Italian side sealing knife, Heated to high temperatures not deformation

 4.Newly design of sealing knife top lift and turn over system

 5.Its designed by heating punching  and it's easy to cut off, the waster is excluded automatically.



optional equipment:

1.single sheet film folding unit,hydrulic loading device (connect or fission)

2.Top folding continuously sealing device

3. Bottom seal knife + double seal knife



Technical parameter:

Type

CW-800ZD

Length of bag making

(height of the pouch)

250-750mm

width of bag making

250-600mm

Top folded

50-75mm

Bottom insert

20-70mm

Speed of bag making

soft loop handle bag

60pcs/min

 patch handle bag

 60pcs/min

Poly draw strings bag

65pcs /min

die cut bag

80pcs /min

Total power

13KW

Machine weight

3500kg

Machine dimension

8200X3100X1870mm

Air compressor (not included)

6HP





































D. plastic granulator

Technical parameter :

Model

CWZL-150

CWZL-300L

Capacity of machine

150 L

  300L

Capacity

60-80 KGS/H

 200-300 KGS/H

Power of motor

18.5 KW

37 KW

machine dimension

1600x700x1500mm

2000x1000x1400mm

Machine weight

1000 kgs

1200 kgs
