Product Overview

Description


Product Description

Ceramic fiber tape: Hitex brand ceramic Fiber tape is woven from ceramic fiber yarns, and treated for dust control. The tape is an excellent heat insulating material and a substitute for asbestos tape. It is reinforced with fiberglass filament, or stainless steel wire (Inconel/alloy steel wire).



Technical Data





Type

Data

Color

White

Max working temp

1260°C

Fiber diameter

3~5μm

Heat shrinkage(1232°C,24h)

3.5%

Thermal conductivity(538°C,8pcf)

0.130w/mk

Al2O3

45~48%

Fe2O3

0.7~1.2%

CaO&NaCl

0.43%

Shot

< 8.5%

Breakdown voltage

5kv/mm

Resistance

5x10 10Ω

Moisture content

< 2%

Organic fiber content

< 20%





Specification

 Available specification:

Thickness:2/3/4/5mm

Width:  25mm-150mm

Reinforcement: Glass fiber or stainless steel wire(inconel).



We also below ceramic fiber products:



Ceramic fiber cloth: Hitex brand ceramic Fiber Cloth a woven fabric made of our high quality ceramic fiber yarns. The cloth is reinforced with fiberglass filament, or stainless steel wire (Inconel/alloy steel wire).

It can be used in condition of high temperature up to1000° C normally and short working temperature even could reached 1260°C. Whats more, it has good resistance to acid corrosion, resistant aluminum,

zinc and other molten metal erosion.



Ceramic fiber tape: Hitex brand ceramic Fiber tape is woven from ceramic fiber yarns, and treated for dust

control. The tape is an excellent heat insulating material and a substitute for asbestos tape. The tape is

reinforced with fiberglass filament, or stainless steel wire (Inconel/alloy steel wire).



Ceramic fiber rope: Hitex brand ceramic Fiber rope includes three styles: twisted, round braided and

square braided which are made of our high quality ceramic fiber yarns. They can be used for high

temperature applications up to 1000° C. The rope is reinforced with fiberglass filament, and optional

stainless steel wire. It contains a certain amount of binder material which is normally burned at lower

 temperature and does not affect the insulation property.

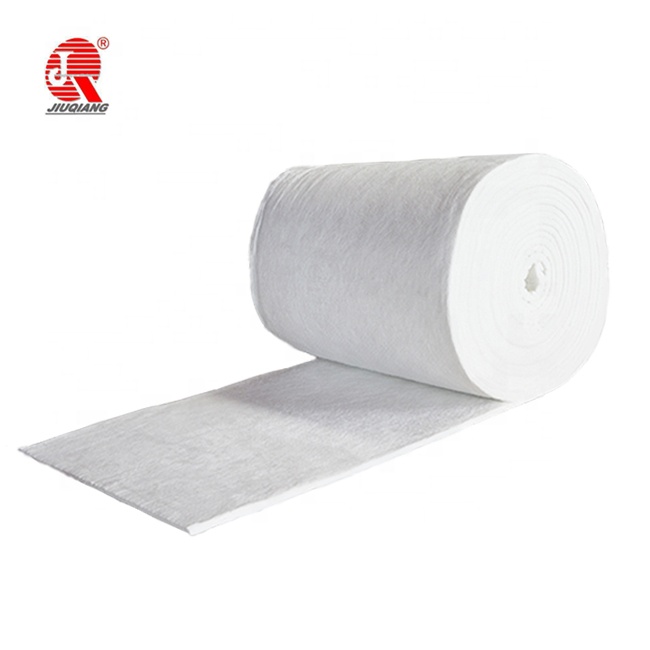

Ceramic fiber blanket: Hitex brand ceramic Fiber blanket is made through intensive needle-punching

processing. The product does not contain any bond or other compositions,and also no slag

inclusion content. The intensive needle-punching technics improved the fiber intertexture

and the resistance performance against delamination as well as the tensile strength.It have a good high temperature shrinkage after the heat treatment of 750-950 during the producing.

Beside the charicteriatics in common,it have better sound insulation performance and mechanism strength,

is easy to machining and install.



Ceramic fiber board: Hitex brand ceramic Fiber board is produced with different alumina-silica fibers

for applications at temperatures up to 1200 ºC by vacuum formed technology. With a characteristics of hard,

excellent strength ,light weight and easy to handle.It is ideal material for furnace ,boiler duct ,stack lining

and other heat equipments.



Ceramic fiber wool: Hitex brand ceramic Fiber board wool is manufactured from high purity raw materials:

alumina powder, silica sand for the high temperature grades and zircon sand is also used. The ceramic

mixture is heated in an electric furnace to temperatures in excess of 2000C and the stream of molten material

is drawn into fibers by either spinning or blowing.

Application

Ceramic fiber tape (can replace asbestos rope) is widely used for fire-resistant, heat insulation, fire prevention, sealing; friction braking, noise reduction, high temperature filtration in metallurgy, chemical, ceramics, glass, refractories, shipbuilding, aerospace, automotive, machinery, electronics, building materials, light industry field and other industrial sectors.

High temperature pipe insulation and sealing

Cable insulation coating

Coke oven opening sealing

Pyrolyzer brick wall expansion joints

Electric stove and bake oven’s door sealing, boiler

High temperature gas seals

Flexible expansion joint connection



Product Advantages



Excellent refractoriness (Excellent heat resistance), the continuous use temperature can reach 1260C for alloy wire reinforced ropes

Excellent corrosion resistance to acid, oil, gas, aluminum, zinc and other non-ferrous metals

Excellent high temperature strength and tensile strength

Excellent electrical insulation

Non-toxic harmless, no adverse effects on the environment

Excellent chemical stability and thermal stability

Low thermal conductivity, low thermal capacity, so that the products have excellent heat insulation

Resist to external mechanical forces

Able to withstand any thermal shock

Generate no gaps between modules



Detailed Images


About US

Hitex is supplying various of high temperature fabrics &textiles for thermal insulation, fire fighting, welding & cutting protecting, sealing & gaskets, refractory and composite industries. The technical fabrics are available with difference coating & treatment to working for extreme temperature and conditions etc.
