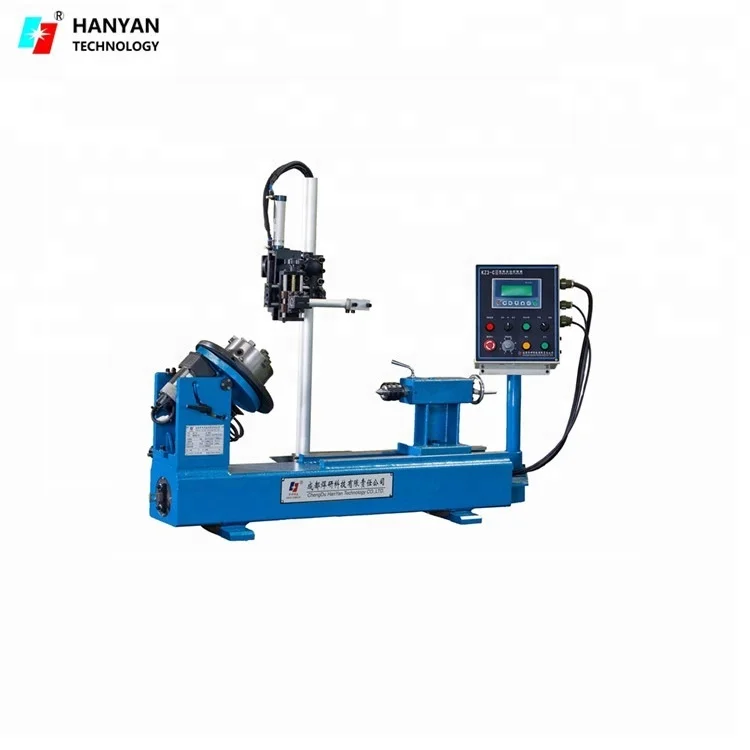

automatic PLC controlled three phase MIG welding machine

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description




Introduction

1.1.            Application:

    Easy to constitute an automatic circular (straight) seam welding system with proper welding sources and welding guns, to improve welding speed and quality. It’s mainly used in instrument, bellows, medical devices and electronic components and other precision workpeice.

1.2.            Components:

    It main consists of rotary headstock, tailstock, lathe bed, 3-D adjusting mechanism, pneumatic lifter, travel mechanism and PLC controlling system. Combined structure is convenient for installation, and has a good mobility.

1.2.1.      Lathe Bed: With guide rail, and the distance between headstock and tailstock is adjustable.

1.2.2.      Rotary Headstock: Driven by DC gear motor, with stepless speed regulation function and welding current detection switch.

1.2.3.      Tailstock: With hand wheel for imparting motion to lathe center.

1.2.4.      3-D Adjusting Mechanism: Adjust torch position accurately.

1.2.5.      Pneumatic Lifter: Lift up torch automatically.

1.2.6.      Travel Mechanism: Automatic longitudinal seam welding and move carriage.

1.2.7.      Control System: Advanced PLC controlling system, humanized operation interface, high degree automation, stable and reliable performance.

1.3.            Welding Process:

1.3.1.      Welding Mode: torch fixed, workpiece rotating. Automatic welding.

1.3.2.      Welding Method: It can be used with argon arc welding machine (supporting the use of wire feeder), CO2/MAG/MIG welding machine, pulsing welding machine or other welding sources to form an automatic girth (longitudinal) seam welding system.



Technical Parameters

Model

HGT-3C

Control power supply

Single phase 50Hz AC 200V

Welding power supply

Three phase 50Hz AC 380V

Workpiece thickness

According to the shape of opening

Workpiece diameter

120 mm≥φ≥10mm

Workpiece length

500mm

Headstock rotation speed

1~10 r/ min

Workpiece rotation diameter

350mm

Spindle bore

φ≤30mm

Spindle output torque

72N·m

Workpiece weight

30Kg

Carriage speed

120~1200mm/min

Torch lifting height

100mm

Headstock adjustable angle

0°,30°,45°,60°,90°

Torch 3-D adjustable range

X:±30mm, Y:±50mm, Z:±30mm

Max. welding current

500A

 HGT-3C_j

Application

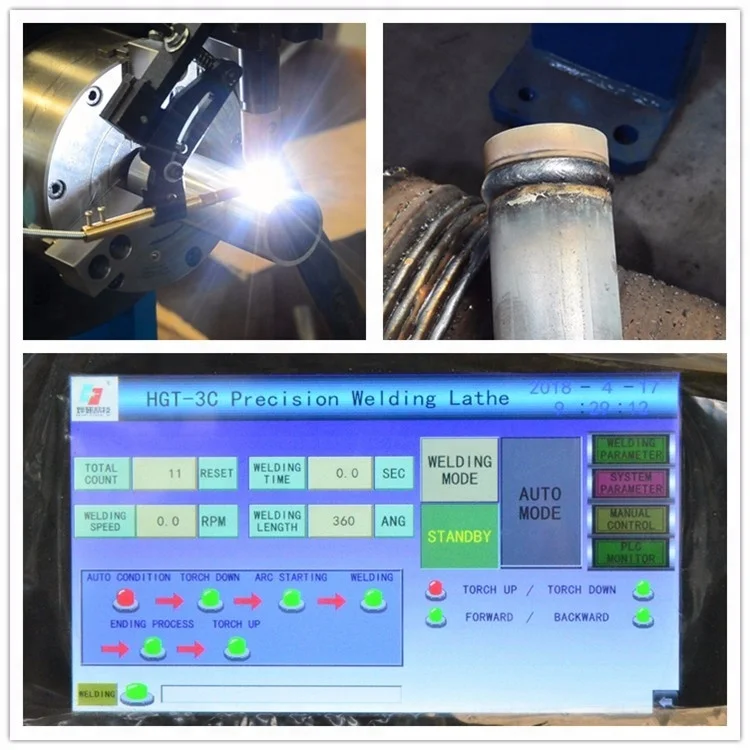

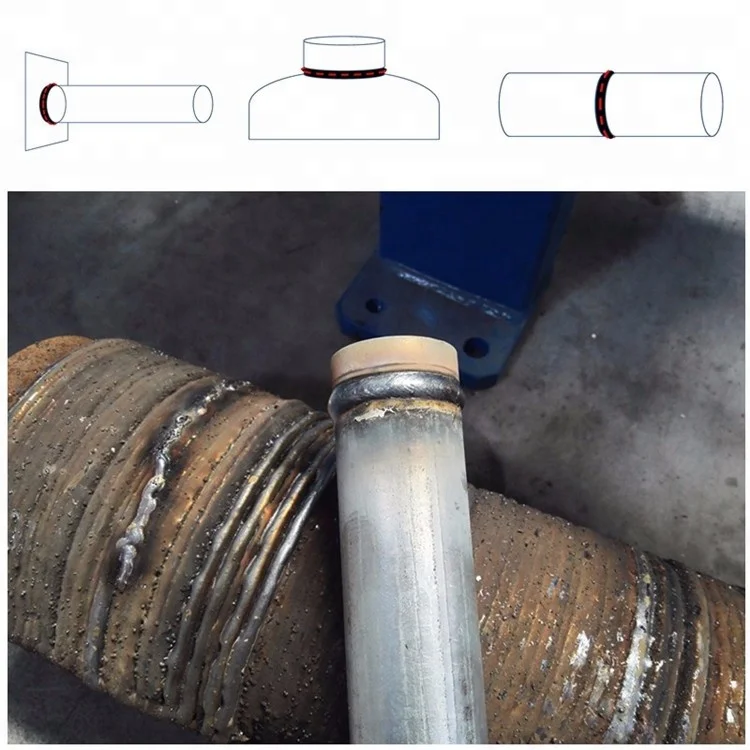

circumferential welding.jpg

HGT-3C application2.jpg

Package

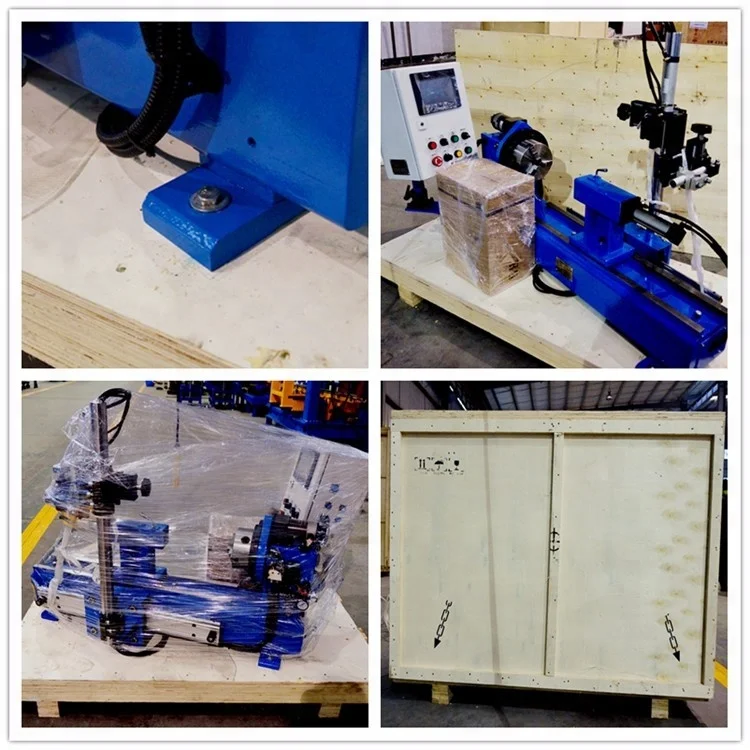

PACKAGE OF HGT-3C.jpg

Visit

In user factory:

    1. Before sales: on site techinical solution and quotation.

    2. after sales: installation, commisionning, training.

in user factory.jpg



In our factory:

user in our factory.jpg

Company Information

        Chengdu Hanyan Technology Co., Ltd. Is a national high-tech enterprise who specializing in designing, researching and developing, manufacturing and serving of automatic welding equipment. wholly-owned three sub-companies, covering resistance welding, robot welding and welding power source.

        From now on, we obtained 5 Patents of invention and 13 Patents of Utility Model; our products are approved by CCC and CE, additionally, our company have had ISO 9001:2008, ERR and CRM management system.

        We exported to over 29 countries and regions including General Longitudinal Seam Welder, Circumferential Seam Welder, Welding Oscillator, Welding TIG Wire Feeder, Welding Seam Tracker, Water Heater Welding Production Line, Fuel Tank Welding Line, Welding Robots, Strip Welding Equipment, Resistance Welding Equipment, Welding Power Sources and other Customized Welding Equipment.
