Product Overview

Description

0EHF.jpeg1product features.jpg

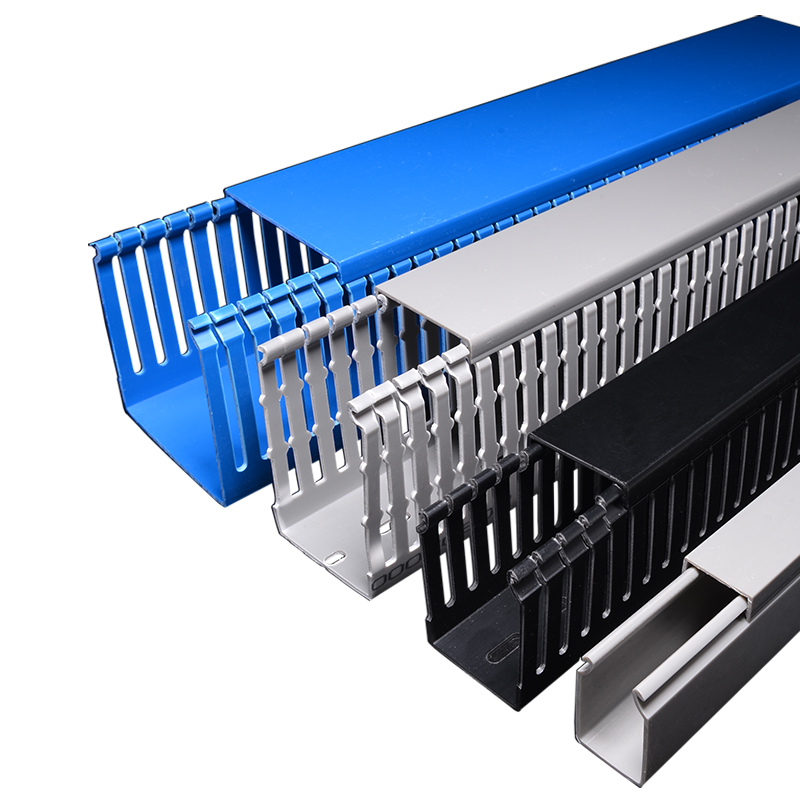

EASCO PVC Duct Halogen Free Cable Duct Lead Free PVC Trunking

Color -- RAL 7035

          -- Aesthetics Open Slotted Wiring Duct

Working Temperature  -40 to + 70 C

Standard -- Conforms to EN50085-2-3. DIN 43659  Rohs Complied

Safe -- Smooth edges free from burrs or sharp edges without abrasion

Material  -- Low-smoke, halogen-free Non-toxic, lead-free, environmentally safe

               -- Insulating, Shock-resistant and self-extinguishing thermoplastic

               -- Fire safety in conformity with UL 94V0

Labeling line --  two scored lines on the cover is for sticking the labels neatly

UL94 V-0 Material Flame Rating

      -- Self-extinguishing PVC provides a greater flame resistance when compared to

         other halogen-free wiring duct, enabling its use in more electrical applications

Applications

     -- The Halogen Free Wiring Duct is particularly suitable for installation in railway

         stations, airports, public buildings, hospitals, subways and any wiring requirements

         for halogen free wiring duct.


Article-No.Item No.Slot 4mmSlot 6mmSlot 8mmWxHxL(mm)Packing (pcs/pack)
1102-00001EHF3535S-L35x35x2000mm50
1102-00002EHF2540S-L25x40x2000mm58
1102-00003EHF4040S-L40x40x2000mm50
1102-00004EHF6040S-L60x40x2000mm40
1102-00005EHF8040S-L80x40x2000mm26
1102-00006EHF3550S-L35x50x2000mm60
1102-00007EHF5050S-L50x50x2000mm40
1102-00008EHF8050S-L80x50x2000mm26
1102-00009EHF2560SML25x60x2000mm66
1102-00010EHF4060SML40x60x2000mm42
1102-00011EHF6060SML60x60x2000mm30
1102-00012EHF8060SML80x60x2000mm22
1102-00013EHF3580S-L35x80x2000mm36
1102-00014EHF4080S-L40x80x2000mm28
1102-00015EHF5080S-L50x80x2000mm24
1102-00016EHF6080S-L60x80x2000mm20
1102-00017EHF8080S-L80x80x2000mm16
1102-00018EHF10080S-L100x80x2000mm12
1102-00019EHF40100S-L40x100x2000mm28
1102-00020EHF50100S-L50x100x2000mm24
1102-00021EHF60100S-L60x100x2000mm20
1102-00022EHF75100S-L75x100x2000mm16
1102-00023EHF100100S-L100x100x2000mm12





ISO9001:2008  ; ISO14001:2004  ; UL E354081 Wire Duct  ; UL94V-0 Wiring Duct  ; CE Wire Duct  ; UV test Wiring Duct ; Rohs  Halogen Free Wire Duct  ;  Rohs Wiring Duct ; Rohs Flexible Channel  ; Reach Cable Duct ; High Temperature Test : PVC Cable Trunking

4why choose us.jpg

Factory 26+ years manufacturing experience, Alibaba 7 yrs gold supplier -------- EASCO

EASCOprovides solutions to wire & cable management in the fields of industrial electrical accessories, our product categories: wiring duct made of rigid self-extinguishing PVC material and hardness lead-free PVC material, flexible conduit, nylon tie, wrapping band, electrical din rail, cable clip, cable clamp, cable gland, cable connector, bushing, cable marking, terminal, and wiring accessories. To meet the needs of users worldwide, Easco complies with the international Quality Standard Management ISO9001 as well as Environmental management ISO14001, with more products certified by UL, CE, RoHS, REACH, etc.
